9x0x

Pseudomonas aeruginosa (PAO1) Outer membrane PilQ (Secretin) with SlkB in C14 symmetry

Method: ELECTRON MICROSCOPY D_max: 163.9 Å Quality: GOOD

SAXS Profile

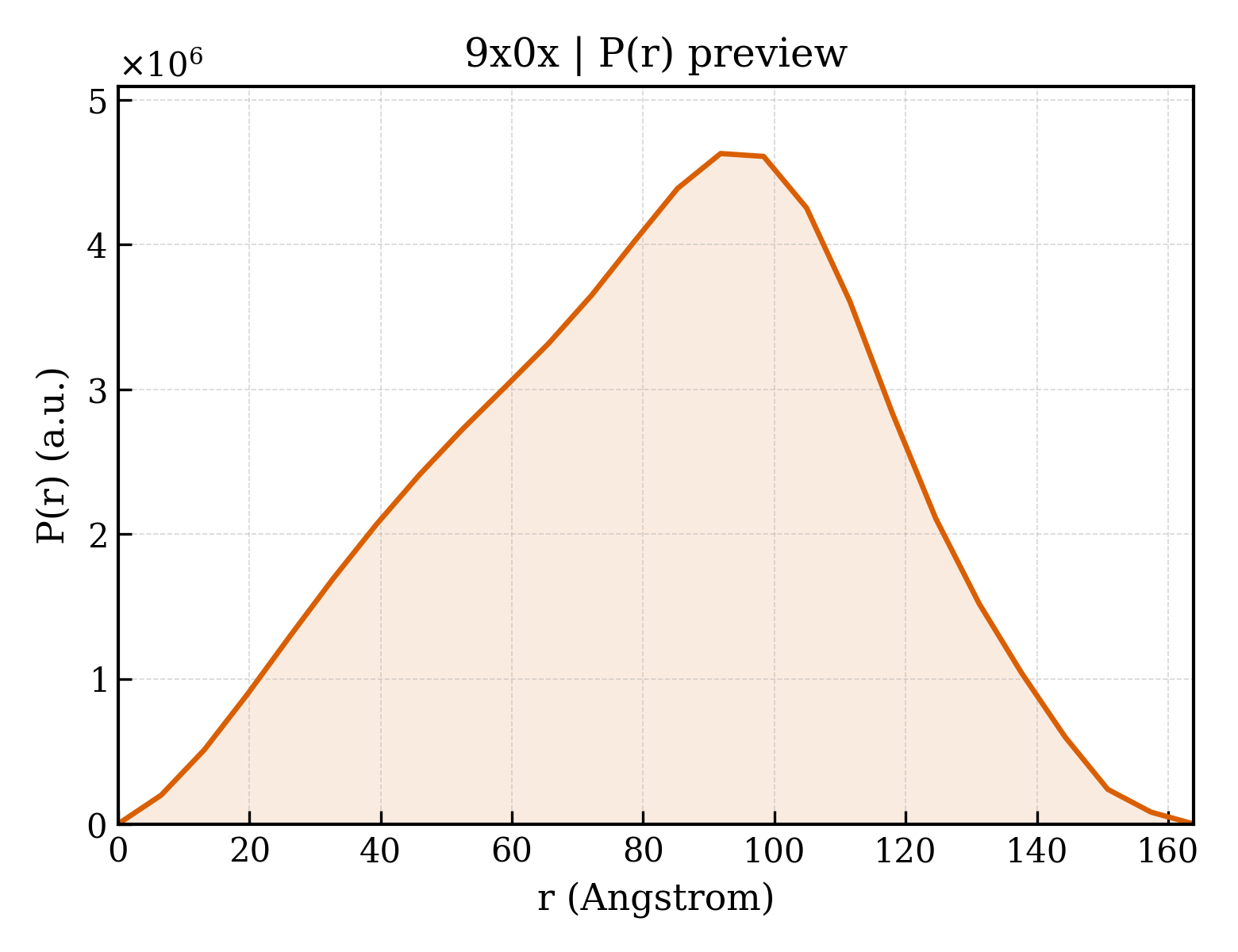

P(r) Distribution

▼

1. Structure Basics

entry_id	9x0x
deposition_date	2025-09-30
title	Pseudomonas aeruginosa (PAO1) Outer membrane PilQ (Secretin) with SlkB in C14 symmetry
keywords	type IV pili, secretin, plug, outer membrane, permeability barrier, antibiotics, drug resistance, TRANSPORT PROTEIN; TRANSPORT PROTEIN
method	ELECTRON MICROSCOPY

▼

Download Data

SAXS curve (.dat) P(r) distribution (.pr.out) Structure (CIF)

▼

2. SAXS Parameters (CRYSOL)

rg_guinier	63.03 Å
rg_electron	62.50 Å
i0	4591190000.00
molecular_weight	589870.0 kDa
excluded_volume	746510 Å³
envelope_volume	1259400 Å³
shell_volume	163910 Å³
envelope_diameter	172.8 Å
shell_rg	72.41 Å
envelope_rg	57.50 Å
shape_rg	62.51 Å
total_rg	62.68 Å
total_atoms	41454
n_residues	5390
n_harmonics	20
q_range	— – 0.5000 Å⁻¹
n_points	101
shell_type	directional
solvent_density	0.3340 e/Å³
contrast_shell	0.0300 e/Å³
crysol_version	4.1.3

▼

3. P(r) Analysis (GNOM)

dmax	163.9 Å
rg_real	62.33 Å
rg_real_error	0.71 Å
i0_real	4.5910e+09
i0_real_error	7.6630e+07
rg_reciprocal	63.60 Å
i0_reciprocal	4601000000.0000
total_estimate	0.8394
solution_quality	GOOD a GOOD solution
n_peaks	1
r_peak_primary	91.8 Å
skewness	-0.189
kurtosis	-0.585
angular_range	— – 0.1250 Å⁻¹
current_alpha	0.0000
highest_alpha	541600000.0000
n_real_points	26
gnom_version	4.1.3
quality_criteria	AN1: 0.000; Oscil: 0.970; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.999; Smooth: 0.000

▶

4. Crystallography & Experiment

▶

5. Entities & Polymer Info (3)

Entity 1 polymer

description	Fimbrial assembly protein PilQ
formula_weight	77463.7 kDa
src_method	man
entity_count	14

Polymer

type	polypeptide(L)
strand_id	A,B,C,D,E,F,G,H,I,J,K,L,M,N
atom_count	41454

MNSGLSRLGIALLAAMFAPALLAADLEKLDVAALPGDRVELKLQFDEPVAAPRGYTIEQPARIALDLPGVQNKLGTKNRELSVGNTRSVTVVEAKDRTRLIINLTALSSYTTRVEGNNLFVVVGNSPAGASVASAAPVKASPAPASYAQPIKPKPYVPAGRAIRNIDFQRGEKGEGNVVIDLSDPTLSPDIQEQGGKIRLDFAKTQLPDALRVRLDVKDFATPVQFVNASAQSDRTSITIEPSGLYDYLVYQTDNRLTVSIKPMTTEDAERRKKDNFAYTGEKLSLNFQDIDVRSVLQLIADFTDLNLVASDTVQGNITLRLQNVPWDQALDLVLKTKGLDKRKLGNVLLVAPADEIAARERQELEAQKQIAELAPLRRELIQVNYAKAADIAKLFQSVTSDGGQEGKEGGRGSITVDDRTNSIIAYQPQERLDELRRIVSQLDIPVRQVMIEARIVEANVGYDKSLGVRWGGAYHKGNWSGYGKDGNIGIKDEDGMNCGPIAGSCTFPTTGTSKSPSPFVDLGAKDATSGIGIGFITDNIILDLQLSAMEKTGNGEIVSQPKVVTSDKETAKILKGSEVPYQEASSSGATSTSFKEAALSLEVTPQITPDNRIIVEVKVTKDAPDYQNMLNGVPPINKNEVNAKILVNDGETIVIGGVFSNEQSKSVEKVPFLGELPYLGRLFRRDTVTDRKNELLVFLTPRIMNNQAIAIGR

Source

organism	Pseudomonas aeruginosa PAO1
ncbi_taxonomy_id	208964
host_organism	Pseudomonas aeruginosa PAO1

Entity 2 polymer

description	Multidrug transporter
formula_weight	11599.3 kDa
src_method	man
entity_count	14

Polymer

type	polypeptide(L)
strand_id	O,S,P,Q,R,T,U,V,W,X,Y,Z,a,b

MNLFRTTALVLALTTGLSSMPALADAVQENASGDPMYTVEAPPAYAMIGDLLIARPFLIAATAVGAVAFVVSLPFTAASGSVGKAGQALVVDPGKEAFVRCLGCTTSGYNHDES

Source

organism	Pseudomonas aeruginosa PAO1
ncbi_taxonomy_id	208964
host_organism	Pseudomonas aeruginosa PAO1

Entity 3 non-polymer

description	PHOSPHATIDYLETHANOLAMINE
formula_weight	734.0 kDa
src_method	syn
entity_count	14

▶

6. Citations (1)

▶

length_a	1.000 Å
length_b	1.000 Å
length_c	1.000 Å
angle_alpha	90.00 °
angle_beta	90.00 °
angle_gamma	90.00 °
z_pdb	—

space_group	P 1
int_tables_number	1
crystal_system	triclinic

resolution	2.45 Å
resolution_method	—
num_particles	111983

fit	/app/data/saxs_computation/x0/9x0x/9x0x.fit
pddf	/app/data/pr_computation/x0/9x0x/9x0x.pr.out
profile	/app/data/saxs_computation/x0/9x0x/9x0x.dat
