9x8s
Crystal structure of the human GAS41 YEATS domain in complex with an acetylated YFV capsid peptide (K4ac)

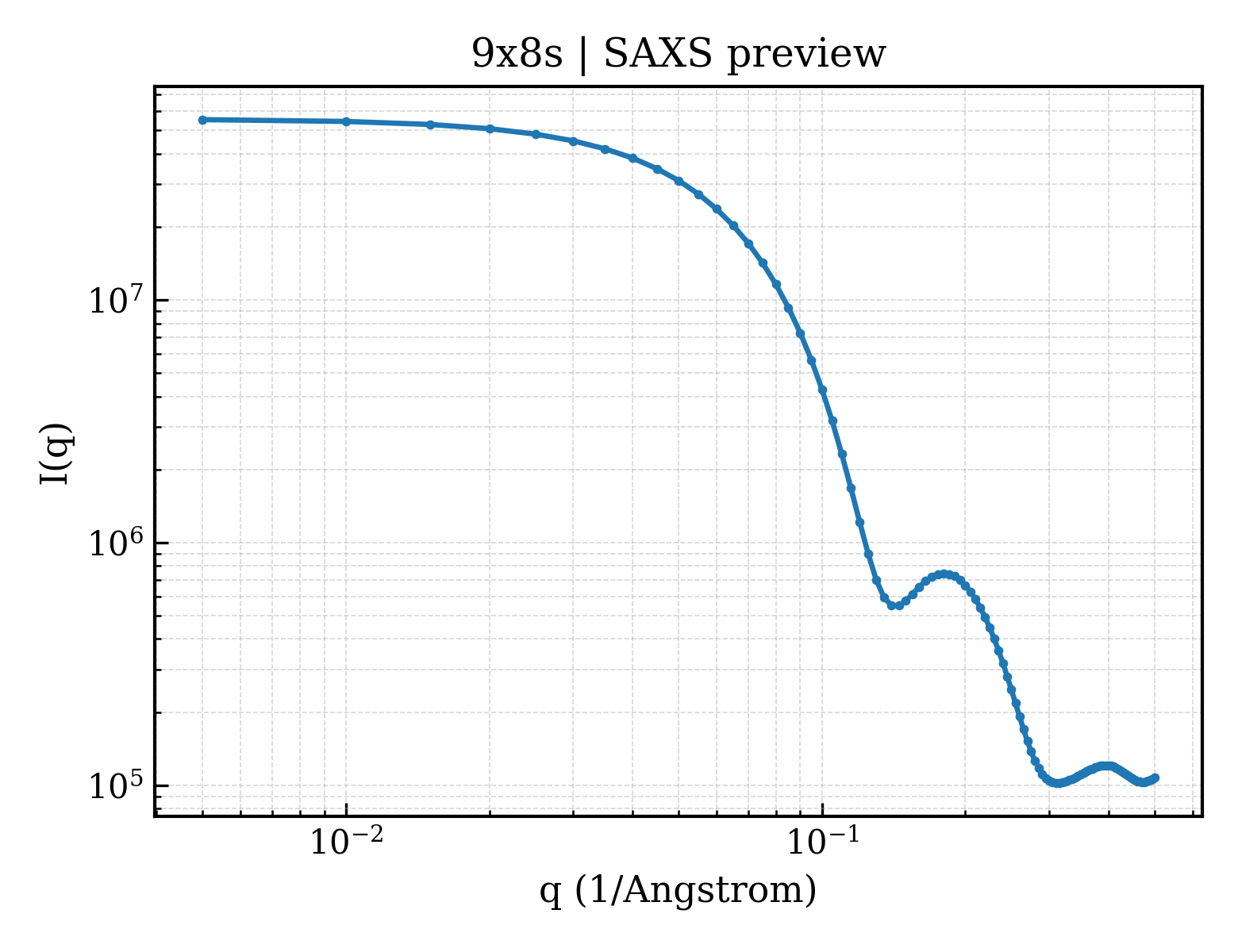

SAXS Profile

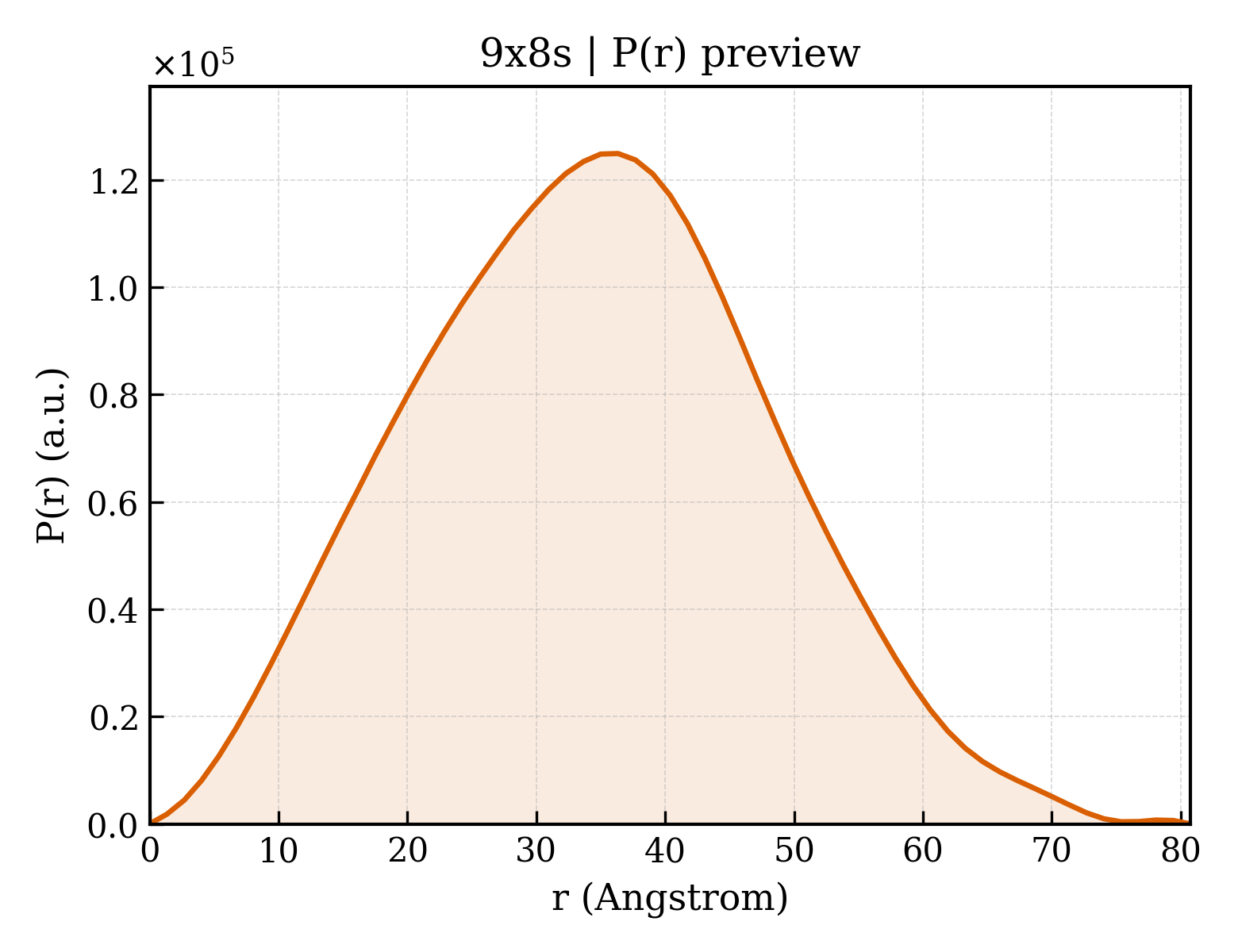

P(r) Distribution
1. Structure Basics
| entry_id | 9x8s |
| deposition_date | 2025-10-20 |
| last_revision | 2025-11-26 |
| title | Crystal structure of the human GAS41 YEATS domain in complex with an acetylated YFV capsid peptide (K4ac) |
| keywords | YEATS domain, histone mimic, lysine acetylation, viral peptide, VIRAL PROTEIN; VIRAL PROTEIN |
| method | X-RAY DIFFRACTION |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 26.30 Å |
| rg_electron | 25.09 Å |
| i0 | 55578100.00 |
| molecular_weight | 61154.0 kDa |
| excluded_volume | 77943 ų |
| envelope_volume | 96974 ų |
| shell_volume | 31871 ų |
| envelope_diameter | 84.3 Å |
| shell_rg | 32.72 Å |
| envelope_rg | 25.01 Å |
| shape_rg | 25.09 Å |
| total_rg | 26.02 Å |
| total_atoms | 4335 |
| n_residues | 516 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 80.8 Å |
| rg_real | 26.12 Å |
| rg_real_error | 0.43 Å |
| i0_real | 5.5580e+07 |
| i0_real_error | 7.6510e+05 |
| rg_reciprocal | 26.18 Å |
| i0_reciprocal | 55580000.0000 |
| total_estimate | 0.8984 |
| solution_quality | GOOD a GOOD solution |
| n_peaks | 2 |
| r_peak_primary | 36.4 Å |
| skewness | 0.117 |
| kurtosis | -0.387 |
| angular_range | — – 0.3000 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 11410000.0000 |
| n_real_points | 61 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.899; Stabil: 0.999; Sysdev: 1.000; Positv: 1.000; Valcen: 0.985; Smooth: 0.994 |
