9x8u
Crystal structure of the human GAS41 YEATS domain in complex with an acetylated YFV capsid peptide (K8ac)

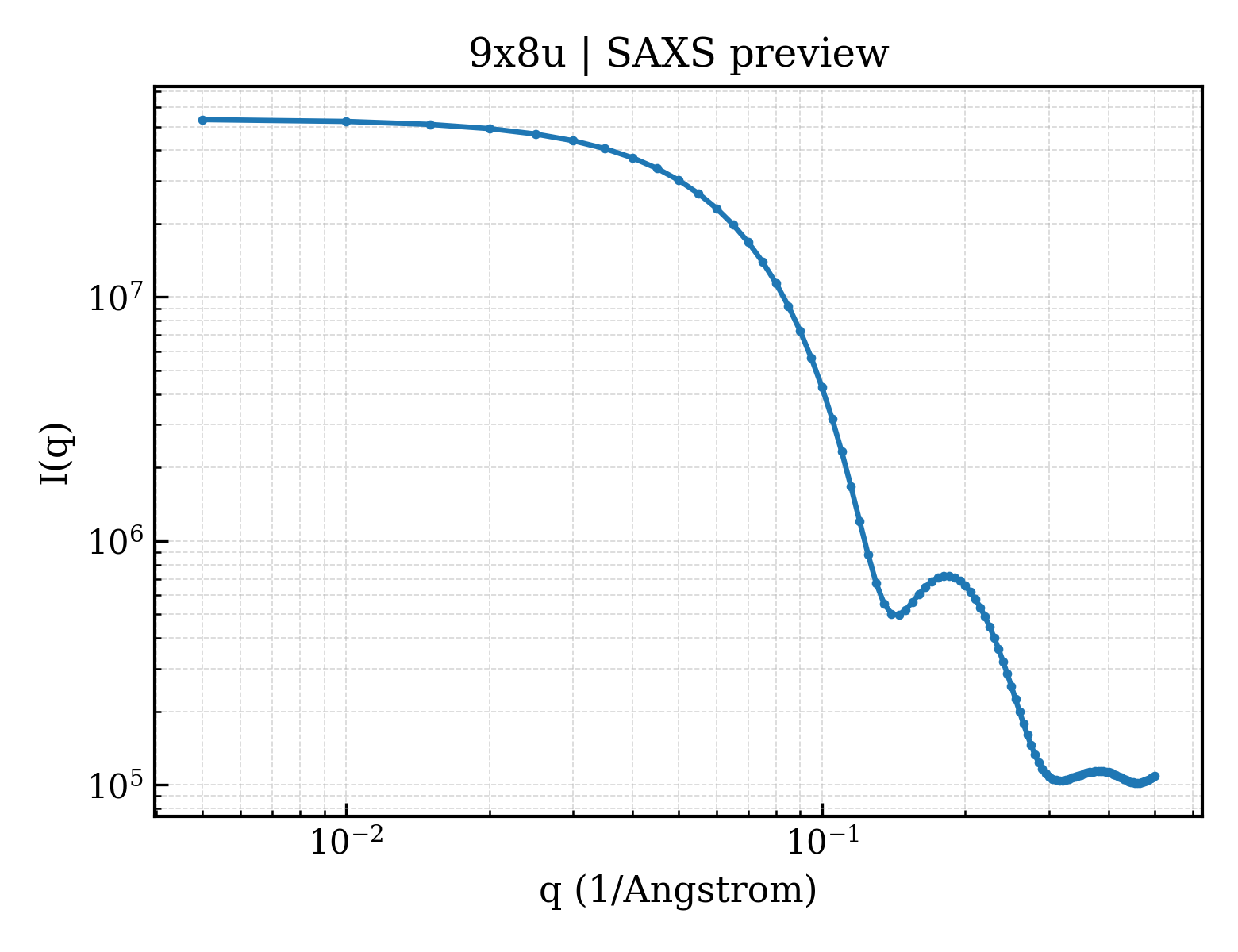

SAXS Profile

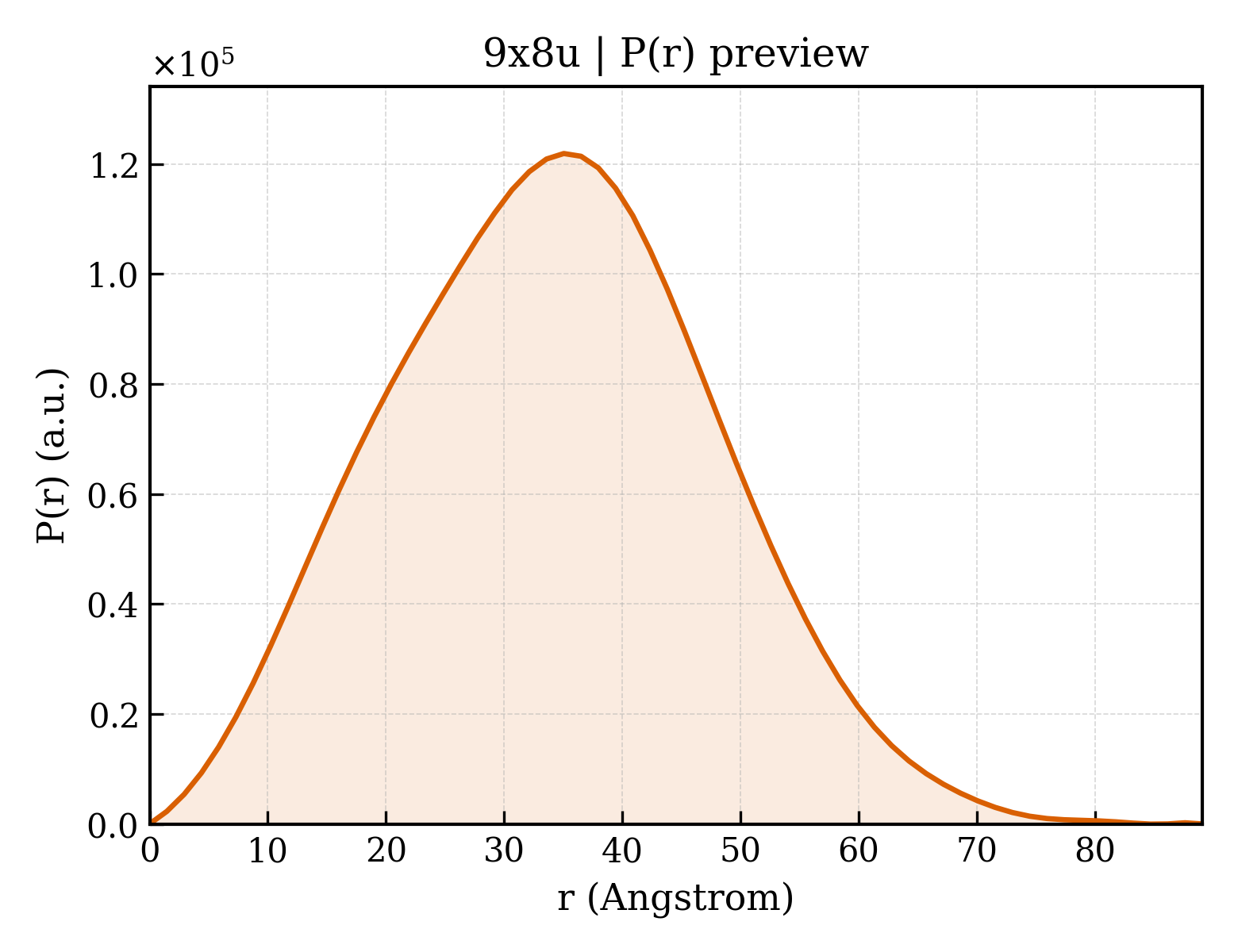

P(r) Distribution
1. Structure Basics
| entry_id | 9x8u |
| deposition_date | 2025-10-20 |
| last_revision | 2025-11-26 |
| title | Crystal structure of the human GAS41 YEATS domain in complex with an acetylated YFV capsid peptide (K8ac) |
| keywords | YEATS domain, histone mimic, lysine acetylation, viral peptide, NUCLEAR PROTEIN; NUCLEAR PROTEIN |
| method | X-RAY DIFFRACTION |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 26.16 Å |
| rg_electron | 25.03 Å |
| i0 | 53687600.00 |
| molecular_weight | 60414.0 kDa |
| excluded_volume | 77113 ų |
| envelope_volume | 96712 ų |
| shell_volume | 31764 ų |
| envelope_diameter | 92.3 Å |
| shell_rg | 32.68 Å |
| envelope_rg | 25.08 Å |
| shape_rg | 25.02 Å |
| total_rg | 25.99 Å |
| total_atoms | 4283 |
| n_residues | 515 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 89.1 Å |
| rg_real | 26.00 Å |
| rg_real_error | 0.71 Å |
| i0_real | 5.3690e+07 |
| i0_real_error | 8.4060e+05 |
| rg_reciprocal | 26.05 Å |
| i0_reciprocal | 53690000.0000 |
| total_estimate | 0.7835 |
| solution_quality | GOOD a GOOD solution |
| n_peaks | 2 |
| r_peak_primary | 35.0 Å |
| skewness | 0.144 |
| kurtosis | -0.307 |
| angular_range | — – 0.3050 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 11510000.0000 |
| n_real_points | 62 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.727; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.999; Smooth: 0.000 |
