9xfk

In situ structure of bacterial 50S ribosomes

Method: ELECTRON MICROSCOPY D_max: 262.7 Å Quality: GOOD

SAXS Profile

P(r) Distribution

▼

1. Structure Basics

entry_id	9xfk
deposition_date	2025-10-29
last_revision	2026-04-01
title	In situ structure of bacterial 50S ribosomes
keywords	ribosome, 50S, in situ, bacterial; RIBOSOME
method	ELECTRON MICROSCOPY

▼

Download Data

SAXS curve (.dat) P(r) distribution (.pr.out) Structure (CIF)

▼

2. SAXS Parameters (CRYSOL)

rg_guinier	71.22 Å
rg_electron	72.23 Å
i0	61637000000.00
molecular_weight	1356200.0 kDa
excluded_volume	1383500 Å³
envelope_volume	2383000 Å³
shell_volume	253620 Å³
envelope_diameter	261.2 Å
shell_rg	83.90 Å
envelope_rg	72.26 Å
shape_rg	72.29 Å
total_rg	72.18 Å
total_atoms	150909
n_residues	6347
n_harmonics	20
q_range	— – 0.5000 Å⁻¹
n_points	101
shell_type	directional
solvent_density	0.3340 e/Å³
contrast_shell	0.0300 e/Å³
crysol_version	4.1.3

▼

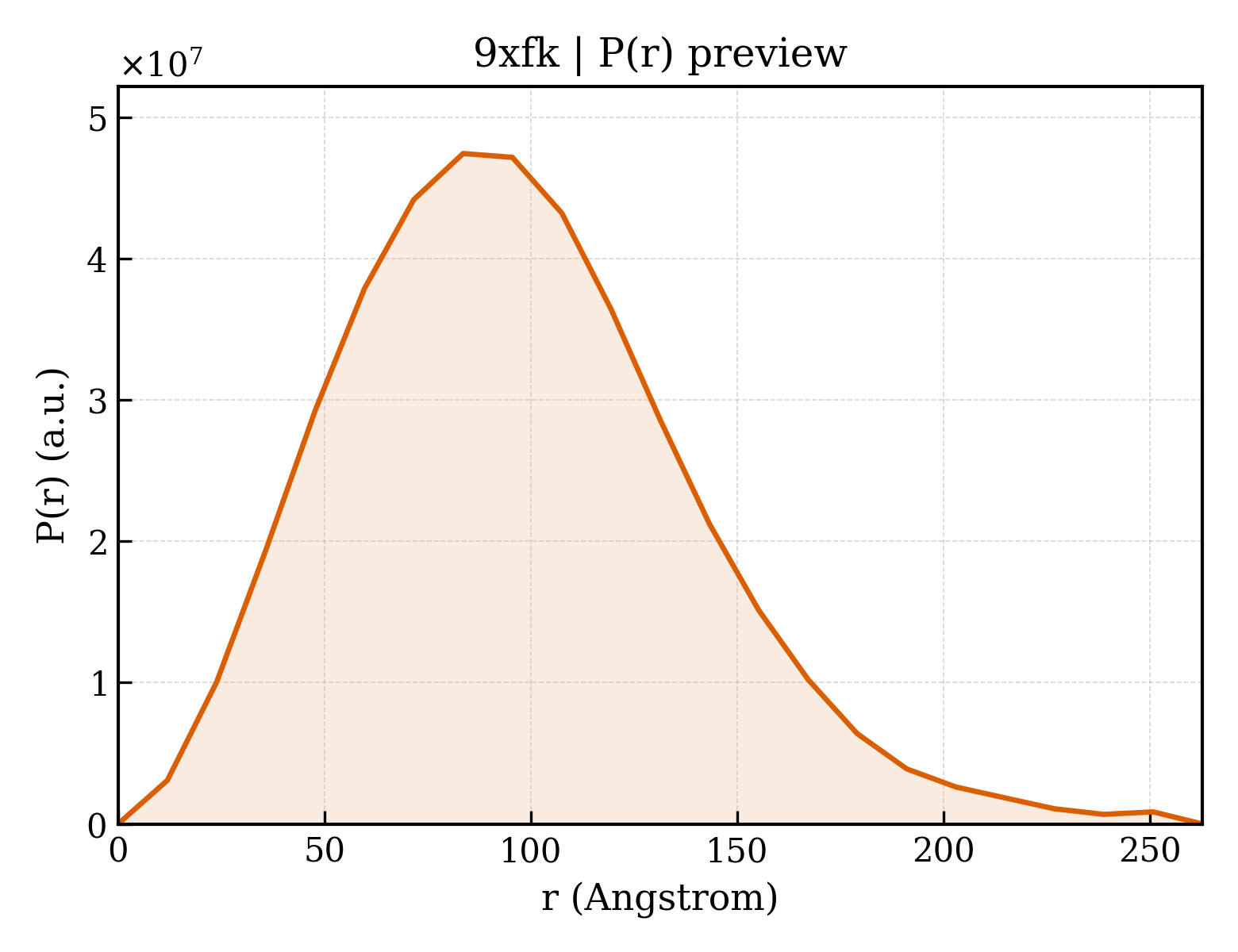

3. P(r) Analysis (GNOM)

dmax	262.7 Å
rg_real	74.08 Å
rg_real_error	1.38 Å
i0_real	6.1640e+10
i0_real_error	1.2440e+09
rg_reciprocal	71.78 Å
i0_reciprocal	61720000000.0000
total_estimate	0.8819
solution_quality	GOOD a GOOD solution
n_peaks	2
r_peak_primary	83.6 Å
skewness	0.536
kurtosis	0.320
angular_range	— – 0.1100 Å⁻¹
current_alpha	0.9470
highest_alpha	8020000000.0000
n_real_points	23
gnom_version	4.1.3
quality_criteria	AN1: 0.000; Oscil: 0.666; Stabil: 0.898; Sysdev: 1.000; Positv: 1.000; Valcen: 0.939; Smooth: 0.877

▶

4. Crystallography & Experiment

▶

5. Entities & Polymer Info (35)

Entity 1 polymer

description	23S rRNA
formula_weight	941811.6 kDa
src_method	nat
entity_count	1

Polymer

type	polyribonucleotide
strand_id	I
atom_count	150936

GGUUAAGCGACUAAGCGUACACGGUGGAUGCCCUGGCAGUCAGAGGCGAUGAAGGACGUGCUAAUCUGCGAUAAGCGUCGGUAAGGUGAUAUGAACCGUUAUAACCGGCGAUUUCCGAAUGGGGAAACCCAGUGUGUUUCGACACACUAUCAUUAACUGAAUCCAUAGGUUAAUGAGGCGAACCGGGGGAACUGAAACAUCUAAGUACCCCGAGGAAAAGAAAUCAACCGAGAUUCCCCCAGUAGCGGCGAGCGAACGGGGAGCAGCCCAGAGCCUGAAUCAGUGUGUGUGUUAGUGGAAGCGUCUGGAAAGGCGCGCGAUACAGGGUGACAGCCCCGUACACAAAAAUGCACAUGCUGUGAGCUCGAUGAGUAGGGCGGGACACGUGGUAUCCUGUCUGAAUAUGGGGGGACCAUCCUCCAAGGCUAAAUACUCCUGACUGACCGAUAGUGAACCAGUACCGUGAGGGAAAGGCGAAAAGAACCCCGGCGAGGGGAGUGAAAAAGAACCUGAAACCGUGUACGUACAAGCAGUGGGAGCACGCUUAGGCGUGUGACUGCGUACCUUUUGUAUAAUGGGUCAGCGACUUAUAUUCUGUAGCAAGGUUAACCGAAUAGGGGAGCCGAAGGGAAACCGAGUCUUAACUGGGCGUUAAGUUGCAGGGUAUAGACCCGAAACCCGGUGAUCUAGCCAUGGGCAGGUUGAAGGUUGGGUAACACUAACUGGAGGACCGAACCGACUAAUGUUGAAAAAUUAGCGGAUGACUUGUGGCUGGGGGUGAAAGGCCAAUCAAACCGGGAGAUAGCUGGUUCUCCCCGAAAGCUAUUUAGGUAGCGCCUCGUGAAUUCAUCUCCGGGGGUAGAGCACUGUUUCGGCAAGGGGGUCAUCCCGACUUACCAACCCGAUGCAAACUGCGAAUACCGGAGAAUGUUAUCACGGGAGACACACGGCGGGUGCUAACGUCCGUCGUGAAGAGGGAAACAACCCAGACCGCCAGCUAAGGUCCCAAAGUCAUGGUUAAGUGGGAAACGAUGUGGGAAGGCCCAGACAGCCAGGAUGUUGGCUUAGAAGCAGCCAUCAUUUAAAGAAAGCGUAAUAGCUCACUGGUCGAGUCGGCCUGCGCGGAAGAUGUAACGGGGCUAAACCAUGCACCGAAGCUGCGGCAGCGACGCUUAUGCGUUGUUGGGUAGGGGAGCGUUCUGUAAGCCUGCGAAGGUGUGCUGUGAGGCAUGCUGGAGGUAUCAGAAGUGCGAAUGCUGACAUAAGUAACGAUAAAGCGGGUGAAAAGCCCGCUCGCCGGAAGACCAAGGGUUCCUGUCCAACGUUAAUCGGGGCAGGGUGAGUCGACCCCUAAGGCGAGGCCGAAAGGCGUAGUCGAUGGGAAACAGGUUAAUAUUCCUGUACUUGGUGUUACUGCGAAGGGGGGACGGAGAAGGCUAUGUUGGCCGGGCGACGGUUGUCCCGGUUUAAGCGUGUAGGCUGGUUUUCCAGGCAAAUCCGGAAAAUCAAGGCUGAGGCGUGAUGACGAGGCACUACGGUGCUGAAGCAACAAAUGCCCUGCUUCCAGGAAAAGCCUCUAAGCAUCAGGUAACAUCAAAUCGUACCCCAAACCGACACAGGUGGUCAGGUAGAGAAUACCAAGGCGCUUGAGAGAACUCGGGUGAAGGAACUAGGCAAAAUGGUGCCGUAACUUCGGGAGAAGGCACGCUGAUAUGUAGGUGAGGUCCCUCGCGGAUGGAGCUGAAAUCAGUCGAAGAUACCAGCUGGCUGCAACUGUUUAUUAAAAACACAGCACUGUGCAAACACGAAAGUGGACGUAUACGGUGUGACGCCUGCCCGGUGCCGGAAGGUUAAUUGAUGGGGUUAGCGCAAGCGAAGCUCUUGAUCGAAGCCCCGGUAAACGGCGGCCGUAACXAUAACGGUCCUAAGGUAGCGAAAUUCCUUGUCGGGUAAGUUCCGACCUGCACGAAUGGCGUAAUGAUGGCCAGGCUGUCUCCACCCGAGACUCAGUGAAAUUGAACUCGCUGUGAAGAUGCAGUGUACCCGCGGCAAGACGGAAAGACCCCGUGAACCUUUACUAUAGCUUGACACUGAACAUUGAGCCUUGAUGUGUAGGAUAGGUGGGAGGCUUUGAAGUGUGGACGCCAGUCUGCAUGGAGCCGACCUUGAAAUACCACCCUUUAAUGUUUGAUGUUCUAACGUUGACCCGUAAUCCGGGUUGCGGACAGUGUCUGGUGGGUAGUUUGACUGGGGCGGUCUCCUCCUAAAGAGUAACGGAGGAGCACGAAGGUUGGCUAAUCCUGGUCGGACAUCAGGAGGUUAGUGCAAUGGCAUAAGCCAGCUUGACUGCGAGCGUGACGGCGCGAGCAGGUGCGAAAGCAGGUCAUAGUGAUCCGGUGGUUCUGAAUGGAAGGGCCAUCGCUCAACGGAUAAAAGGUACUCCGGGGAUAACAGGCUGAUACCGCCCAAGAGUUCAUAUCGACGGCGGUGUUUGGCACCUCGAUGUCGGCUCAUCACAUCCUGGGGCUGAAGUAGGUCCCAAGGGUAUGGCUGUUCGCCAUUUAAAGUGGUACGCGAGCUGGGUUUAGAACGUCGUGAGACAGUUCGGUCCCUAUCUGCCGUGGGCGCUGGAGAACUGAGGGGGGCUGCUCCUAGUACGAGAGGACCGGAGUGGACGCAUCACUGGUGUUCGGGUUGUCAUGCCAAUGGCACUGCCCGGUAGCUAAAUGCGGAAGAGAUAAGUGCUGAAAGCAUCUAAGCACGAAACUUGCCCCGAGAUGAGUUCUCCCUGACCCUUUAAGGGUCCUGAAGGAACGUUGAAGACGACGACGUUGAUAGGCCGGGUGUGUAAGCGCAGCGAUGCGUUGAGCUAACCGGUACUAAUGAACCGUGAGGCUUAACCUU

Entity 2 polymer

description	5S rRNA
formula_weight	38177.8 kDa
src_method	nat
entity_count	1

Polymer

type	polyribonucleotide
strand_id	J

GCCUGGCGGCCGUAGCGCGGUGGUCCCACCUGACCCCAUGCCGAACUCAGAAGUGAAACGCCGUAGCGCCGAUGGUAGUGUGGGGUCUCCCCAUGCGAGAGUAGGGAACUGCCAGGCA

Entity 3 polymer

description	Large ribosomal subunit protein uL2
formula_weight	29663.2 kDa
src_method	nat
entity_count	1

Polymer

type	polypeptide(L)
strand_id	K

AVVKCKPTSPGRRHVVKVVNPELHKGKPFAPLLEKNSKSGGRNNNGRITTRHIGGGHKQAYRIVDFKRNKDGIPAVVERLEYDPNRSANIALVLYKDGERRYILAPKGLKAGDQIQSGVDAAIKPGNTLPMRNIPVGSTVHNVEMKPGKGGQLARSAGTYVQIVARDGAYVTLRLRSGEMRKVEADCRATLGEVGNAEHMLRVLGKAGAARWRGVRPTVRGTAMNPVDHPHGGGEGRNFGKHPVTPWGVQTKGKKTRSNKRTDKFIVRRRS

Entity 4 polymer

description	Large ribosomal subunit protein uL3
formula_weight	22277.5 kDa
src_method	nat
entity_count	1

Polymer

type	polypeptide(L)
strand_id	L

MIGLVGKKVGMTRIFTEDGVSIPVTVIEVEANRVTQVKDLANDGYRAIQVTTGAKKANRVTKPEAGHFAKAGVEAGRGLWEFRLAEGEEFTVGQSISVELFADVKKVDVTGTSKGKGFAGTVKRWNFRTQDATHGNSLSHRVPGSIGQNQTPGKVFKGKKMAGQMGNERVTVQSLDVVRVDAERNLLLVKGAVPGATGSDLIVKPAVKA

Entity 5 polymer

description	50S ribosomal protein L4
formula_weight	22121.6 kDa
src_method	nat
entity_count	1

Polymer

type	polypeptide(L)
strand_id	M

MELVLKDAQSALTVSETTFGRDFNEALVHQVVVAYAAGARQGTRAQKTRAEVTGSGKKPWRQKGTGRARSGSIKSPIWRSGGVTFAARPQDHSQKVNKKMYRGALKSILSELVRQDRLIVVEKFSVEAPKTKLLAQKLKDMALEDVLIITGELDENLFLAARNLHKVDVRDATGIDPVSLIAFDKVVMTADAVKQVEEMLA

Entity 6 polymer

description	50S ribosomal protein L5
formula_weight	20073.2 kDa
src_method	nat
entity_count	1

Polymer

type	polypeptide(L)
strand_id	N

AKLHDYYKDEVVKKLMTEFNYNSVMQVPRVEKITLNMGVGEAIADKKLLDNAAADLAAISGQKPLITKARKSVAGFKIRQGYPIGCKVTLRGERMWEFFERLITIAVPRIRDFRGLSAKSFDGRGNYSMGVREQIIFPEIDYDKVDRVRGLDITITTTAKSDEEGRALLAAFDFPFR

Entity 7 polymer

description	Large ribosomal subunit protein uL6
formula_weight	18801.6 kDa
src_method	nat
entity_count	1

Polymer

type	polypeptide(L)
strand_id	O

SRVAKAPVVVPAGVDVKINGQVITIKGKNGELTRTLNDAVEVKHADNTLTFGPRDGYADGWAQAGTARALLNSMVIGVTEGFTKKLQLVGVGYRAAVKGNVINLSLGFSHPVDHQLPAGITAECPTQTEIVLKGADKQVIGQVAADLRAYRRPEPYKGKGVRYADEVVRTKEAKKK

Entity 8 polymer

description	50S ribosomal protein L9
formula_weight	15789.0 kDa
src_method	nat
entity_count	1

Polymer

type	polypeptide(L)
strand_id	P

MQVILLDKVANLGSLGDQVNVKAGYARNFLVPQGKAVPATKKNIEFFEARRAELEAKLAEVLAAANARAEKINALETVTIASKAGDEGKLFGSIGTRDIADAVTAAGVEVAKSEVRLPNGVLRTTGEHEVSFQVHSEVFAKVIVNVVAE

Entity 9 polymer

description	50S ribosomal protein L11
formula_weight	14020.3 kDa
src_method	nat
entity_count	1

Polymer

type	polypeptide(L)
strand_id	Q

YVKLQVAAGMANPSPPVGPALGQQGVNIMEFCKAFNAKTDSIEKGLPIPVVITVYADRSFTFVTKTPPAAVLLKKAAGIKSGSGKPNKDKVGKISRAQLQEIAQTKAADMTGADIEAMTRSIEGTARSMGLVVE

Entity 10 polymer

description	50S ribosomal protein L13
formula_weight	16050.6 kDa
src_method	nat
entity_count	1

Polymer

type	polypeptide(L)
strand_id	R

MKTFTAKPETVKRDWYVVDATGKTLGRLATELARRLRGKHKAEYTPHVDTGDYIIVLNADKVAVTGNKRTDKVYYHHTGHIGGIKQATFEEMIARRPERVIEIAVKGMLPKGPLGRAMFRKLKVYAGNEHNHAAQQPQVLDI

Entity 11 polymer

description	Large ribosomal subunit protein uL14
formula_weight	13451.9 kDa
src_method	nat
entity_count	1

Polymer

type	polypeptide(L)
strand_id	S

MIQEQTMLNVADNSGARRVMCIKVLGGSHRRYAGVGDIIKITIKEAIPRGKVKKGDVLKAVVVRTKKGVRRPDGSVIRFDGNACVLLNNNSEQPIGTRIFGPVTRELRSEKFMKIISLAPEV

Entity 12 polymer

description	50S ribosomal protein L15
formula_weight	15008.5 kDa
src_method	nat
entity_count	1

Polymer

type	polypeptide(L)
strand_id	T

MRLNTLSPAEGSKKAGKRLGRGIGSGLGKTGGRGHKGQKSRSGGGVRRGFEGGQMPLYRRLPKFGFTSRKAAITAEIRLSDLAKVEGGVVDLNTLKAANIIGIQIEFAKVILAGEVTTPVTVRGLRVTKGARAAIEAAGGKIEE

Entity 13 polymer

description	Large ribosomal subunit protein uL16
formula_weight	15327.3 kDa
src_method	nat
entity_count	1

Polymer

type	polypeptide(L)
strand_id	U

MLQPKRTKFRKMHKGRNRGLAQGTDVSFGSFGLKAVGRGRLTARQIEAARRAMTRAVKRQGKIWIRVFPDKPITEKPLAVXMGKGKGNVEYWVALIQPGKVLYEMDGVPEELAREAFKLAAAKLPIKTTFVTKTVM

Entity 14 polymer

description	Large ribosomal subunit protein bL17
formula_weight	13721.9 kDa
src_method	nat
entity_count	1

Polymer

type	polypeptide(L)
strand_id	V

MRHRKSGRQLNRNSSHRQAMFRNMAGSLVRHEIIKTTLPKAKELRRVVEPLITLAKTDSVANRRLAFARTRDNEIVAKLFNELGPRFASRAGGYTRILKCGFRAGDNAPMAYIELVDRSE

Entity 15 polymer

description	50S ribosomal protein L18
formula_weight	12663.5 kDa
src_method	nat
entity_count	1

Polymer

type	polypeptide(L)
strand_id	W

DKKSARIRRATRARRKLQELGATRLVVHRTPRHIYAQVIAPNGSEVLVAASTVEKAIAEQLKYTGNKDAAAAVGKAVAERALEKGIKDVSFDRSGFQYHGRVQALADAAREAGLQF

Entity 16 polymer

description	50S ribosomal protein L19
formula_weight	13028.1 kDa
src_method	nat
entity_count	1

Polymer

type	polypeptide(L)
strand_id	X

SNIIKQLEQEQMKQDVPSFRPGDTVEVKVWVVEGSKKRLQAFEGVVIAIRNRGLHSAFTVRKISNGEGVERVFQTHSPVVDSISVKRRGAVRKAKLYYLRERTGKAARIKERLN

Entity 17 polymer

description	50S ribosomal protein L20
formula_weight	13396.8 kDa
src_method	nat
entity_count	1

Polymer

type	polypeptide(L)
strand_id	Y

ARVKRGVIARARHKKILKQAKGYYGARSRVYRVAFQAVIKAGQYAYRDRRQRKRQFRQLWIARINAAARQNGISYSKFINGLKKASVEIDRKILADIAVFDKVAFTALVEKAKAALA

Entity 18 polymer

description	50S ribosomal protein L21
formula_weight	11586.4 kDa
src_method	nat
entity_count	1

Polymer

type	polypeptide(L)
strand_id	Z

MYAVFQSGGKQHRVSEGQTVRLEKLDIATGETVEFAEVLMIANGEEVKIGVPFVDGGVIKAEVVAHGRGEKVKIVKFRRRKHYRKQQGHRQWFTDVKITGISA

Entity 19 polymer

description	50S ribosomal protein L22
formula_weight	12253.4 kDa
src_method	nat
entity_count	1

Polymer

type	polypeptide(L)
strand_id	a

METIAKHRHARSSAQKVRLVADLIRGKKVSQALDILTYTNKKAAVLVKKVLESAIANAEHNDGADIDDLKVTKIFVDEGPSMKRIMPRAKGRADRILKRTSHITVVVSDR

Entity 20 polymer

description	50S ribosomal protein L23
formula_weight	10546.5 kDa
src_method	nat
entity_count	1

Polymer

type	polypeptide(L)
strand_id	b

MIREERLLKVLRAPHVSEKASTAMEKSNTIVLKVAKDATKAEIKAAVQKLFEVEVEVVNTLVVKGKVKRHGQRIGRRSDWKKAYVTLKEGQNL

Entity 21 polymer

description	Large ribosomal subunit protein uL24
formula_weight	11078.9 kDa
src_method	nat
entity_count	1

Polymer

type	polypeptide(L)
strand_id	c

AAKIRRDDEVIVLTGKDKGKRGKVKNVLSSGKVIVEGINLVKKHQKPVPALNQPGGIVEKEAAIQVSNVAIFNAATGKADRVGFRFEDGKKVRFFKSNSETI

Entity 22 polymer

description	50S ribosomal protein L25
formula_weight	10713.5 kDa
src_method	nat
entity_count	1

Polymer

type	polypeptide(L)
strand_id	d

MFTINAEVRKEQGKGASRRLRAANKFPAIIYGGKEAPLAIELDHDKVMNMQAKAEFYSEVLTIVVDGKEIKVKAQDVQRHPYKPKLQHIDFVRA

Entity 23 polymer

description	50S ribosomal protein L27
formula_weight	8174.4 kDa
src_method	nat
entity_count	1

Polymer

type	polypeptide(L)
strand_id	e

RNGRDSEAKRLGVKRFGGESVLAGSIIVRQRGTKFHAGANVGCGRDHTLFAKADGKVKFEVKGPKNRKFISIEAE

Entity 24 polymer

description	50S ribosomal protein L28
formula_weight	8896.4 kDa
src_method	nat
entity_count	1

Polymer

type	polypeptide(L)
strand_id	f

SRVCQVTGKRPVTGNNRSHALNATKRRFLPNLHSHRFWVESEKRFVTLRVSAKGMRVIDKKGIDTVLAELRARGEKY

Entity 25 polymer

description	50S ribosomal protein L29
formula_weight	7155.3 kDa
src_method	nat
entity_count	1

Polymer

type	polypeptide(L)
strand_id	g

KAKELREKSVEELNTELLNLLREQFNLRMQAASGQLQQSHLLKQVRRDVARVKTLLNEKAGA

Entity 26 polymer

description	50S ribosomal protein L30
formula_weight	6423.6 kDa
src_method	nat
entity_count	1

Polymer

type	polypeptide(L)
strand_id	h

AKTIKITQTRSAIGRLPKHKATLLGLGLRRIGHTVEREDTPAIRGMINAVSFMVKVEE

Entity 27 polymer

description	Large ribosomal subunit protein bL32
formula_weight	6332.2 kDa
src_method	nat
entity_count	1

Polymer

type	polypeptide(L)
strand_id	i

AVQQNKPTRSKRGMRRSHDALTAVTSLSVDKTSGEKHLRHHITADGYYRGRKVIAK

Entity 28 polymer

description	50S ribosomal protein L33
formula_weight	5814.8 kDa
src_method	nat
entity_count	1

Polymer

type	polypeptide(L)
strand_id	j

GIREKIKLVSSAGTGHFYTTTKNKRTKPEKLELKKFDPVVRQHVIYKEAK

Entity 29 polymer

description	50S ribosomal protein L34
formula_weight	5397.5 kDa
src_method	nat
entity_count	1

Polymer

type	polypeptide(L)
strand_id	k

MKRTFQPSVLKRNRSHGFRARMATKNGRQVLARRRAKGRARLTVSK

Entity 30 polymer

description	50S ribosomal protein L35
formula_weight	7181.8 kDa
src_method	nat
entity_count	1

Polymer

type	polypeptide(L)
strand_id	l

PKIKTVRGAAKRFKKTGKGGFKHKHANLRHILTKKATKRKRHLRPKAMVSKGDLGLVIACLPYA

Entity 31 polymer

description	50S ribosomal protein L36
formula_weight	4377.4 kDa
src_method	nat
entity_count	1

Polymer

type	polypeptide(L)
strand_id	m

MKVRASVKKLCRNCKIVKRDGVIRVICSAEPKHKQRQG

Entity 32 non-polymer

description	MAGNESIUM ION
formula_weight	24.3 kDa
src_method	syn
entity_count	166

Entity 33 non-polymer

description	SODIUM ION
formula_weight	23.0 kDa
src_method	syn
entity_count	1

Entity 34 non-polymer

description	ZINC ION
formula_weight	65.4 kDa
src_method	syn
entity_count	1

Entity 35 water

description	water
formula_weight	18.0 kDa
src_method	nat
entity_count	27

▶

6. Citations (1)

▶

length_a	1.000 Å
length_b	1.000 Å
length_c	1.000 Å
angle_alpha	90.00 °
angle_beta	90.00 °
angle_gamma	90.00 °
z_pdb	—

space_group	P 1
int_tables_number	1
crystal_system	—

resolution	2.98 Å
resolution_method	—
num_particles	48610

fit	/app/data/saxs_computation/xf/9xfk/9xfk.fit
pddf	/app/data/pr_computation/xf/9xfk/9xfk.pr.out
profile	/app/data/saxs_computation/xf/9xfk/9xfk.dat
