SAXSdb — 9y3x

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Hemagglutinin

Influenza A virus (A/California/04/2009(H1N1))

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Other combination	Heteromer	Protein 4 其他Polymer 1	Hemagglutinin × 1 （I1ZFF9） Antibody 3_H2 heavy chain × 1 Antibody 3_H2 light chain × 1 beta-D-mannopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose × 1 2-acetamido-2-deoxy-beta-D-glucopyranose × 1	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	G8EHJ9_I09A0
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain E； PDBConstruct 5–327； UniProt 18–340

Hemagglutinin

Influenza A virus (A/California/04/2009(H1N1))

UniProt I1ZFF9

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Other combination	Heteromer	Protein 4 其他Polymer 1	Hemagglutinin × 1 （G8EHJ9） Antibody 3_H2 heavy chain × 1 Antibody 3_H2 light chain × 1 beta-D-mannopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose × 1 2-acetamido-2-deoxy-beta-D-glucopyranose × 1	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	I1ZFF9_9INFA
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain F； PDBConstruct 1–174； UniProt 326–499

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	9y3x
Deposition date deposition_date	2025-09-02
Structure title title	Crystal structure of hemagglutinin from H1N1 Influenza A virus A/California/04/2009 bound to the 3_H2 antibody
Keywords keywords	Hemagglutinin, Head antibody, Influenza, Complex, ANTIVIRAL PROTEIN; ANTIVIRAL PROTEIN
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

9y3x__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

9y3x__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

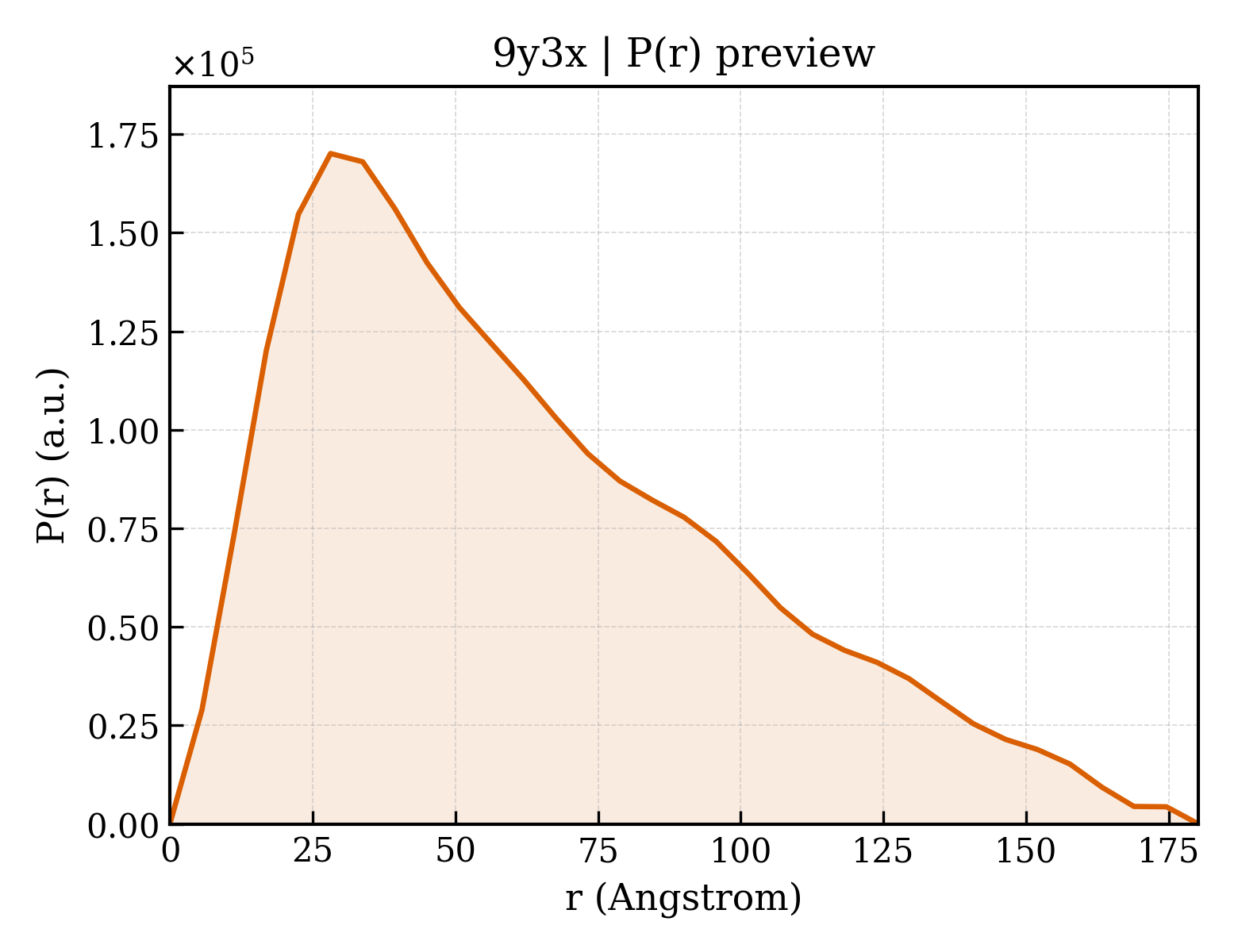

9y3x__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	49.51 Å
Rg (electron density)	51.16 Å
Total Rg	50.82 Å
Atom count	7271
Residues	930
Excluded volume	128720 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`9y3x__assembly_1__model_1`	tetrameric （4）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (6)

Entity 1 Entity 1 polymer

Description description	Hemagglutinin
Molecular weight formula_weight	36243.8 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	E
Atom count atom_count	7271

ADPGDTLCIGYHANNSTDTVDTVLEKNVTVTHSVNLLEDKHNGKLCKLRGVAPLHLGKCNIAGWILGNPECESLSTASSWSYIVETPSSDNGTCYPGDFIDYEELREQLSSVSSFERFEIFPKTSSWPNHDSNKGVTAACPHAGAKSFYKNLIWLVKKGNSYPKLSKSYINDKGKEVLVLWGIHHPSTSADQQSLYQNADTYVFVGSSRYSKKFKPEIAIRPKVRDQEGRMNYYWTLVEPGDKITFEATGNLVVPRYAFAMERNAGSGIIISDTPVHDCNTTCQTPKGAINTSLPFQNIHPITIGKCPKYVKSTKLRLATGLRNIPS

Source Source

Source organism organism	Influenza A virus (A/California/04/2009(H1N1))
NCBI taxonomy ID ncbi_taxonomy_id	641501
Host organism host_organism	Trichoplusia ni

Entity 2 Entity 2 polymer

Description description	Hemagglutinin
Molecular weight formula_weight	20206.3 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	F

GLFGAIAGFIEGGWTGMVDGWYGYHHQNEQGSGYAADLKSTQNAIDGITNKVNSVIEKMNTQFTAVGKEFNHLEKRIENLNKKVDDGFLDIWTYNAELLVLLENERTLDYHDSNVKNLYEKVRSQLKNNAKEIGNGCFEFYHKCDNTCMESVKNGTYDYPKYSEEAKLNREEIDSGR

Source Source

Source organism organism	Influenza A virus (A/California/04/2009(H1N1))
NCBI taxonomy ID ncbi_taxonomy_id	641501
Host organism host_organism	Trichoplusia ni

Entity 3 Entity 3 polymer

Description description	Antibody 3_H2 heavy chain
Molecular weight formula_weight	24185.4 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	H

QGTLKESGPAMVKPTQTLTLTCTFSGFSLDTSGMCVAWIRQPPGKALEWLALFDWDNNKYYSPSLKTRLNMSKGRSRNQVVLTMTNMDPVDTGTYYCARKVYGSFYYGMDVWGQGTTVTVSSASTKGPSVFPLAPSSKSTSGGTAALGCLVKDYFPEPVTVSWNSGALTSGVHTFPAVLQSSGLYSLSSVVTVPSSSLGTQTYICNVNHKPSNTKVDKKVEPKSC

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Homo sapiens

Entity 4 Entity 4 polymer

Description description	Antibody 3_H2 light chain
Molecular weight formula_weight	23573.1 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	L

DIVLTQSPATLSLSPGDSATLSCRASQDVSANLAWYQQKPGQAPRLVIYDATNRATGIPARFSGSGLGTDFTLTISSLEPEDFAVYYCQQRSNWPPVYTFGQGTKLEIKRTVAAPSVFIFPPSDEQLKSGTASVVCLLNNFYPREAKVQWKVDNALQSGNSQESVTEQDSKDSTYSLSSTLTLSKADYEKHKVYACEVTHQGLSSPVTKSFNRGEC

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Homo sapiens

Entity 5 Entity 5 branched

Description description	beta-D-mannopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose
Molecular weight formula_weight	586.5 kDa
Source method src_method	man
Copy count entity_count	1

Entity 6 Entity 6 non-polymer

Description description	2-acetamido-2-deoxy-beta-D-glucopyranose
Molecular weight formula_weight	221.2 kDa
Source method src_method	man
Copy count entity_count	1

▶

Unit-cell length a length_a	130.894 Å
Unit-cell length b length_b	130.894 Å
Unit-cell length c length_c	142.840 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	120.00 °
Molecules per unit cell Z z_pdb	6

Space group space_group	P 3 2 1
Space-group number int_tables_number	150
Crystal system crystal_system	—

Resolution resolution	3.390 Å
Low-resolution limit resolution_low	48.250 Å
R factor r_factor	0.2099
R_work r_work	0.2043
R_free r_free	0.2608

Crystal structure of hemagglutinin from H1N1 Influenza A virus A/California/04/2009 bound to the 3_H2 antibody
