9ys0

Crystal structure of Cysteinyl-tRNA synthetase (CysRS) from Plasmodium falciparum in complex with ADP

Method: X-RAY DIFFRACTION D_max: 111.1 Å Quality: REASONABLE

SAXS Profile

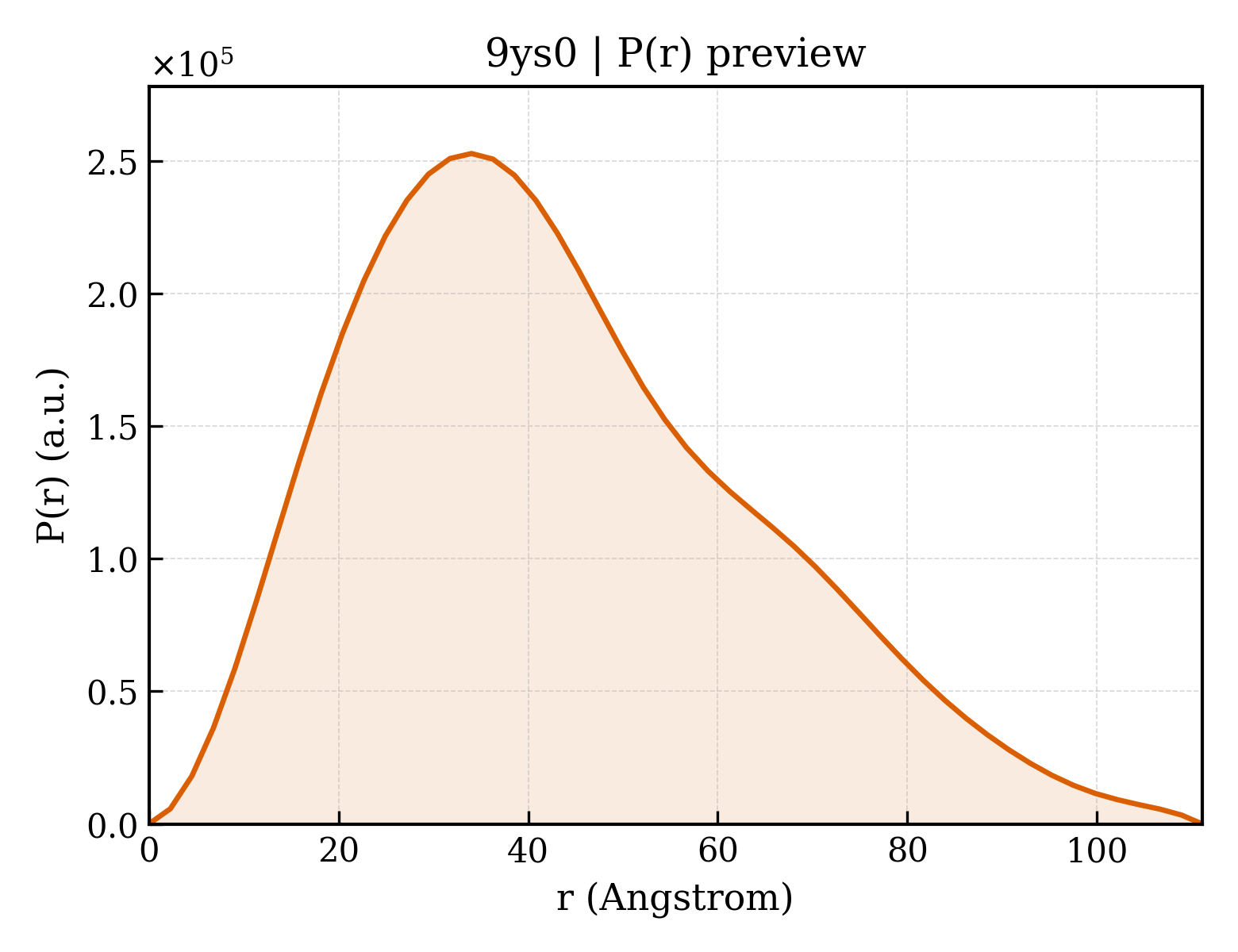

P(r) Distribution

▼

1. Structure Basics

entry_id	9ys0
deposition_date	2025-10-17
last_revision	2025-11-05
title	Crystal structure of Cysteinyl-tRNA synthetase (CysRS) from Plasmodium falciparum in complex with ADP
keywords	;SSGCID, STRUCTURAL GENOMICS, SEATTLE STRUCTURAL GENOMICS CENTER FOR INFECTIOUS DISEASE, TRANSFERASE, Cysteinyl-tRNA synthetase, CysRS ;; TRANSFERASE
method	X-RAY DIFFRACTION

▼

Download Data

SAXS curve (.dat) P(r) distribution (.pr.out) Structure (CIF)

▼

2. SAXS Parameters (CRYSOL)

rg_guinier	32.34 Å
rg_electron	31.89 Å
i0	156424000.00
molecular_weight	102610.0 kDa
excluded_volume	129030 Å³
envelope_volume	151090 Å³
shell_volume	40256 Å³
envelope_diameter	124.6 Å
shell_rg	38.08 Å
envelope_rg	32.22 Å
shape_rg	31.90 Å
total_rg	32.29 Å
total_atoms	7238
n_residues	859
n_harmonics	20
q_range	— – 0.5000 Å⁻¹
n_points	101
shell_type	directional
solvent_density	0.3340 e/Å³
contrast_shell	0.0300 e/Å³
crysol_version	4.1.3

▼

3. P(r) Analysis (GNOM)

dmax	111.1 Å
rg_real	33.76 Å
rg_real_error	0.40 Å
i0_real	1.5640e+08
i0_real_error	2.0310e+06
rg_reciprocal	32.46 Å
i0_reciprocal	156400000.0000
total_estimate	0.6568
solution_quality	REASONABLE a REASONABLE solution
n_peaks	1
r_peak_primary	34.0 Å
skewness	0.552
kurtosis	-0.225
angular_range	— – 0.2450 Å⁻¹
current_alpha	3.1400
highest_alpha	35840000.0000
n_real_points	50
gnom_version	4.1.3
quality_criteria	AN1: 0.000; Oscil: 0.798; Stabil: 0.889; Sysdev: 0.000; Positv: 1.000; Valcen: 0.921; Smooth: 0.592

▶

4. Crystallography & Experiment

▶

5. Entities & Polymer Info (6)

Entity 1 polymer

description	Cysteine--tRNA ligase
formula_weight	54533.2 kDa
ec_number	6.1.1.16
src_method	man
entity_count	2

Polymer

type	polypeptide(L)
strand_id	A,B
atom_count	7526

MAHHHHHHMGTLEAQTQGPGSLPKWNQPSKEGKKITNLFVNNSLTHSKVEFIPQEGNKIKWYACGPTVYDAAHLGHARTYVSFDIIRRILVNYFKYDVFMVINITDIDDKIIKRSVEEKIGFTELARKWEYEFWEDMKSLNVLLPTAITRVSEYVGDIVKYIEKIIENKYAYVSEEGSVYFDIDEFKKSEKHFYARMEPLSVKDENKILEGEGDLGVISKKKKNAYDFALWKSSKPNEPHWDSPWGKGRPGWHIECSTMASNILGDVLDIHSGGIDLRFPHHDNELAQSEAFFDHSQWVNYFLHSGHLHIEGLKMSKSLKNFITIKNMLTKYTSNQIRILFLLNKWDNFMNYSPNGESMVQCIEIDKSFTNFFAIILMKIKNFDLNSCNLYWSDADNKLNLLFRQTKNKIHEHFLDNFNTPDALLAIQKLITEINIYMDKEKIQIGLLLEIKHYINFIFDTFGLIY

Source

organism	Plasmodium falciparum 3D7
ncbi_taxonomy_id	36329
host_organism	Escherichia coli BL21(DE3)

Entity 2 non-polymer

description	ADENOSINE-5'-DIPHOSPHATE
formula_weight	427.2 kDa
src_method	syn
entity_count	4

Entity 3 non-polymer

description	MALONATE ION
formula_weight	102.0 kDa
src_method	syn
entity_count	5

Entity 4 non-polymer

description	ZINC ION
formula_weight	65.4 kDa
src_method	syn
entity_count	2

Entity 5 non-polymer

description	SODIUM ION
formula_weight	23.0 kDa
src_method	syn
entity_count	4

Entity 6 water

description	water
formula_weight	18.0 kDa
src_method	nat
entity_count	280

▶

6. Citations (1)

▶

length_a	120.035 Å
length_b	120.035 Å
length_c	365.761 Å
angle_alpha	90.00 °
angle_beta	90.00 °
angle_gamma	120.00 °
z_pdb	24

space_group	P 61 2 2
int_tables_number	178
crystal_system	—

resolution	2.140 Å
resolution_low	50.000 Å
r_factor	0.1803
r_work	0.1793
r_free	0.1990
