9ys2

Crystal structure of Cysteinyl-tRNA synthetase (CysRS) from Plasmodium falciparum in complex with cysteinyl-AMP

Method: X-RAY DIFFRACTION D_max: 112.8 Å Quality: GOOD

SAXS Profile

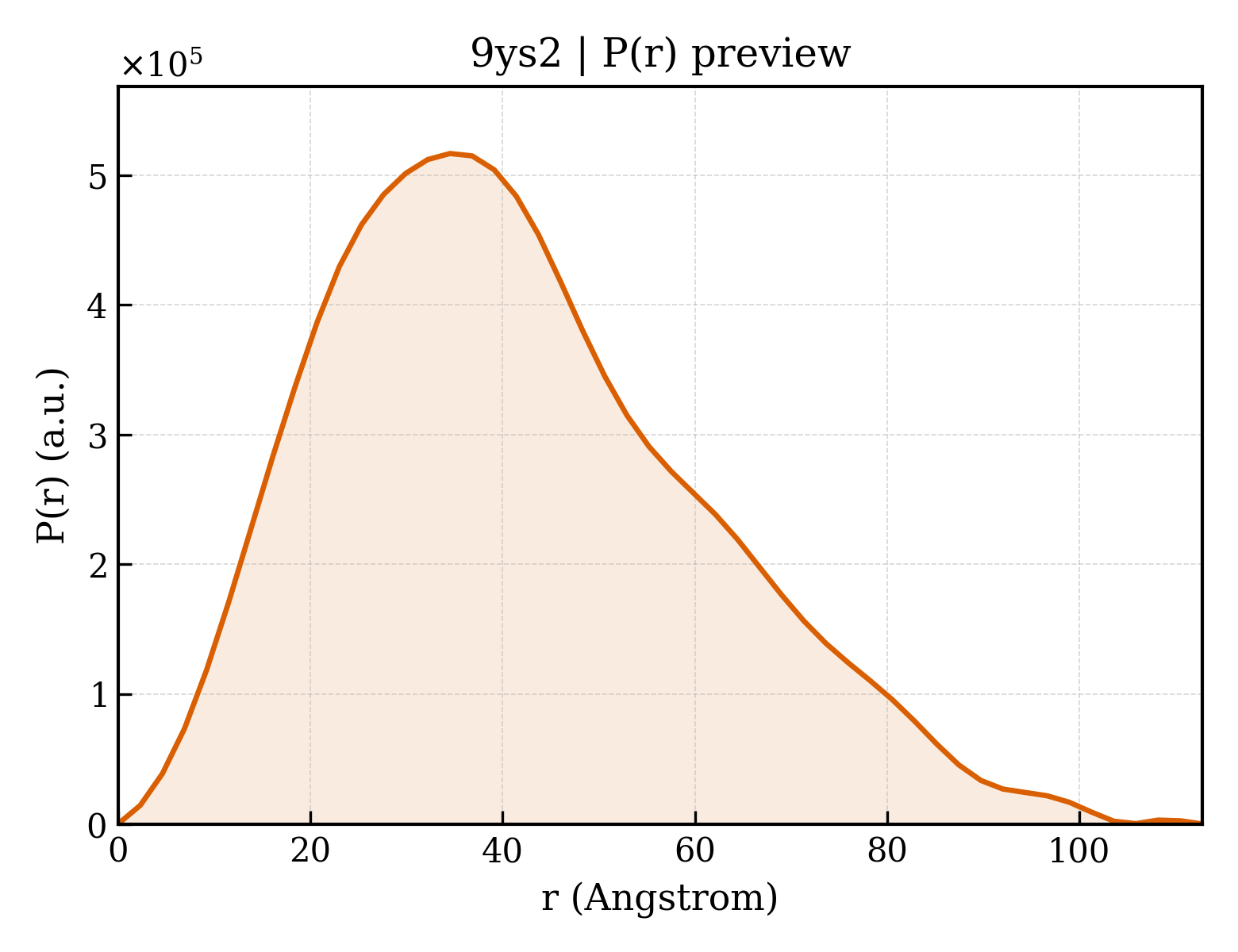

P(r) Distribution

▼

1. Structure Basics

entry_id	9ys2
deposition_date	2025-10-17
title	Crystal structure of Cysteinyl-tRNA synthetase (CysRS) from Plasmodium falciparum in complex with cysteinyl-AMP
keywords	;SSGCID, STRUCTURAL GENOMICS, SEATTLE STRUCTURAL GENOMICS CENTER FOR INFECTIOUS DISEASE, TRANSFERASE, Cysteinyl-tRNA synthetase, CysRS ;; TRANSFERASE
method	X-RAY DIFFRACTION

▼

Download Data

SAXS curve (.dat) P(r) distribution (.pr.out) Structure (CIF)

▼

2. SAXS Parameters (CRYSOL)

rg_guinier	32.09 Å
rg_electron	31.88 Å
i0	305740000.00
molecular_weight	95785.0 kDa
excluded_volume	93483 Å³
envelope_volume	151390 Å³
shell_volume	40416 Å³
envelope_diameter	124.3 Å
shell_rg	38.04 Å
envelope_rg	32.15 Å
shape_rg	31.87 Å
total_rg	32.23 Å
total_atoms	7254
n_residues	859
n_harmonics	20
q_range	— – 0.5000 Å⁻¹
n_points	101
shell_type	directional
solvent_density	0.3340 e/Å³
contrast_shell	0.0300 e/Å³
crysol_version	4.1.3

▼

3. P(r) Analysis (GNOM)

dmax	112.8 Å
rg_real	32.30 Å
rg_real_error	1.15 Å
i0_real	3.0570e+08
i0_real_error	5.5790e+06
rg_reciprocal	32.21 Å
i0_reciprocal	305700000.0000
total_estimate	0.8421
solution_quality	GOOD a GOOD solution
n_peaks	2
r_peak_primary	34.5 Å
skewness	0.531
kurtosis	-0.174
angular_range	— – 0.2450 Å⁻¹
current_alpha	0.0000
highest_alpha	37310000.0000
n_real_points	50
gnom_version	4.1.3
quality_criteria	AN1: 0.000; Oscil: 0.694; Stabil: 0.998; Sysdev: 1.000; Positv: 1.000; Valcen: 0.906; Smooth: 0.963

▶

4. Crystallography & Experiment

▶

5. Entities & Polymer Info (7)

Entity 1 polymer

description	Cysteine--tRNA ligase
formula_weight	54533.2 kDa
ec_number	6.1.1.16
src_method	man
entity_count	2

Polymer

type	polypeptide(L)
strand_id	A,B
atom_count	7509

MAHHHHHHMGTLEAQTQGPGSLPKWNQPSKEGKKITNLFVNNSLTHSKVEFIPQEGNKIKWYACGPTVYDAAHLGHARTYVSFDIIRRILVNYFKYDVFMVINITDIDDKIIKRSVEEKIGFTELARKWEYEFWEDMKSLNVLLPTAITRVSEYVGDIVKYIEKIIENKYAYVSEEGSVYFDIDEFKKSEKHFYARMEPLSVKDENKILEGEGDLGVISKKKKNAYDFALWKSSKPNEPHWDSPWGKGRPGWHIECSTMASNILGDVLDIHSGGIDLRFPHHDNELAQSEAFFDHSQWVNYFLHSGHLHIEGLKMSKSLKNFITIKNMLTKYTSNQIRILFLLNKWDNFMNYSPNGESMVQCIEIDKSFTNFFAIILMKIKNFDLNSCNLYWSDADNKLNLLFRQTKNKIHEHFLDNFNTPDALLAIQKLITEINIYMDKEKIQIGLLLEIKHYINFIFDTFGLIY

Source

organism	Plasmodium falciparum 3D7
ncbi_taxonomy_id	36329
host_organism	Escherichia coli BL21(DE3)

Entity 2 non-polymer

description	5'-O-[(R)-{[(2R)-2-amino-3-sulfanylpropanoyl]oxy}(hydroxy)phosphoryl]adenosine
formula_weight	450.4 kDa
src_method	syn
entity_count	2

Entity 3 non-polymer

description	ADENOSINE-5'-TRIPHOSPHATE
formula_weight	507.2 kDa
src_method	syn
entity_count	2

Entity 4 non-polymer

description	MALONATE ION
formula_weight	102.0 kDa
src_method	syn
entity_count	5

Entity 5 non-polymer

description	ZINC ION
formula_weight	65.4 kDa
src_method	syn
entity_count	2

Entity 6 non-polymer

description	SODIUM ION
formula_weight	23.0 kDa
src_method	syn
entity_count	4

Entity 7 water

description	water
formula_weight	18.0 kDa
src_method	nat
entity_count	255

▶

6. Citations (1)

▶

length_a	120.044 Å
length_b	120.044 Å
length_c	365.723 Å
angle_alpha	90.00 °
angle_beta	90.00 °
angle_gamma	120.00 °
z_pdb	24

space_group	P 61 2 2
int_tables_number	178
crystal_system	—

resolution	2.220 Å
resolution_low	47.820 Å
r_factor	0.1772
r_work	0.1757
r_free	0.2048
