9ys1

Crystal structure of Cysteinyl-tRNA synthetase (CysRS) from Plasmodium falciparum in complex with AMP and Cysteine

Method: X-RAY DIFFRACTION D_max: 116.9 Å Quality: GOOD

SAXS Profile

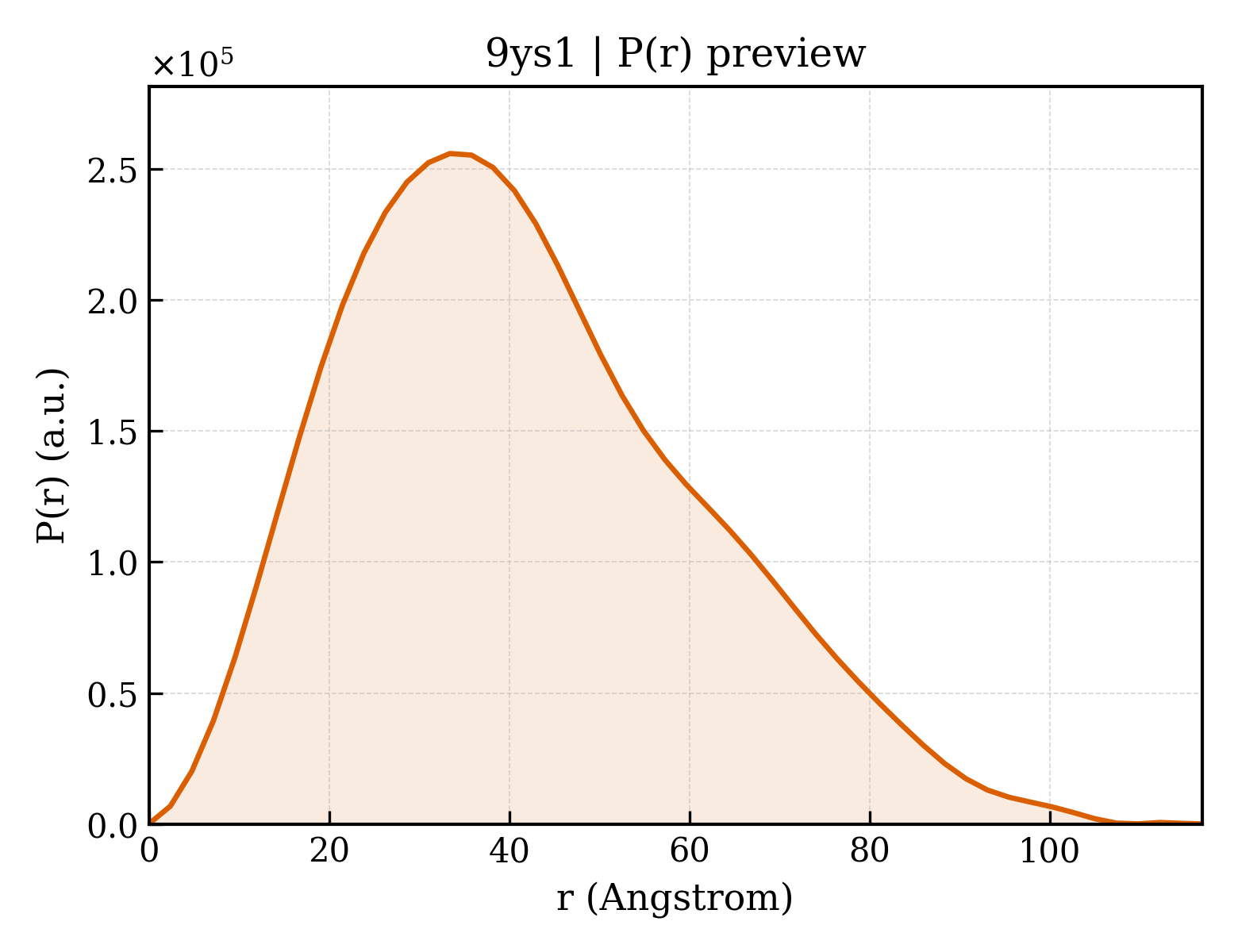

P(r) Distribution

▼

1. Structure Basics

entry_id	9ys1
deposition_date	2025-10-17
last_revision	2025-11-05
title	Crystal structure of Cysteinyl-tRNA synthetase (CysRS) from Plasmodium falciparum in complex with AMP and Cysteine
keywords	;SSGCID, STRUCTURAL GENOMICS, SEATTLE STRUCTURAL GENOMICS CENTER FOR INFECTIOUS DISEASE, TRANSFERASE, Cysteinyl-tRNA synthetase, CysRS ;; TRANSFERASE
method	X-RAY DIFFRACTION

▼

Download Data

SAXS curve (.dat) P(r) distribution (.pr.out) Structure (CIF)

▼

2. SAXS Parameters (CRYSOL)

rg_guinier	32.34 Å
rg_electron	31.84 Å
i0	153404000.00
molecular_weight	102320.0 kDa
excluded_volume	128950 Å³
envelope_volume	150160 Å³
shell_volume	40097 Å³
envelope_diameter	124.1 Å
shell_rg	38.07 Å
envelope_rg	32.13 Å
shape_rg	31.85 Å
total_rg	32.26 Å
total_atoms	7221
n_residues	858
n_harmonics	20
q_range	— – 0.5000 Å⁻¹
n_points	101
shell_type	directional
solvent_density	0.3340 e/Å³
contrast_shell	0.0300 e/Å³
crysol_version	4.1.3

▼

3. P(r) Analysis (GNOM)

dmax	116.9 Å
rg_real	32.54 Å
rg_real_error	1.27 Å
i0_real	1.5340e+08
i0_real_error	2.5060e+06
rg_reciprocal	32.46 Å
i0_reciprocal	153400000.0000
total_estimate	0.8324
solution_quality	GOOD a GOOD solution
n_peaks	2
r_peak_primary	33.4 Å
skewness	0.514
kurtosis	-0.221
angular_range	— – 0.2450 Å⁻¹
current_alpha	0.0000
highest_alpha	37880000.0000
n_real_points	50
gnom_version	4.1.3
quality_criteria	AN1: 0.000; Oscil: 0.656; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.860; Smooth: 0.990

▶

4. Crystallography & Experiment

▶

5. Entities & Polymer Info (7)

Entity 1 polymer

description	Cysteine--tRNA ligase
formula_weight	54533.2 kDa
ec_number	6.1.1.16
src_method	man
entity_count	2

Polymer

type	polypeptide(L)
strand_id	A,B
atom_count	7329

MAHHHHHHMGTLEAQTQGPGSLPKWNQPSKEGKKITNLFVNNSLTHSKVEFIPQEGNKIKWYACGPTVYDAAHLGHARTYVSFDIIRRILVNYFKYDVFMVINITDIDDKIIKRSVEEKIGFTELARKWEYEFWEDMKSLNVLLPTAITRVSEYVGDIVKYIEKIIENKYAYVSEEGSVYFDIDEFKKSEKHFYARMEPLSVKDENKILEGEGDLGVISKKKKNAYDFALWKSSKPNEPHWDSPWGKGRPGWHIECSTMASNILGDVLDIHSGGIDLRFPHHDNELAQSEAFFDHSQWVNYFLHSGHLHIEGLKMSKSLKNFITIKNMLTKYTSNQIRILFLLNKWDNFMNYSPNGESMVQCIEIDKSFTNFFAIILMKIKNFDLNSCNLYWSDADNKLNLLFRQTKNKIHEHFLDNFNTPDALLAIQKLITEINIYMDKEKIQIGLLLEIKHYINFIFDTFGLIY

Source

organism	Plasmodium falciparum 3D7
ncbi_taxonomy_id	36329
host_organism	Escherichia coli BL21(DE3)

Entity 2 non-polymer

description	CYSTEINE
formula_weight	121.2 kDa
src_method	syn
entity_count	2

Entity 3 non-polymer

description	ADENOSINE MONOPHOSPHATE
formula_weight	347.2 kDa
src_method	syn
entity_count	4

Entity 4 non-polymer

description	MALONATE ION
formula_weight	102.0 kDa
src_method	syn
entity_count	3

Entity 5 non-polymer

description	ZINC ION
formula_weight	65.4 kDa
src_method	syn
entity_count	2

Entity 6 non-polymer

description	SODIUM ION
formula_weight	23.0 kDa
src_method	syn
entity_count	4

Entity 7 water

description	water
formula_weight	18.0 kDa
src_method	nat
entity_count	108

▶

6. Citations (1)

▶

length_a	119.835 Å
length_b	119.835 Å
length_c	365.780 Å
angle_alpha	90.00 °
angle_beta	90.00 °
angle_gamma	120.00 °
z_pdb	24

space_group	P 61 2 2
int_tables_number	178
crystal_system	—

resolution	2.340 Å
resolution_low	47.750 Å
r_factor	0.1894
r_work	0.1880
r_free	0.2155
