SAXSdb — 9z6w

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Glutamate receptor 2

OrganismNot specified

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 8 PDB declaration: octameric（8） Consistent with protein copy count	Chain B； UniProt 532–568 Chain B； UniProt 590–651 Chain B； UniProt 805–841 Chain D； UniProt 532–568 Chain D； UniProt 590–651 Chain D； UniProt 805–841	Not recorded	Mix of AMPAR subunit (GluA1, GluA2, GluA3 and GluA4) × 2 Mix of voltage-dependent calcium channel gamma subunits × 2 Voltage-dependent calcium channel gamma-8 subunit × 2 （Q8VHW2） POV (2S)-3-(hexadecanoyloxy)-2-[(9Z)-octadec-9-enoyloxy]propyl 2-(trimethylammonio)ethyl phosphate × 8 C14 TETRADECANE × 18 OCT N-OCTANE × 2 XVD 6-[2-chloro-6-(trifluoromethoxy)phenyl]-1H-benzimidazol-2-ol × 2	ELECTRON MICROSCOPY cryo-EM buffer：pH 8 cryo-EM vitrification conditions：Cryogen ETHANE	Resolution 2.99 Å

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 9Z6W	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
8I0B The crystal structure of human glutamate receptor 2 in complex with LT-102 Deposited 2023-01-10	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 413–527（115 aa） Chain B 413–527（115 aa）	Not recorded	SO4 SULFATE ION × 4 NXO 8-[4-(2-fluorophenyl)phenyl]-3,4-dihydro-1,2$l^{6},3-benzoxathiazine 2,2-dioxide × 1 NA SODIUM ION × 1 CL CHLORIDE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；22% PEG 8000, 0.1M NaAC pH 5.0, 0.2M (NH4)2SO4	Resolution 1.73 Å R-free 0.278
9Z6U The structure of TMD with 2 TARPs and 2 CNIHs from all native AMPA receptor subtypes Deposited 2025-11-14	Different ligand/ion Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 8 PDB declaration: octameric	Chain B 532–568（37 aa） Chain B 590–651（62 aa） Chain B 805–841（37 aa） Chain D 532–568（37 aa） Chain D 590–651（62 aa） Chain D 805–841（37 aa）	Not recorded	POV (2S)-3-(hexadecanoyloxy)-2-[(9Z)-octadec-9-enoyloxy]propyl 2-(trimethylammonio)ethyl phosphate × 20 C14 TETRADECANE × 18 XVD 6-[2-chloro-6-(trifluoromethoxy)phenyl]-1H-benzimidazol-2-ol × 2 D12 DODECANE × 6	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.87 Å
9Z6V The structure of TMD with 3 TARPs and 1 CNIH from all native AMPA receptor subtypes Deposited 2025-11-14	Different ligand/ion Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 8 PDB declaration: octameric	Chain B 532–568（37 aa） Chain B 590–651（62 aa） Chain B 805–841（37 aa） Chain D 532–568（37 aa） Chain D 590–651（62 aa） Chain D 805–841（37 aa）	Not recorded	POV (2S)-3-(hexadecanoyloxy)-2-[(9Z)-octadec-9-enoyloxy]propyl 2-(trimethylammonio)ethyl phosphate × 23 C14 TETRADECANE × 3 XVD 6-[2-chloro-6-(trifluoromethoxy)phenyl]-1H-benzimidazol-2-ol × 2	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.00 Å

3 other PDB entries and 3 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	GRIA2_MOUSE
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain B； PDBConstruct 1–37； UniProt 532–568 Author chain B； PDBConstruct 59–120； UniProt 590–651 Author chain B； PDBConstruct 274–310； UniProt 805–841 Author chain D； PDBConstruct 1–37； UniProt 532–568 Author chain D； PDBConstruct 59–120； UniProt 590–651 Author chain D； PDBConstruct 274–310； UniProt 805–841

Voltage-dependent calcium channel gamma-8 subunit

OrganismNot specified

UniProt Q8VHW2

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 8 PDB declaration: octameric（8） Consistent with protein copy count	Chain G； UniProt 2–423 Chain H； UniProt 2–423	Not recorded	Mix of AMPAR subunit (GluA1, GluA2, GluA3 and GluA4) × 2 Glutamate receptor 2 × 2 （P23819） Mix of voltage-dependent calcium channel gamma subunits × 2 POV (2S)-3-(hexadecanoyloxy)-2-[(9Z)-octadec-9-enoyloxy]propyl 2-(trimethylammonio)ethyl phosphate × 8 C14 TETRADECANE × 18 OCT N-OCTANE × 2 XVD 6-[2-chloro-6-(trifluoromethoxy)phenyl]-1H-benzimidazol-2-ol × 2	ELECTRON MICROSCOPY cryo-EM buffer：pH 8 cryo-EM vitrification conditions：Cryogen ETHANE	Resolution 2.99 Å

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 9Z6W	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
7LDD native AMPA receptor Deposited 2021-01-13	Different construct Different oligomeric state Different ligand/ion Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 14 PDB declaration: tetradecameric	Chain G 1–423（423 aa） Chain H 1–423（423 aa）	Not recorded	ZK1 {[7-morpholin-4-yl-2,3-dioxo-6-(trifluoromethyl)-3,4-dihydroquinoxalin-1(2H)-yl]methyl}phosphonic acid × 4 R16 HEXADECANE × 2 OCT N-OCTANE × 6 HP6 HEPTANE × 4 D10 DECANE × 6 NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 6 D12 DODECANE × 6 C14 TETRADECANE × 6 DD9 nonane × 4 XVD 6-[2-chloro-6-(trifluoromethoxy)phenyl]-1H-benzimidazol-2-ol × 2	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.40 Å
7LDE native AMPA receptor Deposited 2021-01-13	Different construct Different oligomeric state Different ligand/ion Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 14 PDB declaration: tetradecameric	Chain G 1–423（423 aa） Chain H 1–423（423 aa）	Not recorded	ZK1 {[7-morpholin-4-yl-2,3-dioxo-6-(trifluoromethyl)-3,4-dihydroquinoxalin-1(2H)-yl]methyl}phosphonic acid × 4 R16 HEXADECANE × 2 OCT N-OCTANE × 6 HP6 HEPTANE × 4 D10 DECANE × 6 NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 7 D12 DODECANE × 6 C14 TETRADECANE × 6 DD9 nonane × 4 XVD 6-[2-chloro-6-(trifluoromethoxy)phenyl]-1H-benzimidazol-2-ol × 2	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.90 Å
7LEP The composite LBD-TMD structure combined from all hippocampal AMPAR subtypes at 3.25 Angstrom resolution Deposited 2021-01-14	Different construct Different ligand/ion Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 8 PDB declaration: octameric	Chain G 19–233（215 aa） Chain H 19–233（215 aa）	Not recorded	ZK1 {[7-morpholin-4-yl-2,3-dioxo-6-(trifluoromethyl)-3,4-dihydroquinoxalin-1(2H)-yl]methyl}phosphonic acid × 4 POV (2S)-3-(hexadecanoyloxy)-2-[(9Z)-octadec-9-enoyloxy]propyl 2-(trimethylammonio)ethyl phosphate × 30 C14 TETRADECANE × 1 D10 DECANE × 1 XVD 6-[2-chloro-6-(trifluoromethoxy)phenyl]-1H-benzimidazol-2-ol × 2 OCT N-OCTANE × 2 D12 DODECANE × 2	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.25 Å
9Z6U The structure of TMD with 2 TARPs and 2 CNIHs from all native AMPA receptor subtypes Deposited 2025-11-14	Different ligand/ion Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 8 PDB declaration: octameric	Chain G 2–423（422 aa） Chain H 2–423（422 aa）	Not recorded	POV (2S)-3-(hexadecanoyloxy)-2-[(9Z)-octadec-9-enoyloxy]propyl 2-(trimethylammonio)ethyl phosphate × 20 C14 TETRADECANE × 18 XVD 6-[2-chloro-6-(trifluoromethoxy)phenyl]-1H-benzimidazol-2-ol × 2 D12 DODECANE × 6	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.87 Å
9Z6V The structure of TMD with 3 TARPs and 1 CNIH from all native AMPA receptor subtypes Deposited 2025-11-14	Different ligand/ion Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 8 PDB declaration: octameric	Chain G 2–423（422 aa） Chain H 2–423（422 aa）	Not recorded	POV (2S)-3-(hexadecanoyloxy)-2-[(9Z)-octadec-9-enoyloxy]propyl 2-(trimethylammonio)ethyl phosphate × 23 C14 TETRADECANE × 3 XVD 6-[2-chloro-6-(trifluoromethoxy)phenyl]-1H-benzimidazol-2-ol × 2	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.00 Å
9ZKM The LBD-TMD structure of native mouse AMPAR with 4 TARPs Deposited 2025-12-07	Different construct Different ligand/ion Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 8 PDB declaration: octameric	Chain G 1–423（423 aa） Chain H 1–423（423 aa）	Not recorded	PLM PALMITIC ACID × 12 OLC (2R)-2,3-dihydroxypropyl (9Z)-octadec-9-enoate × 8 POV (2S)-3-(hexadecanoyloxy)-2-[(9Z)-octadec-9-enoyloxy]propyl 2-(trimethylammonio)ethyl phosphate × 8	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.13 Å
9ZKN The TMD structure of native mouse AMPAR with 4 TARPs Deposited 2025-12-07	Different construct Different ligand/ion Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 8 PDB declaration: octameric	Chain G 1–423（423 aa） Chain H 1–423（423 aa）	Not recorded	PLM PALMITIC ACID × 11 OLC (2R)-2,3-dihydroxypropyl (9Z)-octadec-9-enoate × 8 POV (2S)-3-(hexadecanoyloxy)-2-[(9Z)-octadec-9-enoyloxy]propyl 2-(trimethylammonio)ethyl phosphate × 8	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.80 Å
9ZKO The LBD-TMD structure of native mouse AMPAR with 2 TARPs 2 CNIHs Deposited 2025-12-07	Different construct Different ligand/ion Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 8 PDB declaration: octameric	Chain G 1–423（423 aa） Chain H 1–423（423 aa）	Not recorded	PLM PALMITIC ACID × 12 OLC (2R)-2,3-dihydroxypropyl (9Z)-octadec-9-enoate × 8 POV (2S)-3-(hexadecanoyloxy)-2-[(9Z)-octadec-9-enoyloxy]propyl 2-(trimethylammonio)ethyl phosphate × 8	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.04 Å
9ZKP The TMD structure of native mouse AMPAR with 2 TARPs 2 CNIHs Deposited 2025-12-07	Different construct Different ligand/ion Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 8 PDB declaration: octameric	Chain G 1–423（423 aa） Chain H 1–423（423 aa）	Not recorded	PLM PALMITIC ACID × 12 OLC (2R)-2,3-dihydroxypropyl (9Z)-octadec-9-enoate × 8 POV (2S)-3-(hexadecanoyloxy)-2-[(9Z)-octadec-9-enoyloxy]propyl 2-(trimethylammonio)ethyl phosphate × 8	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.87 Å
9ZKQ The LBD-TMD structure of native mouse AMPAR with 3 TARPs 1 CNIH Deposited 2025-12-07	Different construct Different ligand/ion Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 8 PDB declaration: octameric	Chain G 1–423（423 aa） Chain H 1–423（423 aa）	Not recorded	PLM PALMITIC ACID × 10 OLC (2R)-2,3-dihydroxypropyl (9Z)-octadec-9-enoate × 8 POV (2S)-3-(hexadecanoyloxy)-2-[(9Z)-octadec-9-enoyloxy]propyl 2-(trimethylammonio)ethyl phosphate × 6	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.36 Å
9ZKR The TMD structure of native mouse AMPAR with 3 TARPs 1 CNIH Deposited 2025-12-07	Different construct Different ligand/ion Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 8 PDB declaration: octameric	Chain G 1–423（423 aa） Chain H 1–423（423 aa）	Not recorded	PLM PALMITIC ACID × 10 OLC (2R)-2,3-dihydroxypropyl (9Z)-octadec-9-enoate × 8 POV (2S)-3-(hexadecanoyloxy)-2-[(9Z)-octadec-9-enoyloxy]propyl 2-(trimethylammonio)ethyl phosphate × 7	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.08 Å
9ZKS The LBD-TMD structure of native mouse AMPAR with 2 TARPs 2 CNIHs and PRRT1/SynDIG4 Deposited 2025-12-07	Different construct Different oligomeric state Different ligand/ion Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 9 PDB declaration: nonameric	Chain G 1–423（423 aa） Chain H 1–423（423 aa）	Not recorded	PLM PALMITIC ACID × 6 OLC (2R)-2,3-dihydroxypropyl (9Z)-octadec-9-enoate × 8 POV (2S)-3-(hexadecanoyloxy)-2-[(9Z)-octadec-9-enoyloxy]propyl 2-(trimethylammonio)ethyl phosphate × 3	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.36 Å
9ZKT The TMD structure of native mouse AMPAR with 2 TARPs 2 CNIHs and PRRT1/SynDIG4 Deposited 2025-12-07	Different construct Different oligomeric state Different ligand/ion Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 9 PDB declaration: nonameric	Chain G 1–423（423 aa） Chain H 1–423（423 aa）	Not recorded	PLM PALMITIC ACID × 6 OLC (2R)-2,3-dihydroxypropyl (9Z)-octadec-9-enoate × 9 POV (2S)-3-(hexadecanoyloxy)-2-[(9Z)-octadec-9-enoyloxy]propyl 2-(trimethylammonio)ethyl phosphate × 3	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.04 Å
9ZKU The LBD-TMD structure of native mouse AMPAR with 3 TARPs 1 CNIH and PRRT1/SynDIG4 Deposited 2025-12-07	Different construct Different oligomeric state Different ligand/ion Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 9 PDB declaration: nonameric	Chain G 1–423（423 aa） Chain H 1–423（423 aa）	Not recorded	PLM PALMITIC ACID × 4 OLC (2R)-2,3-dihydroxypropyl (9Z)-octadec-9-enoate × 7 POV (2S)-3-(hexadecanoyloxy)-2-[(9Z)-octadec-9-enoyloxy]propyl 2-(trimethylammonio)ethyl phosphate × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.75 Å
9ZKV The LBD-TMD structure of native mouse AMPAR with 2 TARPs Deposited 2025-12-07	Different construct Different oligomeric state Different ligand/ion Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric	Chain G 1–423（423 aa） Chain H 1–423（423 aa）	Not recorded	PLM PALMITIC ACID × 4 OLC (2R)-2,3-dihydroxypropyl (9Z)-octadec-9-enoate × 8 POV (2S)-3-(hexadecanoyloxy)-2-[(9Z)-octadec-9-enoyloxy]propyl 2-(trimethylammonio)ethyl phosphate × 3	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.45 Å
9ZKW The LBD-TMD structure of native mouse AMPAR with 3 TARPs Deposited 2025-12-07	Different construct Different oligomeric state Different ligand/ion Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 7 PDB declaration: heptameric	Chain G 1–423（423 aa） Chain H 1–423（423 aa）	Not recorded	PLM PALMITIC ACID × 6 OLC (2R)-2,3-dihydroxypropyl (9Z)-octadec-9-enoate × 8 POV (2S)-3-(hexadecanoyloxy)-2-[(9Z)-octadec-9-enoyloxy]propyl 2-(trimethylammonio)ethyl phosphate × 5	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.33 Å

16 other PDB entries and 16 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	CCG8_MOUSE
Isoform	—
PDB entities	4
Chains and sequence ranges	Author chain G； PDBConstruct 1–422； UniProt 2–423 Author chain H； PDBConstruct 1–422； UniProt 2–423

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	9z6w
Deposition date deposition_date	2025-11-14
Structure title title	The structure of TMD with 4 TARPs from all native AMPA receptor subtypes
Keywords keywords	Ionotropic glutamate receptor AMPA receptor, MEMBRANE PROTEIN; MEMBRANE PROTEIN
Experimental Method method	ELECTRON MICROSCOPY

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	34.16 Å
Radius of gyration Rg (electron density) rg_electron	32.78 Å
Forward intensity I(0) i0	179465000.00
Molecular weight molecular_weight	122960.0 kDa
Excluded volume excluded_volume	160260 Å³
Envelope volume envelope_volume	200110 Å³
Hydration-shell volume shell_volume	49760 Å³
Envelope diameter envelope_diameter	114.1 Å
Shell Rg shell_rg	40.60 Å
Envelope Rg envelope_rg	33.02 Å
Shape Rg shape_rg	32.76 Å
Total Rg total_rg	33.51 Å
Total atoms total_atoms	8704
Residues n_residues	1144
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

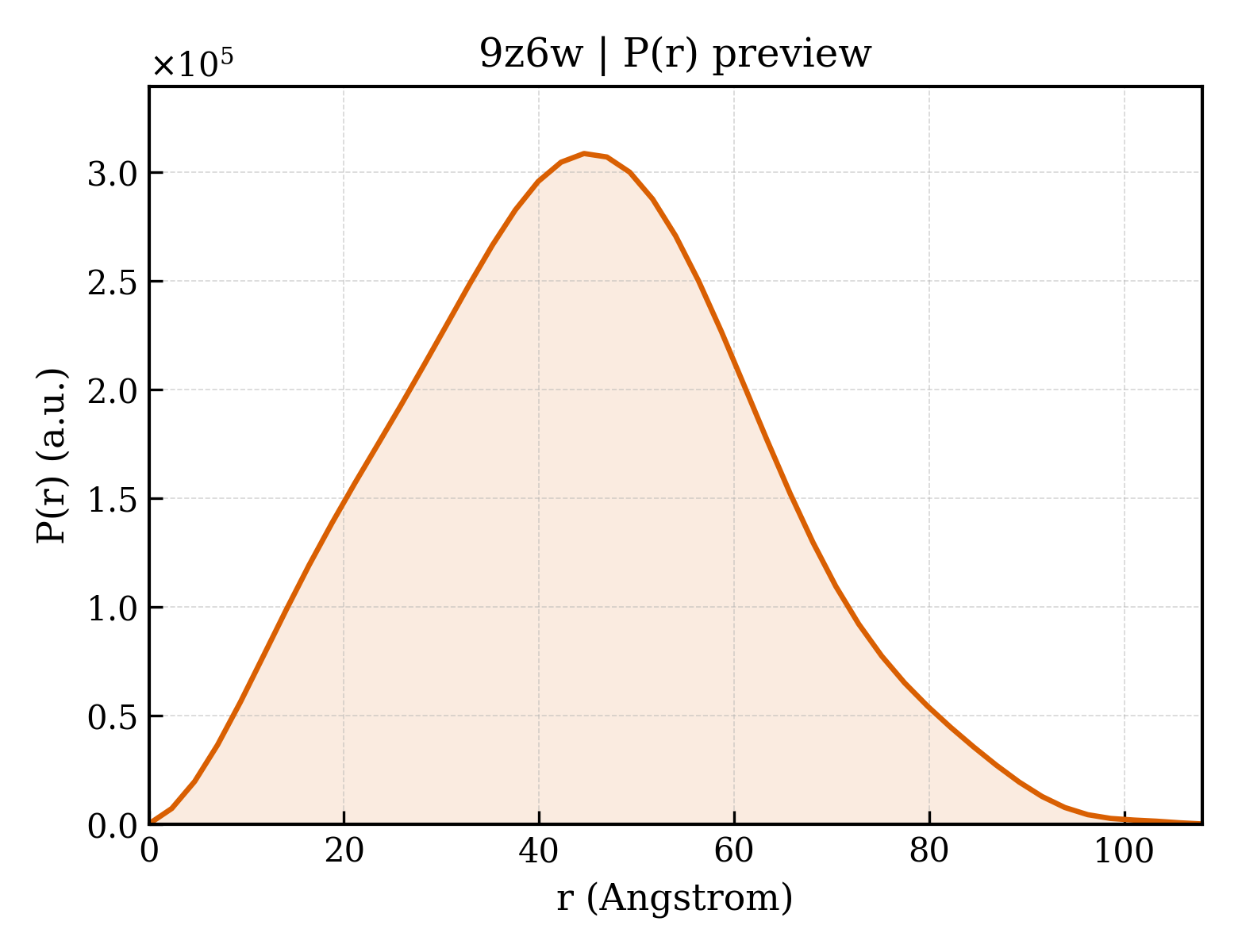

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	108.0 Å
Rg (real space) rg_real	34.01 Å
Rg uncertainty (real space) rg_real_error	0.57 Å
I(0) (real space) i0_real	1.7950e+08
I(0) uncertainty (real space) i0_real_error	2.9300e+06
Rg (reciprocal space) rg_reciprocal	34.11 Å
I(0) (reciprocal space) i0_reciprocal	179500000.0000
Solution quality estimate total_estimate	0.8895
Solution quality rating solution_quality	GOOD a GOOD solution
P(r) peaks n_peaks	1
Primary peak position r_peak_primary	44.6 Å
Skewness Skewness skewness	0.158
Kurtosis Kurtosis kurtosis	-0.351
Angular range angular_range	— – 0.2300 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	15950000.0000
Real-space data points n_real_points	47
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.874; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.983; Smooth: 0.954

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (8)

Entity 1 Entity 1 polymer

Description description	Mix of AMPAR subunit (GluA1, GluA2, GluA3 and GluA4)
Molecular weight formula_weight	29723.6 kDa
Source method src_method	nat
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,C
Atom count atom_count	8704

KPGVFSFLDPLAYEIWMCIVFAYIGVSVVLFLVSRFSXXXXXXXXXXXXXXXXXXXXXNEFGIFNSLWFSLGAFMQQGCDISPRSLSGRIVGGVWWFFTLIIISSYTANLAAFLTVERMVXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXSALSLSNVAGVFYILAGGLGLAMAVALIEFCYKSRA

Entity 2 Entity 2 polymer

Description description	Glutamate receptor 2
Molecular weight formula_weight	29838.8 kDa
Source method src_method	nat
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B,D

KPGVFSFLDPLAYEIWMCIVFAYIGVSVVLFLVSRFSXXXXXXXXXXXXXXXXXXXXXNEFGIFNSLWFSLGAFMRQGCDISPRSLSGRIVGGVWWFFTLIIISSYTANLAAFLTVERMVXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXTSALSLSNVAGVFYILVGGLGLAMLVALIEFCYKSRA

Entity 3 Entity 3 polymer

Description description	Mix of voltage-dependent calcium channel gamma subunits
Molecular weight formula_weight	21045.2 kDa
Source method src_method	nat
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	E,F

VQALLTTAGAFAAFALMTIAAATDYWLYARAAACATAAAAXXXXXXXXXXXAAAAKKAAAAATHSGLWRACCLEGAAAGACAAIAHFPEDADYAADAAEYALRAVRASSIFPILSAILLAAGGACAAASAAYKAAANIILAAGIAFVAAGLSNIIGAIVYISANAGAPAAAAAAAKKNAYSYGWSFYFGALSFIAAEAAGVLAVAAAIARAAAAAAAARAA

Entity 4 Entity 4 polymer

Description description	Voltage-dependent calcium channel gamma-8 subunit
Molecular weight formula_weight	43371.7 kDa
Source method src_method	nat
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	G,H

ESLKRWNEERGLWCEKGVQVLLTTIGAFSAFGLMTIAISTDYWLYTRALICNTTNLTAGDDGPPHRGGSGSSEKKDPGGLTHSGLWRICCLEGLKRGVCVKINHFPEDTDYDHDSAEYLLRVVRASSIFPILSAILLLLGGVCVAASRVYKSKRNIILGAGILFVAAGLSNIIGVIVYISANAGEPGPKRDEEKKNHYSYGWSFYFGGLSFILAEVIGVLAVNIYIERSREAHCQSRSDLLKAGGGAGGSGGSGPSAILRLPSYRFRYRRRSRSSSRGSSEASPSRDASPGGPGGPGFASTDISMYTLSRDPSKGSVAAGLASAGGGGSGAGVGAYGGAAGAAGGGGAGSERDRGSSAGFLTLHNAFPKEAASGVTVTVTGPPAAPAPAPAPPAPAAPAPGTLSKEAAASNTNTLNRKTTPV

Entity 5 Entity 5 non-polymer

Description description	(2S)-3-(hexadecanoyloxy)-2-[(9Z)-octadec-9-enoyloxy]propyl 2-(trimethylammonio)ethyl phosphate
Molecular weight formula_weight	760.1 kDa
Source method src_method	syn
Copy count entity_count	8

Entity 6 Entity 6 non-polymer

Description description	TETRADECANE
Molecular weight formula_weight	198.4 kDa
Source method src_method	syn
Copy count entity_count	18

Entity 7 Entity 7 non-polymer

Description description	N-OCTANE
Molecular weight formula_weight	114.2 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 8 Entity 8 non-polymer

Description description	6-[2-chloro-6-(trifluoromethoxy)phenyl]-1H-benzimidazol-2-ol
Molecular weight formula_weight	328.7 kDa
Source method src_method	syn
Copy count entity_count	2

▶

8. Citations (1)

▶

Unit-cell length a length_a	1.000 Å
Unit-cell length b length_b	1.000 Å
Unit-cell length c length_c	1.000 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	—

Space group space_group	P 1
Space-group number int_tables_number	1
Crystal system crystal_system	triclinic

Resolution resolution	2.99 Å
Resolution测定方法 resolution_method	—
颗粒数 num_particles	43283

fit	/app/data/saxs_computation/z6/9z6w/9z6w.fit
pddf	/app/data/pr_computation/z6/9z6w/9z6w.pr.out
profile	/app/data/saxs_computation/z6/9z6w/9z6w.dat
