7ldd

native AMPA receptor

Method: ELECTRON MICROSCOPY

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Glutamate receptor 1

OrganismNot specified

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Other combination	Heteromer	Protein 14 其他Polymer 6	Glutamate receptor × 2 （G5E8H1） Protein cornichon homolog 2 × 2 （O35089） Voltage-dependent calcium channel gamma-8 subunit × 2 （Q8VHW2） 11B8 scFv × 2 15F1 Fab light chain × 2 15F1 Fab heavy chain × 2 2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose × 6 {[7-morpholin-4-yl-2,3-dioxo-6-(trifluoromethyl)-3,4-dihydroquinoxalin-1(2H)-yl]methyl}phosphonic acid × 4 HEXADECANE × 2 N-OCTANE × 6 HEPTANE × 4 DECANE × 6 2-acetamido-2-deoxy-beta-D-glucopyranose × 6 DODECANE × 6 TETRADECANE × 6 nonane × 4 6-[2-chloro-6-(trifluoromethoxy)phenyl]-1H-benzimidazol-2-ol × 2	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	GRIA1_MOUSE
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–907； UniProt 1–907 Author chain C； PDBConstruct 1–907； UniProt 1–907

Glutamate receptor

OrganismNot specified

UniProt G5E8H1

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Other combination	Heteromer	Protein 14 其他Polymer 6	Glutamate receptor 1 × 2 （P23818） Protein cornichon homolog 2 × 2 （O35089） Voltage-dependent calcium channel gamma-8 subunit × 2 （Q8VHW2） 11B8 scFv × 2 15F1 Fab light chain × 2 15F1 Fab heavy chain × 2 2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose × 6 {[7-morpholin-4-yl-2,3-dioxo-6-(trifluoromethyl)-3,4-dihydroquinoxalin-1(2H)-yl]methyl}phosphonic acid × 4 HEXADECANE × 2 N-OCTANE × 6 HEPTANE × 4 DECANE × 6 2-acetamido-2-deoxy-beta-D-glucopyranose × 6 DODECANE × 6 TETRADECANE × 6 nonane × 4 6-[2-chloro-6-(trifluoromethoxy)phenyl]-1H-benzimidazol-2-ol × 2	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	G5E8H1_MOUSE
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain B； PDBConstruct 1–883； UniProt 1–883 Author chain D； PDBConstruct 1–883； UniProt 1–883

Protein cornichon homolog 2

OrganismNot specified

UniProt O35089

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Other combination	Heteromer	Protein 14 其他Polymer 6	Glutamate receptor 1 × 2 （P23818） Glutamate receptor × 2 （G5E8H1） Voltage-dependent calcium channel gamma-8 subunit × 2 （Q8VHW2） 11B8 scFv × 2 15F1 Fab light chain × 2 15F1 Fab heavy chain × 2 2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose × 6 {[7-morpholin-4-yl-2,3-dioxo-6-(trifluoromethyl)-3,4-dihydroquinoxalin-1(2H)-yl]methyl}phosphonic acid × 4 HEXADECANE × 2 N-OCTANE × 6 HEPTANE × 4 DECANE × 6 2-acetamido-2-deoxy-beta-D-glucopyranose × 6 DODECANE × 6 TETRADECANE × 6 nonane × 4 6-[2-chloro-6-(trifluoromethoxy)phenyl]-1H-benzimidazol-2-ol × 2	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	CNIH2_MOUSE
Isoform	—
PDB entities	3
Chains and sequence ranges	Author chain E； PDBConstruct 1–160； UniProt 1–160 Author chain F； PDBConstruct 1–160； UniProt 1–160

Voltage-dependent calcium channel gamma-8 subunit

OrganismNot specified

UniProt Q8VHW2

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Other combination	Heteromer	Protein 14 其他Polymer 6	Glutamate receptor 1 × 2 （P23818） Glutamate receptor × 2 （G5E8H1） Protein cornichon homolog 2 × 2 （O35089） 11B8 scFv × 2 15F1 Fab light chain × 2 15F1 Fab heavy chain × 2 2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose × 6 {[7-morpholin-4-yl-2,3-dioxo-6-(trifluoromethyl)-3,4-dihydroquinoxalin-1(2H)-yl]methyl}phosphonic acid × 4 HEXADECANE × 2 N-OCTANE × 6 HEPTANE × 4 DECANE × 6 2-acetamido-2-deoxy-beta-D-glucopyranose × 6 DODECANE × 6 TETRADECANE × 6 nonane × 4 6-[2-chloro-6-(trifluoromethoxy)phenyl]-1H-benzimidazol-2-ol × 2	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	CCG8_MOUSE
Isoform	—
PDB entities	4
Chains and sequence ranges	Author chain G； PDBConstruct 1–423； UniProt 1–423 Author chain H； PDBConstruct 1–423； UniProt 1–423

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	7ldd
Deposition date deposition_date	2021-01-13
Structure title title	native AMPA receptor
Keywords keywords	;neurotransmitter, two-fold symmetry, hippocampus, ion-channel, MEMBRANE PROTEIN, SIGNALING PROTEIN-IMMUNE SYSTEM complex, MEMBRANE PROTEIN-IMMUNE SYSTEM complex ;; MEMBRANE PROTEIN/IMMUNE SYSTEM
Experimental Method method	ELECTRON MICROSCOPY

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

7ldd__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

7ldd__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

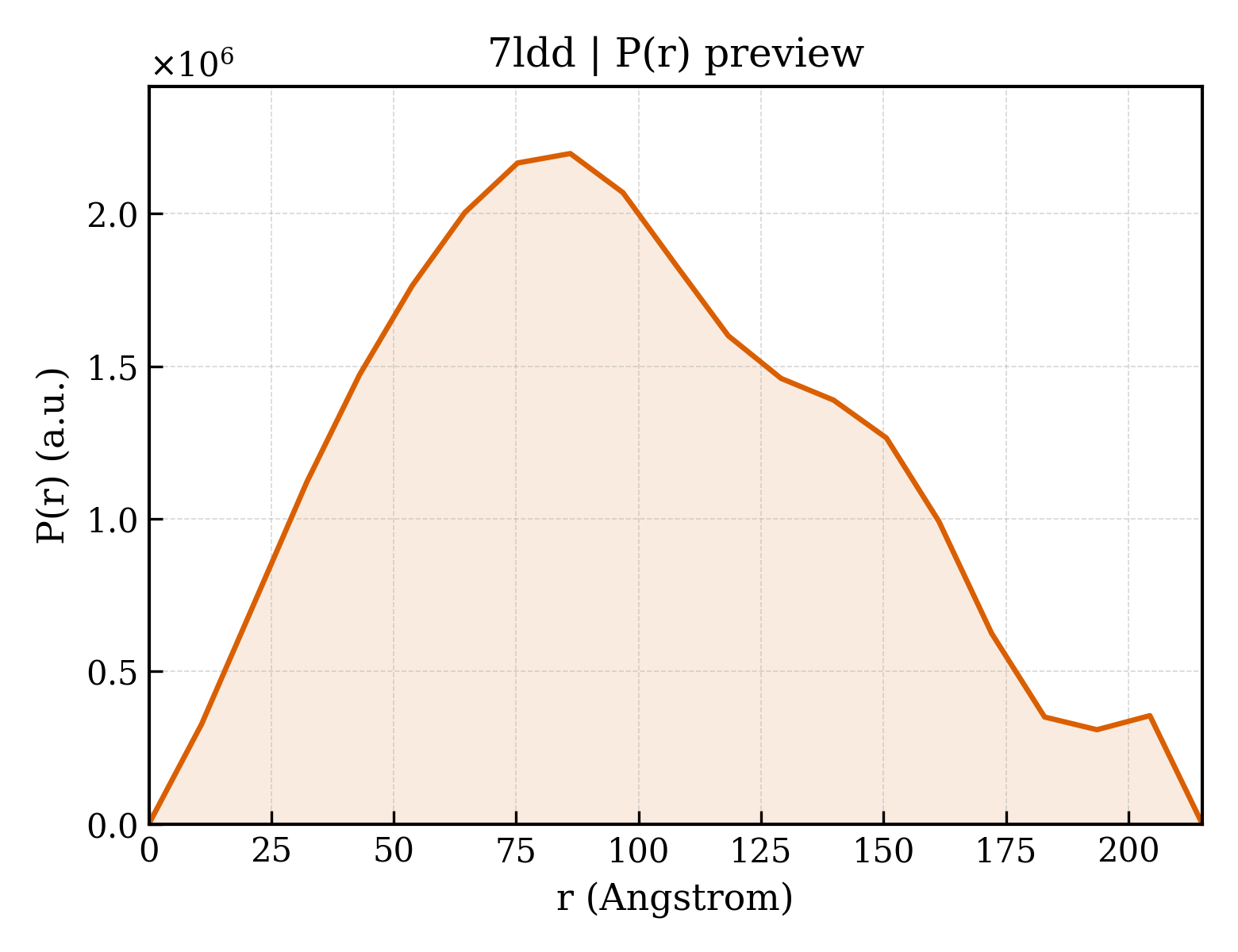

7ldd__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	76.89 Å
Rg (electron density)	76.82 Å
Total Rg	76.24 Å
Atom count	34526
Residues	4990
Excluded volume	609330 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`7ldd__assembly_1__model_1`	tetradecameric （14）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (18)

Entity 1 Entity 1 polymer

Description description	Glutamate receptor 1
Molecular weight formula_weight	101679.0 kDa
Source method src_method	nat
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,C
Atom count atom_count	34528

MPYIFAFFCTGFLGAVVGANFPNNIQIGGLFPNQQSQEHAAFRFALSQLTEPPKLLPQIDIVNISDSFEMTYRFCSQFSKGVYAIFGFYERRTVNMLTSFCGALHVCFITPSFPVDTSNQFVLQLRPELQEALISIIDHYKWQTFVYIYDADRGLSVLQRVLDTAAEKNWQVTAVNILTTTEEGYRMLFQDLEKKKERLVVVDCESERLNAILGQIVKLEKNGIGYHYILANLGFMDIDLNKFKESGANVTGFQLVNYTDTIPARIMQQWRTSDARDHTRVDWKRPKYTSALTYDGVKVMAEAFQSLRRQRIDISRRGNAGDCLANPAVPWGQGIDIQRALQQVRFEGLTGNVQFNEKGRRTNYTLHVIEMKHDGIRKIGYWNEDDKFVPAATDAQAGGDNSSVQNRTYIVTTILEDPYVMLKKNANQFEGNDRYEGYCVELAAEIAKHVGYSYRLEIVSDGKYGARDPDTKAWNGMVGELVYGRADVAVAPLTITLVREEVIDFSKPFMSLGISIMIKKPQKSKPGVFSFLDPLAYEIWMCIVFAYIGVSVVLFLVSRFSPYEWHSEEFEEGRDQTTSDQSNEFGIFNSLWFSLGAFMQQGCDISPRSLSGRIVGGVWWFFTLIIISSYTANLAAFLTVERMVSPIESAEDLAKQTEIAYGTLEAGSTKEFFRRSKIAVFEKMWTYMKSAEPSVFVRTTEEGMIRVRKSKGKYAYLLESTMNEYIEQRKPCDTMKVGGNLDSKGYGIATPKGSALRGPVNLAVLKLSEQGVLDKLKSKWWYDKGECGSKDSGSKDKTSALSLSNVAGVFYILIGGLGLAMLVALIEFCYKSRSESKRMKGFCLIPQQSINEAIRTSTLPRNSGAGASGGSGSGENGRVVSQDFPKSMQSIPCMSHSSGMPLGATGL

Entity 2 Entity 2 polymer

Description description	Glutamate receptor
Molecular weight formula_weight	98899.9 kDa
Source method src_method	nat
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B,D

MQKIMHISVLLSPVLWGLIFGVSSNSIQIGGLFPRGADQEYSAFRVGMVQFSTSEFRLTPHIDNLEVANSFAVTNAFCSQFSRGVYAIFGFYDKKSVNTITSFCGTLHVSFITPSFPTDGTHPFVIQMRPDLKGALLSLIEYYQWDKFAYLYDSDRGLSTLQAVLDSAAEKKWQVTAINVGNINNDKKDETYRSLFQDLELKKERRVILDCERDKVNDIVDQVITIGKHVKGYHYIIANLGFTDGDLLKIQFGGANVSGFQIVDYDDSLVSKFIERWSTLEEKEYPGAHTATIKYTSALTYDAVQVMTEAFRNLRKQRIEISRRGNAGDCLANPAVPWGQGVEIERALKQVQVEGLSGNIKFDQNGKRINYTINIMELKTNGPRKIGYWSEVDKMVVTLTELPSGNDTSGLENKTVVVTTILESPYVMMKKNHEMLEGNERYEGYCVDLAAEIAKHCGFKYKLTIVGDGKYGARDADTKIWNGMVGELVYGKADIAIAPLTITLVREEVIDFSKPFMSLGISIMIKKPQKSKPGVFSFLDPLAYEIWMCIVFAYIGVSVVLFLVSRFSPYEWHTEEFEDGRETQSSESTNEFGIFNSLWFSLGAFMRQGCDISPRSLSGRIVGGVWWFFTLIIISSYTANLAAFLTVERMVSPIESAEDLSKQTEIAYGTLDSGSTKEFFRRSKIAVFDKMWTYMRSAEPSVFVRTTAEGVARVRKSKGKYAYLLESTMNEYIEQRKPCDTMKVGGNLDSKGYGIATPKGSSLRNAVNLAVLKLNEQGLLDKLKNKWWYDKGECGSGGGDSKEKTSALSLSNVAGVFYILVGGLGLAMLVALIEFCYKSRAEAKRMKVAKNAQNINPSSSQNSQNFATYKEGYNVYGIESVKI

Entity 3 Entity 3 polymer

Description description	Protein cornichon homolog 2
Molecular weight formula_weight	18948.4 kDa
Source method src_method	nat
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	E,F

MAFTFAAFCYMLTLVLCASLIFFVIWHIIAFDELRTDFKNPIDQGNPARARERLKNIERICCLLRKLVVPEYSIHGLFCLMFLCAAEWVTLGLNIPLLFYHLWRYFHRPADGSEVMYDAVSIMNADILNYCQKESWCKLAFYLLSFFYYLYSMVYTLVSF

Entity 4 Entity 4 polymer

Description description	Voltage-dependent calcium channel gamma-8 subunit
Molecular weight formula_weight	43502.9 kDa
Source method src_method	nat
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	G,H

MESLKRWNEERGLWCEKGVQVLLTTIGAFSAFGLMTIAISTDYWLYTRALICNTTNLTAGDDGPPHRGGSGSSEKKDPGGLTHSGLWRICCLEGLKRGVCVKINHFPEDTDYDHDSAEYLLRVVRASSIFPILSAILLLLGGVCVAASRVYKSKRNIILGAGILFVAAGLSNIIGVIVYISANAGEPGPKRDEEKKNHYSYGWSFYFGGLSFILAEVIGVLAVNIYIERSREAHCQSRSDLLKAGGGAGGSGGSGPSAILRLPSYRFRYRRRSRSSSRGSSEASPSRDASPGGPGGPGFASTDISMYTLSRDPSKGSVAAGLASAGGGGSGAGVGAYGGAAGAAGGGGAGSERDRGSSAGFLTLHNAFPKEAASGVTVTVTGPPAAPAPAPAPPAPAAPAPGTLSKEAAASNTNTLNRKTTPV

Entity 5 Entity 5 polymer

Description description	11B8 scFv
Molecular weight formula_weight	27511.5 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	I,L

EVKLLESGGGLVQPGGSLKLSCAASGFDFSEYWMSWVRQAPGKGLEWIGEINPDSSSIDYTPSLKDKIIISRDNAKKTLYLQLSKVRSEDTALYYCARPRGNYVVMDYWGQGTSVTVSSSGGGGSGGGGSGGGGNIVLTQSPASLAVSLGQRATISCRASESVDSYGSSFVHWYQQKPGQPPKLLIFLASKLESGVPARFSGSGSRTDFTLTIDPVEADDAATYYCQQTNEDPYTFGGGTKLEIKRASNWSHPQFEK

Source Source

Source organism organism	Mus musculus
NCBI taxonomy ID ncbi_taxonomy_id	10090
Host organism host_organism	Escherichia coli

Entity 6 Entity 6 polymer

Description description	15F1 Fab light chain
Molecular weight formula_weight	25111.7 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	J,M

MEIQMTQTTSSLSASLGDRVTISCRASQDISNYLSWYQQKPDGTVKLLIYYTSRLHSGVPSRFSGSGSGIDYSLTINNLEQEDFATYFCQQGNTLPLTFGAGTKLELKRADAAPTVSIFPPSSEQLTSGGASVVCFLNNFYPKDINVKWKIDGSERQNGVLNSWTDQDSKDSTYSMSSTLTLTKDEYERHNSYTCEATHKTSTSPIVKSFNRNECSNWSHPQFEK

Source Source

Source organism organism	Mus musculus
NCBI taxonomy ID ncbi_taxonomy_id	10090
Host organism host_organism	Spodoptera aff. frugiperda 1 BOLD-2017

Entity 7 Entity 7 polymer

Description description	15F1 Fab heavy chain
Molecular weight formula_weight	27975.4 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	K,N

MVSAIVLYVLLAAAAHSAFAMQAQLKESGPGLVAPSQSLSITCTVSGFSLTNYGVHWVRQPPGKGLEWLGVIWAGGSTNYNSALMSRVSISKDNSKSQVFLKMNSLQTDDTVMYYCAREDYDYDWHFDVWGAGTTVTVSSAKTTPPSVYPLAPGSAAQTNSMVTLGCLVKGYFPEPVTVTWNSGSLSSGVHTFPAVLQSDLYTLSSSVTVPSSTWPSETVTCNVAHPASSTKVDKKLEVLFQGPGSGSADTITIRGYVRDNR

Source Source

Source organism organism	Mus musculus
NCBI taxonomy ID ncbi_taxonomy_id	10090
Host organism host_organism	Spodoptera aff. frugiperda 1 BOLD-2017

Entity 8 Entity 8 branched

Description description	2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose
Molecular weight formula_weight	424.4 kDa
Source method src_method	nat
Copy count entity_count	6

Entity 9 Entity 9 non-polymer

Description description	{[7-morpholin-4-yl-2,3-dioxo-6-(trifluoromethyl)-3,4-dihydroquinoxalin-1(2H)-yl]methyl}phosphonic acid
Molecular weight formula_weight	409.3 kDa
Source method src_method	syn
Copy count entity_count	4

Entity 10 Entity 10 non-polymer

Description description	HEXADECANE
Molecular weight formula_weight	226.4 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 11 Entity 11 non-polymer

Description description	N-OCTANE
Molecular weight formula_weight	114.2 kDa
Source method src_method	syn
Copy count entity_count	6

Entity 12 Entity 12 non-polymer

Description description	HEPTANE
Molecular weight formula_weight	100.2 kDa
Source method src_method	syn
Copy count entity_count	4

Entity 13 Entity 13 non-polymer

Description description	DECANE
Molecular weight formula_weight	142.3 kDa
Source method src_method	syn
Copy count entity_count	6

Entity 14 Entity 14 non-polymer

Description description	2-acetamido-2-deoxy-beta-D-glucopyranose
Molecular weight formula_weight	221.2 kDa
Source method src_method	nat
Copy count entity_count	6

Entity 15 Entity 15 non-polymer

Description description	DODECANE
Molecular weight formula_weight	170.3 kDa
Source method src_method	syn
Copy count entity_count	6

Entity 16 Entity 16 non-polymer

Description description	TETRADECANE
Molecular weight formula_weight	198.4 kDa
Source method src_method	syn
Copy count entity_count	6

Entity 17 Entity 17 non-polymer

Description description	nonane
Molecular weight formula_weight	128.3 kDa
Source method src_method	syn
Copy count entity_count	4

Entity 18 Entity 18 non-polymer

Description description	6-[2-chloro-6-(trifluoromethoxy)phenyl]-1H-benzimidazol-2-ol
Molecular weight formula_weight	328.7 kDa
Source method src_method	syn
Copy count entity_count	2

▼

6. Fold Classification (SCOP + CATH) 4 domains

CATH v4.4 (4 domains)

Domain ID domain_id	7lddJ01
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	10 — Immunoglobulins

Domain ID domain_id	7lddJ02
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	10 — Immunoglobulins

Domain ID domain_id	7lddM01
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	10 — Immunoglobulins

Domain ID domain_id	7lddM02
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	10 — Immunoglobulins

▶

Resolution resolution	3.40 Å
Resolution测定Method resolution_method	—
颗粒数 num_particles	829000
