11en
Structure of Rapidly twisting Amyloid-beta 40 fibril , RT-Ab40(2_1)
SAXS Profile

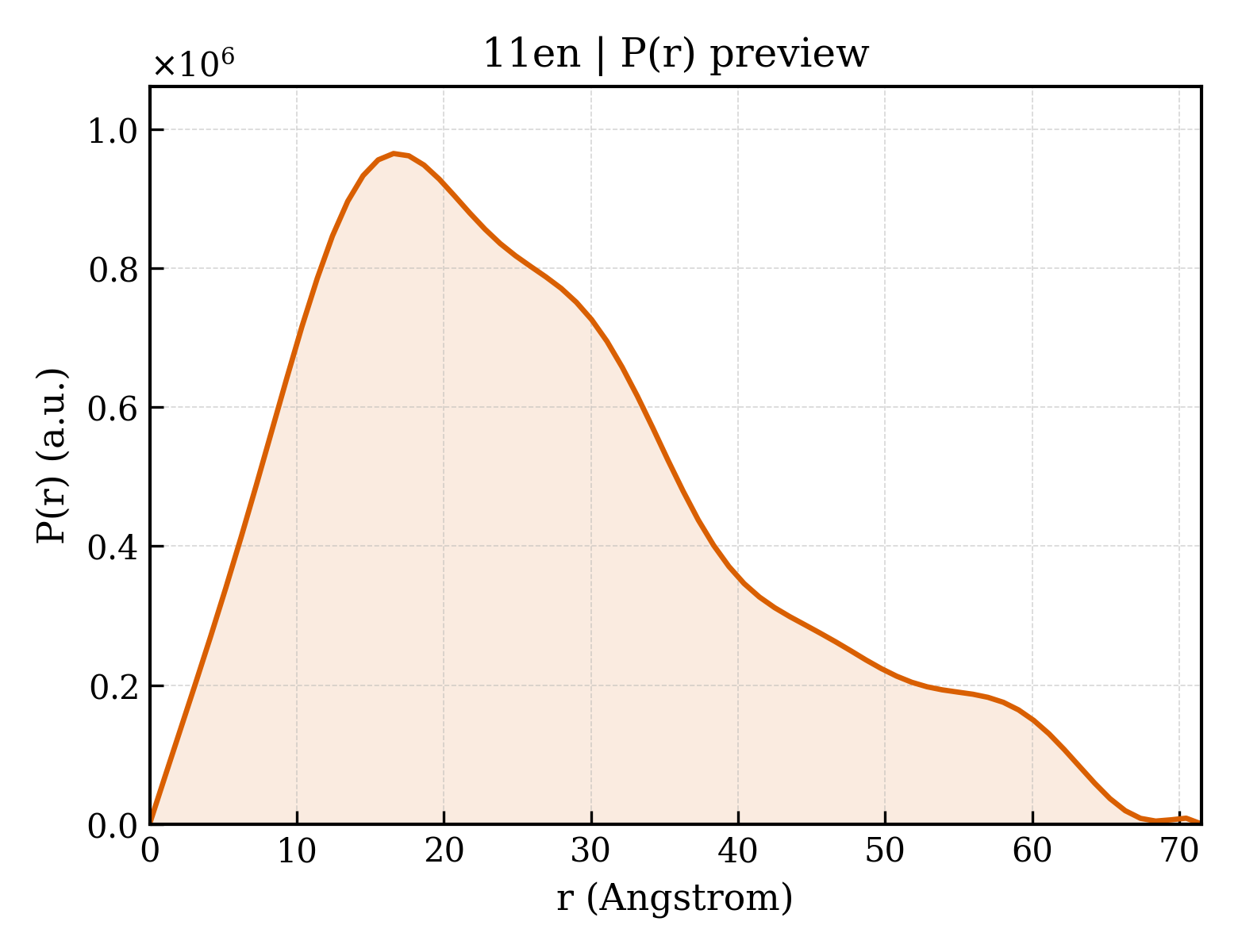

P(r) Distribution
1. Structure Basics
| entry_id | 11en |
| deposition_date | 2026-02-19 |
| title | Structure of Rapidly twisting Amyloid-beta 40 fibril , RT-Ab40(2_1) |
| keywords | Amyloid-beta 40, rapidly twisting, protein fibril, Ab40; PROTEIN FIBRIL |
| method | ELECTRON MICROSCOPY |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 20.57 Å |
| rg_electron | 21.25 Å |
| i0 | 391680000.00 |
| molecular_weight | 175410.0 kDa |
| excluded_volume | 223270 ų |
| envelope_volume | 34162 ų |
| shell_volume | 14181 ų |
| envelope_diameter | 76.5 Å |
| shell_rg | 27.76 Å |
| envelope_rg | 23.76 Å |
| shape_rg | 21.23 Å |
| total_rg | 21.47 Å |
| total_atoms | 24660 |
| n_residues | 1680 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 71.5 Å |
| rg_real | 20.96 Å |
| rg_real_error | 0.72 Å |
| i0_real | 3.9170e+08 |
| i0_real_error | 5.5920e+06 |
| rg_reciprocal | 20.89 Å |
| i0_reciprocal | 391700000.0000 |
| total_estimate | 0.7953 |
| solution_quality | GOOD a GOOD solution |
| n_peaks | 2 |
| r_peak_primary | 16.6 Å |
| skewness | 0.665 |
| kurtosis | -0.165 |
| angular_range | — – 0.3850 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 290900.0000 |
| n_real_points | 70 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.677; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.379; Smooth: 0.924 |
