SAXSdb — 1ca0

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

BOVINE CHYMOTRYPSIN

OrganismNot specified

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 4	;PROTEASE INHIBITOR DOMAIN OF ALZHEIMER'S AMYLOID BETA-PROTEIN PRECURSOR ; × 1 （P05067） water × 4	Consistent with protein count
2	Protein heterocomplex	Heteromer	Protein 4	;PROTEASE INHIBITOR DOMAIN OF ALZHEIMER'S AMYLOID BETA-PROTEIN PRECURSOR ; × 1 （P05067） water × 3	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	CTRA_BOVIN
Isoform	—
PDB entities	1, 2, 3
Chains and sequence ranges	Author chain A； PDBConstruct 1–13； UniProt 1–13 Author chain F； PDBConstruct 1–13； UniProt 1–13 Author chain B； PDBConstruct 1–131； UniProt 16–146 Author chain G； PDBConstruct 1–131； UniProt 16–146 Author chain C； PDBConstruct 1–97； UniProt 149–245 Author chain H； PDBConstruct 1–97； UniProt 149–245

;PROTEASE INHIBITOR DOMAIN OF ALZHEIMER'S AMYLOID BETA-PROTEIN PRECURSOR ;

Homo sapiens

UniProt P05067

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 4	BOVINE CHYMOTRYPSIN × 1 （P00766） BOVINE CHYMOTRYPSIN × 1 （P00766） BOVINE CHYMOTRYPSIN × 1 （P00766） water × 4	Consistent with protein count
2	Protein heterocomplex	Heteromer	Protein 4	BOVINE CHYMOTRYPSIN × 1 （P00766） BOVINE CHYMOTRYPSIN × 1 （P00766） BOVINE CHYMOTRYPSIN × 1 （P00766） water × 3	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	A4_HUMAN
Isoform	—
PDB entities	4
Chains and sequence ranges	Author chain D； PDBConstruct 1–54； UniProt 289–342 Author chain I； PDBConstruct 1–54； UniProt 289–342

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1ca0
Deposition date deposition_date	1997-01-23
Structure title title	BOVINE CHYMOTRYPSIN COMPLEXED TO APPI
Keywords keywords	;SERINE PROTEASE, INHIBITOR, PROTEASE-SUBSTRATE INTERACTIONS, COMPLEX (SERINE PROTEASE-INHIBITOR), COMPLEX (SERINE PROTEASE-INHIBITOR) complex ;; COMPLEX (SERINE PROTEASE/INHIBITOR)
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

1ca0__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

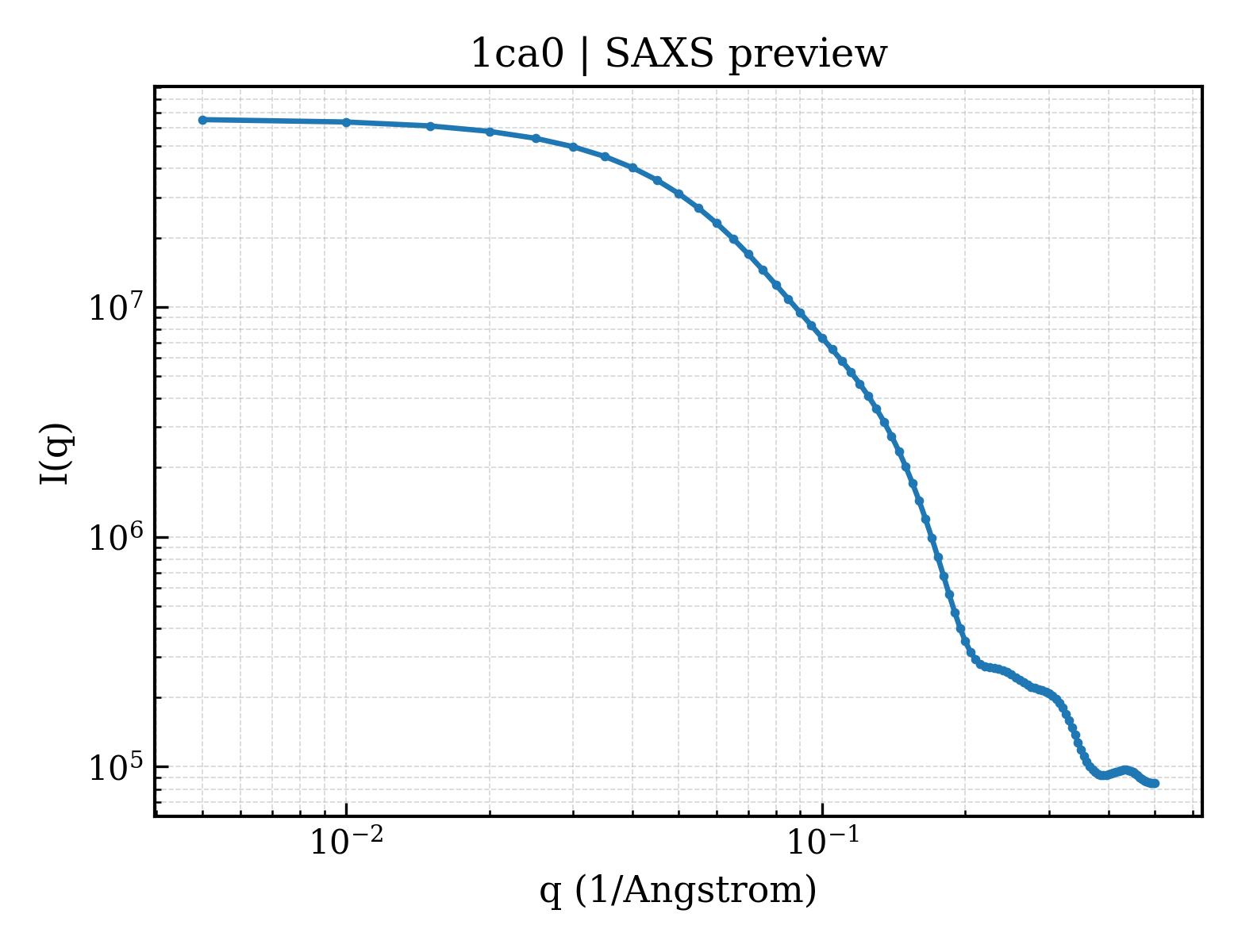

1ca0__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

1ca0__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	19.35 Å
Rg (electron density)	18.37 Å
Total Rg	19.34 Å
Atom count	2172
Residues	293
Excluded volume	38462 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`1ca0__assembly_1__model_1`	tetrameric （4）	Success	4.1.3-1-20251215 (887e7ef)	View Download
2	1	`1ca0__assembly_2__model_1`	tetrameric （4）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (5)

Entity 1 Entity 1 polymer

Description description	BOVINE CHYMOTRYPSIN
Molecular weight formula_weight	1253.5 kDa
EC 编号 ec_number	3.4.21.1
Source method src_method	nat
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,F
Atom count atom_count	4606

CGVPAIQPVLSGL

Entity 2 Entity 2 polymer

Description description	BOVINE CHYMOTRYPSIN
Molecular weight formula_weight	13934.6 kDa
EC 编号 ec_number	3.4.21.1
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B,G

IVNGEEAVPGSWPWQVSLQDKTGFHFCGGSLINENWVVTAAHCGVTTSDVVVAGEFDQGSSSEKIQKLKIAKVFKNSKYNSLTINNDITLLKLSTAASFSQTVSAVCLPSASDDFAAGTTCVTTGWGLTRY

Source Source

Source organism organism	Bos taurus
Common name common_name	cattle
NCBI taxonomy ID ncbi_taxonomy_id	9913
Host organism host_organism	Escherichia coli

Entity 3 Entity 3 polymer

Description description	BOVINE CHYMOTRYPSIN
Molecular weight formula_weight	10074.5 kDa
EC 编号 ec_number	3.4.21.1
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	C,H

ANTPDRLQQASLPLLSNTNCKKYWGTKIKDAMICAGASGVSSCMGDSGGPLVCKKNGAWTLVGIVSWGSSTCSTSTPGVYARVTALVNWVQQTLAAN

Source Source

Source organism organism	Bos taurus
Common name common_name	cattle
NCBI taxonomy ID ncbi_taxonomy_id	9913
Host organism host_organism	Escherichia coli

Entity 4 Entity 4 polymer

Description description	;PROTEASE INHIBITOR DOMAIN OF ALZHEIMER'S AMYLOID BETA-PROTEIN PRECURSOR ;
Molecular weight formula_weight	6005.7 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	D,I

EVCSEQAETGPCRAMISRWYFDVTEGKCAPFFYGGCGGNRNNFDTEEYCMAVCG

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Escherichia coli

Entity 5 Entity 5 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	262

▼

6. Fold Classification (SCOP + CATH) 10 domains

SCOP 2.08 (4 domains)

Domain ID domain_id	d1ca0.1
Class class	b — All beta proteins
Fold Fold fold	b.47 — Trypsin-like serine proteases
Superfamily Superfamily superfamily	b.47.1 — Trypsin-like serine proteases
Family Family family	b.47.1.2 — Eukaryotic proteases

Domain ID domain_id	d1ca0.2
Class class	b — All beta proteins
Fold Fold fold	b.47 — Trypsin-like serine proteases
Superfamily Superfamily superfamily	b.47.1 — Trypsin-like serine proteases
Family Family family	b.47.1.2 — Eukaryotic proteases

Domain ID domain_id	d1ca0d_
Class class	g — Small proteins
Fold Fold fold	g.8 — BPTI-like
Superfamily Superfamily superfamily	g.8.1 — BPTI-like
Family Family family	g.8.1.1 — Small Kunitz-type inhibitors & BPTI-like toxins

Domain ID domain_id	d1ca0i_
Class class	g — Small proteins
Fold Fold fold	g.8 — BPTI-like
Superfamily Superfamily superfamily	g.8.1 — BPTI-like
Family Family family	g.8.1.1 — Small Kunitz-type inhibitors & BPTI-like toxins

CATH v4.4 (6 domains)

Domain ID domain_id	1ca0B00
Class class	2 — Mainly Beta
Architecture architecture	40 — Beta Barrel
Topology topology	10 — Thrombin, subunit H
Homologous superfamily homologous superfamily	10 — Trypsin-like serine proteases

Domain ID domain_id	1ca0C00
Class class	2 — Mainly Beta
Architecture architecture	40 — Beta Barrel
Topology topology	10 — Thrombin, subunit H
Homologous superfamily homologous superfamily	10 — Trypsin-like serine proteases

Domain ID domain_id	1ca0D00
Class class	4 — Few Secondary Structures
Architecture architecture	10 — Irregular
Topology topology	410 — Factor Xa Inhibitor
Homologous superfamily homologous superfamily	10 — Pancreatic trypsin inhibitor Kunitz domain

Domain ID domain_id	1ca0G00
Class class	2 — Mainly Beta
Architecture architecture	40 — Beta Barrel
Topology topology	10 — Thrombin, subunit H
Homologous superfamily homologous superfamily	10 — Trypsin-like serine proteases

Domain ID domain_id	1ca0H00
Class class	2 — Mainly Beta
Architecture architecture	40 — Beta Barrel
Topology topology	10 — Thrombin, subunit H
Homologous superfamily homologous superfamily	10 — Trypsin-like serine proteases

Domain ID domain_id	1ca0I00
Class class	4 — Few Secondary Structures
Architecture architecture	10 — Irregular
Topology topology	410 — Factor Xa Inhibitor
Homologous superfamily homologous superfamily	10 — Pancreatic trypsin inhibitor Kunitz domain

▶

Unit-cell length a length_a	70.522 Å
Unit-cell length b length_b	181.488 Å
Unit-cell length c length_c	46.328 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	8

Space group space_group	P 21 21 2
Space-group number int_tables_number	18
Crystal system crystal_system	—

Resolution resolution	2.100 Å
Low-resolution limit resolution_low	8.000 Å
R factor r_factor	0.2150
R_work r_work	0.2150
R_free r_free	0.3230
