SAXSdb — 1vgc

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

GAMMA CHYMOTRYPSIN

OrganismNot specified

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein homooligomer	Homooligomer	Protein 3	SULFATE ION × 2 L-1-(4-CHLOROPHENYL)-2-(ACETAMIDO)ETHANE BORONIC ACID × 1 water × 3	Consistent with protein count
2	Protein homooligomer	Homooligomer	Protein 6	SULFATE ION × 4 L-1-(4-CHLOROPHENYL)-2-(ACETAMIDO)ETHANE BORONIC ACID × 2 water × 6	Consistent with protein count
3	Protein homooligomer	Homooligomer	Protein 6	SULFATE ION × 4 L-1-(4-CHLOROPHENYL)-2-(ACETAMIDO)ETHANE BORONIC ACID × 2 water × 6	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	CTRA_BOVIN
Isoform	—
PDB entities	1, 2, 3
Chains and sequence ranges	Author chain A； PDBConstruct 1–13； UniProt 1–13 Author chain B； PDBConstruct 1–131； UniProt 16–146 Author chain C； PDBConstruct 1–97； UniProt 149–245

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1vgc
Deposition date deposition_date	1997-05-01
Structure title title	GAMMA-CHYMOTRYPSIN L-PARA-CHLORO-1-ACETAMIDO BORONIC ACID INHIBITOR COMPLEX
Keywords keywords	HYDROLASE, SERINE PROTEASE; SERINE PROTEASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

1vgc__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

1vgc__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

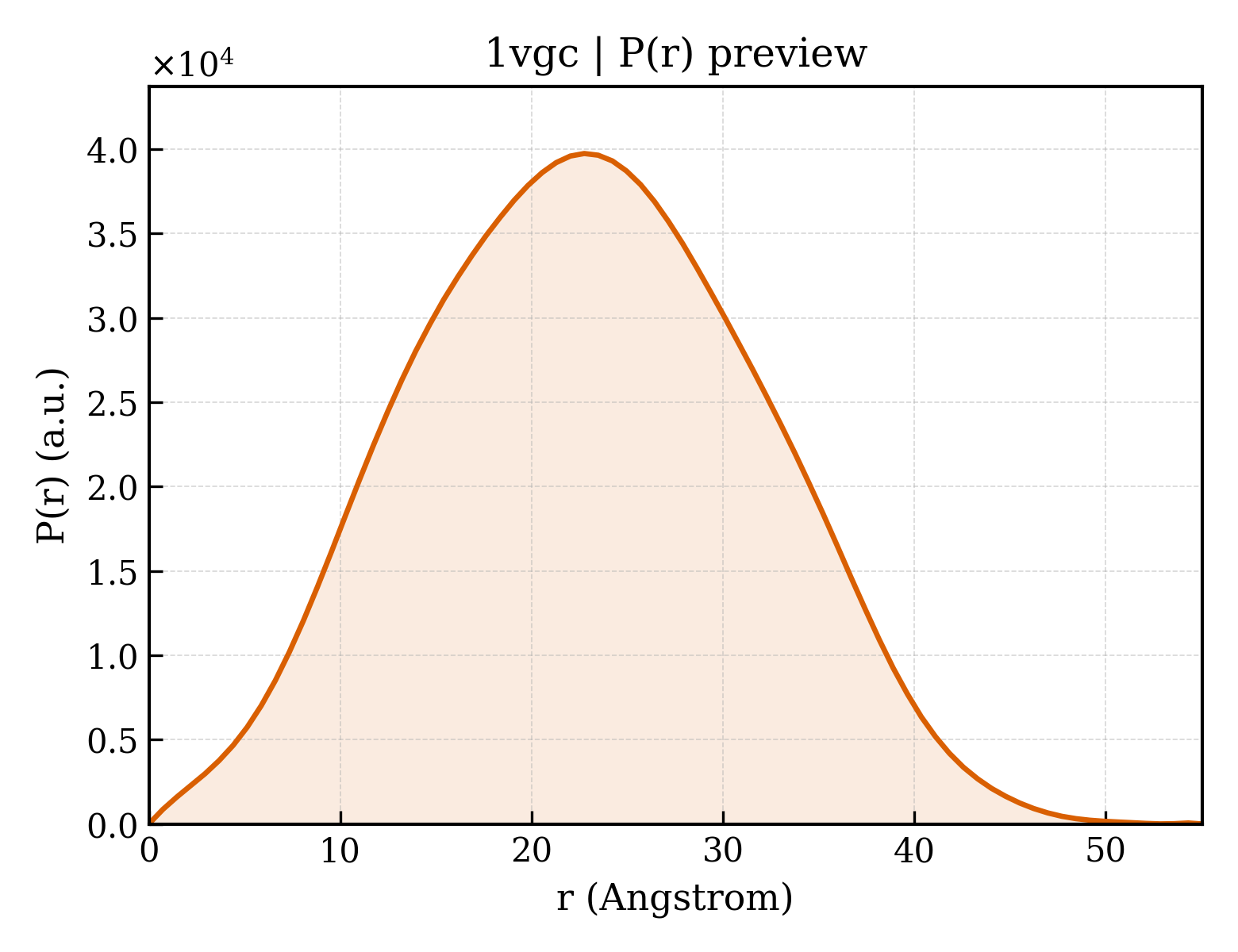

1vgc__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	17.48 Å
Rg (electron density)	16.28 Å
Total Rg	17.40 Å
Atom count	1763
Residues	236
Excluded volume	31384 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`1vgc__assembly_1__model_1`	trimeric （3）	Success	4.1.3-1-20251215 (887e7ef)	View Download
2	1	`1vgc__assembly_2__model_1`	hexameric （6）	Success	4.1.3-1-20251215 (887e7ef)	View Download
3	1	`1vgc__assembly_3__model_1`	hexameric （6）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (6)

Entity 1 Entity 1 polymer

Description description	GAMMA CHYMOTRYPSIN
Molecular weight formula_weight	1253.5 kDa
EC 编号 ec_number	3.4.21.1
Source method src_method	nat
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	1857

CGVPAIQPVLSGL

Entity 2 Entity 2 polymer

Description description	GAMMA CHYMOTRYPSIN
Molecular weight formula_weight	13934.6 kDa
EC 编号 ec_number	3.4.21.1
Source method src_method	nat
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B

IVNGEEAVPGSWPWQVSLQDKTGFHFCGGSLINENWVVTAAHCGVTTSDVVVAGEFDQGSSSEKIQKLKIAKVFKNSKYNSLTINNDITLLKLSTAASFSQTVSAVCLPSASDDFAAGTTCVTTGWGLTRY

Entity 3 Entity 3 polymer

Description description	GAMMA CHYMOTRYPSIN
Molecular weight formula_weight	10074.5 kDa
EC 编号 ec_number	3.4.21.1
Source method src_method	nat
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	C

ANTPDRLQQASLPLLSNTNCKKYWGTKIKDAMICAGASGVSSCMGDSGGPLVCKKNGAWTLVGIVSWGSSTCSTSTPGVYARVTALVNWVQQTLAAN

Entity 4 Entity 4 non-polymer

Description description	SULFATE ION
Molecular weight formula_weight	96.1 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 5 Entity 5 non-polymer

Description description	L-1-(4-CHLOROPHENYL)-2-(ACETAMIDO)ETHANE BORONIC ACID
Molecular weight formula_weight	258.5 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 6 Entity 6 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	94

▼

6. Fold Classification (SCOP + CATH) 3 domains

SCOP 2.08 (1 domains)

Domain ID domain_id	d1vgc.1
Class class	b — All beta proteins
Fold Fold fold	b.47 — Trypsin-like serine proteases
Superfamily Superfamily superfamily	b.47.1 — Trypsin-like serine proteases
Family Family family	b.47.1.2 — Eukaryotic proteases

CATH v4.4 (2 domains)

Domain ID domain_id	1vgcB00
Class class	2 — Mainly Beta
Architecture architecture	40 — Beta Barrel
Topology topology	10 — Thrombin, subunit H
Homologous superfamily homologous superfamily	10 — Trypsin-like serine proteases

Domain ID domain_id	1vgcC00
Class class	2 — Mainly Beta
Architecture architecture	40 — Beta Barrel
Topology topology	10 — Thrombin, subunit H
Homologous superfamily homologous superfamily	10 — Trypsin-like serine proteases

▶

Unit-cell length a length_a	69.860 Å
Unit-cell length b length_b	69.860 Å
Unit-cell length c length_c	97.150 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	8

Space group space_group	P 42 21 2
Space-group number int_tables_number	94
Crystal system crystal_system	—

Resolution resolution	1.900 Å
Low-resolution limit resolution_low	10.000 Å
R factor r_factor	0.1959
R_work r_work	0.1959
R_free r_free	0.2500
