ZIF268 ZINC FINGER-DNA COMPLEX (GCAC SITE)

entry_id	1a1l
deposition_date	1997-12-10
title	ZIF268 ZINC FINGER-DNA COMPLEX (GCAC SITE)
keywords	ZINC FINGER-DNA COMPLEX, ZINC FINGER, DNA-BINDING PROTEIN, TRANSCRIPTION-DNA COMPLEX; TRANSCRIPTION/DNA
method	X-RAY DIFFRACTION

rg_guinier	16.10 Å
rg_electron	15.89 Å
i0	9350180.00
molecular_weight	17077.0 kDa
excluded_volume	18942 ų
envelope_volume	23710 ų
shell_volume	13110 ų
envelope_diameter	55.5 Å
shell_rg	21.08 Å
envelope_rg	16.20 Å
shape_rg	15.82 Å
total_rg	16.75 Å
total_atoms	1160
n_residues	107
n_harmonics	20
q_range	— – 0.5000 Å−1
n_points	101
shell_type	directional
solvent_density	0.3340 e/ų
contrast_shell	0.0300 e/ų
crysol_version	4.1.3

dmax	55.6 Å
rg_real	16.06 Å
rg_real_error	0.37 Å
i0_real	9.3500e+06
i0_real_error	1.0590e+05
rg_reciprocal	16.07 Å
i0_reciprocal	9350000.0000
total_estimate	0.7849
solution_quality	GOOD a GOOD solution
n_peaks	3
r_peak_primary	20.4 Å
skewness	0.333
kurtosis	-0.158
angular_range	— – 0.4950 Å−1
current_alpha	0.0000
highest_alpha	1231000.0000
n_real_points	80
gnom_version	4.1.3
quality_criteria	AN1: 0.000; Oscil: 0.744; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.968; Smooth: 0.000

Unit Cell

length_a	43.300 Å
length_b	55.900 Å
length_c	132.500 Å
angle_alpha	90.00 °
angle_beta	90.00 °
angle_gamma	90.00 °
z_pdb	8

Symmetry

space_group	C 2 2 21
int_tables_number	20
crystal_system	—

Refinement

resolution	2.300 Å
resolution_low	20.000 Å
r_factor	0.1960
r_work	0.1960
r_free	0.2670

Diffraction

temperature

130.0 K

Files (7)

• pr_distribution /app/data/pr_computation/a1/1a1l/pr_distribution.json
• pr_output /app/data/pr_computation/a1/1a1l/1a1l.pr.out
• pr_plot /app/data/visualization/pr_computation/a1/1a1l/1a1l_pr_distribution.png
• saxs_curve_dat /app/data/saxs_computation/a1/1a1l/1a1l.dat
• saxs_fit /app/data/saxs_computation/a1/1a1l/1a1l.fit
• saxs_log /app/data/saxs_computation/a1/1a1l/1a1l.log

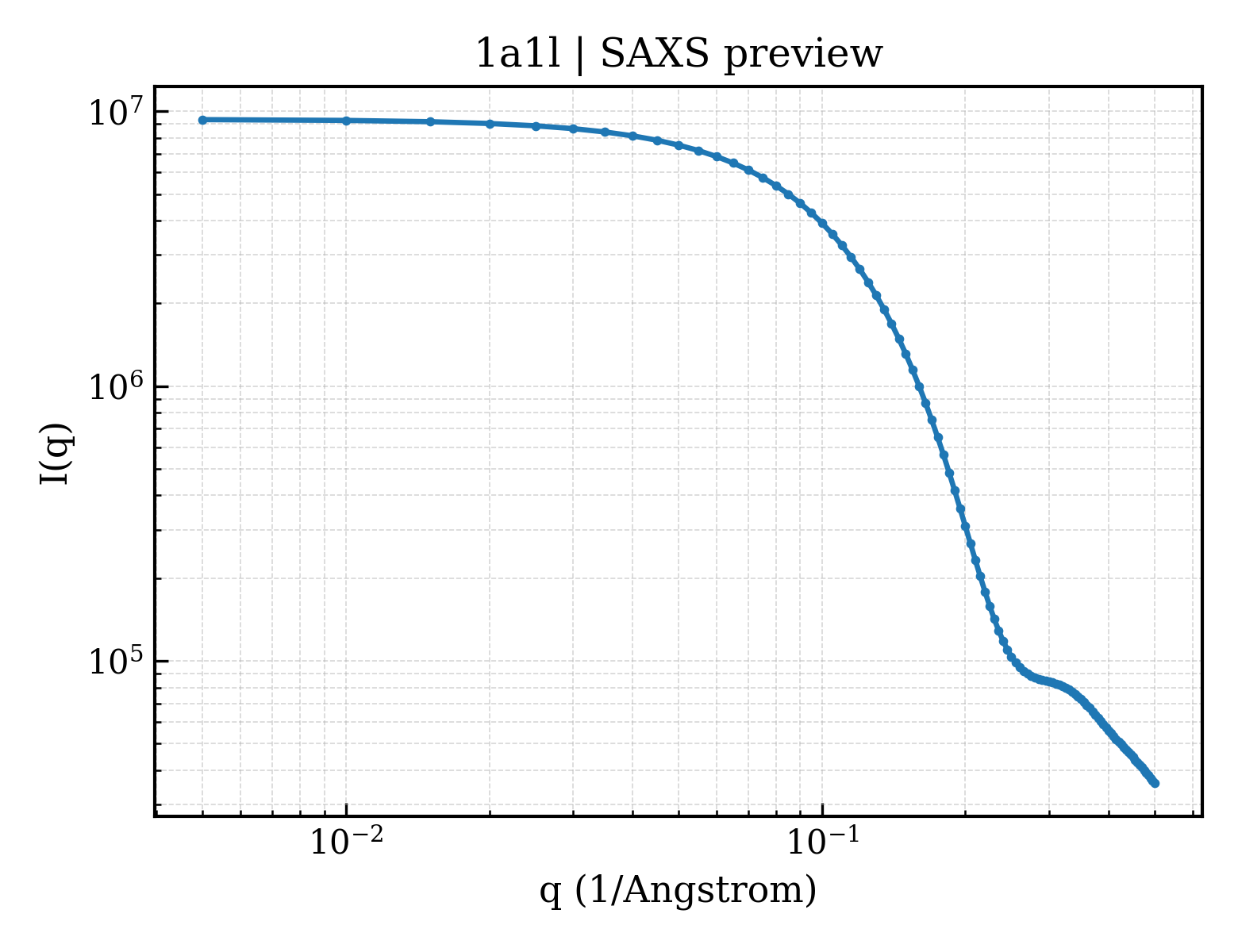

• saxs_plot /app/data/visualization/saxs_computation/a1/1a1l/1a1l_saxs_profile.png

Curves (3)

fit	/app/data/saxs_computation/a1/1a1l/1a1l.fit
pddf	/app/data/pr_computation/a1/1a1l/1a1l.pr.out
profile	/app/data/saxs_computation/a1/1a1l/1a1l.dat
