QGSR (ZIF268 VARIANT) ZINC FINGER-DNA COMPLEX (GCAC SITE)

entry_id	1a1h
deposition_date	1997-12-10
title	QGSR (ZIF268 VARIANT) ZINC FINGER-DNA COMPLEX (GCAC SITE)
keywords	COMPLEX (ZINC FINGER-DNA), ZINC FINGER, DNA-BINDING PROTEIN, TRANSCRIPTION-DNA COMPLEX; TRANSCRIPTION/DNA
method	X-RAY DIFFRACTION

rg_guinier	16.23 Å
rg_electron	15.98 Å
i0	9223240.00
molecular_weight	16950.0 kDa
excluded_volume	18801 ų
envelope_volume	23813 ų
shell_volume	13075 ų
envelope_diameter	60.5 Å
shell_rg	21.31 Å
envelope_rg	16.44 Å
shape_rg	15.90 Å
total_rg	16.88 Å
total_atoms	1151
n_residues	107
n_harmonics	20
q_range	— – 0.5000 Å−1
n_points	101
shell_type	directional
solvent_density	0.3340 e/ų
contrast_shell	0.0300 e/ų
crysol_version	4.1.3

dmax	56.9 Å
rg_real	16.22 Å
rg_real_error	0.40 Å
i0_real	9.2230e+06
i0_real_error	1.1050e+05
rg_reciprocal	16.22 Å
i0_reciprocal	9223000.0000
total_estimate	0.6553
solution_quality	REASONABLE a REASONABLE solution
n_peaks	3
r_peak_primary	20.4 Å
skewness	0.387
kurtosis	-0.045
angular_range	— – 0.4900 Å−1
current_alpha	0.0000
highest_alpha	1272000.0000
n_real_points	79
gnom_version	4.1.3
quality_criteria	AN1: 0.000; Oscil: 0.694; Stabil: 0.999; Sysdev: 0.485; Positv: 1.000; Valcen: 0.980; Smooth: 0.000

Unit Cell

length_a	44.100 Å
length_b	55.900 Å
length_c	130.500 Å
angle_alpha	90.00 °
angle_beta	90.00 °
angle_gamma	90.00 °
z_pdb	8

Symmetry

space_group	C 2 2 21
int_tables_number	20
crystal_system	—

Refinement

resolution	1.600 Å
resolution_low	20.000 Å
r_factor	0.2350
r_work	0.2350
r_free	0.2770

Diffraction

temperature

130.0 K

Files (7)

• pr_distribution /app/data/pr_computation/a1/1a1h/pr_distribution.json
• pr_output /app/data/pr_computation/a1/1a1h/1a1h.pr.out

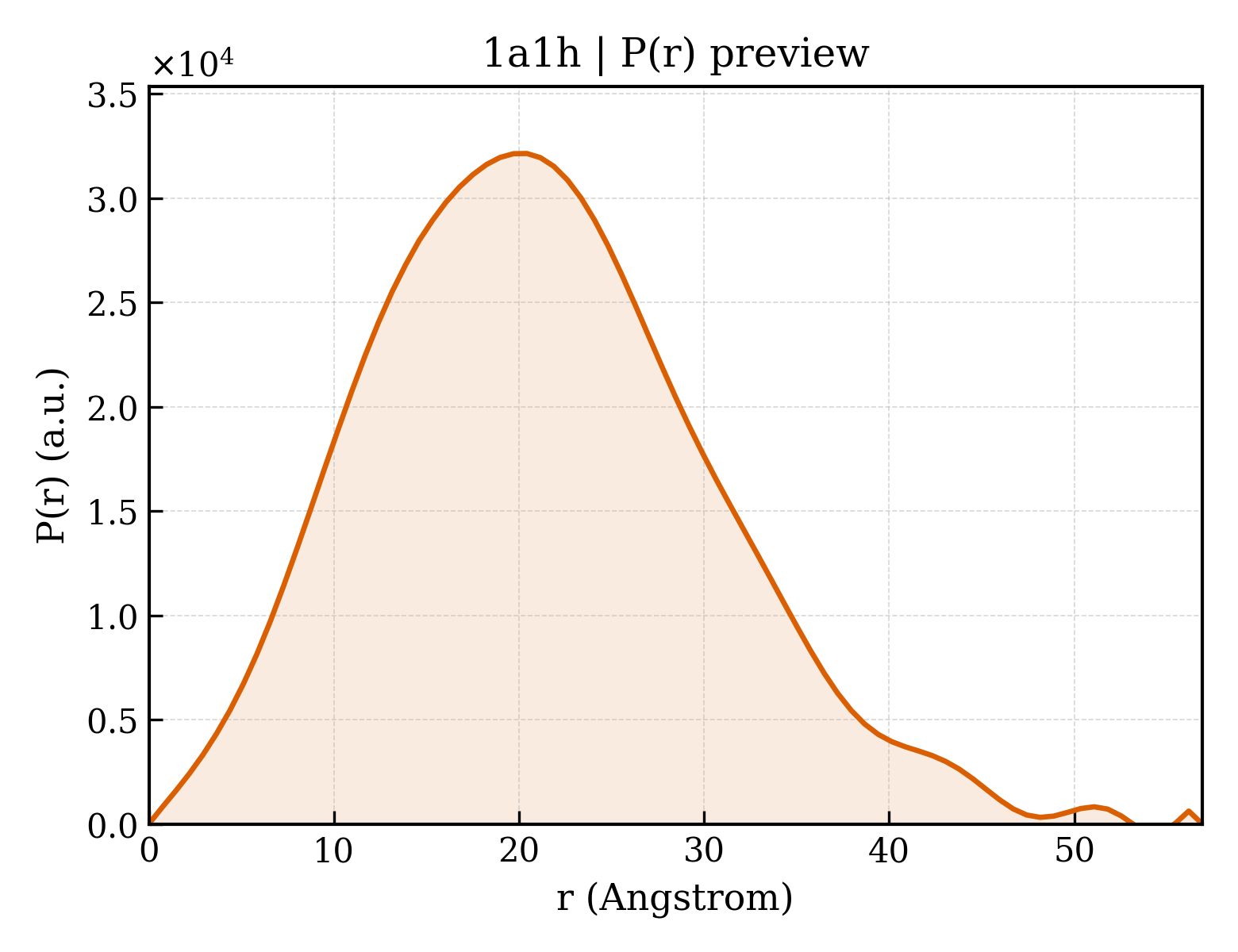

• pr_plot /app/data/visualization/pr_computation/a1/1a1h/1a1h_pr_distribution.png
• saxs_curve_dat /app/data/saxs_computation/a1/1a1h/1a1h.dat
• saxs_fit /app/data/saxs_computation/a1/1a1h/1a1h.fit
• saxs_log /app/data/saxs_computation/a1/1a1h/1a1h.log

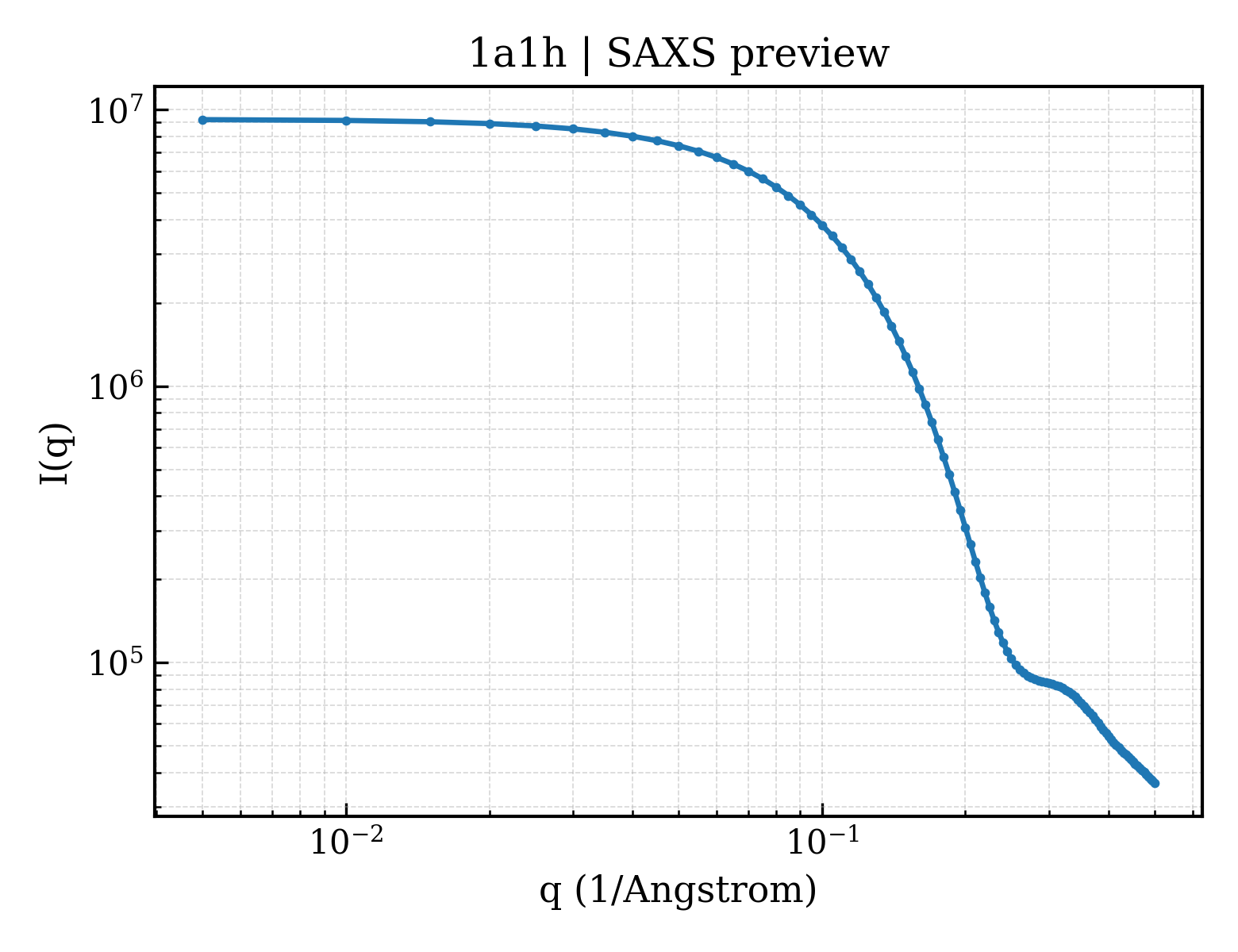

• saxs_plot /app/data/visualization/saxs_computation/a1/1a1h/1a1h_saxs_profile.png

Curves (3)

fit	/app/data/saxs_computation/a1/1a1h/1a1h.fit
pddf	/app/data/pr_computation/a1/1a1h/1a1h.pr.out
profile	/app/data/saxs_computation/a1/1a1h/1a1h.dat
