SAXSdb — 1jk1

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

ZIF268

Mus musculus

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein–DNA Monomer Protein × 1 DNA 2 PDB declaration: trimeric（3） Consistent with all polymer counts	Chain A； UniProt 333–421	Fragment：ZINC FINGERS (Residues 333-421) Mutation：D120A	5'-D(APGPCPGPTPGPGPGPCPGPG)-3' × 1 5'-D(TPCPCPGPCPCPCPAPCPGPC)-3' × 1 ZN ZINC ION × 3	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；pH 8；298 K；300 mM NaCl, 10% PEG 1450, 25 mM Bis-Tris propane, pH 8.0, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 1.90 Å R-free 0.266

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 1JK1	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
1A1F DSNR (ZIF268 VARIANT) ZINC FINGER-DNA COMPLEX (GACC SITE) Deposited 1997-12-10	Different construct Different mutation/modification Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Monomer；Protein × 1 PDB declaration: trimeric	Chain A 308–396（89 aa）	Not recorded	ZN ZINC ION × 3	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；20% PEG 400, 200MM MGCL2, 100 MM HEPES PH 7.5, VAPOR DIFFUSION, HANGING DROP	Resolution 2.10 Å R-free 0.270
1A1G DSNR (ZIF268 VARIANT) ZINC FINGER-DNA COMPLEX (GCGT SITE) Deposited 1997-12-10	Different construct Different mutation/modification Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Monomer；Protein × 1 PDB declaration: trimeric	Chain A 308–396（89 aa）	Not recorded	ZN ZINC ION × 3	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8；25% PEG 1450, 200 MM NACL, 25 MM BIS-TRIS PROPANE PH 8.0, VAPOR DIFFUSION, HANGING DROP	Resolution 1.90 Å R-free 0.275
1A1H QGSR (ZIF268 VARIANT) ZINC FINGER-DNA COMPLEX (GCAC SITE) Deposited 1997-12-10	Different construct Different mutation/modification Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Monomer；Protein × 1 PDB declaration: trimeric	Chain A 308–396（89 aa）	Not recorded	ZN ZINC ION × 3	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；pH 8.5；27.5-35% PEG 3350, 0-200 MM NACL, 100 MM TRIS PH 8.5, VAPOR DIFFUSION	Resolution 1.60 Å R-free 0.277
1A1I RADR (ZIF268 VARIANT) ZINC FINGER-DNA COMPLEX (GCAC SITE) Deposited 1997-12-10	Different construct Different mutation/modification Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Monomer；Protein × 1 PDB declaration: trimeric	Chain A 308–396（89 aa）	Not recorded	ZN ZINC ION × 3	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.2；22.5% PEG 3350, 500MM NACL, 25 MM MES PH 6.2, VAPOR DIFFUSION, HANGING DROP	Resolution 1.60 Å R-free 0.216
1A1J RADR (ZIF268 VARIANT) ZINC FINGER-DNA COMPLEX (GCGT SITE) Deposited 1997-12-10	Different construct Different mutation/modification Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Monomer；Protein × 1 PDB declaration: trimeric	Chain A 308–396（89 aa） Fragment：ZINC FINGER	Not recorded	ZN ZINC ION × 3	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.2；35% PEG 3350, 200MM NACL, 25 MM MES PH 6.2, VAPOR DIFFUSION, HANGING DROP	Resolution 2.00 Å R-free 0.262
1A1K RADR (ZIF268 VARIANT) ZINC FINGER-DNA COMPLEX (GACC SITE) Deposited 1997-12-10	Different construct Different mutation/modification Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Monomer；Protein × 1 PDB declaration: trimeric	Chain A 308–396（89 aa） Fragment：ZINC FINGER	Not recorded	ZN ZINC ION × 3	X-RAY DIFFRACTION X-ray crystallization conditions pH 6.2；25% PEG 1450, 25 MM MES PH 6.2	Resolution 1.90 Å R-free 0.259
1A1L ZIF268 ZINC FINGER-DNA COMPLEX (GCAC SITE) Deposited 1997-12-10	Different construct Different mutation/modification Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Monomer；Protein × 1 PDB declaration: trimeric	Chain A 308–396（89 aa） Fragment：ZINC FINGER	Not recorded	ZN ZINC ION × 3	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8；35% PEG 1450, 300MM NACL, 25 MM BIS TRIS PROPANE PH 8.0, VAPOR DIFFUSION, HANGING DROP	Resolution 2.30 Å R-free 0.267
1AAY ZIF268 ZINC FINGER-DNA COMPLEX Deposited 1997-01-18	Different construct Different mutation/modification Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Monomer；Protein × 1 PDB declaration: trimeric	Chain A 308–396（89 aa）	Not recorded	ZN ZINC ION × 3	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8；2.5-5% PEG 400; 500-700MM NACL; 25MM BIS-TRIS PROPANE, PH 8.0, VAPOR DIFFUSION, HANGING DROP	Resolution 1.60 Å R-free 0.242
1F2I COCRYSTAL STRUCTURE OF SELECTED ZINC FINGER DIMER BOUND TO DNA Deposited 2000-05-25	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Homooligomer；Protein × 2 PDB declaration: tetrameric	Chain G 334–389（56 aa） Fragment：ZIF12 CONTAINS ZINC FINGERS 1 AND 2 OF ZIF268 Chain H 334–389（56 aa） Fragment：ZIF12 CONTAINS ZINC FINGERS 1 AND 2 OF ZIF268	Not recorded	ZN ZINC ION × 4	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.2；298 K；PEG 4000, NaCl, MgCl2, MES, pH 6.2, VAPOR DIFFUSION, HANGING DROP at 298K	Resolution 2.35 Å R-free 0.256
1F2I COCRYSTAL STRUCTURE OF SELECTED ZINC FINGER DIMER BOUND TO DNA Deposited 2000-05-25	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein–DNA Homooligomer；Protein × 2 PDB declaration: tetrameric	Chain I 334–389（56 aa） Fragment：ZIF12 CONTAINS ZINC FINGERS 1 AND 2 OF ZIF268 Chain J 334–389（56 aa） Fragment：ZIF12 CONTAINS ZINC FINGERS 1 AND 2 OF ZIF268	Not recorded	ZN ZINC ION × 4	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.2；298 K；PEG 4000, NaCl, MgCl2, MES, pH 6.2, VAPOR DIFFUSION, HANGING DROP at 298K	Resolution 2.35 Å R-free 0.256
1F2I COCRYSTAL STRUCTURE OF SELECTED ZINC FINGER DIMER BOUND TO DNA Deposited 2000-05-25	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 3 Protein–DNA Homooligomer；Protein × 2 PDB declaration: tetrameric	Chain K 334–389（56 aa） Fragment：ZIF12 CONTAINS ZINC FINGERS 1 AND 2 OF ZIF268 Chain L 334–389（56 aa） Fragment：ZIF12 CONTAINS ZINC FINGERS 1 AND 2 OF ZIF268	Not recorded	ZN ZINC ION × 4	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.2；298 K；PEG 4000, NaCl, MgCl2, MES, pH 6.2, VAPOR DIFFUSION, HANGING DROP at 298K	Resolution 2.35 Å R-free 0.256
1G2D STRUCTURE OF A CYS2HIS2 ZINC FINGER/TATA BOX COMPLEX (CLONE #2) Deposited 2000-10-18	Different construct Different mutation/modification Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Monomer；Protein × 1 PDB declaration: trimeric	Chain C 333–421（89 aa）	Not recorded	ZN ZINC ION × 3	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8；298 K；PEG 400, NaCl, Bis-Tris Propane, CoCl2, pH 8, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 2.20 Å R-free 0.262
1G2D STRUCTURE OF A CYS2HIS2 ZINC FINGER/TATA BOX COMPLEX (CLONE #2) Deposited 2000-10-18	Different construct Different mutation/modification Different experimental conditions Different structure-quality metrics	Assembly 2 Protein–DNA Monomer；Protein × 1 PDB declaration: trimeric	Chain F 333–421（89 aa）	Not recorded	ZN ZINC ION × 3	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8；298 K；PEG 400, NaCl, Bis-Tris Propane, CoCl2, pH 8, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 2.20 Å R-free 0.262
1G2F STRUCTURE OF A CYS2HIS2 ZINC FINGER/TATA BOX COMPLEX (TATAZF;CLONE #6) Deposited 2000-10-18	Different construct Different mutation/modification Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Monomer；Protein × 1 PDB declaration: trimeric	Chain C 333–421（89 aa）	Not recorded	ZN ZINC ION × 3	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8；298 K；PEG 400; NaCl; Bis-Tris Propane; CoCl2, pH 8.0, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 2.00 Å R-free 0.263
1G2F STRUCTURE OF A CYS2HIS2 ZINC FINGER/TATA BOX COMPLEX (TATAZF;CLONE #6) Deposited 2000-10-18	Different construct Different mutation/modification Different experimental conditions Different structure-quality metrics	Assembly 2 Protein–DNA Monomer；Protein × 1 PDB declaration: trimeric	Chain F 333–421（89 aa）	Not recorded	ZN ZINC ION × 3	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8；298 K；PEG 400; NaCl; Bis-Tris Propane; CoCl2, pH 8.0, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 2.00 Å R-free 0.263
1JK2 Zif268 D20A mutant bound to the GCT DNA site Deposited 2001-07-11	Different structure-quality metrics	Assembly 1 Protein–DNA Monomer；Protein × 1 PDB declaration: trimeric	Chain A 333–421（89 aa） Fragment：ZINC FINGERS (Residues 333-421)	Mutation：D120A	ZN ZINC ION × 3	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8；298 K；300 mM NaCl, 10% PEG 1450, 25 mM Bis-Tris propane, pH 8.0, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 1.65 Å R-free 0.273
1LLM Crystal Structure of a Zif23-GCN4 Chimera Bound to DNA Deposited 2002-04-29	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Homooligomer；Protein × 2 PDB declaration: tetrameric	Chain C 364–412（49 aa） Chain D 364–412（49 aa）	Not recorded	ZN ZINC ION × 4	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8；298 K；bis-tris propane, magnesium chloride, ammonium acetate, pH 8, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 1.50 Å R-free 0.234
1P47 Crystal Structure of tandem Zif268 molecules complexed to DNA Deposited 2003-04-21	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Homooligomer；Protein × 2 PDB declaration: tetrameric	Chain A 333–419（87 aa） Fragment：residues 333-419 Chain B 333–419（87 aa） Fragment：residues 333-419	Not recorded	ZN ZINC ION × 6	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8；298 K；bis-tris propane-HCl, sodium chloride, zinc cloride, ammonium acetate, PEG 400, pH 8, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 2.20 Å R-free 0.267
1ZAA ZINC FINGER-DNA RECOGNITION: CRYSTAL STRUCTURE OF A ZIF268-DNA COMPLEX AT 2.1 ANGSTROMS Deposited 1992-09-17	Different construct Different mutation/modification Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Monomer；Protein × 1 PDB declaration: trimeric	Chain C 332–418（87 aa）	Not recorded	ZN ZINC ION × 3	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8；pH 8.00, VAPOR DIFFUSION, HANGING DROP	Resolution 2.10 Å

15 other PDB entries and 19 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	EGR1_MOUSE
Isoform	—
PDB entities	3
Chains and sequence ranges	Author chain A； PDBConstruct 2–90； UniProt 333–421

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1jk1
Deposition date deposition_date	2001-07-11
Structure title title	Zif268 D20A Mutant Bound to WT DNA Site
Keywords keywords	Zinc Finger, Double-Stranded DNA, protein-DNA complex, TRANSCRIPTION-DNA COMPLEX; TRANSCRIPTION/DNA
Experimental Method method	X-RAY DIFFRACTION

▼

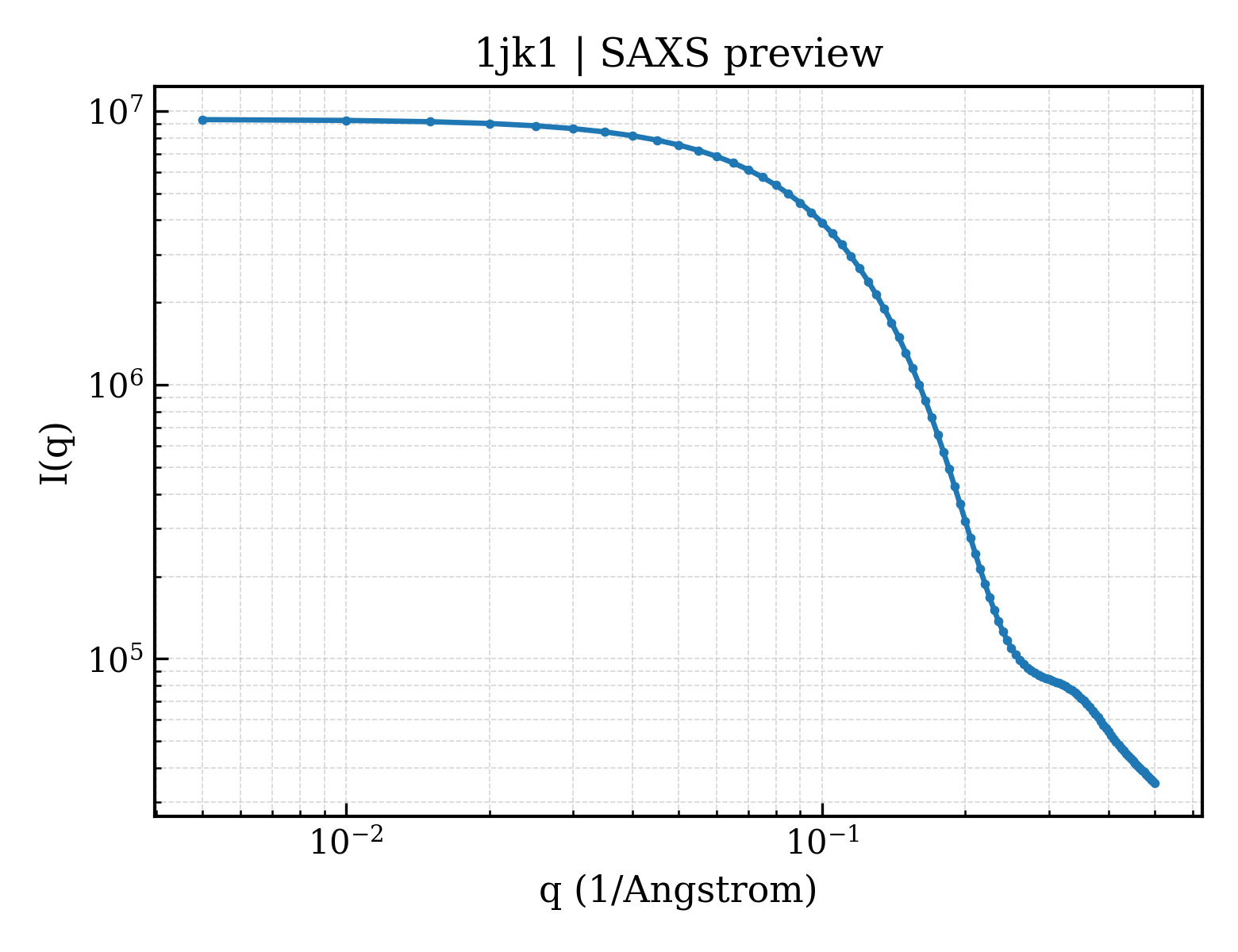

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	16.08 Å
Radius of gyration Rg (electron density) rg_electron	15.86 Å
Forward intensity I(0) i0	9331700.00
Molecular weight molecular_weight	17035.0 kDa
Excluded volume excluded_volume	18894 Å³
Envelope volume envelope_volume	23568 Å³
Hydration-shell volume shell_volume	13026 Å³
Envelope diameter envelope_diameter	55.6 Å
Shell Rg shell_rg	21.08 Å
Envelope Rg envelope_rg	16.20 Å
Shape Rg shape_rg	15.79 Å
Total Rg total_rg	16.73 Å
Total atoms total_atoms	1157
Residues n_residues	107
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

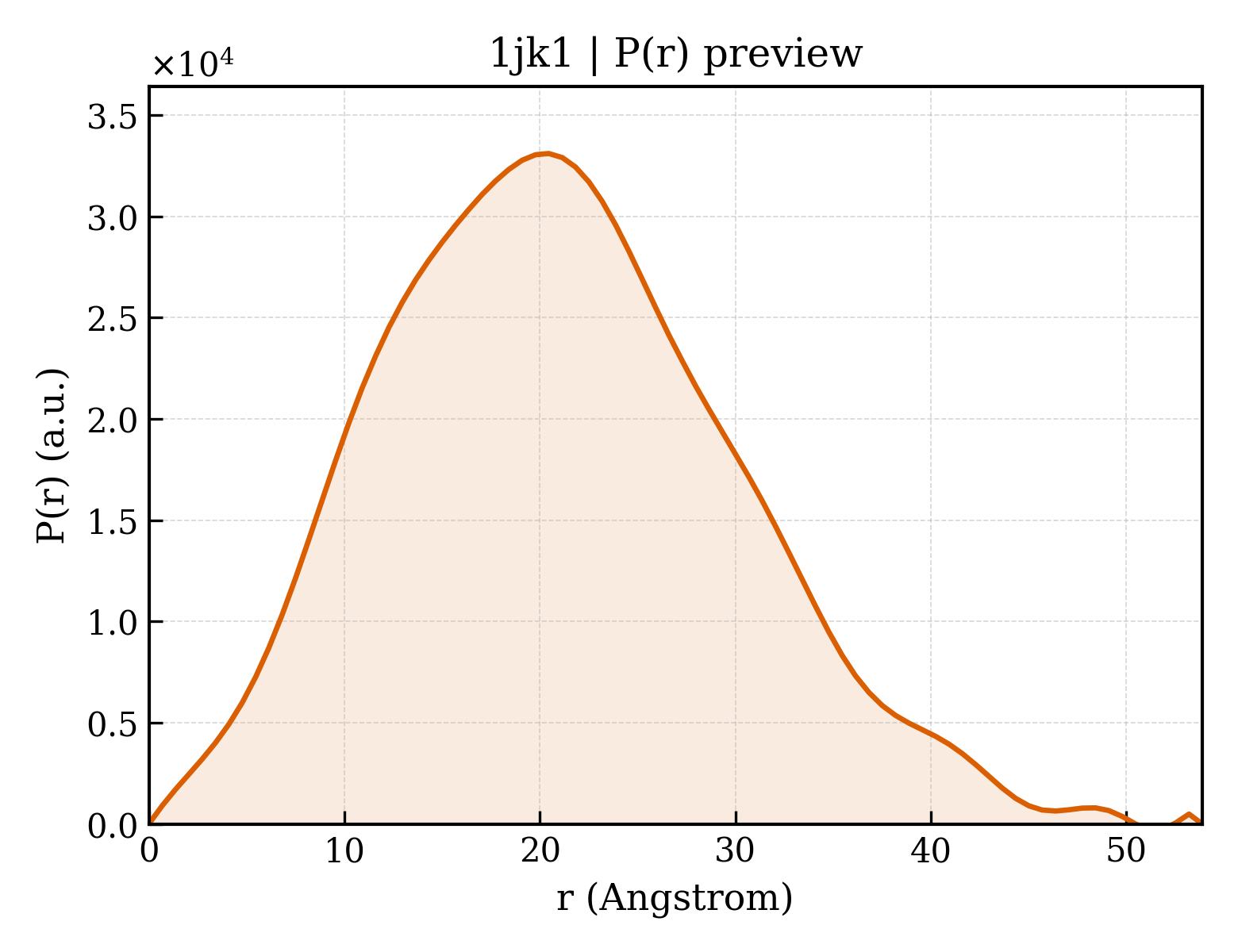

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	53.9 Å
Rg (real space) rg_real	16.05 Å
Rg uncertainty (real space) rg_real_error	0.34 Å
I(0) (real space) i0_real	9.3320e+06
I(0) uncertainty (real space) i0_real_error	1.1430e+05
Rg (reciprocal space) rg_reciprocal	16.05 Å
I(0) (reciprocal space) i0_reciprocal	9332000.0000
Solution quality estimate total_estimate	0.7950
Solution quality rating solution_quality	GOOD a GOOD solution
P(r) peaks n_peaks	3
Primary peak position r_peak_primary	20.5 Å
Skewness Skewness skewness	0.320
Kurtosis Kurtosis kurtosis	-0.200
Angular range angular_range	— – 0.4950 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	1242000.0000
Real-space data points n_real_points	80
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.783; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.982; Smooth: 0.000

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (5)

Entity 1 Entity 1 polymer

Description description	5'-D(APGPCPGPTPGPGPGPCPGP*G)-3'
Molecular weight formula_weight	3455.2 kDa
Source method src_method	syn
Copy count entity_count	1

Polymer Polymer

Polymer type type	polydeoxyribonucleotide
Chain IDs strand_id	B
Atom count atom_count	1293

AGCGTGGGCGG

Entity 2 Entity 2 polymer

Description description	5'-D(TPCPCPGPCPCPCPAPCPGP*C)-3'
Molecular weight formula_weight	3255.1 kDa
Source method src_method	syn
Copy count entity_count	1

Polymer Polymer

Polymer type type	polydeoxyribonucleotide
Chain IDs strand_id	C

TCCGCCCACGC

Entity 3 Entity 3 polymer

Description description	ZIF268
Molecular weight formula_weight	10809.5 kDa
Mutation mutation	D120A
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A

MERPYACPVESCDRRFSRSAELTRHIRIHTGQKPFQCRICMRNFSRSDHLTTHIRTHTGEKPFACDICGRKFARSDERKRHTKIHLRQKD

来源 Source

来源生物 organism	Mus musculus
通用名 common_name	house mouse
NCBI Class编号 ncbi_taxonomy_id	10090
宿主生物 host_organism	Escherichia coli BL21(DE3)

Entity 4 Entity 4 non-polymer

Description description	ZINC ION
Molecular weight formula_weight	65.4 kDa
Source method src_method	syn
Copy count entity_count	3

Entity 5 Entity 5 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	136

▼

7. Fold Classification (SCOP + CATH) 6 domains

SCOP 2.08 (3 domains)

Domain ID domain_id	d1jk1a1
Class class	g — Small proteins
Fold Fold fold	g.37 — beta-beta-alpha zinc fingers
Superfamily Superfamily superfamily	g.37.1 — beta-beta-alpha zinc fingers
Family Family family	g.37.1.1 — Classic zinc finger, C2H2

Domain ID domain_id	d1jk1a2
Class class	g — Small proteins
Fold Fold fold	g.37 — beta-beta-alpha zinc fingers
Superfamily Superfamily superfamily	g.37.1 — beta-beta-alpha zinc fingers
Family Family family	g.37.1.1 — Classic zinc finger, C2H2

Domain ID domain_id	d1jk1a3
Class class	g — Small proteins
Fold Fold fold	g.37 — beta-beta-alpha zinc fingers
Superfamily Superfamily superfamily	g.37.1 — beta-beta-alpha zinc fingers
Family Family family	g.37.1.1 — Classic zinc finger, C2H2

CATH v4.4 (3 domains)

Domain ID domain_id	1jk1A01
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	160 — Double Stranded RNA Binding Domain
Homologous superfamily homologous superfamily	60 — Classic Zinc Finger

Domain ID domain_id	1jk1A02
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	160 — Double Stranded RNA Binding Domain
Homologous superfamily homologous superfamily	60 — Classic Zinc Finger

Domain ID domain_id	1jk1A03
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	160 — Double Stranded RNA Binding Domain
Homologous superfamily homologous superfamily	60 — Classic Zinc Finger

▶

8. Citations (3)

▶

Unit-cell length a length_a	44.260 Å
Unit-cell length b length_b	56.240 Å
Unit-cell length c length_c	131.470 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	8

Space group space_group	C 2 2 21
Space-group number int_tables_number	20
Crystal system crystal_system	—

Resolution resolution	1.900 Å
Low-resolution limit resolution_low	20.000 Å
R factor r_factor	0.2140
R_work r_work	0.2140
R_free r_free	0.2660

fit	/app/data/saxs_computation/jk/1jk1/1jk1.fit
pddf	/app/data/pr_computation/jk/1jk1/1jk1.pr.out
profile	/app/data/saxs_computation/jk/1jk1/1jk1.dat

Zif268 D20A Mutant Bound to WT DNA Site
