1f2i

COCRYSTAL STRUCTURE OF SELECTED ZINC FINGER DIMER BOUND TO DNA

Method: X-RAY DIFFRACTION D_max: 102.5 Å Quality: GOOD

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

FUSION OF N-TERMINAL 17-MER PEPTIDE EXTENSION TO ZIF12

Mus musculus

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein–DNA Homooligomer Protein × 2 DNA 2 PDB declaration: tetrameric（4） Consistent with all polymer counts	Chain G； UniProt 334–389 Chain H； UniProt 334–389	Fragment：ZIF12 CONTAINS ZINC FINGERS 1 AND 2 OF ZIF268	5'-D(APTPGPGPGPCPGPCPGPCPCPCPAPT)-3' × 2 ZN ZINC ION × 4	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；pH 6.2；298 K；PEG 4000, NaCl, MgCl2, MES, pH 6.2, VAPOR DIFFUSION, HANGING DROP at 298K	Resolution 2.35 Å R-free 0.256
2	Protein–DNA Homooligomer Protein × 2 DNA 2 PDB declaration: tetrameric（4） Consistent with all polymer counts	Chain I； UniProt 334–389 Chain J； UniProt 334–389	Fragment：ZIF12 CONTAINS ZINC FINGERS 1 AND 2 OF ZIF268	5'-D(APTPGPGPGPCPGPCPGPCPCPCPAPT)-3' × 2 ZN ZINC ION × 4	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；pH 6.2；298 K；PEG 4000, NaCl, MgCl2, MES, pH 6.2, VAPOR DIFFUSION, HANGING DROP at 298K	Resolution 2.35 Å R-free 0.256
3	Protein–DNA Homooligomer Protein × 2 DNA 2 PDB declaration: tetrameric（4） Consistent with all polymer counts	Chain K； UniProt 334–389 Chain L； UniProt 334–389	Fragment：ZIF12 CONTAINS ZINC FINGERS 1 AND 2 OF ZIF268	5'-D(APTPGPGPGPCPGPCPGPCPCPCPAPT)-3' × 2 ZN ZINC ION × 4	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；pH 6.2；298 K；PEG 4000, NaCl, MgCl2, MES, pH 6.2, VAPOR DIFFUSION, HANGING DROP at 298K	Resolution 2.35 Å R-free 0.256

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 1F2I	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
1A1F DSNR (ZIF268 VARIANT) ZINC FINGER-DNA COMPLEX (GACC SITE) Deposited 1997-12-10	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Monomer；Protein × 1 PDB declaration: trimeric	Chain A 308–396（89 aa）	Not recorded	ZN ZINC ION × 3	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；20% PEG 400, 200MM MGCL2, 100 MM HEPES PH 7.5, VAPOR DIFFUSION, HANGING DROP	Resolution 2.10 Å R-free 0.270
1A1G DSNR (ZIF268 VARIANT) ZINC FINGER-DNA COMPLEX (GCGT SITE) Deposited 1997-12-10	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Monomer；Protein × 1 PDB declaration: trimeric	Chain A 308–396（89 aa）	Not recorded	ZN ZINC ION × 3	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8；25% PEG 1450, 200 MM NACL, 25 MM BIS-TRIS PROPANE PH 8.0, VAPOR DIFFUSION, HANGING DROP	Resolution 1.90 Å R-free 0.275
1A1H QGSR (ZIF268 VARIANT) ZINC FINGER-DNA COMPLEX (GCAC SITE) Deposited 1997-12-10	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Monomer；Protein × 1 PDB declaration: trimeric	Chain A 308–396（89 aa）	Not recorded	ZN ZINC ION × 3	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；pH 8.5；27.5-35% PEG 3350, 0-200 MM NACL, 100 MM TRIS PH 8.5, VAPOR DIFFUSION	Resolution 1.60 Å R-free 0.277
1A1I RADR (ZIF268 VARIANT) ZINC FINGER-DNA COMPLEX (GCAC SITE) Deposited 1997-12-10	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Monomer；Protein × 1 PDB declaration: trimeric	Chain A 308–396（89 aa）	Not recorded	ZN ZINC ION × 3	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.2；22.5% PEG 3350, 500MM NACL, 25 MM MES PH 6.2, VAPOR DIFFUSION, HANGING DROP	Resolution 1.60 Å R-free 0.216
1A1J RADR (ZIF268 VARIANT) ZINC FINGER-DNA COMPLEX (GCGT SITE) Deposited 1997-12-10	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Monomer；Protein × 1 PDB declaration: trimeric	Chain A 308–396（89 aa） Fragment：ZINC FINGER	Not recorded	ZN ZINC ION × 3	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.2；35% PEG 3350, 200MM NACL, 25 MM MES PH 6.2, VAPOR DIFFUSION, HANGING DROP	Resolution 2.00 Å R-free 0.262
1A1K RADR (ZIF268 VARIANT) ZINC FINGER-DNA COMPLEX (GACC SITE) Deposited 1997-12-10	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Monomer；Protein × 1 PDB declaration: trimeric	Chain A 308–396（89 aa） Fragment：ZINC FINGER	Not recorded	ZN ZINC ION × 3	X-RAY DIFFRACTION X-ray crystallization conditions pH 6.2；25% PEG 1450, 25 MM MES PH 6.2	Resolution 1.90 Å R-free 0.259
1A1L ZIF268 ZINC FINGER-DNA COMPLEX (GCAC SITE) Deposited 1997-12-10	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Monomer；Protein × 1 PDB declaration: trimeric	Chain A 308–396（89 aa） Fragment：ZINC FINGER	Not recorded	ZN ZINC ION × 3	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8；35% PEG 1450, 300MM NACL, 25 MM BIS TRIS PROPANE PH 8.0, VAPOR DIFFUSION, HANGING DROP	Resolution 2.30 Å R-free 0.267
1AAY ZIF268 ZINC FINGER-DNA COMPLEX Deposited 1997-01-18	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Monomer；Protein × 1 PDB declaration: trimeric	Chain A 308–396（89 aa）	Not recorded	ZN ZINC ION × 3	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8；2.5-5% PEG 400; 500-700MM NACL; 25MM BIS-TRIS PROPANE, PH 8.0, VAPOR DIFFUSION, HANGING DROP	Resolution 1.60 Å R-free 0.242
1G2D STRUCTURE OF A CYS2HIS2 ZINC FINGER/TATA BOX COMPLEX (CLONE #2) Deposited 2000-10-18	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Monomer；Protein × 1 PDB declaration: trimeric	Chain C 333–421（89 aa）	Not recorded	ZN ZINC ION × 3	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8；298 K；PEG 400, NaCl, Bis-Tris Propane, CoCl2, pH 8, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 2.20 Å R-free 0.262
1G2D STRUCTURE OF A CYS2HIS2 ZINC FINGER/TATA BOX COMPLEX (CLONE #2) Deposited 2000-10-18	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein–DNA Monomer；Protein × 1 PDB declaration: trimeric	Chain F 333–421（89 aa）	Not recorded	ZN ZINC ION × 3	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8；298 K；PEG 400, NaCl, Bis-Tris Propane, CoCl2, pH 8, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 2.20 Å R-free 0.262
1G2F STRUCTURE OF A CYS2HIS2 ZINC FINGER/TATA BOX COMPLEX (TATAZF;CLONE #6) Deposited 2000-10-18	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Monomer；Protein × 1 PDB declaration: trimeric	Chain C 333–421（89 aa）	Not recorded	ZN ZINC ION × 3	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8；298 K；PEG 400; NaCl; Bis-Tris Propane; CoCl2, pH 8.0, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 2.00 Å R-free 0.263
1G2F STRUCTURE OF A CYS2HIS2 ZINC FINGER/TATA BOX COMPLEX (TATAZF;CLONE #6) Deposited 2000-10-18	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein–DNA Monomer；Protein × 1 PDB declaration: trimeric	Chain F 333–421（89 aa）	Not recorded	ZN ZINC ION × 3	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8；298 K；PEG 400; NaCl; Bis-Tris Propane; CoCl2, pH 8.0, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 2.00 Å R-free 0.263
1JK1 Zif268 D20A Mutant Bound to WT DNA Site Deposited 2001-07-11	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Monomer；Protein × 1 PDB declaration: trimeric	Chain A 333–421（89 aa） Fragment：ZINC FINGERS (Residues 333-421)	Mutation：D120A	ZN ZINC ION × 3	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8；298 K；300 mM NaCl, 10% PEG 1450, 25 mM Bis-Tris propane, pH 8.0, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 1.90 Å R-free 0.266
1JK2 Zif268 D20A mutant bound to the GCT DNA site Deposited 2001-07-11	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Monomer；Protein × 1 PDB declaration: trimeric	Chain A 333–421（89 aa） Fragment：ZINC FINGERS (Residues 333-421)	Mutation：D120A	ZN ZINC ION × 3	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8；298 K；300 mM NaCl, 10% PEG 1450, 25 mM Bis-Tris propane, pH 8.0, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 1.65 Å R-free 0.273
1LLM Crystal Structure of a Zif23-GCN4 Chimera Bound to DNA Deposited 2002-04-29	Different construct Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Homooligomer；Protein × 2 PDB declaration: tetrameric	Chain C 364–412（49 aa） Chain D 364–412（49 aa）	Not recorded	ZN ZINC ION × 4	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8；298 K；bis-tris propane, magnesium chloride, ammonium acetate, pH 8, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 1.50 Å R-free 0.234
1P47 Crystal Structure of tandem Zif268 molecules complexed to DNA Deposited 2003-04-21	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Homooligomer；Protein × 2 PDB declaration: tetrameric	Chain A 333–419（87 aa） Fragment：residues 333-419 Chain B 333–419（87 aa） Fragment：residues 333-419	Not recorded	ZN ZINC ION × 6	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8；298 K；bis-tris propane-HCl, sodium chloride, zinc cloride, ammonium acetate, PEG 400, pH 8, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 2.20 Å R-free 0.267
1ZAA ZINC FINGER-DNA RECOGNITION: CRYSTAL STRUCTURE OF A ZIF268-DNA COMPLEX AT 2.1 ANGSTROMS Deposited 1992-09-17	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Monomer；Protein × 1 PDB declaration: trimeric	Chain C 332–418（87 aa）	Not recorded	ZN ZINC ION × 3	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8；pH 8.00, VAPOR DIFFUSION, HANGING DROP	Resolution 2.10 Å

15 other PDB entries and 17 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	EGR1_MOUSE
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain G； PDBConstruct 18–73； UniProt 334–389 Author chain H； PDBConstruct 18–73； UniProt 334–389 Author chain I； PDBConstruct 18–73； UniProt 334–389 Author chain J； PDBConstruct 18–73； UniProt 334–389 Author chain K； PDBConstruct 18–73； UniProt 334–389 Author chain L； PDBConstruct 18–73； UniProt 334–389

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

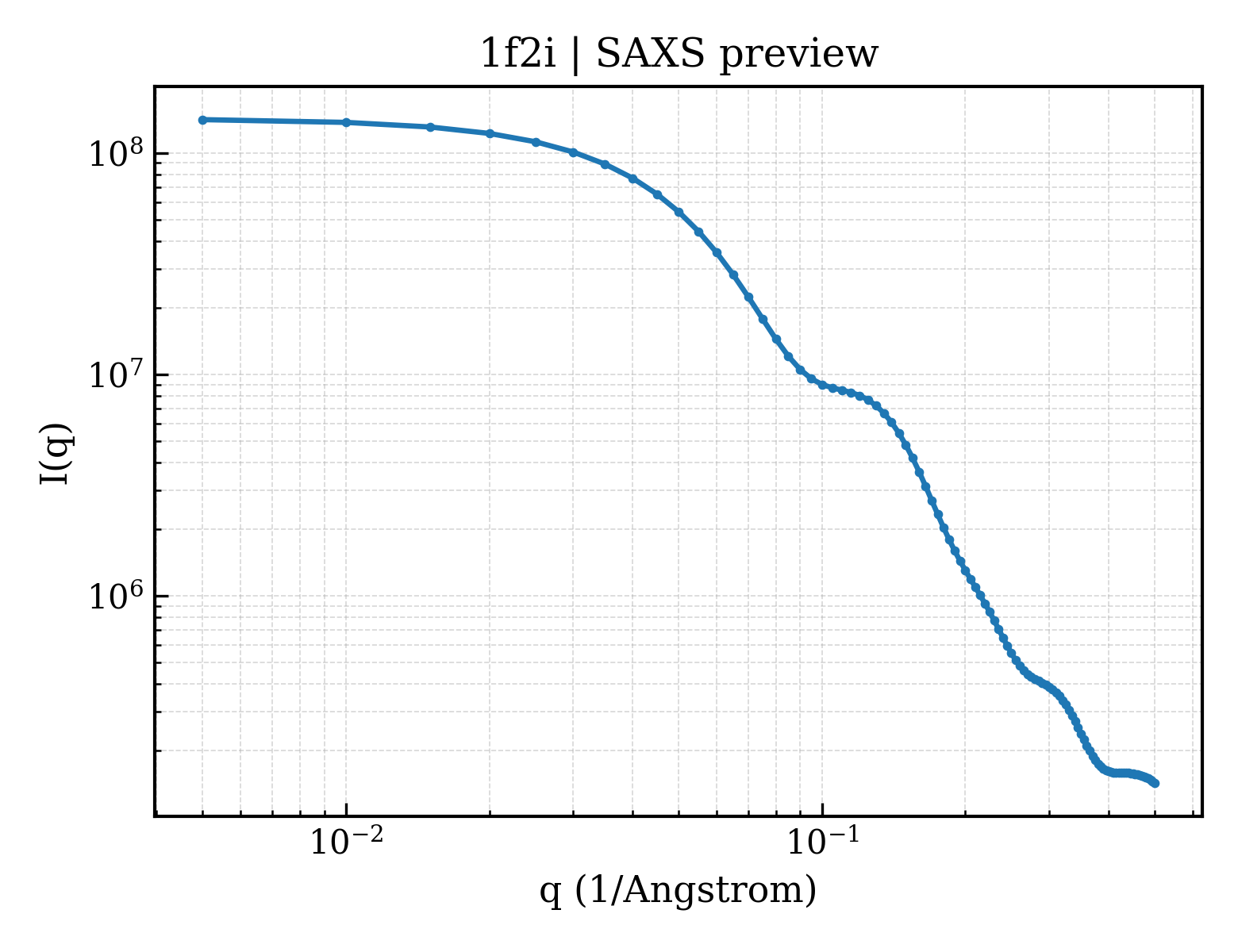

SAXS scattering curve SAXS Profile

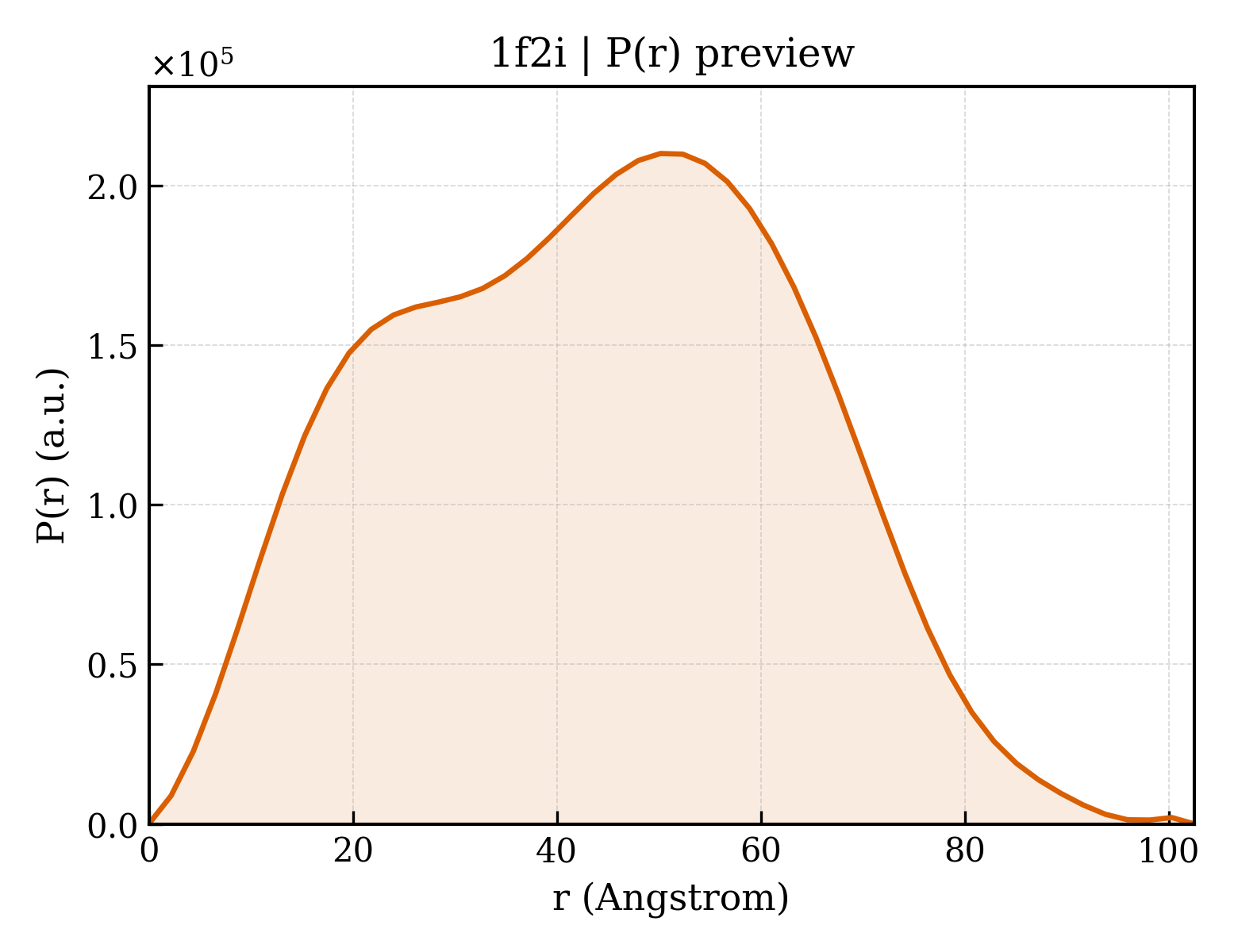

P(r) Distance Distribution P(r) Distribution

Download Download SAXS (.dat) P(r) (.pr.out) CIF

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1f2i
Deposition date deposition_date	2000-05-25
Structure title title	COCRYSTAL STRUCTURE OF SELECTED ZINC FINGER DIMER BOUND TO DNA
Keywords keywords	zinc finger, dimer, protein-DNA complex, cooperativity, TRANSCRIPTION-DNA COMPLEX; TRANSCRIPTION/DNA
Experimental Method method	X-RAY DIFFRACTION

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	33.90 Å
Radius of gyration Rg (electron density) rg_electron	33.55 Å
Forward intensity I(0) i0	142643000.00
Molecular weight molecular_weight	73615.0 kDa
Excluded volume excluded_volume	82821 Å³
Envelope volume envelope_volume	128810 Å³
Hydration-shell volume shell_volume	32831 Å³
Envelope diameter envelope_diameter	112.0 Å
Shell Rg shell_rg	39.68 Å
Envelope Rg envelope_rg	32.13 Å
Shape Rg shape_rg	33.50 Å
Total Rg total_rg	34.09 Å
Total atoms total_atoms	5010
Residues n_residues	477
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	102.5 Å
Rg (real space) rg_real	33.79 Å
Rg uncertainty (real space) rg_real_error	0.64 Å
I(0) (real space) i0_real	1.4260e+08
I(0) uncertainty (real space) i0_real_error	1.7780e+06
Rg (reciprocal space) rg_reciprocal	33.86 Å
I(0) (reciprocal space) i0_reciprocal	142700000.0000
Solution quality estimate total_estimate	0.8998
Solution quality rating solution_quality	GOOD a GOOD solution
P(r) peaks n_peaks	2
Primary peak position r_peak_primary	50.2 Å
Skewness Skewness skewness	0.016
Kurtosis Kurtosis kurtosis	-0.759
Angular range angular_range	— – 0.2350 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	5194000.0000
Real-space data points n_real_points	48
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.945; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.982; Smooth: 0.878

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (4)

Entity 1 Entity 1 polymer

Description description	5'-D(APTPGPGPGPCPGPCPGPCPCPCPAPT)-3'
Molecular weight formula_weight	4281.8 kDa
Source method src_method	syn
Copy count entity_count	6

Polymer Polymer

Polymer type type	polydeoxyribonucleotide
Chain IDs strand_id	A,B,C,D,E,F
Atom count atom_count	5329

ATGGGCGCGCCCAT

Entity 2 Entity 2 polymer

Description description	FUSION OF N-TERMINAL 17-MER PEPTIDE EXTENSION TO ZIF12
Molecular weight formula_weight	8783.2 kDa
Source method src_method	man
Copy count entity_count	6

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	G,H,I,J,K,L

MEPHPMNNLLNYVVPKMRPYACPVESCDRRFSRSDELTRHIRIHTGQKPFQCRICMRNFSRSDHLTTHIRTHT

来源 Source

来源生物 organism	Mus musculus
通用名 common_name	house mouse
NCBI Class编号 ncbi_taxonomy_id	10090
宿主生物 host_organism	Escherichia coli

Entity 3 Entity 3 non-polymer

Description description	ZINC ION
Molecular weight formula_weight	65.4 kDa
Source method src_method	syn
Copy count entity_count	12

Entity 4 Entity 4 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	319

▼

7. Fold Classification (SCOP + CATH) 24 domains

SCOP 2.08 (12 domains)

Domain ID domain_id	d1f2ig1
Class class	g — Small proteins
Fold Fold fold	g.37 — beta-beta-alpha zinc fingers
Superfamily Superfamily superfamily	g.37.1 — beta-beta-alpha zinc fingers
Family Family family	g.37.1.1 — Classic zinc finger, C2H2

Domain ID domain_id	d1f2ig2
Class class	g — Small proteins
Fold Fold fold	g.37 — beta-beta-alpha zinc fingers
Superfamily Superfamily superfamily	g.37.1 — beta-beta-alpha zinc fingers
Family Family family	g.37.1.1 — Classic zinc finger, C2H2

Domain ID domain_id	d1f2ih1
Class class	g — Small proteins
Fold Fold fold	g.37 — beta-beta-alpha zinc fingers
Superfamily Superfamily superfamily	g.37.1 — beta-beta-alpha zinc fingers
Family Family family	g.37.1.1 — Classic zinc finger, C2H2

Domain ID domain_id	d1f2ih2
Class class	g — Small proteins
Fold Fold fold	g.37 — beta-beta-alpha zinc fingers
Superfamily Superfamily superfamily	g.37.1 — beta-beta-alpha zinc fingers
Family Family family	g.37.1.1 — Classic zinc finger, C2H2

Domain ID domain_id	d1f2ii1
Class class	g — Small proteins
Fold Fold fold	g.37 — beta-beta-alpha zinc fingers
Superfamily Superfamily superfamily	g.37.1 — beta-beta-alpha zinc fingers
Family Family family	g.37.1.1 — Classic zinc finger, C2H2

Domain ID domain_id	d1f2ii2
Class class	g — Small proteins
Fold Fold fold	g.37 — beta-beta-alpha zinc fingers
Superfamily Superfamily superfamily	g.37.1 — beta-beta-alpha zinc fingers
Family Family family	g.37.1.1 — Classic zinc finger, C2H2

Domain ID domain_id	d1f2ij1
Class class	g — Small proteins
Fold Fold fold	g.37 — beta-beta-alpha zinc fingers
Superfamily Superfamily superfamily	g.37.1 — beta-beta-alpha zinc fingers
Family Family family	g.37.1.1 — Classic zinc finger, C2H2

Domain ID domain_id	d1f2ij2
Class class	g — Small proteins
Fold Fold fold	g.37 — beta-beta-alpha zinc fingers
Superfamily Superfamily superfamily	g.37.1 — beta-beta-alpha zinc fingers
Family Family family	g.37.1.1 — Classic zinc finger, C2H2

Domain ID domain_id	d1f2ik1
Class class	g — Small proteins
Fold Fold fold	g.37 — beta-beta-alpha zinc fingers
Superfamily Superfamily superfamily	g.37.1 — beta-beta-alpha zinc fingers
Family Family family	g.37.1.1 — Classic zinc finger, C2H2

Domain ID domain_id	d1f2ik2
Class class	g — Small proteins
Fold Fold fold	g.37 — beta-beta-alpha zinc fingers
Superfamily Superfamily superfamily	g.37.1 — beta-beta-alpha zinc fingers
Family Family family	g.37.1.1 — Classic zinc finger, C2H2

Domain ID domain_id	d1f2il1
Class class	g — Small proteins
Fold Fold fold	g.37 — beta-beta-alpha zinc fingers
Superfamily Superfamily superfamily	g.37.1 — beta-beta-alpha zinc fingers
Family Family family	g.37.1.1 — Classic zinc finger, C2H2

Domain ID domain_id	d1f2il2
Class class	g — Small proteins
Fold Fold fold	g.37 — beta-beta-alpha zinc fingers
Superfamily Superfamily superfamily	g.37.1 — beta-beta-alpha zinc fingers
Family Family family	g.37.1.1 — Classic zinc finger, C2H2

CATH v4.4 (12 domains)

Domain ID domain_id	1f2iG01
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	160 — Double Stranded RNA Binding Domain
Homologous superfamily homologous superfamily	60 — Classic Zinc Finger

Domain ID domain_id	1f2iG02
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	160 — Double Stranded RNA Binding Domain
Homologous superfamily homologous superfamily	60 — Classic Zinc Finger

Domain ID domain_id	1f2iH01
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	160 — Double Stranded RNA Binding Domain
Homologous superfamily homologous superfamily	60 — Classic Zinc Finger

Domain ID domain_id	1f2iH02
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	160 — Double Stranded RNA Binding Domain
Homologous superfamily homologous superfamily	60 — Classic Zinc Finger

Domain ID domain_id	1f2iI01
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	160 — Double Stranded RNA Binding Domain
Homologous superfamily homologous superfamily	60 — Classic Zinc Finger

Domain ID domain_id	1f2iI02
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	160 — Double Stranded RNA Binding Domain
Homologous superfamily homologous superfamily	60 — Classic Zinc Finger

Domain ID domain_id	1f2iJ01
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	160 — Double Stranded RNA Binding Domain
Homologous superfamily homologous superfamily	60 — Classic Zinc Finger

Domain ID domain_id	1f2iJ02
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	160 — Double Stranded RNA Binding Domain
Homologous superfamily homologous superfamily	60 — Classic Zinc Finger

Domain ID domain_id	1f2iK01
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	160 — Double Stranded RNA Binding Domain
Homologous superfamily homologous superfamily	60 — Classic Zinc Finger

Domain ID domain_id	1f2iK02
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	160 — Double Stranded RNA Binding Domain
Homologous superfamily homologous superfamily	60 — Classic Zinc Finger

Domain ID domain_id	1f2iL01
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	160 — Double Stranded RNA Binding Domain
Homologous superfamily homologous superfamily	60 — Classic Zinc Finger

Domain ID domain_id	1f2iL02
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	160 — Double Stranded RNA Binding Domain
Homologous superfamily homologous superfamily	60 — Classic Zinc Finger

▶

8. Citations (2)

▶

Unit-cell length a length_a	86.300 Å
Unit-cell length b length_b	86.300 Å
Unit-cell length c length_c	133.000 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	120.00 °
Molecules per unit cell Z z_pdb	18

Space group space_group	P 31
Space-group number int_tables_number	144
Crystal system crystal_system	—

Resolution resolution	2.350 Å
Low-resolution limit resolution_low	20.000 Å
R factor r_factor	0.2150
R_work r_work	0.2100
R_free r_free	0.2560

fit	/app/data/saxs_computation/f2/1f2i/1f2i.fit
pddf	/app/data/pr_computation/f2/1f2i/1f2i.pr.out
profile	/app/data/saxs_computation/f2/1f2i/1f2i.dat

COCRYSTAL STRUCTURE OF SELECTED ZINC FINGER DIMER BOUND TO DNA

1. Protein Identity and Related Structures Protein Identity & Related Structures

FUSION OF N-TERMINAL 17-MER PEPTIDE EXTENSION TO ZIF12

State in the Current Structure

Other States of the Same Protein in the Database

SAXS scattering curve SAXS Profile

P(r) Distance Distribution P(r) Distribution

2. Structure Basics 2. Structure Basics

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

5. Crystallography and Experiment 5. Crystallography & Experiment

Unit cell Unit Cell

Symmetry Symmetry

Refinement Refinement

6. Entities and Polymers Entities & Polymers (4)

Entity 1 Entity 1 polymer

Polymer Polymer

Entity 2 Entity 2 polymer

Polymer Polymer

来源 Source

Entity 3 Entity 3 non-polymer

Entity 4 Entity 4 water

7. Fold Classification (SCOP + CATH) 24 domains

SCOP 2.08 (12 domains)

CATH v4.4 (12 domains)

8. Citations (2)

9. Files and Curves (10)

Files (7)

Curves (3)
