SAXSdb — 1g2f

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

TATA BOX ZINC FINGER PROTEIN

Mus musculus

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein–DNA Monomer Protein × 1 DNA 2 PDB declaration: trimeric（3） Consistent with all polymer counts	Chain C； UniProt 333–421	Not recorded	5'-D(GPAPCPGPCPTPAPTPAPAPAPAPGPGPAPG)-3' × 1 5'-D(TPCPCPTPTPTPTPAPTPAPGPCPGPTPCPC)-3' × 1 ZN ZINC ION × 3	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；pH 8；298 K；PEG 400; NaCl; Bis-Tris Propane; CoCl2, pH 8.0, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 2.00 Å R-free 0.263
2	Protein–DNA Monomer Protein × 1 DNA 2 PDB declaration: trimeric（3） Consistent with all polymer counts	Chain F； UniProt 333–421	Not recorded	5'-D(GPAPCPGPCPTPAPTPAPAPAPAPGPGPAPG)-3' × 1 5'-D(TPCPCPTPTPTPTPAPTPAPGPCPGPTPCPC)-3' × 1 ZN ZINC ION × 3	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；pH 8；298 K；PEG 400; NaCl; Bis-Tris Propane; CoCl2, pH 8.0, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 2.00 Å R-free 0.263

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 1G2F	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
1A1F DSNR (ZIF268 VARIANT) ZINC FINGER-DNA COMPLEX (GACC SITE) Deposited 1997-12-10	Different construct Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Monomer；Protein × 1 PDB declaration: trimeric	Chain A 308–396（89 aa）	Not recorded	ZN ZINC ION × 3	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；20% PEG 400, 200MM MGCL2, 100 MM HEPES PH 7.5, VAPOR DIFFUSION, HANGING DROP	Resolution 2.10 Å R-free 0.270
1A1G DSNR (ZIF268 VARIANT) ZINC FINGER-DNA COMPLEX (GCGT SITE) Deposited 1997-12-10	Different construct Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Monomer；Protein × 1 PDB declaration: trimeric	Chain A 308–396（89 aa）	Not recorded	ZN ZINC ION × 3	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8；25% PEG 1450, 200 MM NACL, 25 MM BIS-TRIS PROPANE PH 8.0, VAPOR DIFFUSION, HANGING DROP	Resolution 1.90 Å R-free 0.275
1A1H QGSR (ZIF268 VARIANT) ZINC FINGER-DNA COMPLEX (GCAC SITE) Deposited 1997-12-10	Different construct Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Monomer；Protein × 1 PDB declaration: trimeric	Chain A 308–396（89 aa）	Not recorded	ZN ZINC ION × 3	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；pH 8.5；27.5-35% PEG 3350, 0-200 MM NACL, 100 MM TRIS PH 8.5, VAPOR DIFFUSION	Resolution 1.60 Å R-free 0.277
1A1I RADR (ZIF268 VARIANT) ZINC FINGER-DNA COMPLEX (GCAC SITE) Deposited 1997-12-10	Different construct Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Monomer；Protein × 1 PDB declaration: trimeric	Chain A 308–396（89 aa）	Not recorded	ZN ZINC ION × 3	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.2；22.5% PEG 3350, 500MM NACL, 25 MM MES PH 6.2, VAPOR DIFFUSION, HANGING DROP	Resolution 1.60 Å R-free 0.216
1A1J RADR (ZIF268 VARIANT) ZINC FINGER-DNA COMPLEX (GCGT SITE) Deposited 1997-12-10	Different construct Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Monomer；Protein × 1 PDB declaration: trimeric	Chain A 308–396（89 aa） Fragment：ZINC FINGER	Not recorded	ZN ZINC ION × 3	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.2；35% PEG 3350, 200MM NACL, 25 MM MES PH 6.2, VAPOR DIFFUSION, HANGING DROP	Resolution 2.00 Å R-free 0.262
1A1K RADR (ZIF268 VARIANT) ZINC FINGER-DNA COMPLEX (GACC SITE) Deposited 1997-12-10	Different construct Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Monomer；Protein × 1 PDB declaration: trimeric	Chain A 308–396（89 aa） Fragment：ZINC FINGER	Not recorded	ZN ZINC ION × 3	X-RAY DIFFRACTION X-ray crystallization conditions pH 6.2；25% PEG 1450, 25 MM MES PH 6.2	Resolution 1.90 Å R-free 0.259
1A1L ZIF268 ZINC FINGER-DNA COMPLEX (GCAC SITE) Deposited 1997-12-10	Different construct Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Monomer；Protein × 1 PDB declaration: trimeric	Chain A 308–396（89 aa） Fragment：ZINC FINGER	Not recorded	ZN ZINC ION × 3	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8；35% PEG 1450, 300MM NACL, 25 MM BIS TRIS PROPANE PH 8.0, VAPOR DIFFUSION, HANGING DROP	Resolution 2.30 Å R-free 0.267
1AAY ZIF268 ZINC FINGER-DNA COMPLEX Deposited 1997-01-18	Different construct Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Monomer；Protein × 1 PDB declaration: trimeric	Chain A 308–396（89 aa）	Not recorded	ZN ZINC ION × 3	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8；2.5-5% PEG 400; 500-700MM NACL; 25MM BIS-TRIS PROPANE, PH 8.0, VAPOR DIFFUSION, HANGING DROP	Resolution 1.60 Å R-free 0.242
1F2I COCRYSTAL STRUCTURE OF SELECTED ZINC FINGER DIMER BOUND TO DNA Deposited 2000-05-25	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Homooligomer；Protein × 2 PDB declaration: tetrameric	Chain G 334–389（56 aa） Fragment：ZIF12 CONTAINS ZINC FINGERS 1 AND 2 OF ZIF268 Chain H 334–389（56 aa） Fragment：ZIF12 CONTAINS ZINC FINGERS 1 AND 2 OF ZIF268	Not recorded	ZN ZINC ION × 4	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.2；298 K；PEG 4000, NaCl, MgCl2, MES, pH 6.2, VAPOR DIFFUSION, HANGING DROP at 298K	Resolution 2.35 Å R-free 0.256
1F2I COCRYSTAL STRUCTURE OF SELECTED ZINC FINGER DIMER BOUND TO DNA Deposited 2000-05-25	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein–DNA Homooligomer；Protein × 2 PDB declaration: tetrameric	Chain I 334–389（56 aa） Fragment：ZIF12 CONTAINS ZINC FINGERS 1 AND 2 OF ZIF268 Chain J 334–389（56 aa） Fragment：ZIF12 CONTAINS ZINC FINGERS 1 AND 2 OF ZIF268	Not recorded	ZN ZINC ION × 4	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.2；298 K；PEG 4000, NaCl, MgCl2, MES, pH 6.2, VAPOR DIFFUSION, HANGING DROP at 298K	Resolution 2.35 Å R-free 0.256
1F2I COCRYSTAL STRUCTURE OF SELECTED ZINC FINGER DIMER BOUND TO DNA Deposited 2000-05-25	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 3 Protein–DNA Homooligomer；Protein × 2 PDB declaration: tetrameric	Chain K 334–389（56 aa） Fragment：ZIF12 CONTAINS ZINC FINGERS 1 AND 2 OF ZIF268 Chain L 334–389（56 aa） Fragment：ZIF12 CONTAINS ZINC FINGERS 1 AND 2 OF ZIF268	Not recorded	ZN ZINC ION × 4	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.2；298 K；PEG 4000, NaCl, MgCl2, MES, pH 6.2, VAPOR DIFFUSION, HANGING DROP at 298K	Resolution 2.35 Å R-free 0.256
1G2D STRUCTURE OF A CYS2HIS2 ZINC FINGER/TATA BOX COMPLEX (CLONE #2) Deposited 2000-10-18	Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Monomer；Protein × 1 PDB declaration: trimeric	Chain C 333–421（89 aa）	Not recorded	ZN ZINC ION × 3	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8；298 K；PEG 400, NaCl, Bis-Tris Propane, CoCl2, pH 8, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 2.20 Å R-free 0.262
1G2D STRUCTURE OF A CYS2HIS2 ZINC FINGER/TATA BOX COMPLEX (CLONE #2) Deposited 2000-10-18	Different experimental conditions Different structure-quality metrics	Assembly 2 Protein–DNA Monomer；Protein × 1 PDB declaration: trimeric	Chain F 333–421（89 aa）	Not recorded	ZN ZINC ION × 3	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8；298 K；PEG 400, NaCl, Bis-Tris Propane, CoCl2, pH 8, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 2.20 Å R-free 0.262
1JK1 Zif268 D20A Mutant Bound to WT DNA Site Deposited 2001-07-11	Different construct Different mutation/modification Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Monomer；Protein × 1 PDB declaration: trimeric	Chain A 333–421（89 aa） Fragment：ZINC FINGERS (Residues 333-421)	Mutation：D120A	ZN ZINC ION × 3	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8；298 K；300 mM NaCl, 10% PEG 1450, 25 mM Bis-Tris propane, pH 8.0, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 1.90 Å R-free 0.266
1JK2 Zif268 D20A mutant bound to the GCT DNA site Deposited 2001-07-11	Different construct Different mutation/modification Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Monomer；Protein × 1 PDB declaration: trimeric	Chain A 333–421（89 aa） Fragment：ZINC FINGERS (Residues 333-421)	Mutation：D120A	ZN ZINC ION × 3	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8；298 K；300 mM NaCl, 10% PEG 1450, 25 mM Bis-Tris propane, pH 8.0, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 1.65 Å R-free 0.273
1LLM Crystal Structure of a Zif23-GCN4 Chimera Bound to DNA Deposited 2002-04-29	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Homooligomer；Protein × 2 PDB declaration: tetrameric	Chain C 364–412（49 aa） Chain D 364–412（49 aa）	Not recorded	ZN ZINC ION × 4	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8；298 K；bis-tris propane, magnesium chloride, ammonium acetate, pH 8, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 1.50 Å R-free 0.234
1P47 Crystal Structure of tandem Zif268 molecules complexed to DNA Deposited 2003-04-21	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Homooligomer；Protein × 2 PDB declaration: tetrameric	Chain A 333–419（87 aa） Fragment：residues 333-419 Chain B 333–419（87 aa） Fragment：residues 333-419	Not recorded	ZN ZINC ION × 6	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8；298 K；bis-tris propane-HCl, sodium chloride, zinc cloride, ammonium acetate, PEG 400, pH 8, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 2.20 Å R-free 0.267
1ZAA ZINC FINGER-DNA RECOGNITION: CRYSTAL STRUCTURE OF A ZIF268-DNA COMPLEX AT 2.1 ANGSTROMS Deposited 1992-09-17	Different construct Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Monomer；Protein × 1 PDB declaration: trimeric	Chain C 332–418（87 aa）	Not recorded	ZN ZINC ION × 3	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8；pH 8.00, VAPOR DIFFUSION, HANGING DROP	Resolution 2.10 Å

15 other PDB entries and 18 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	EGR1_MOUSE
Isoform	—
PDB entities	3
Chains and sequence ranges	Author chain C； PDBConstruct 2–90； UniProt 333–421 Author chain F； PDBConstruct 2–90； UniProt 333–421

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1g2f
Deposition date deposition_date	2000-10-18
Structure title title	STRUCTURE OF A CYS2HIS2 ZINC FINGER/TATA BOX COMPLEX (TATAZF;CLONE #6)
Keywords keywords	phage display, zinc finger-DNA complex, TATA box, Cys2His2, TRANSCRIPTION-DNA COMPLEX; TRANSCRIPTION/DNA
Experimental Method method	X-RAY DIFFRACTION

▼

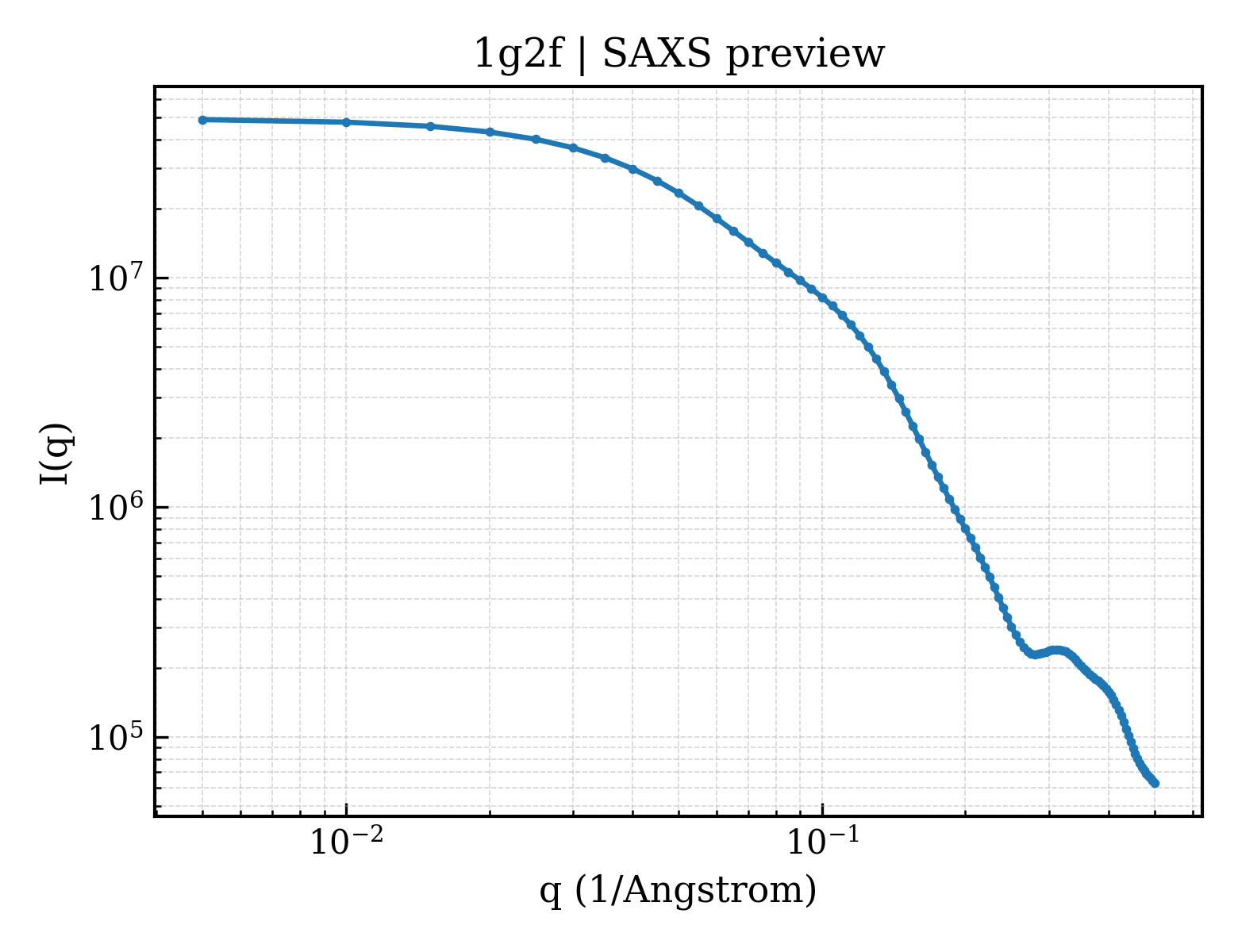

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	31.15 Å
Radius of gyration Rg (electron density) rg_electron	31.50 Å
Forward intensity I(0) i0	49271300.00
Molecular weight molecular_weight	40686.0 kDa
Excluded volume excluded_volume	44549 Å³
Envelope volume envelope_volume	65993 Å³
Hydration-shell volume shell_volume	19370 Å³
Envelope diameter envelope_diameter	112.2 Å
Shell Rg shell_rg	34.69 Å
Envelope Rg envelope_rg	31.02 Å
Shape Rg shape_rg	31.45 Å
Total Rg total_rg	31.82 Å
Total atoms total_atoms	2753
Residues n_residues	240
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

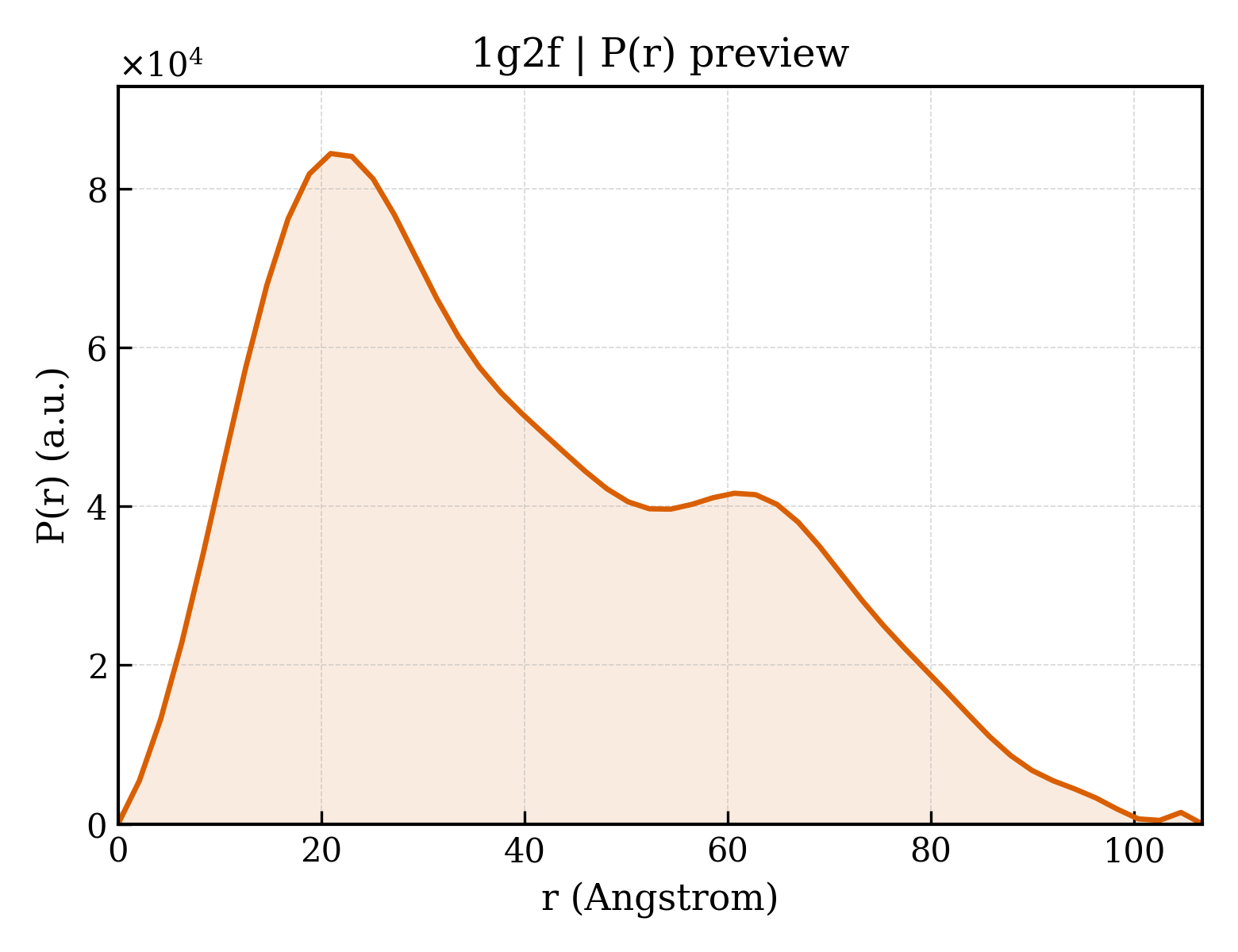

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	106.7 Å
Rg (real space) rg_real	31.69 Å
Rg uncertainty (real space) rg_real_error	1.30 Å
I(0) (real space) i0_real	4.9270e+07
I(0) uncertainty (real space) i0_real_error	8.2230e+05
Rg (reciprocal space) rg_reciprocal	31.46 Å
I(0) (reciprocal space) i0_reciprocal	49260000.0000
Solution quality estimate total_estimate	0.6711
Solution quality rating solution_quality	REASONABLE a REASONABLE solution
P(r) peaks n_peaks	3
Primary peak position r_peak_primary	20.9 Å
Skewness Skewness skewness	0.518
Kurtosis Kurtosis kurtosis	-0.659
Angular range angular_range	— – 0.2550 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	2649000.0000
Real-space data points n_real_points	52
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.407; Stabil: 0.999; Sysdev: 1.000; Positv: 1.000; Valcen: 0.142; Smooth: 0.359

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (5)

Entity 1 Entity 1 polymer

Description description	5'-D(GPAPCPGPCPTPAPTPAPAPAPAPGPGPAPG)-3'
Molecular weight formula_weight	4980.3 kDa
Source method src_method	syn
Copy count entity_count	2

Polymer Polymer

Polymer type type	polydeoxyribonucleotide
Chain IDs strand_id	A,D
Atom count atom_count	2980

GACGCTATAAAAGGAG

Entity 2 Entity 2 polymer

Description description	5'-D(TPCPCPTPTPTPTPAPTPAPGPCPGPTPCPC)-3'
Molecular weight formula_weight	4815.1 kDa
Source method src_method	syn
Copy count entity_count	2

Polymer Polymer

Polymer type type	polydeoxyribonucleotide
Chain IDs strand_id	B,E

TCCTTTTATAGCGTCC

Entity 3 Entity 3 polymer

Description description	TATA BOX ZINC FINGER PROTEIN
Molecular weight formula_weight	10632.3 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	C,F

MERPYACPVESCDRRFSQKTNLDTHIRIHTGQKPFQCRICMRNFSQQASLNAHIRTHTGEKPFACDICGRKFATLHTRTRHTKIHLRQKD

来源 Source

来源生物 organism	Mus musculus
通用名 common_name	house mouse
NCBI Class编号 ncbi_taxonomy_id	10090
宿主生物 host_organism	Escherichia coli BL21(DE3)

Entity 4 Entity 4 non-polymer

Description description	ZINC ION
Molecular weight formula_weight	65.4 kDa
Source method src_method	syn
Copy count entity_count	6

Entity 5 Entity 5 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	227

▼

7. Fold Classification (SCOP + CATH) 8 domains

SCOP 2.08 (2 domains)

Domain ID domain_id	d1g2fc_
Class class	k — Designed proteins
Fold Fold fold	k.12 — Zinc finger design
Superfamily Superfamily superfamily	k.12.1 — Zinc finger design
Family Family family	k.12.1.1 — Zinc finger design

Domain ID domain_id	d1g2ff_
Class class	k — Designed proteins
Fold Fold fold	k.12 — Zinc finger design
Superfamily Superfamily superfamily	k.12.1 — Zinc finger design
Family Family family	k.12.1.1 — Zinc finger design

CATH v4.4 (6 domains)

Domain ID domain_id	1g2fC01
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	160 — Double Stranded RNA Binding Domain
Homologous superfamily homologous superfamily	60 — Classic Zinc Finger

Domain ID domain_id	1g2fC02
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	160 — Double Stranded RNA Binding Domain
Homologous superfamily homologous superfamily	60 — Classic Zinc Finger

Domain ID domain_id	1g2fC03
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	160 — Double Stranded RNA Binding Domain
Homologous superfamily homologous superfamily	60 — Classic Zinc Finger

Domain ID domain_id	1g2fF01
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	160 — Double Stranded RNA Binding Domain
Homologous superfamily homologous superfamily	60 — Classic Zinc Finger

Domain ID domain_id	1g2fF02
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	160 — Double Stranded RNA Binding Domain
Homologous superfamily homologous superfamily	60 — Classic Zinc Finger

Domain ID domain_id	1g2fF03
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	160 — Double Stranded RNA Binding Domain
Homologous superfamily homologous superfamily	60 — Classic Zinc Finger

▶

8. Citations (4)

▶

Unit-cell length a length_a	104.800 Å
Unit-cell length b length_b	104.800 Å
Unit-cell length c length_c	104.200 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	120.00 °
Molecules per unit cell Z z_pdb	12

Space group space_group	P 64
Space-group number int_tables_number	172
Crystal system crystal_system	—

Resolution resolution	2.000 Å
Low-resolution limit resolution_low	20.000 Å
R factor r_factor	—
R_work r_work	0.2330
R_free r_free	0.2630

fit	/app/data/saxs_computation/g2/1g2f/1g2f.fit
pddf	/app/data/pr_computation/g2/1g2f/1g2f.pr.out
profile	/app/data/saxs_computation/g2/1g2f/1g2f.dat
