1ab3
RIBOSOMAL PROTEIN S15 FROM THERMUS THERMOPHILUS, NMR, 26 STRUCTURES

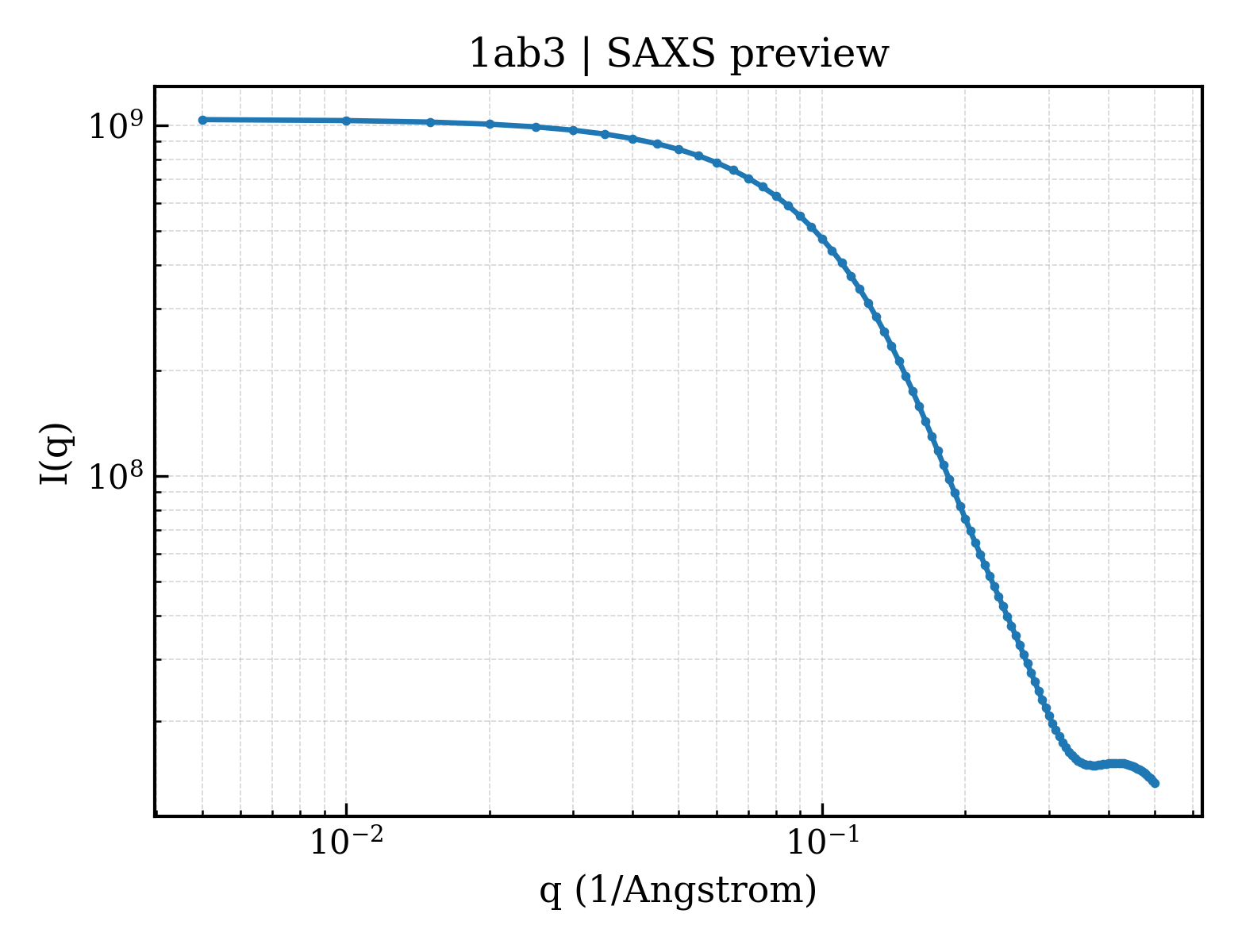

SAXS Profile

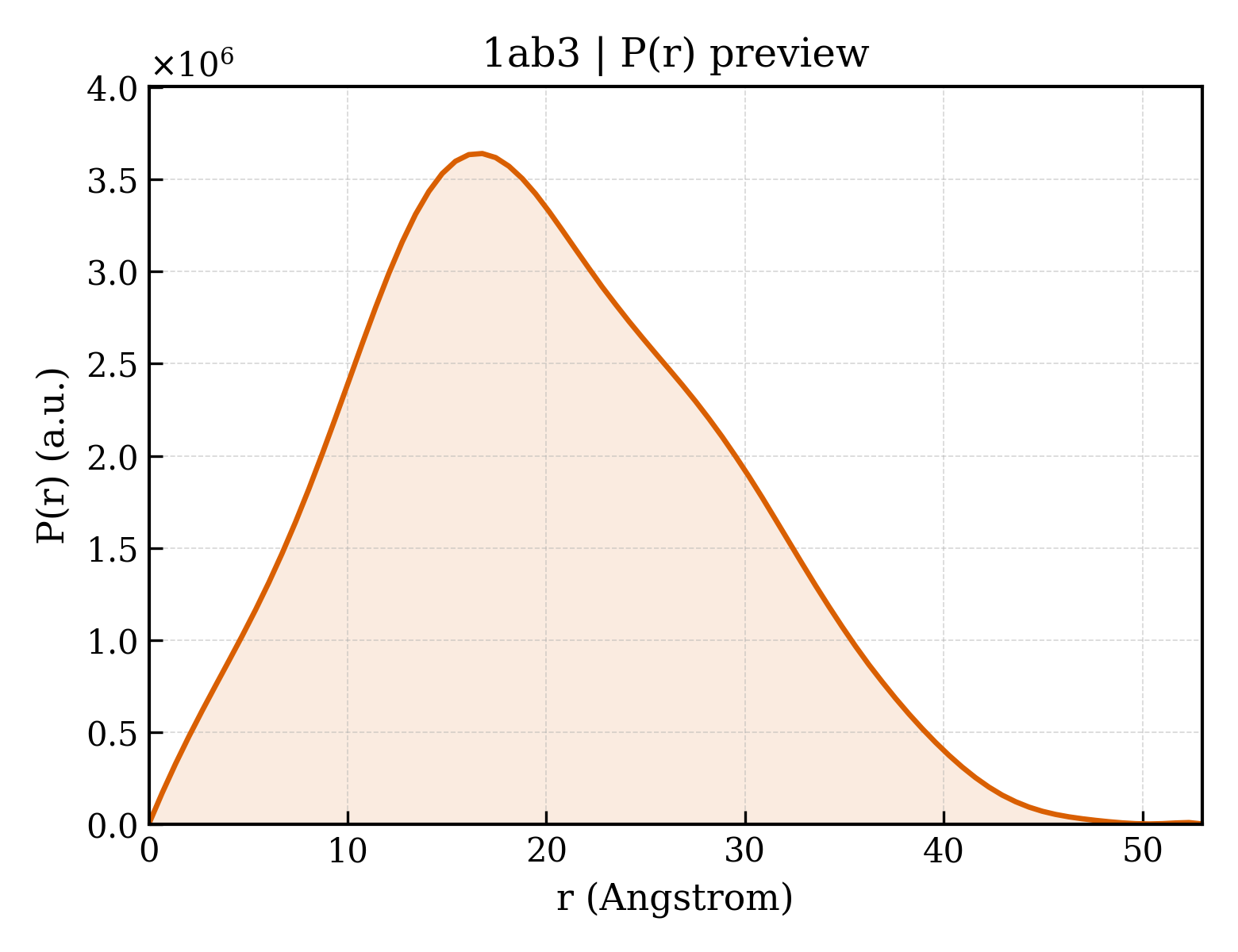

P(r) Distribution
1. Structure Basics
| entry_id | 1ab3 |
| deposition_date | 1997-02-03 |
| title | RIBOSOMAL PROTEIN S15 FROM THERMUS THERMOPHILUS, NMR, 26 STRUCTURES |
| keywords | RIBOSOMAL PROTEIN, RNA-BINDING PROTEIN, RRNA-BINDING PROTEIN; RIBOSOMAL PROTEIN |
| method | SOLUTION NMR |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 15.38 Å |
| rg_electron | 15.20 Å |
| i0 | 1040000000.00 |
| molecular_weight | 271210.0 kDa |
| excluded_volume | 340210 ų |
| envelope_volume | 33055 ų |
| shell_volume | 16107 ų |
| envelope_diameter | 59.2 Å |
| shell_rg | 23.19 Å |
| envelope_rg | 17.99 Å |
| shape_rg | 15.21 Å |
| total_rg | 15.31 Å |
| total_atoms | 39182 |
| n_residues | 2288 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 53.0 Å |
| rg_real | 15.40 Å |
| rg_real_error | 0.39 Å |
| i0_real | 1.0400e+09 |
| i0_real_error | 1.1500e+07 |
| rg_reciprocal | 15.40 Å |
| i0_reciprocal | 1040000000.0000 |
| total_estimate | 0.8766 |
| solution_quality | GOOD a GOOD solution |
| n_peaks | 2 |
| r_peak_primary | 16.8 Å |
| skewness | 0.290 |
| kurtosis | -0.439 |
| angular_range | — – 0.5000 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 188000.0000 |
| n_real_points | 80 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.832; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.907; Smooth: 0.988 |
