SAXSdb — 1dk1

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

30S RIBOSOMAL PROTEIN S15

Thermus thermophilus

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein–RNA	Monomer	Protein 1 RNA 1	RRNA FRAGMENT × 1 MAGNESIUM ION × 9 SODIUM ION × 2 POTASSIUM ION × 1 water × 2	Consistent with all polymers

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	RS15_THETH
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain A； PDBConstruct 1–86； UniProt 1–86

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1dk1
Deposition date deposition_date	1999-12-06
Structure title title	DETAILED VIEW OF A KEY ELEMENT OF THE RIBOSOME ASSEMBLY: CRYSTAL STRUCTURE OF THE S15-RRNA COMPLEX
Keywords keywords	RIBOSOME, S15, PROTEIN, RNA; RIBOSOME
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

1dk1__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

1dk1__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

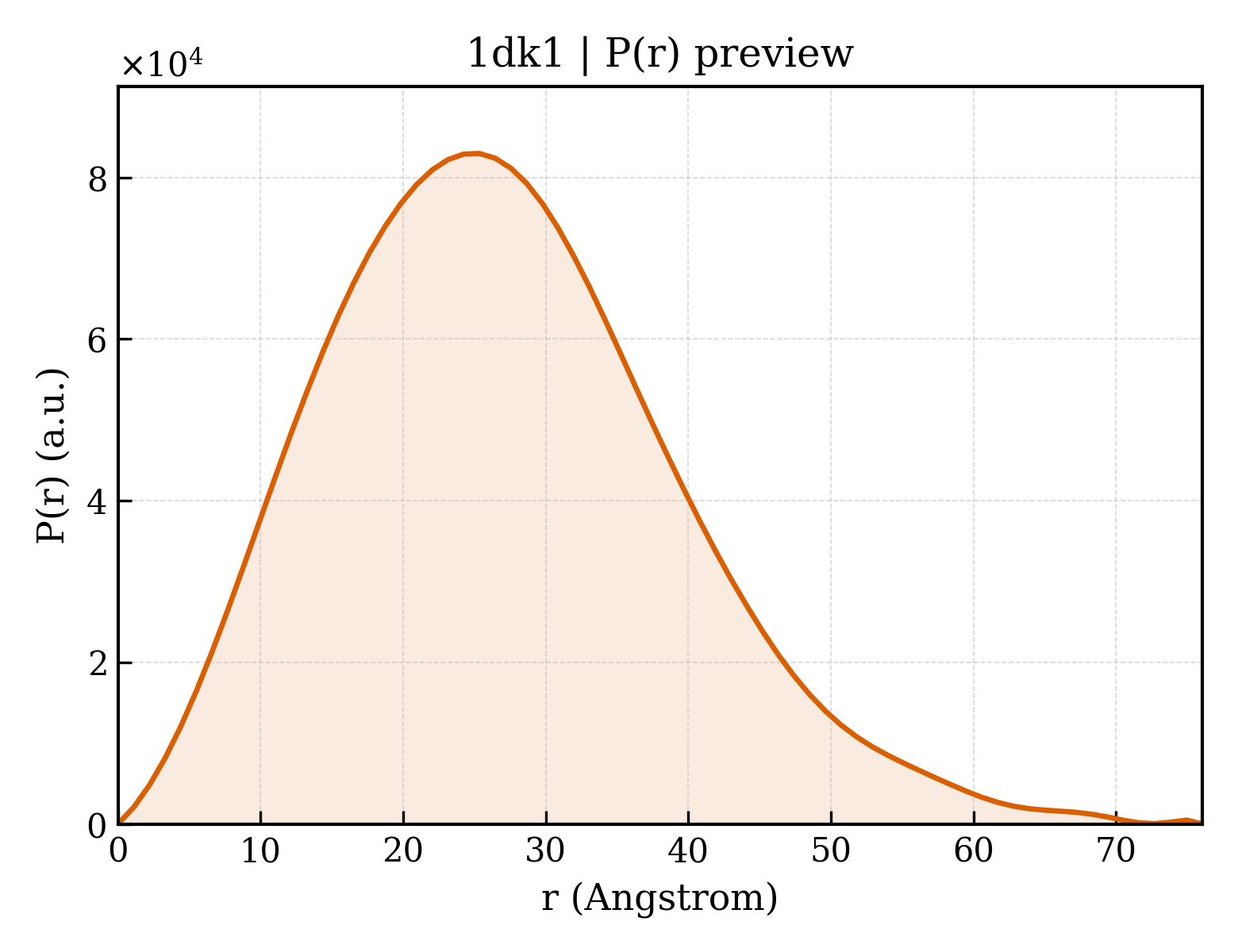

1dk1__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	20.81 Å
Rg (electron density)	19.96 Å
Total Rg	20.62 Å
Atom count	1955
Residues	139
Excluded volume	30584 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`1dk1__assembly_1__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (6)

Entity 1 Entity 1 polymer

Description description	RRNA FRAGMENT
Molecular weight formula_weight	18465.0 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polyribonucleotide
Chain IDs strand_id	B
Atom count atom_count	2047

GGGCGGCCUUCGGGCUAGACGGUGGGAGAGGCUUCGGCUGGUCCACCCGUGACGCUC

Source Source

Source organism organism	Thermus thermophilus
NCBI taxonomy ID ncbi_taxonomy_id	274
Host organism host_organism	Escherichia coli

Entity 2 Entity 2 polymer

Description description	30S RIBOSOMAL PROTEIN S15
Molecular weight formula_weight	10498.7 kDa
Mutation mutation	ILE11MSE, ALA79MSE
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A

PITKEEKQKVMQEFARFPGDTGSTEVQVALLTLRINRLSEHLKVHKKDHHSHRGLLMMVGQRRRLLRYLQREDPERYRMLIEKLGI

Source Source

Source organism organism	Thermus thermophilus
NCBI taxonomy ID ncbi_taxonomy_id	274
Host organism host_organism	Escherichia coli

Entity 3 Entity 3 non-polymer

Description description	MAGNESIUM ION
Molecular weight formula_weight	24.3 kDa
Source method src_method	syn
Copy count entity_count	9

Entity 4 Entity 4 non-polymer

Description description	SODIUM ION
Molecular weight formula_weight	23.0 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 5 Entity 5 non-polymer

Description description	POTASSIUM ION
Molecular weight formula_weight	39.1 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 6 Entity 6 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	25

▼

6. Fold Classification (SCOP + CATH) 2 domains

SCOP 2.08 (1 domains)

Domain ID domain_id	d1dk1a_
Class class	a — All alpha proteins
Fold Fold fold	a.16 — S15/NS1 RNA-binding domain
Superfamily Superfamily superfamily	a.16.1 — S15/NS1 RNA-binding domain
Family Family family	a.16.1.2 — Ribosomal protein S15

CATH v4.4 (1 domains)

Domain ID domain_id	1dk1A00
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	287 — Helix Hairpins
Homologous superfamily homologous superfamily	10 — S15/NS1, RNA-binding

▶

Unit-cell length a length_a	128.800 Å
Unit-cell length b length_b	128.800 Å
Unit-cell length c length_c	65.100 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	120.00 °
Molecules per unit cell Z z_pdb	12

Space group space_group	P 64 2 2
Space-group number int_tables_number	181
Crystal system crystal_system	—

Resolution resolution	2.800 Å
Low-resolution limit resolution_low	8.000 Å
R factor r_factor	0.2130
R_work r_work	0.2130
R_free r_free	0.2910

DETAILED VIEW OF A KEY ELEMENT OF THE RIBOSOME ASSEMBLY: CRYSTAL STRUCTURE OF THE S15-RRNA COMPLEX
