SAXSdb — 1atn

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

ACTIN

OrganismNot specified

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Other combination Heteromer Protein × 2 其他Polymer 1 PDB declaration: dimeric（2） Consistent with protein copy count	Chain A； UniProt 3–374	Non-standard monomer：Yes (specific site not provided by mmCIF)	DEOXYRIBONUCLEASE I × 1 （P00639） beta-D-mannopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose × 1 CA CALCIUM ION × 4 ATP ADENOSINE-5'-TRIPHOSPHATE × 1	X-RAY DIFFRACTION mmCIF provides none of the parsed experimental conditions	Resolution 2.80 Å

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 1ATN	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
1H1V gelsolin G4-G6/actin complex Deposited 2002-07-23	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 3–377（375 aa）	Not recorded	CA CALCIUM ION × 5 ATP ADENOSINE-5'-TRIPHOSPHATE × 1	X-RAY DIFFRACTION X-ray crystallization conditions pH 7.5；PROTEIN WAS CRYSTALLIZED FROM 100MM HEPES BUFFER, PH 7.5, 20% GLYCEROL, 10 % PEG 8000	Resolution 2.99 Å R-free 0.268
1T44 Structural basis of actin sequestration by thymosin-B4: Implications for arp2/3 activation Deposited 2004-04-28	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 8–377（370 aa）	Not recorded	CA CALCIUM ION × 3 ATP ADENOSINE-5'-TRIPHOSPHATE × 1	X-RAY DIFFRACTION X-ray crystallization conditions MICROBATCH；pH 6.5；293 K；PEG 8000, Sodium acetate, calcium chloride, pH 6.5, microbatch, temperature 293K	Resolution 2.00 Å R-free 0.195

2 other PDB entries and 2 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	ACTS_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 2–373； UniProt 3–374

DEOXYRIBONUCLEASE I

OrganismNot specified

UniProt P00639

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Other combination Heteromer Protein × 2 其他Polymer 1 PDB declaration: dimeric（2） Consistent with protein copy count	Chain D； UniProt 23–282	Not recorded	ACTIN × 1 （P02568） beta-D-mannopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose × 1 CA CALCIUM ION × 4 ATP ADENOSINE-5'-TRIPHOSPHATE × 1	X-RAY DIFFRACTION mmCIF provides none of the parsed experimental conditions	Resolution 2.80 Å

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 1ATN	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
1DNK THE X-RAY STRUCTURE OF THE DNASE I-D(GGTATACC)2 COMPLEX AT 2.3 ANGSTROMS RESOLUTION Deposited 1992-08-10	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Monomer；Protein × 1 PDB declaration: trimeric	Chain A 23–282（260 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；VAPOR DIFFUSION, HANGING DROP, temperature 293.00K	Resolution 2.30 Å
2A3Z Ternary complex of the WH2 domain of WASP with Actin-DNAse I Deposited 2005-06-27	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 3 PDB declaration: trimeric	Chain B 23–282（260 aa）	Not recorded	CA CALCIUM ION × 2 ATP ADENOSINE-5'-TRIPHOSPHATE × 1 GOL GLYCEROL × 3 MG MAGNESIUM ION × 1 FMT FORMIC ACID × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.2；293 K；sodium formate, PEG2000 MME, pH 7.2, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 2.08 Å R-free 0.210
2A40 Ternary complex of the WH2 domain of WAVE with Actin-DNAse I Deposited 2005-06-27	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 3 PDB declaration: trimeric	Chain B 23–282（260 aa）	Not recorded	CA CALCIUM ION × 2 ATP ADENOSINE-5'-TRIPHOSPHATE × 1 GOL GLYCEROL × 2 MG MAGNESIUM ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.6；293 K；sodium formate, PEG3350, pH 6.6, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 1.80 Å R-free 0.215
2A40 Ternary complex of the WH2 domain of WAVE with Actin-DNAse I Deposited 2005-06-27	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Other combination Heteromer；Protein × 3 PDB declaration: trimeric	Chain E 23–282（260 aa）	Not recorded	CA CALCIUM ION × 2 ATP ADENOSINE-5'-TRIPHOSPHATE × 1 MG MAGNESIUM ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.6；293 K；sodium formate, PEG3350, pH 6.6, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 1.80 Å R-free 0.215
2A40 Ternary complex of the WH2 domain of WAVE with Actin-DNAse I Deposited 2005-06-27	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 3 Other combination Heteromer；Protein × 6 PDB declaration: hexameric	Chain B 23–282（260 aa） Chain E 23–282（260 aa）	Not recorded	CA CALCIUM ION × 4 ATP ADENOSINE-5'-TRIPHOSPHATE × 2 GOL GLYCEROL × 2 MG MAGNESIUM ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.6；293 K；sodium formate, PEG3350, pH 6.6, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 1.80 Å R-free 0.215
2A41 Ternary complex of the WH2 Domain of WIP with Actin-DNAse I Deposited 2005-06-27	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 3 PDB declaration: trimeric	Chain B 23–282（260 aa）	Not recorded	CA CALCIUM ION × 2 ATP ADENOSINE-5'-TRIPHOSPHATE × 1 MG MAGNESIUM ION × 1 FMT FORMIC ACID × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；293 K；sodium formate, PEG3350, pH 7.0, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 2.60 Å R-free 0.219
2A42 Actin-DNAse I Complex Deposited 2005-06-27	Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 23–282（260 aa）	Not recorded	CA CALCIUM ION × 2 ATP ADENOSINE-5'-TRIPHOSPHATE × 1 GOL GLYCEROL × 3 MG MAGNESIUM ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；293 K；sodium formate, PEG3350, pH 7.0, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 1.85 Å R-free 0.199
2D1K Ternary complex of the WH2 domain of mim with actin-dnase I Deposited 2005-08-26	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 3 PDB declaration: trimeric	Chain B 23–282（260 aa）	Not recorded	CA CALCIUM ION × 2 ATP ADENOSINE-5'-TRIPHOSPHATE × 1 MG MAGNESIUM ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；293 K；sodium formate, PEG3350, pH 7.0, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 2.50 Å R-free 0.284
2DNJ DNASE I-INDUCED DNA CONFORMATION. 2 ANGSTROMS STRUCTURE OF A DNASE I-OCTAMER COMPLEX Deposited 1986-10-21	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Homooligomer；Protein × 2 PDB declaration: hexameric	Chain A 23–282（260 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；pH 6；277 K；pH 6.00, VAPOR DIFFUSION, temperature 277.00K	Resolution 2.00 Å
3CJC Actin dimer cross-linked by V. cholerae MARTX toxin and complexed with DNase I and Gelsolin-segment 1 Deposited 2008-03-12	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 3 PDB declaration: trimeric	Chain D 23–282（260 aa）	Not recorded	CA CALCIUM ION × 2 SO4 SULFATE ION × 6 ATP ADENOSINE-5'-TRIPHOSPHATE × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；298 K；1.5 M (NH4)SO4, 0.1 M Bis-Tris, 0.1 M NaCl, pH 6.5, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 3.90 Å R-free 0.278
3DNI CRYSTALLOGRAPHIC REFINEMENT AND STRUCTURE OF DNASE I AT 2 ANGSTROMS RESOLUTION Deposited 1992-08-20	Different oligomeric state Different ligand/ion Different structure-quality metrics	Assembly 1 Other combination Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 23–282（260 aa）	Not recorded	CA CALCIUM ION × 4	X-RAY DIFFRACTION mmCIF provides none of the parsed conditions	Resolution 2.00 Å
3W3D Crystal structure of smooth muscle G actin DNase I complex Deposited 2012-12-20	Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 23–282（260 aa）	Not recorded	ATP ADENOSINE-5'-TRIPHOSPHATE × 1 CA CALCIUM ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions precipitation；pH 6.6；300 K；4mM MgCl2, 0.1mM CaCl2, NaN3, PEG 6000, pH 6.6, precipitation , temperature 300K	Resolution 1.80 Å
7NXV Crystal structure of the complex of DNase I/G-actin/PPP1R15A_582-621 Deposited 2021-03-19	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 3 PDB declaration: trimeric	Chain B 23–282（260 aa）	Not recorded	ATP ADENOSINE-5'-TRIPHOSPHATE × 1 CA CALCIUM ION × 3	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；pH 5；293 K；10% PEG4000, 0.1M Acetate	Resolution 2.55 Å R-free 0.248
7NXV Crystal structure of the complex of DNase I/G-actin/PPP1R15A_582-621 Deposited 2021-03-19	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Other combination Heteromer；Protein × 3 PDB declaration: trimeric	Chain F 23–282（260 aa）	Not recorded	ATP ADENOSINE-5'-TRIPHOSPHATE × 1 CA CALCIUM ION × 3	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；pH 5；293 K；10% PEG4000, 0.1M Acetate	Resolution 2.55 Å R-free 0.248
7NZM Cryo-EM structure of pre-dephosphorylation complex of phosphorylated eIF2alpha with trapped holophosphatase (PP1A_D64A/PPP1R15A/G-actin/DNase I) Deposited 2021-03-24	Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Heteromer；Protein × 5 PDB declaration: pentameric	Chain D 23–282（260 aa）	Not recorded	MN MANGANESE (II) ION × 1 ATP ADENOSINE-5'-TRIPHOSPHATE × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4；0.22mM Triton X-100 was added into the solution before plunging. cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.96 Å
9FJU Structure of the DNase I- and phalloidin-bound pointed end of F-actin (conformer 1) Deposited 2024-05-31	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 10 PDB declaration: decameric	Chain E 1–282（282 aa） Chain F 1–282（282 aa）	Not recorded	ADP ADENOSINE-5'-DIPHOSPHATE × 4 MG MAGNESIUM ION × 8 PO4 PHOSPHATE ION × 4	ELECTRON MICROSCOPY cryo-EM buffer pH 7；1xKMEI plus phalloidin cryo-EM vitrification conditions Cryogen ETHANE-PROPANE；3 seconds, force 0.	Resolution 3.84 Å
9FJY Structure of the DNase I- and phalloidin-bound pointed end of F-actin (conformer 2). Deposited 2024-05-31	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 10 PDB declaration: decameric	Chain E 1–282（282 aa） Chain F 1–282（282 aa）	Not recorded	ADP ADENOSINE-5'-DIPHOSPHATE × 4 MG MAGNESIUM ION × 8 PO4 PHOSPHATE ION × 4	ELECTRON MICROSCOPY cryo-EM buffer pH 7；1xKMEI plus phalloidin cryo-EM vitrification conditions Cryogen ETHANE-PROPANE；3 seconds, force 0.	Resolution 3.79 Å
9NB9 Viral protein DP71L in complex with phosphorylated eIF2alpha (NTD) and protein phosphatase 1A (D64A), stabilized by G-actin/DNAseI Deposited 2025-02-13	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric	Chain E 1–282（282 aa）	Not recorded	MN MANGANESE (II) ION × 1 CA CALCIUM ION × 1 ATP ADENOSINE-5'-TRIPHOSPHATE × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE；3.5 uL volume, -5 blot force, 1.5 blot time	Resolution 3.03 Å

15 other PDB entries and 18 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	DRN1_BOVIN
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain D； PDBConstruct 1–260； UniProt 23–282

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1atn
Deposition date deposition_date	1991-03-08
Structure title title	Atomic structure of the actin:DNASE I complex
Keywords keywords	ENDODEOXYRIBONUCLEASE; ENDODEOXYRIBONUCLEASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	30.78 Å
Radius of gyration Rg (electron density) rg_electron	30.33 Å
Forward intensity I(0) i0	83303400.00
Molecular weight molecular_weight	71563.0 kDa
Excluded volume excluded_volume	89175 Å³
Envelope volume envelope_volume	107940 Å³
Hydration-shell volume shell_volume	30328 Å³
Envelope diameter envelope_diameter	102.6 Å
Shell Rg shell_rg	36.62 Å
Envelope Rg envelope_rg	30.03 Å
Shape Rg shape_rg	30.32 Å
Total Rg total_rg	30.92 Å
Total atoms total_atoms	5019
Residues n_residues	629
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

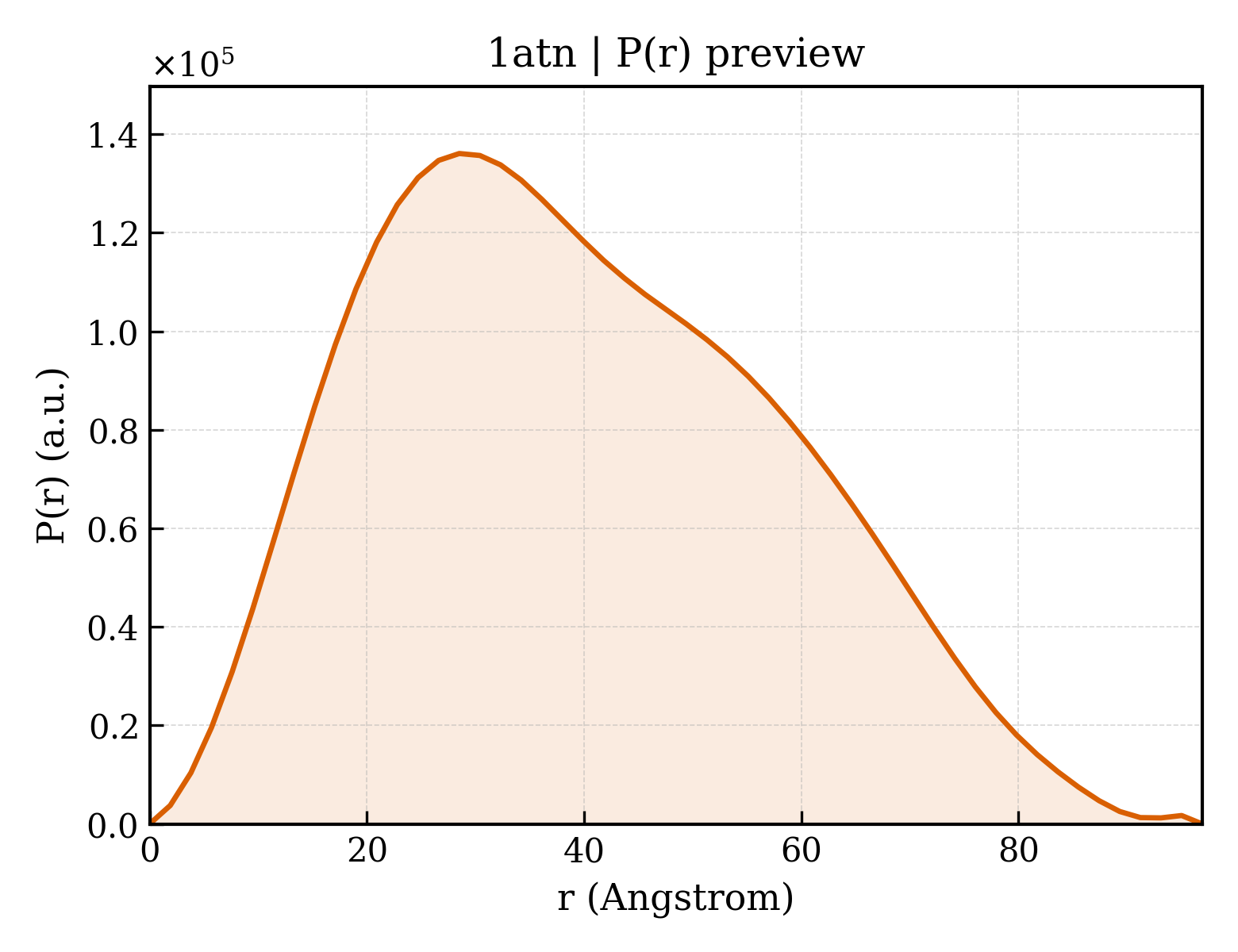

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	96.9 Å
Rg (real space) rg_real	30.86 Å
Rg uncertainty (real space) rg_real_error	0.77 Å
I(0) (real space) i0_real	8.3300e+07
I(0) uncertainty (real space) i0_real_error	1.2640e+06
Rg (reciprocal space) rg_reciprocal	30.83 Å
I(0) (reciprocal space) i0_reciprocal	83300000.0000
Solution quality estimate total_estimate	0.8869
Solution quality rating solution_quality	GOOD a GOOD solution
P(r) peaks n_peaks	2
Primary peak position r_peak_primary	28.5 Å
Skewness Skewness skewness	0.328
Kurtosis Kurtosis kurtosis	-0.624
Angular range angular_range	— – 0.2550 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	15590000.0000
Real-space data points n_real_points	52
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.933; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.916; Smooth: 0.811

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (5)

Entity 1 Entity 1 polymer

Description description	ACTIN
Molecular weight formula_weight	41522.2 kDa
Source method src_method	nat
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	5019

XDEDETTALVCDNGSGLVKAGFAGDDAPRAVFPSIVGRPRHQGVMVGMGQKDSYVGDEAQSKRGILTLKYPIEHGIITNWDDMEKIWHHTFYNELRVAPEEHPTLLTEAPLNPKANREKMTQIMFETFNVPAMYVAIQAVLSLYASGRTTGIVLDSGDGVTHNVPIYEGYALPHAIMRLDLAGRDLTDYLMKILTERGYSFVTTAEREIVRDIKEKLCYVALDFENEMATAASSSSLEKSYELPDGQVITIGNERFRCPETLFQPSFIGMESAGIHETTYNSIMKCDIDIRKDLYANNVMSGGTTMYPGIADRMQKEITALAPSTMKIKIIAPPERKYSVWIGGSILASLSTFQQMWITKQEYDEAGPSIVHR

Entity 2 Entity 2 polymer

Description description	DEOXYRIBONUCLEASE I
Molecular weight formula_weight	29047.5 kDa
Source method src_method	nat
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	D

LKIAAFNIRTFGETKMSNATLASYIVRIVRRYDIVLIQEVRDSHLVAVGKLLDYLNQDDPNTYHYVVSEPLGRNSYKERYLFLFRPNKVSVLDTYQYDDGCGNCGNDSFSREPAVVKFSSHSTKVKEFAIVALHSAPSDAVAEINSLYDVYLDVQQKWHLNDVMLMGDFNADCSYVTSSQWSSIRLRTSSTFQWLIPDSADTTATSTNCAYDRIVVAGSLLQSSVVPGSAAPFDFQAAYGLSNEMALAISDHYPVEVTLT

Entity 3 Entity 3 branched

Description description	beta-D-mannopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose
Molecular weight formula_weight	586.5 kDa
Source method src_method	man
Copy count entity_count	1

Entity 4 Entity 4 non-polymer

Description description	CALCIUM ION
Molecular weight formula_weight	40.1 kDa
Source method src_method	syn
Copy count entity_count	4

Entity 5 Entity 5 non-polymer

Description description	ADENOSINE-5'-TRIPHOSPHATE
Molecular weight formula_weight	507.2 kDa
Source method src_method	syn
Copy count entity_count	1

▼

7. Fold Classification (SCOP + CATH) 8 domains

SCOP 2.08 (3 domains)

Domain ID domain_id	d1atna1
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.55 — Ribonuclease H-like motif
Superfamily Superfamily superfamily	c.55.1 — Actin-like ATPase domain
Family Family family	c.55.1.1 — Actin/HSP70

Domain ID domain_id	d1atna2
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.55 — Ribonuclease H-like motif
Superfamily Superfamily superfamily	c.55.1 — Actin-like ATPase domain
Family Family family	c.55.1.1 — Actin/HSP70

Domain ID domain_id	d1atnd_
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.151 — DNase I-like
Superfamily Superfamily superfamily	d.151.1 — DNase I-like
Family Family family	d.151.1.1 — DNase I-like

CATH v4.4 (5 domains)

Domain ID domain_id	1atnA01
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	420 — Nucleotidyltransferase; domain 5
Homologous superfamily homologous superfamily	40 — ATPase, nucleotide binding domain

Domain ID domain_id	1atnA02
Class class	2 — Mainly Beta
Architecture architecture	30 — Roll
Topology topology	36 — Actin; Chain A, domain 2
Homologous superfamily homologous superfamily	70 — Actin; Chain A, domain 2

Domain ID domain_id	1atnA03
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	420 — Nucleotidyltransferase; domain 5
Homologous superfamily homologous superfamily	40 — ATPase, nucleotide binding domain

Domain ID domain_id	1atnA04
Class class	3 — Alpha Beta
Architecture architecture	90 — Alpha-Beta Complex
Topology topology	640 — Actin; Chain A, domain 4
Homologous superfamily homologous superfamily	10 — ATPase, substrate binding domain, subdomain 4

Domain ID domain_id	1atnD00
Class class	3 — Alpha Beta
Architecture architecture	60 — 4-Layer Sandwich
Topology topology	10 — Deoxyribonuclease I; Chain A
Homologous superfamily homologous superfamily	10 — Endonuclease/exonuclease/phosphatase

▶

8. Citations (9)

Atomic structure of the actin:DNase I complex.

Nature (1990)

PMID: 2395459 · DOI: 10.1038/347037a0 PRIMARY

Structure and Function of Actin

Annu.Rev.Biophys.Biophys.Chem. (1992)

Muscle Proteins: Actin

Curr.Opin.Struct.Biol. (1991)

Similarity of the Three-Dimensional Structures of Actin and the ATPase Fragment of a 70-kDa Heat Shock Cognate Protein

Proc.Natl.Acad.Sci.USA (1991)

Atomic Model of the Actin Filament

Nature (1990)

Crystallographic Refinement and Structure of DNase I at 2 Angstroms Resolution

J.Mol.Biol. (1986)

Three-Dimensional Structure of the Complex of Actin and DNase I at 4.5 Angstroms Resolution

Embo J. (1985)

Three-Dimensional Structure of Bovine Pancreatic DNase I at 2.5 Angstroms Resolution

Embo J. (1984)

Three-Dimensional Structure of the Complex of Skeletal Muscle Actin and Bovine Pancreatic DNase I at 6-Angstroms Resolution

Proc.Natl.Acad.Sci.USA (1981)

▶

Unit-cell length a length_a	132.900 Å
Unit-cell length b length_b	56.300 Å
Unit-cell length c length_c	109.700 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	4

Space group space_group	P 21 21 21
Space-group number int_tables_number	19
Crystal system crystal_system	—

Resolution resolution	2.800 Å
Low-resolution limit resolution_low	10.000 Å
R factor r_factor	—
R_work r_work	0.2100
R_free r_free	—

fit	/app/data/saxs_computation/at/1atn/1atn.fit
pddf	/app/data/pr_computation/at/1atn/1atn.pr.out
profile	/app/data/saxs_computation/at/1atn/1atn.dat
