2a3z

Ternary complex of the WH2 domain of WASP with Actin-DNAse I

Method: X-RAY DIFFRACTION D_max: 99.7 Å Quality: REASONABLE

SAXS 散射曲线 SAXS Profile

P(r) 距离分布 P(r) Distribution

下载 Download SAXS (.dat) P(r) (.pr.out) CIF

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	2a3z
沉积日期 deposition_date	2005-06-27
结构标题 title	Ternary complex of the WH2 domain of WASP with Actin-DNAse I
关键词 keywords	WASP, WH2, actin, DNAse I, arp2/3, STRUCTURAL PROTEIN; STRUCTURAL PROTEIN
实验方法 method	X-RAY DIFFRACTION

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	30.68 Å
回转半径 Rg (电子) rg_electron	30.24 Å
零角强度 I(0) i0	85482800.00
分子量 molecular_weight	72498.0 kDa
排除体积 excluded_volume	90403 Å³
包络体积 envelope_volume	110660 Å³
水化壳体积 shell_volume	31213 Å³
包络直径 envelope_diameter	101.9 Å
壳层 Rg shell_rg	36.56 Å
包络 Rg envelope_rg	29.93 Å
形状 Rg shape_rg	30.23 Å
总 Rg total_rg	30.83 Å
总原子数 total_atoms	5086
残基数 n_residues	637
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

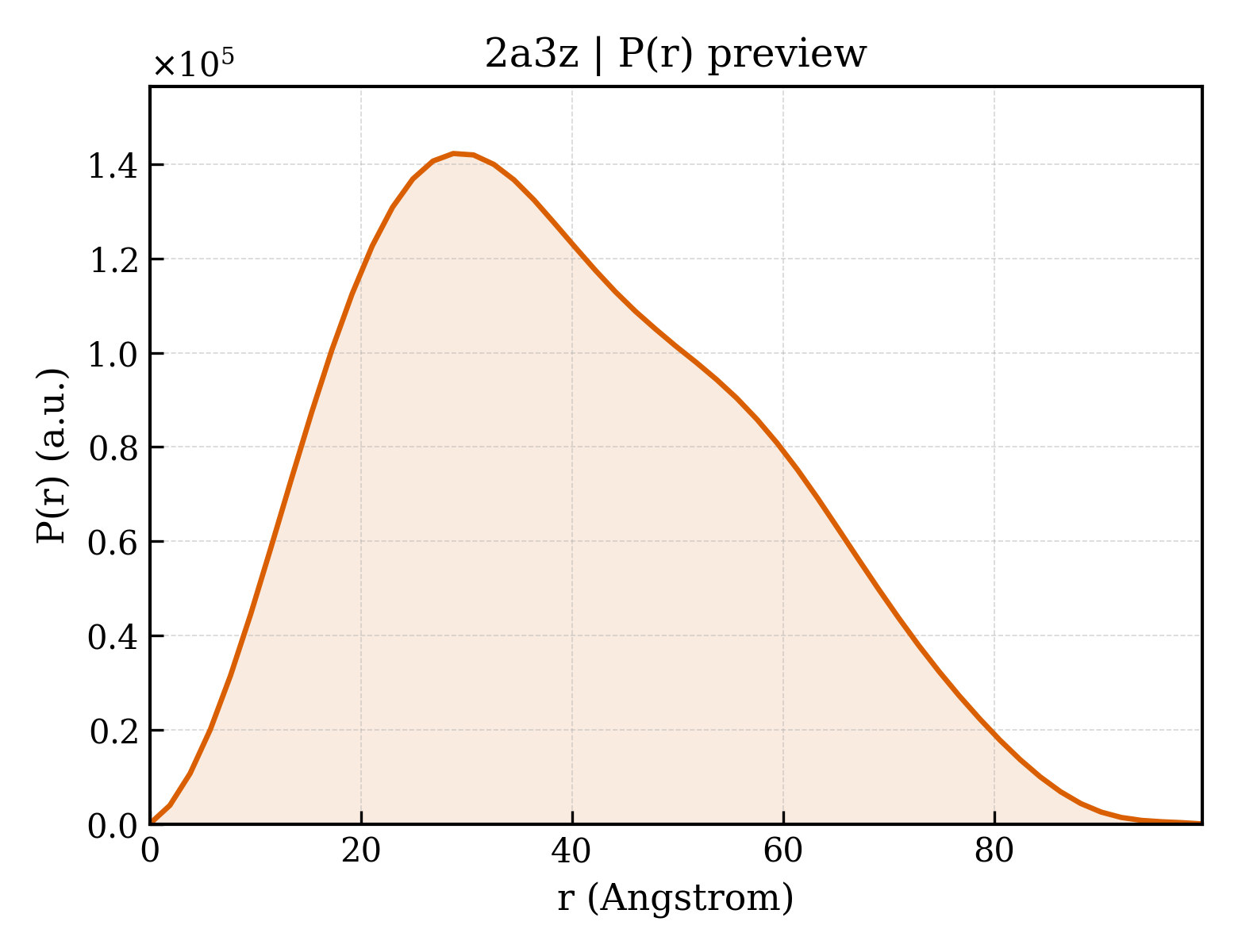

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	99.7 Å
Rg (实空间) rg_real	30.77 Å
Rg 误差 (实空间) rg_real_error	0.60 Å
I(0) (实空间) i0_real	8.5480e+07
I(0) 误差 (实空间) i0_real_error	1.1890e+06
Rg (倒空间) rg_reciprocal	30.74 Å
I(0) (倒空间) i0_reciprocal	85480000.0000
解质量估计 total_estimate	0.6707
解质量评级 solution_quality	REASONABLE a REASONABLE solution
P(r) 峰数 n_peaks	1
主峰位置 r_peak_primary	28.8 Å
偏度 Skewness skewness	0.352
峰度 Kurtosis kurtosis	-0.588
角度范围 angular_range	— – 0.2600 Å⁻¹
当前正则化参数 α current_alpha	0.0000
最高正则化参数 α highest_alpha	16760000.0000
实空间数据点数 n_real_points	53
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.892; Stabil: 1.000; Sysdev: 0.077; Positv: 1.000; Valcen: 0.912; Smooth: 0.897

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (10)

Entity 1 polymer

描述 description	Actin, alpha skeletal muscle
分子量 formula_weight	41875.6 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A
原子数 atom_count	5584

DEDETTALVCDNGSGLVKAGFAGDDAPRAVFPSIVGRPRHQGVMVGMGQKDSYVGDEAQSKRGILTLKYPIEHGIITNWDDMEKIWHHTFYNELRVAPEEHPTLLTEAPLNPKANREKMTQIMFETFNVPAMYVAIQAVLSLYASGRTTGIVLDSGDGVTHNVPIYEGYALPHAIMRLDLAGRDLTDYLMKILTERGYSFVTTAEREIVRDIKEKLCYVALDFENEMATAASSSSLEKSYELPDGQVITIGNERFRCPETLFQPSFIGMESAGIHETTYNSIMKCDIDIRKDLYANNVMSGGTTMYPGIADRMQKEITALAPSTMKIKIIAPPERKYSVWIGGSILASLSTFQQMWITKQEYDEAGPSIVHRKCF

Entity 2 polymer

描述 description	Deoxyribonuclease-1
分子量 formula_weight	29092.6 kDa
EC 编号 ec_number	3.1.21.1
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	B

LKIAAFNIRTFGETKMSNATLASYIVRIVRRYDIVLIQEVRDSHLVAVGKLLDYLNQDDPNTYHYVVSEPLGRNSYKERYLFLFRPNKVSVLDTYQYDDGCESCGNDSFSREPAVVKFSSHSTKVKEFAIVALHSAPSDAVAEINSLYDVYLDVQQKWHLNDVMLMGDFNADCSYVTSSQWSSIRLRTSSTFQWLIPDSADTTATSTNCAYDRIVVAGSLLQSSVVPGSAAPFDFQAAYGLSNEMALAISDHYPVEVTLT

Entity 3 polymer

描述 description	Wiskott-Aldrich syndrome protein
分子量 formula_weight	3019.4 kDa
来源方法 src_method	syn
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	C

GRGALLDQIRQGIQLNKTPGAPESSALQP

Entity 4 branched

描述 description	2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose
分子量 formula_weight	424.4 kDa
来源方法 src_method	man
拷贝数 entity_count	1

Entity 5 non-polymer

描述 description	CALCIUM ION
分子量 formula_weight	40.1 kDa
来源方法 src_method	syn
拷贝数 entity_count	2

Entity 6 non-polymer

描述 description	ADENOSINE-5'-TRIPHOSPHATE
分子量 formula_weight	507.2 kDa
来源方法 src_method	syn
拷贝数 entity_count	1

Entity 7 non-polymer

描述 description	GLYCEROL
分子量 formula_weight	92.1 kDa
来源方法 src_method	syn
拷贝数 entity_count	3

Entity 8 non-polymer

描述 description	MAGNESIUM ION
分子量 formula_weight	24.3 kDa
来源方法 src_method	syn
拷贝数 entity_count	1

Entity 9 non-polymer

描述 description	FORMIC ACID
分子量 formula_weight	46.0 kDa
来源方法 src_method	syn
拷贝数 entity_count	1

Entity 10 water

描述 description	water
分子量 formula_weight	18.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	395

▼

6. 折叠分类 (SCOP + CATH) 8 domains

SCOP 2.08 (3 domains)

结构域编号 domain_id	d2a3za1
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.55 — Ribonuclease H-like motif
超家族 Superfamily superfamily	c.55.1 — Actin-like ATPase domain
家族 Family family	c.55.1.1 — Actin/HSP70

结构域编号 domain_id	d2a3za2
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.55 — Ribonuclease H-like motif
超家族 Superfamily superfamily	c.55.1 — Actin-like ATPase domain
家族 Family family	c.55.1.1 — Actin/HSP70

结构域编号 domain_id	d2a3zb_
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.151 — DNase I-like
超家族 Superfamily superfamily	d.151.1 — DNase I-like
家族 Family family	d.151.1.1 — DNase I-like

CATH v4.4 (5 domains)

结构域编号 domain_id	2a3zA01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	30 — 2-Layer Sandwich
拓扑 Topology topology	420 — Nucleotidyltransferase; domain 5
同源超家族 H-superfamily homologous superfamily	40 — ATPase, nucleotide binding domain

结构域编号 domain_id	2a3zA02
类 Class class	2 — Mainly Beta
架构 Architecture architecture	30 — Roll
拓扑 Topology topology	36 — Actin; Chain A, domain 2
同源超家族 H-superfamily homologous superfamily	70 — Actin; Chain A, domain 2

结构域编号 domain_id	2a3zA03
类 Class class	3 — Alpha Beta
架构 Architecture architecture	30 — 2-Layer Sandwich
拓扑 Topology topology	420 — Nucleotidyltransferase; domain 5
同源超家族 H-superfamily homologous superfamily	40 — ATPase, nucleotide binding domain

结构域编号 domain_id	2a3zA04
类 Class class	3 — Alpha Beta
架构 Architecture architecture	90 — Alpha-Beta Complex
拓扑 Topology topology	640 — Actin; Chain A, domain 4
同源超家族 H-superfamily homologous superfamily	10 — ATPase, substrate binding domain, subdomain 4

结构域编号 domain_id	2a3zB00
类 Class class	3 — Alpha Beta
架构 Architecture architecture	60 — 4-Layer Sandwich
拓扑 Topology topology	10 — Deoxyribonuclease I; Chain A
同源超家族 H-superfamily homologous superfamily	10 — Endonuclease/exonuclease/phosphatase

▶

7. 引用文献 (1)

▶

晶胞边长 a length_a	153.270 Å
晶胞边长 b length_b	41.798 Å
晶胞边长 c length_c	119.418 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	108.68 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	4

空间群 space_group	C 1 2 1
空间群编号 int_tables_number	5
晶系 crystal_system	—

分辨率 resolution	2.078 Å
最低分辨率 resolution_low	40.100 Å
R 因子 r_factor	0.1591
R_work r_work	0.1533
R_free r_free	0.2103

fit	/app/data/saxs_computation/a3/2a3z/2a3z.fit
pddf	/app/data/pr_computation/a3/2a3z/2a3z.pr.out
profile	/app/data/saxs_computation/a3/2a3z/2a3z.dat
