SAXSdb — 2d1k

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	2d1k
沉积日期 deposition_date	2005-08-26
结构标题 title	Ternary complex of the WH2 domain of mim with actin-dnase I
关键词 keywords	WASP, WIP, WH2, ACTIN, DNASE I, STRUCTURAL PROTEIN; STRUCTURAL PROTEIN
实验方法 method	X-RAY DIFFRACTION

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	30.67 Å
回转半径 Rg (电子) rg_electron	30.23 Å
零角强度 I(0) i0	91568100.00
分子量 molecular_weight	74763.0 kDa
排除体积 excluded_volume	93139 Å³
包络体积 envelope_volume	114900 Å³
水化壳体积 shell_volume	32380 Å³
包络直径 envelope_diameter	101.6 Å
壳层 Rg shell_rg	36.57 Å
包络 Rg envelope_rg	30.01 Å
形状 Rg shape_rg	30.22 Å
总 Rg total_rg	30.84 Å
总原子数 total_atoms	5244
残基数 n_residues	659
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	99.7 Å
Rg (实空间) rg_real	30.75 Å
Rg 误差 (实空间) rg_real_error	0.65 Å
I(0) (实空间) i0_real	9.1570e+07
I(0) 误差 (实空间) i0_real_error	1.2920e+06
Rg (倒空间) rg_reciprocal	30.72 Å
I(0) (倒空间) i0_reciprocal	91570000.0000
解质量估计 total_estimate	0.8840
解质量评级 solution_quality	GOOD a GOOD solution
P(r) 峰数 n_peaks	1
主峰位置 r_peak_primary	28.8 Å
偏度 Skewness skewness	0.358
峰度 Kurtosis kurtosis	-0.578
角度范围 angular_range	— – 0.2600 Å⁻¹
当前正则化参数 α current_alpha	0.0000
最高正则化参数 α highest_alpha	24280000.0000
实空间数据点数 n_real_points	53
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.885; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.925; Smooth: 0.908

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (8)

Entity 1 polymer

描述 description	Actin, alpha skeletal muscle
分子量 formula_weight	41875.6 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A
原子数 atom_count	5355

DEDETTALVCDNGSGLVKAGFAGDDAPRAVFPSIVGRPRHQGVMVGMGQKDSYVGDEAQSKRGILTLKYPIEHGIITNWDDMEKIWHHTFYNELRVAPEEHPTLLTEAPLNPKANREKMTQIMFETFNVPAMYVAIQAVLSLYASGRTTGIVLDSGDGVTHNVPIYEGYALPHAIMRLDLAGRDLTDYLMKILTERGYSFVTTAEREIVRDIKEKLCYVALDFENEMATAASSSSLEKSYELPDGQVITIGNERFRCPETLFQPSFIGMESAGIHETTYNSIMKCDIDIRKDLYANNVMSGGTTMYPGIADRMQKEITALAPSTMKIKIIAPPERKYSVWIGGSILASLSTFQQMWITKQEYDEAGPSIVHRKCF

Entity 2 polymer

描述 description	Deoxyribonuclease-1
分子量 formula_weight	29092.6 kDa
EC 编号 ec_number	3.1.21.1
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	B

LKIAAFNIRTFGETKMSNATLASYIVRIVRRYDIVLIQEVRDSHLVAVGKLLDYLNQDDPNTYHYVVSEPLGRNSYKERYLFLFRPNKVSVLDTYQYDDGCESCGNDSFSREPAVVKFSSHSTKVKEFAIVALHSAPSDAVAEINSLYDVYLDVQQKWHLNDVMLMGDFNADCSYVTSSQWSSIRLRTSSTFQWLIPDSADTTATSTNCAYDRIVVAGSLLQSSVVPGSAAPFDFQAAYGLSNEMALAISDHYPVEVTLT

Entity 3 polymer

描述 description	Metastasis suppressor protein 1
分子量 formula_weight	3611.1 kDa
来源方法 src_method	syn
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	C

DTPQGEDMLNAIRRGVKLKKTTTNDRSAPRFS

Entity 4 branched

描述 description	beta-D-mannopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose
分子量 formula_weight	586.5 kDa
来源方法 src_method	man
拷贝数 entity_count	1

Entity 5 non-polymer

描述 description	CALCIUM ION
分子量 formula_weight	40.1 kDa
来源方法 src_method	syn
拷贝数 entity_count	2

Entity 6 non-polymer

描述 description	ADENOSINE-5'-TRIPHOSPHATE
分子量 formula_weight	507.2 kDa
来源方法 src_method	syn
拷贝数 entity_count	1

Entity 7 non-polymer

描述 description	MAGNESIUM ION
分子量 formula_weight	24.3 kDa
来源方法 src_method	syn
拷贝数 entity_count	1

Entity 8 water

描述 description	water
分子量 formula_weight	18.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	103

▼

6. 折叠分类 (SCOP + CATH) 8 domains

SCOP 2.08 (3 domains)

结构域编号 domain_id	d2d1ka1
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.55 — Ribonuclease H-like motif
超家族 Superfamily superfamily	c.55.1 — Actin-like ATPase domain
家族 Family family	c.55.1.1 — Actin/HSP70

结构域编号 domain_id	d2d1ka2
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.55 — Ribonuclease H-like motif
超家族 Superfamily superfamily	c.55.1 — Actin-like ATPase domain
家族 Family family	c.55.1.1 — Actin/HSP70

结构域编号 domain_id	d2d1kb_
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.151 — DNase I-like
超家族 Superfamily superfamily	d.151.1 — DNase I-like
家族 Family family	d.151.1.1 — DNase I-like

CATH v4.4 (5 domains)

结构域编号 domain_id	2d1kA01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	30 — 2-Layer Sandwich
拓扑 Topology topology	420 — Nucleotidyltransferase; domain 5
同源超家族 H-superfamily homologous superfamily	40 — ATPase, nucleotide binding domain

结构域编号 domain_id	2d1kA02
类 Class class	2 — Mainly Beta
架构 Architecture architecture	30 — Roll
拓扑 Topology topology	36 — Actin; Chain A, domain 2
同源超家族 H-superfamily homologous superfamily	70 — Actin; Chain A, domain 2

结构域编号 domain_id	2d1kA03
类 Class class	3 — Alpha Beta
架构 Architecture architecture	30 — 2-Layer Sandwich
拓扑 Topology topology	420 — Nucleotidyltransferase; domain 5
同源超家族 H-superfamily homologous superfamily	40 — ATPase, nucleotide binding domain

结构域编号 domain_id	2d1kA04
类 Class class	3 — Alpha Beta
架构 Architecture architecture	90 — Alpha-Beta Complex
拓扑 Topology topology	640 — Actin; Chain A, domain 4
同源超家族 H-superfamily homologous superfamily	10 — ATPase, substrate binding domain, subdomain 4

结构域编号 domain_id	2d1kB00
类 Class class	3 — Alpha Beta
架构 Architecture architecture	60 — 4-Layer Sandwich
拓扑 Topology topology	10 — Deoxyribonuclease I; Chain A
同源超家族 H-superfamily homologous superfamily	10 — Endonuclease/exonuclease/phosphatase

▶

7. 引用文献 (1)

▶

晶胞边长 a length_a	42.093 Å
晶胞边长 b length_b	75.487 Å
晶胞边长 c length_c	228.991 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	90.00 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	4

空间群 space_group	P 21 21 21
空间群编号 int_tables_number	19
晶系 crystal_system	—

分辨率 resolution	2.500 Å
最低分辨率 resolution_low	41.400 Å
R 因子 r_factor	0.2205
R_work r_work	0.2171
R_free r_free	0.2841

fit	/app/data/saxs_computation/d1/2d1k/2d1k.fit
pddf	/app/data/pr_computation/d1/2d1k/2d1k.pr.out
profile	/app/data/saxs_computation/d1/2d1k/2d1k.dat

Ternary complex of the WH2 domain of mim with actin-dnase I

SAXS 散射曲线 SAXS Profile

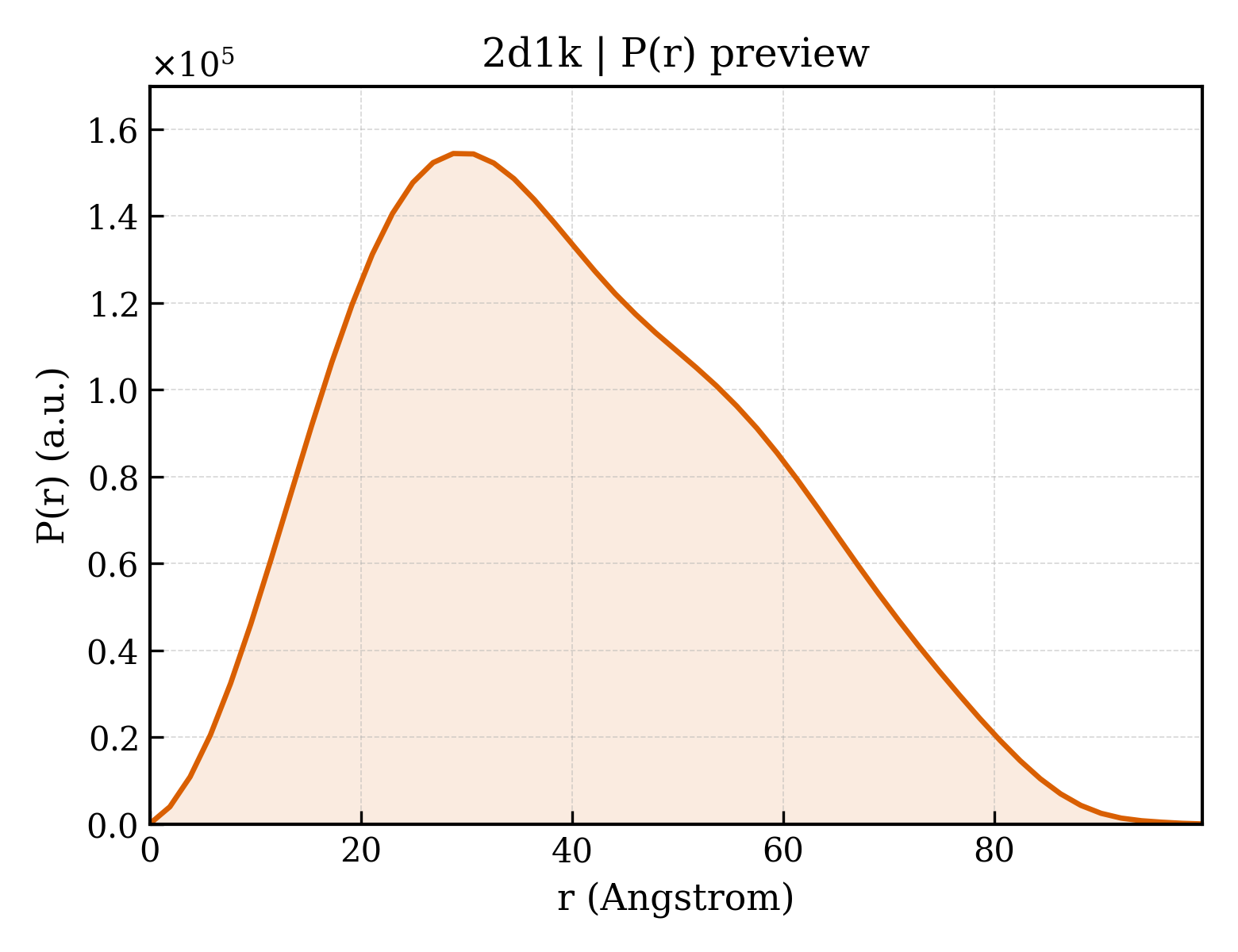

P(r) 距离分布 P(r) Distribution
