9fju

Structure of the DNase I- and phalloidin-bound pointed end of F-actin (conformer 1)

Method: ELECTRON MICROSCOPY

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Actin, cytoplasmic 1, N-terminally processed

OrganismNot specified

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Other combination	Heteromer	Protein 10 其他Polymer 2	Deoxyribonuclease-1 × 2 （P00639） Phalloidin × 4 2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose × 2 ADENOSINE-5'-DIPHOSPHATE × 4 MAGNESIUM ION × 8 PHOSPHATE ION × 4	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	ACTB_BOVIN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–374； UniProt 2–375 Author chain B； PDBConstruct 1–374； UniProt 2–375 Author chain C； PDBConstruct 1–374； UniProt 2–375 Author chain D； PDBConstruct 1–374； UniProt 2–375

Deoxyribonuclease-1

OrganismNot specified

UniProt P00639

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Other combination	Heteromer	Protein 10 其他Polymer 2	Actin, cytoplasmic 1, N-terminally processed × 4 （P60712） Phalloidin × 4 2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose × 2 ADENOSINE-5'-DIPHOSPHATE × 4 MAGNESIUM ION × 8 PHOSPHATE ION × 4	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	DNAS1_BOVIN
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain E； PDBConstruct 1–282； UniProt 1–282 Author chain F； PDBConstruct 1–282； UniProt 1–282

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	9fju
Deposition date deposition_date	2024-05-31
Structure title title	Structure of the DNase I- and phalloidin-bound pointed end of F-actin (conformer 1)
Keywords keywords	actin, phalloidin, filament, pointed end, DNase I, STRUCTURAL PROTEIN; STRUCTURAL PROTEIN
Experimental Method method	ELECTRON MICROSCOPY

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

9fju__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

9fju__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

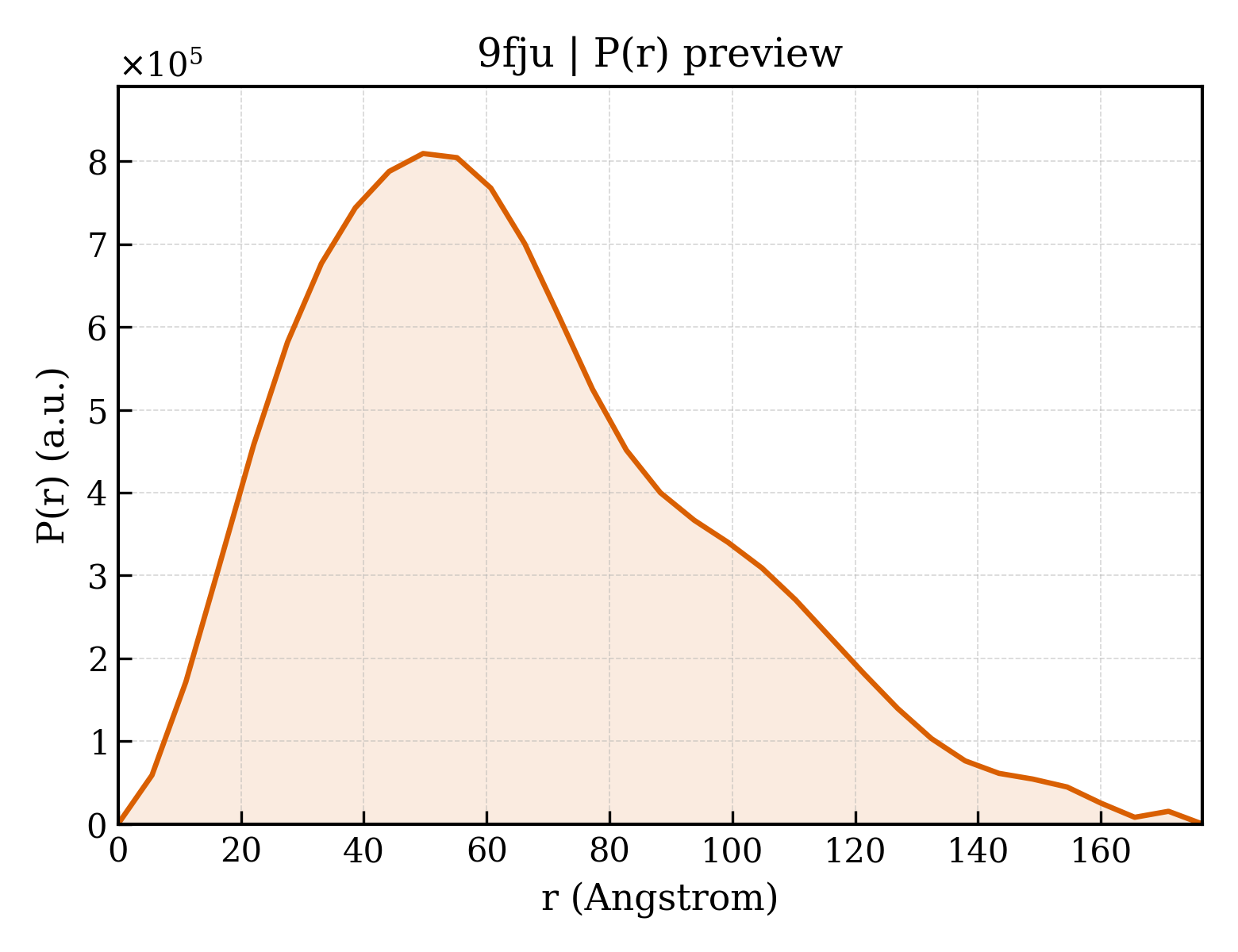

9fju__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	49.68 Å
Rg (electron density)	50.66 Å
Total Rg	50.45 Å
Atom count	15968
Residues	1998
Excluded volume	284130 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`9fju__assembly_1__model_1`	decameric （10）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (7)

Entity 1 Entity 1 polymer

Description description	Actin, cytoplasmic 1, N-terminally processed
Molecular weight formula_weight	41664.5 kDa
Source method src_method	nat
Copy count entity_count	4

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B,C,D
Atom count atom_count	15968

DDDIAALVVDNGSGMCKAGFAGDDAPRAVFPSIVGRPRHQGVMVGMGQKDSYVGDEAQSKRGILTLKYPIEHGIVTNWDDMEKIWHHTFYNELRVAPEEHPVLLTEAPLNPKANREKMTQIMFETFNTPAMYVAIQAVLSLYASGRTTGIVMDSGDGVTHTVPIYEGYALPHAILRLDLAGRDLTDYLMKILTERGYSFTTTAEREIVRDIKEKLCYVALDFEQEMATAASSSSLEKSYELPDGQVITIGNERFRCPEALFQPSFLGMESCGIHETTFNSIMKCDVDIRKDLYANTVLSGGTTMYPGIADRMQKEITALAPSTMKIKIIAPPERKYSVWIGGSILASLSTFQQMWISKQEYDESGPSIVHRKCF

Entity 2 Entity 2 polymer

Description description	Deoxyribonuclease-1
Molecular weight formula_weight	31374.4 kDa
EC 编号 ec_number	3.1.21.1
Source method src_method	nat
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	E,F

MRGTRLMGLLLALAGLLQLGLSLKIAAFNIRTFGETKMSNATLASYIVRIVRRYDIVLIQEVRDSHLVAVGKLLDYLNQDDPNTYHYVVSEPLGRNSYKERYLFLFRPNKVSVLDTYQYDDGCESCGNDSFSREPAVVKFSSHSTKVKEFAIVALHSAPSDAVAEINSLYDVYLDVQQKWHLNDVMLMGDFNADCSYVTSSQWSSIRLRTSSTFQWLIPDSADTTATSTNCAYDRIVVAGSLLQSSVVPGSAAPFDFQAAYGLSNEMALAISDHYPVEVTLT

Entity 3 Entity 3 polymer

Description description	Phalloidin
Molecular weight formula_weight	808.9 kDa
Source method src_method	nat
Copy count entity_count	4

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	G,H,I,J

WXATCPA

Entity 4 Entity 4 branched

Description description	2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose
Molecular weight formula_weight	424.4 kDa
Source method src_method	man
Copy count entity_count	2

Entity 5 Entity 5 non-polymer

Description description	ADENOSINE-5'-DIPHOSPHATE
Molecular weight formula_weight	427.2 kDa
Source method src_method	syn
Copy count entity_count	4

Entity 6 Entity 6 non-polymer

Description description	MAGNESIUM ION
Molecular weight formula_weight	24.3 kDa
Source method src_method	syn
Copy count entity_count	8

Entity 7 Entity 7 non-polymer

Description description	PHOSPHATE ION
Molecular weight formula_weight	95.0 kDa
Source method src_method	syn
Copy count entity_count	4

▶

Unit-cell length a length_a	1.000 Å
Unit-cell length b length_b	1.000 Å
Unit-cell length c length_c	1.000 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	—

Space group space_group	P 1
Space-group number int_tables_number	1
Crystal system crystal_system	—

Resolution resolution	3.84 Å
Resolution测定Method resolution_method	—
颗粒数 num_particles	161657
