1bby
DNA-BINDING DOMAIN FROM HUMAN RAP30, NMR, MINIMIZED AVERAGE
SAXS Profile

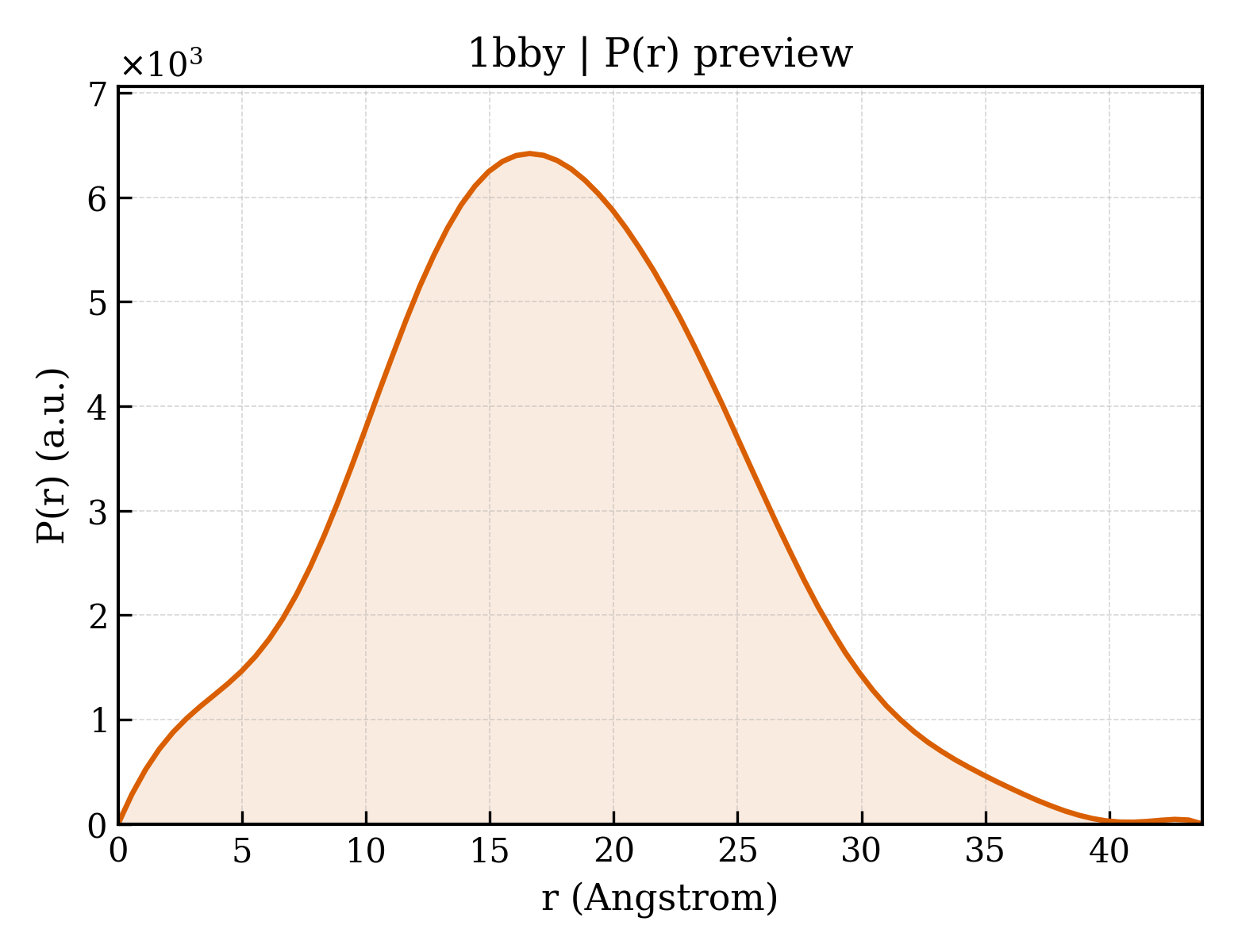

P(r) Distribution
1. Structure Basics
| entry_id | 1bby |
| deposition_date | 1998-04-26 |
| title | DNA-BINDING DOMAIN FROM HUMAN RAP30, NMR, MINIMIZED AVERAGE |
| keywords | AVERAGE STRUCTURE TRANSCRIPTION REGULATION, RAP30, DNA-BINDING DOMAIN, TRANSCRIPTION, TRANSCRIPTION REGULATION; TRANSCRIPTION REGULATION |
| method | SOLUTION NMR |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 13.51 Å |
| rg_electron | 12.01 Å |
| i0 | 1459290.00 |
| molecular_weight | 8342.0 kDa |
| excluded_volume | 10611 ų |
| envelope_volume | 12227 ų |
| shell_volume | 9006 ų |
| envelope_diameter | 43.4 Å |
| shell_rg | 17.24 Å |
| envelope_rg | 12.39 Å |
| shape_rg | 11.99 Å |
| total_rg | 13.52 Å |
| total_atoms | 1190 |
| n_residues | 69 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 43.8 Å |
| rg_real | 13.44 Å |
| rg_real_error | 0.24 Å |
| i0_real | 1.4590e+06 |
| i0_real_error | 1.6890e+04 |
| rg_reciprocal | 13.45 Å |
| i0_reciprocal | 1459000.0000 |
| total_estimate | 0.8702 |
| solution_quality | GOOD a GOOD solution |
| n_peaks | 2 |
| r_peak_primary | 16.6 Å |
| skewness | 0.164 |
| kurtosis | -0.171 |
| angular_range | — – 0.5000 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 237800.0000 |
| n_real_points | 80 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.777; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.993; Smooth: 0.985 |
