1bct
;THREE-DIMENSIONAL STRUCTURE OF PROTEOLYTIC FRAGMENT 163-231 OF BACTERIOOPSIN DETERMINED FROM NUCLEAR MAGNETIC RESONANCE DATA IN SOLUTION ;

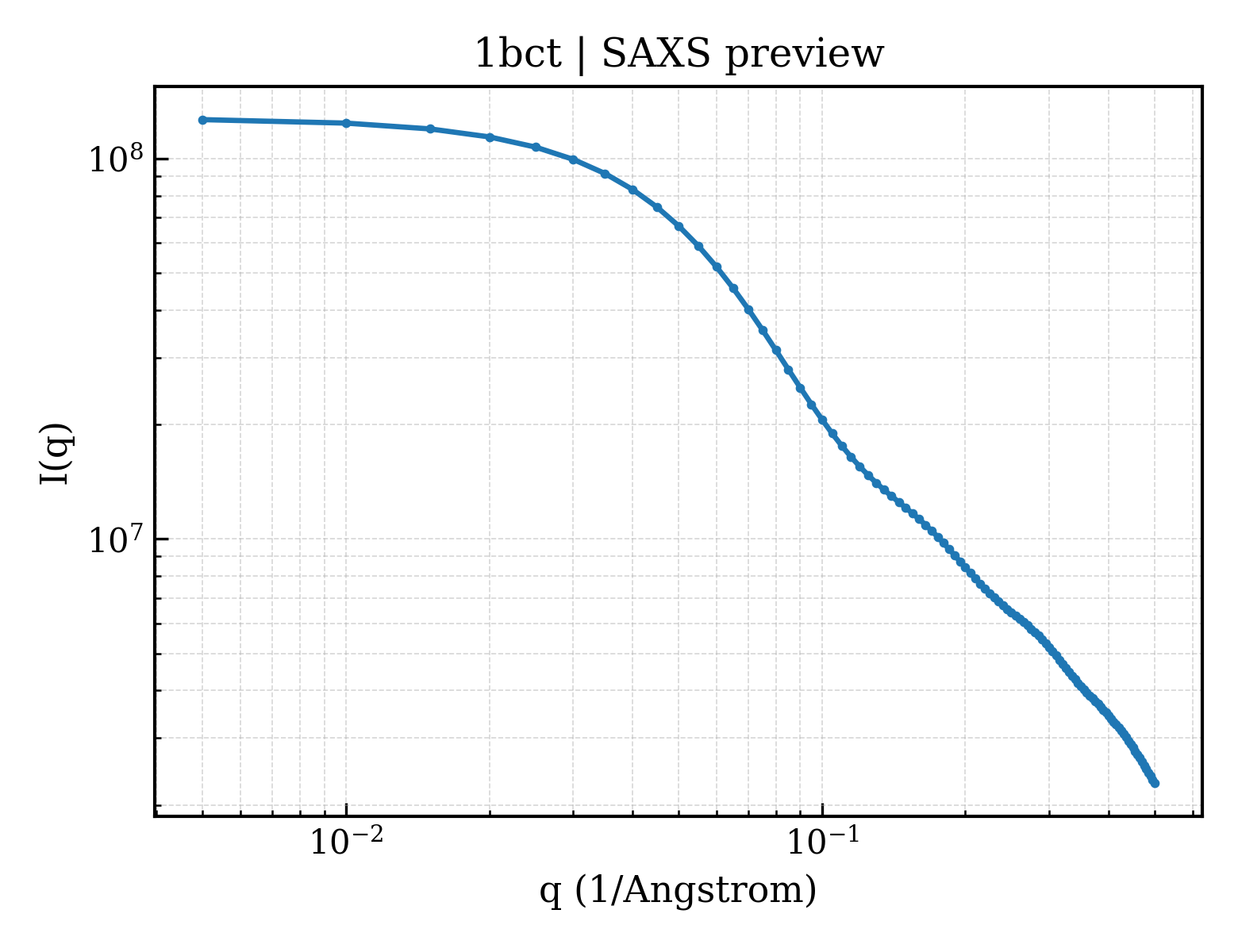

SAXS Profile

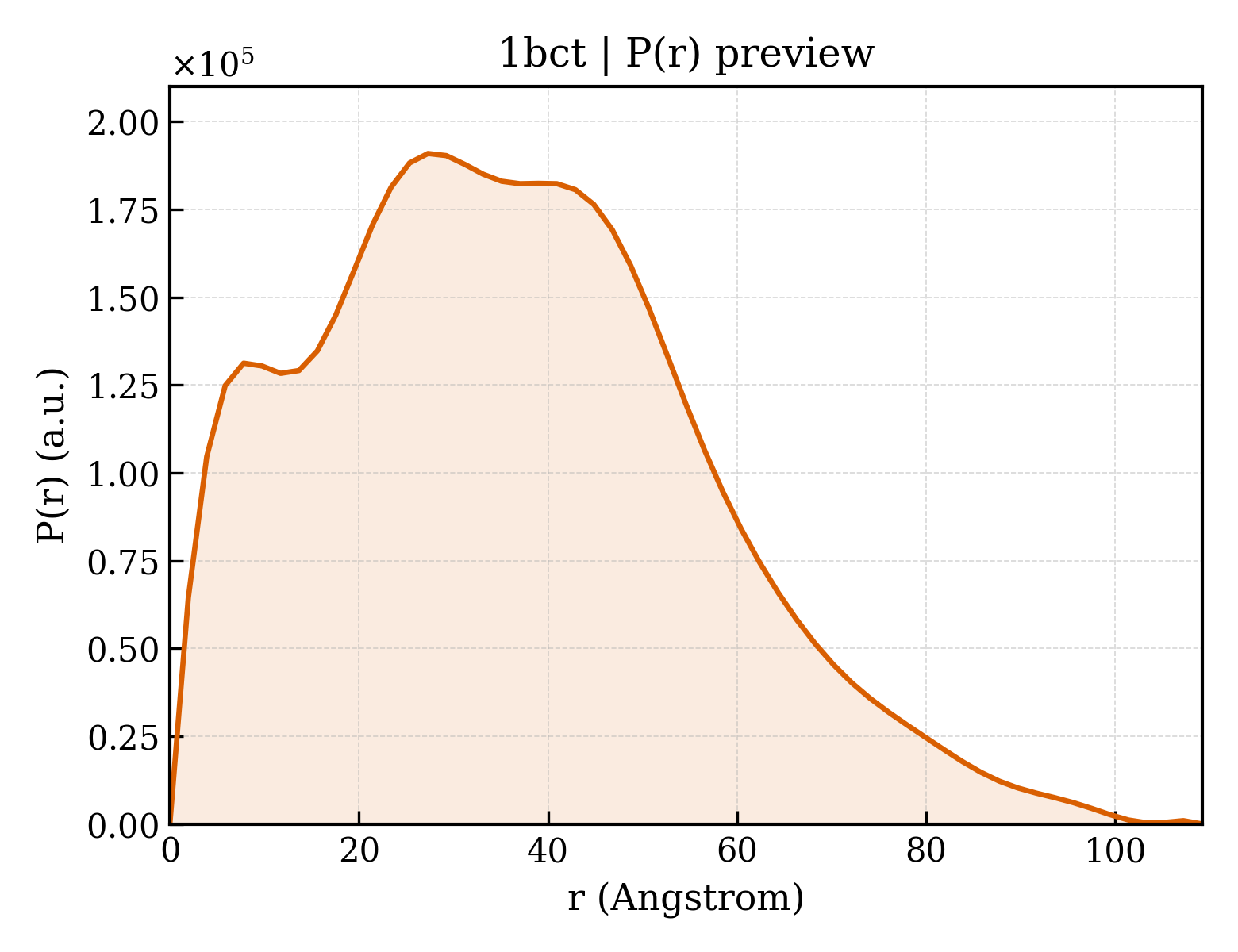

P(r) Distribution
1. Structure Basics
| entry_id | 1bct |
| deposition_date | 1993-07-07 |
| title | ;THREE-DIMENSIONAL STRUCTURE OF PROTEOLYTIC FRAGMENT 163-231 OF BACTERIOOPSIN DETERMINED FROM NUCLEAR MAGNETIC RESONANCE DATA IN SOLUTION ; |
| keywords | PHOTORECEPTOR; PHOTORECEPTOR |
| method | SOLUTION NMR |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 28.57 Å |
| rg_electron | 28.25 Å |
| i0 | 127587000.00 |
| molecular_weight | 105480.0 kDa |
| excluded_volume | 137800 ų |
| envelope_volume | 111560 ų |
| shell_volume | 28694 ų |
| envelope_diameter | 112.8 Å |
| shell_rg | 37.25 Å |
| envelope_rg | 35.93 Å |
| shape_rg | 28.20 Å |
| total_rg | 29.04 Å |
| total_atoms | 15442 |
| n_residues | 966 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 109.2 Å |
| rg_real | 29.08 Å |
| rg_real_error | 1.70 Å |
| i0_real | 1.2760e+08 |
| i0_real_error | 2.4220e+06 |
| rg_reciprocal | 28.92 Å |
| i0_reciprocal | 127600000.0000 |
| total_estimate | 0.6862 |
| solution_quality | REASONABLE a REASONABLE solution |
| n_peaks | 4 |
| r_peak_primary | 27.3 Å |
| skewness | 0.433 |
| kurtosis | -0.223 |
| angular_range | — – 0.2800 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 111200.0000 |
| n_real_points | 57 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.183; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.420; Smooth: 0.946 |
