1c0b
BOVINE PANCREATIC RIBONUCLEASE A DESICCATED FOR 2.5 DAYS
SAXS Profile

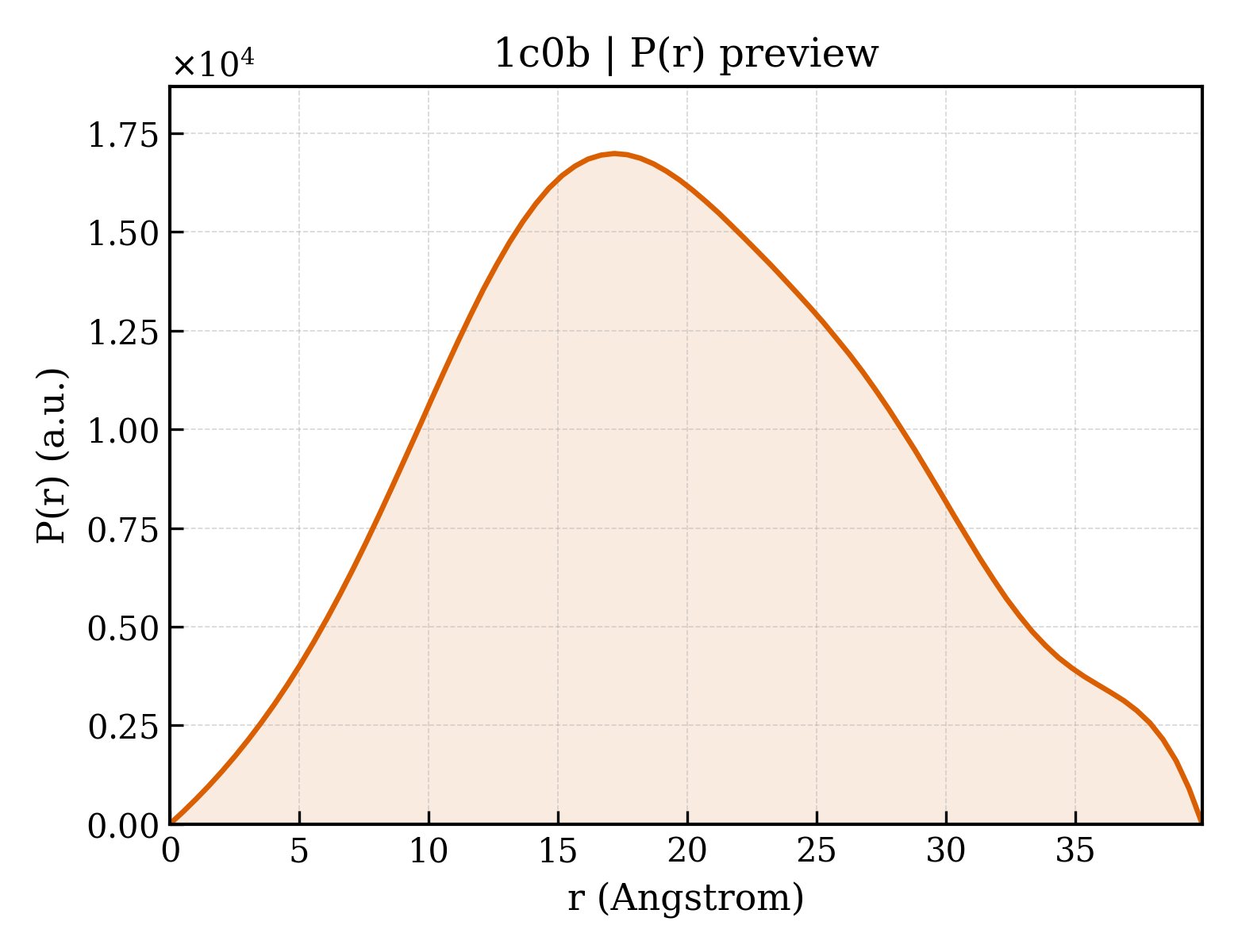

P(r) Distribution
1. Structure Basics
| entry_id | 1c0b |
| deposition_date | 1999-07-15 |
| title | BOVINE PANCREATIC RIBONUCLEASE A DESICCATED FOR 2.5 DAYS |
| keywords | HYDROLASE (PHOSPHORIC DIESTER, RNA), DESICCATED, DRY, DEHYDRATED, HYDROLASE; HYDROLASE |
| method | X-RAY DIFFRACTION |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 15.52 Å |
| rg_electron | 14.59 Å |
| i0 | 4795870.00 |
| molecular_weight | 13983.0 kDa |
| excluded_volume | 16757 ų |
| envelope_volume | 19173 ų |
| shell_volume | 11488 ų |
| envelope_diameter | 50.8 Å |
| shell_rg | 19.96 Å |
| envelope_rg | 15.03 Å |
| shape_rg | 14.58 Å |
| total_rg | 15.58 Å |
| total_atoms | 966 |
| n_residues | 124 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 39.9 Å |
| rg_real | 14.94 Å |
| rg_real_error | 0.04 Å |
| i0_real | 4.5870e+06 |
| i0_real_error | 3.4470e+04 |
| rg_reciprocal | 15.50 Å |
| i0_reciprocal | 4796000.0000 |
| total_estimate | 0.6860 |
| solution_quality | REASONABLE a REASONABLE solution |
| n_peaks | 1 |
| r_peak_primary | 17.2 Å |
| skewness | 0.174 |
| kurtosis | -0.561 |
| angular_range | — – 0.5000 Å−1 |
| current_alpha | 4.7440 |
| highest_alpha | 678800.0000 |
| n_real_points | 80 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 1.000; Stabil: 0.973; Sysdev: 0.000; Positv: 1.000; Valcen: 1.000; Smooth: 0.000 |
