1cjq
X-RAY CRYSTALLOGRAPHIC STUDIES OF THE DENATURATION OF THE DENATURATION OF RIBONUCLEASE S.
SAXS Profile

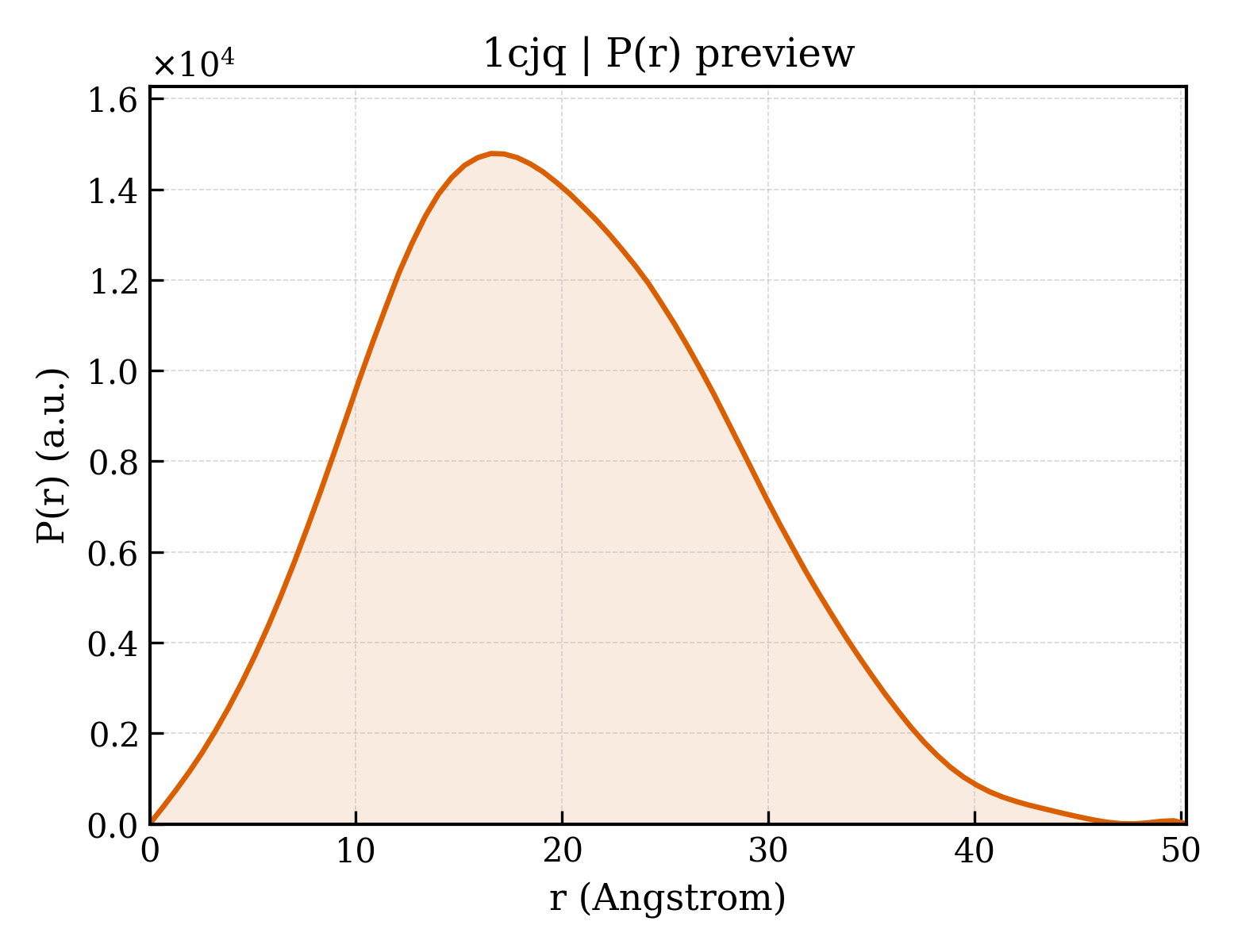

P(r) Distribution
1. Structure Basics
| entry_id | 1cjq |
| deposition_date | 1999-04-19 |
| title | X-RAY CRYSTALLOGRAPHIC STUDIES OF THE DENATURATION OF THE DENATURATION OF RIBONUCLEASE S. |
| keywords | RIBONUCLEASE, DENATURATION, HYDROLASE; HYDROLASE |
| method | X-RAY DIFFRACTION |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 15.06 Å |
| rg_electron | 14.22 Å |
| i0 | 4064510.00 |
| molecular_weight | 13130.0 kDa |
| excluded_volume | 15888 ų |
| envelope_volume | 18030 ų |
| shell_volume | 11121 ų |
| envelope_diameter | 49.1 Å |
| shell_rg | 19.46 Å |
| envelope_rg | 14.52 Å |
| shape_rg | 14.22 Å |
| total_rg | 15.18 Å |
| total_atoms | 910 |
| n_residues | 116 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 50.3 Å |
| rg_real | 15.02 Å |
| rg_real_error | 0.36 Å |
| i0_real | 4.0650e+06 |
| i0_real_error | 4.5240e+04 |
| rg_reciprocal | 15.02 Å |
| i0_reciprocal | 4065000.0000 |
| total_estimate | 0.8839 |
| solution_quality | GOOD a GOOD solution |
| n_peaks | 2 |
| r_peak_primary | 16.6 Å |
| skewness | 0.268 |
| kurtosis | -0.363 |
| angular_range | — – 0.5000 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 758500.0000 |
| n_real_points | 80 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.849; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.982; Smooth: 0.956 |
