1eid
CRYSTAL STRUCTURE OF F120G MUTANT OF BOVINE PANCREATIC RIBONUCLEASE A
SAXS Profile
P(r) Distribution
1. Structure Basics
| entry_id | 1eid |
| deposition_date | 2000-02-25 |
| title | CRYSTAL STRUCTURE OF F120G MUTANT OF BOVINE PANCREATIC RIBONUCLEASE A |
| keywords | ribonuclease, RNase A, Bovine pancreas, Hydrolase; HYDROLASE |
| method | X-RAY DIFFRACTION |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 15.32 Å |
| rg_electron | 14.38 Å |
| i0 | 4420850.00 |
| molecular_weight | 13604.0 kDa |
| excluded_volume | 16441 ų |
| envelope_volume | 19115 ų |
| shell_volume | 11555 ų |
| envelope_diameter | 49.4 Å |
| shell_rg | 19.72 Å |
| envelope_rg | 14.63 Å |
| shape_rg | 14.39 Å |
| total_rg | 15.37 Å |
| total_atoms | 944 |
| n_residues | 124 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |

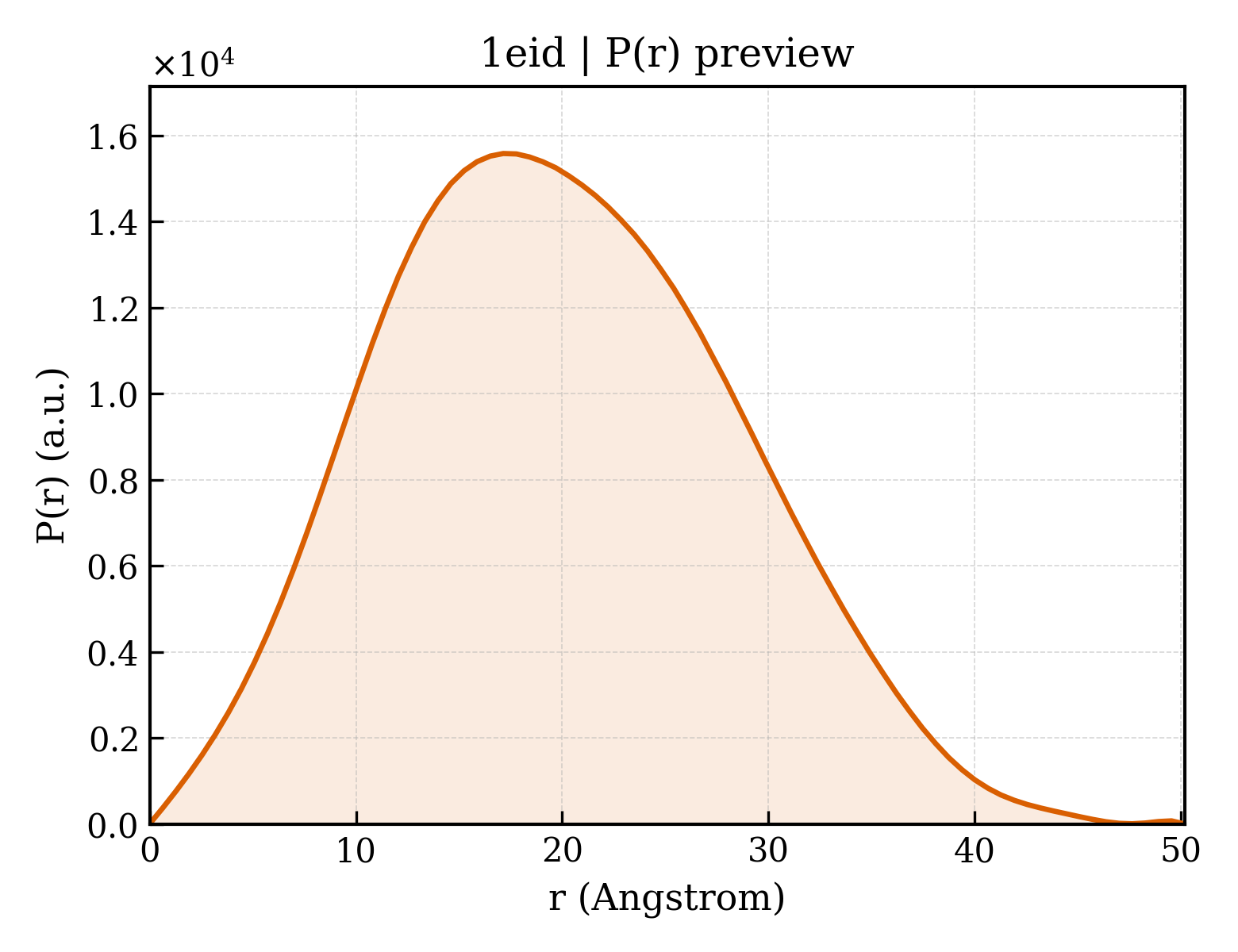

3. P(r) Analysis (GNOM)
| dmax | 50.2 Å |
| rg_real | 15.26 Å |
| rg_real_error | 0.26 Å |
| i0_real | 4.4210e+06 |
| i0_real_error | 4.4110e+04 |
| rg_reciprocal | 15.27 Å |
| i0_reciprocal | 4421000.0000 |
| total_estimate | 0.8920 |
| solution_quality | GOOD a GOOD solution |
| n_peaks | 2 |
| r_peak_primary | 17.1 Å |
| skewness | 0.228 |
| kurtosis | -0.428 |
| angular_range | — – 0.5000 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 993000.0000 |
| n_real_points | 80 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.881; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.991; Smooth: 0.957 |
