1a5p
C[40,95]A VARIANT OF BOVINE PANCREATIC RIBONUCLEASE A
SAXS Profile

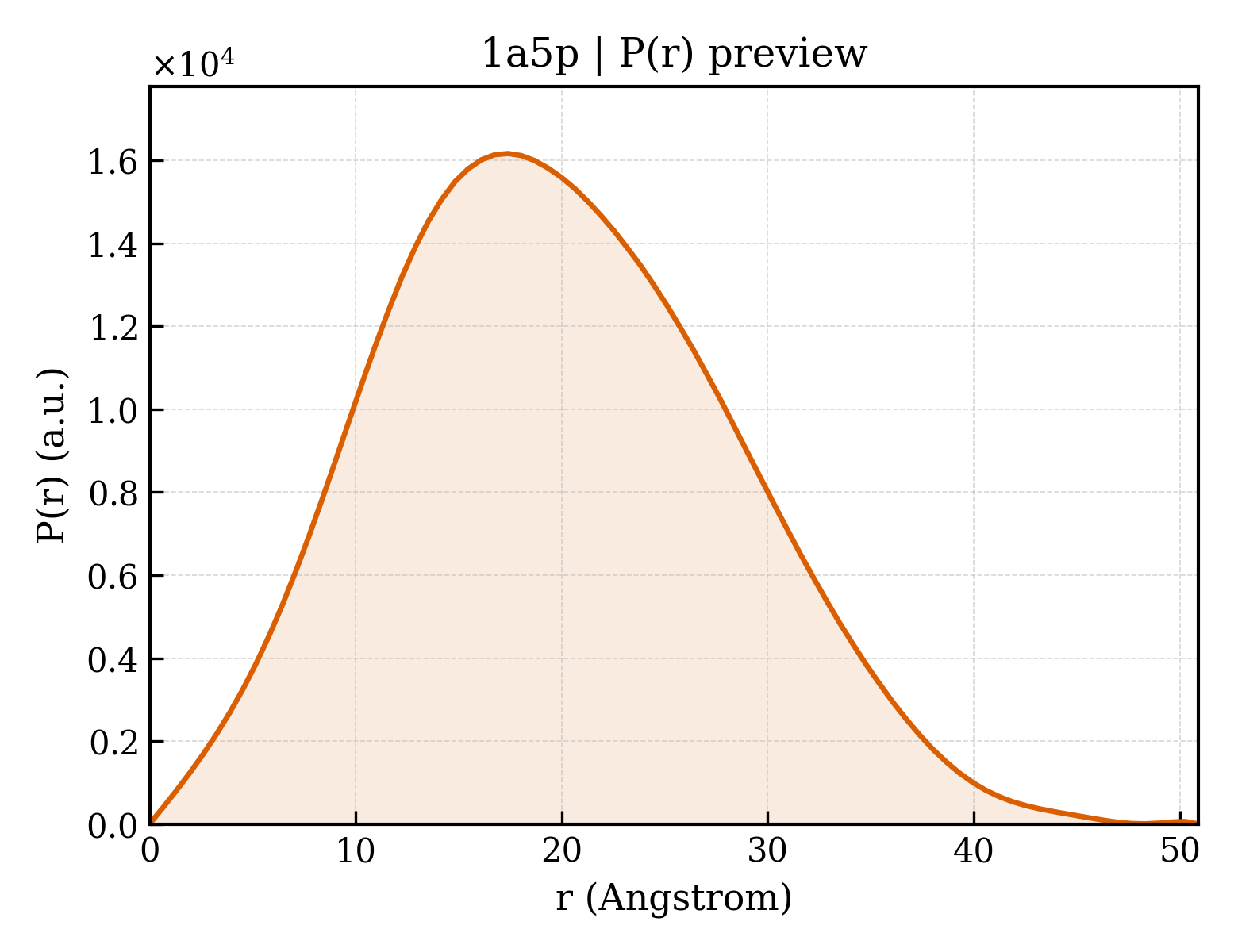

P(r) Distribution
1. Structure Basics
| entry_id | 1a5p |
| deposition_date | 1998-02-17 |
| title | C[40,95]A VARIANT OF BOVINE PANCREATIC RIBONUCLEASE A |
| keywords | HYDROLASE (NUCLEIC ACID, RNA), HYDROLASE; HYDROLASE |
| method | X-RAY DIFFRACTION |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 15.19 Å |
| rg_electron | 14.27 Å |
| i0 | 4446680.00 |
| molecular_weight | 13726.0 kDa |
| excluded_volume | 16605 ų |
| envelope_volume | 18973 ų |
| shell_volume | 11536 ų |
| envelope_diameter | 49.7 Å |
| shell_rg | 19.76 Å |
| envelope_rg | 14.59 Å |
| shape_rg | 14.29 Å |
| total_rg | 15.27 Å |
| total_atoms | 954 |
| n_residues | 124 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 50.9 Å |
| rg_real | 15.14 Å |
| rg_real_error | 0.27 Å |
| i0_real | 4.4470e+06 |
| i0_real_error | 5.2090e+04 |
| rg_reciprocal | 15.14 Å |
| i0_reciprocal | 4447000.0000 |
| total_estimate | 0.7104 |
| solution_quality | REASONABLE a REASONABLE solution |
| n_peaks | 2 |
| r_peak_primary | 17.4 Å |
| skewness | 0.255 |
| kurtosis | -0.361 |
| angular_range | — – 0.5000 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 935800.0000 |
| n_real_points | 80 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.834; Stabil: 1.000; Sysdev: 0.256; Positv: 1.000; Valcen: 0.986; Smooth: 0.975 |
