1c0c
BOVINE PANCREATIC RIBONUCLEASE A DESICCATED FOR 4.0 DAYS
SAXS Profile

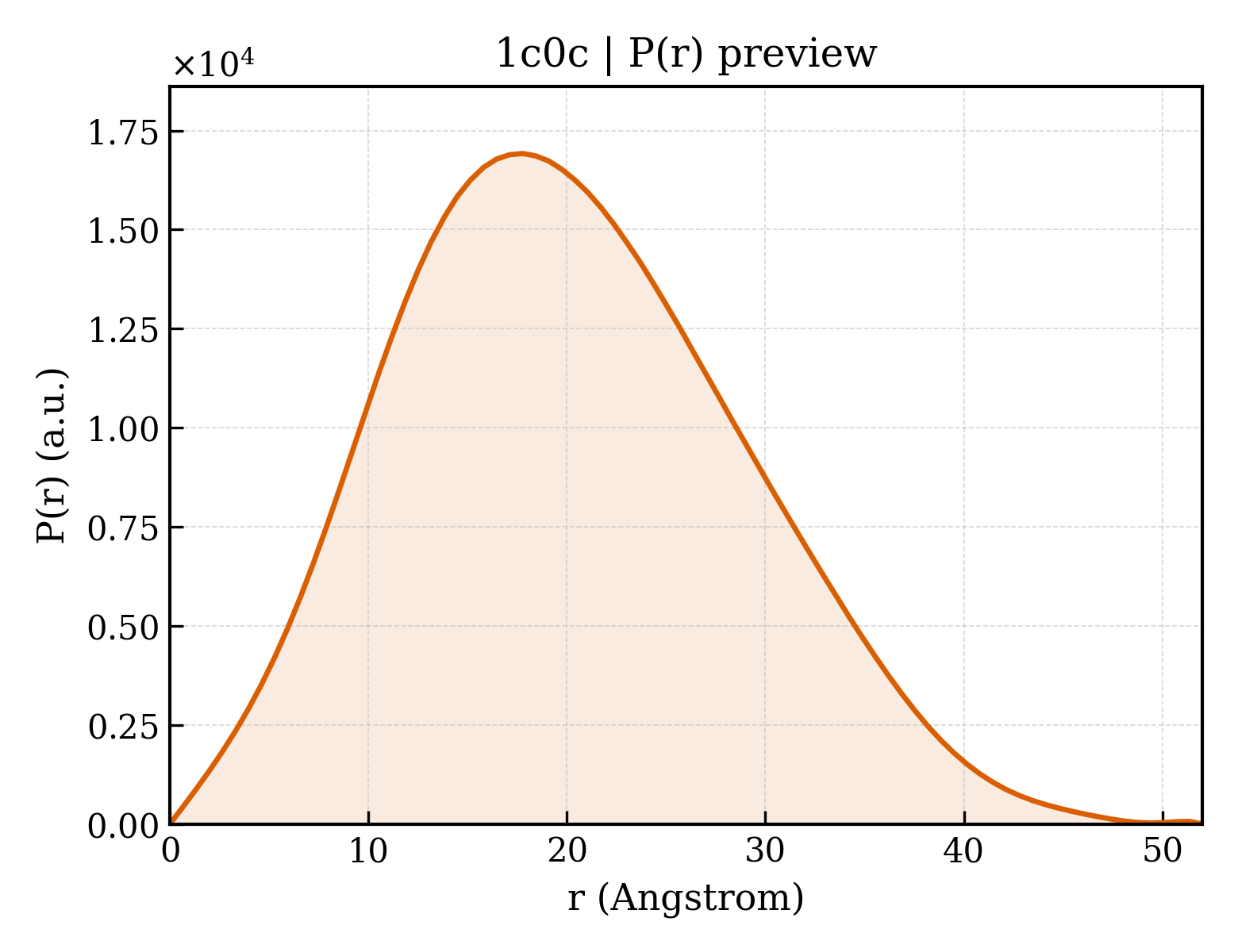

P(r) Distribution
1. Structure Basics
| entry_id | 1c0c |
| deposition_date | 1999-07-15 |
| title | BOVINE PANCREATIC RIBONUCLEASE A DESICCATED FOR 4.0 DAYS |
| keywords | HYDROLASE (PHOSPHORIC DIESTER, RNA), DESICCATED, DRY, DEHYDRATED, HYDROLASE; HYDROLASE |
| method | X-RAY DIFFRACTION |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 15.52 Å |
| rg_electron | 14.62 Å |
| i0 | 4763290.00 |
| molecular_weight | 13983.0 kDa |
| excluded_volume | 16757 ų |
| envelope_volume | 19196 ų |
| shell_volume | 11493 ų |
| envelope_diameter | 51.2 Å |
| shell_rg | 19.97 Å |
| envelope_rg | 15.05 Å |
| shape_rg | 14.61 Å |
| total_rg | 15.59 Å |
| total_atoms | 966 |
| n_residues | 124 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 52.0 Å |
| rg_real | 15.50 Å |
| rg_real_error | 0.31 Å |
| i0_real | 4.7630e+06 |
| i0_real_error | 5.3890e+04 |
| rg_reciprocal | 15.50 Å |
| i0_reciprocal | 4763000.0000 |
| total_estimate | 0.8836 |
| solution_quality | GOOD a GOOD solution |
| n_peaks | 2 |
| r_peak_primary | 17.8 Å |
| skewness | 0.301 |
| kurtosis | -0.329 |
| angular_range | — – 0.5000 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 849700.0000 |
| n_real_points | 80 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.841; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.975; Smooth: 0.984 |
