SAXSdb — 1rbd

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

RIBONUCLEASE S (S-PEPTIDE)

Bos taurus

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein homooligomer	Homooligomer	Protein 2	SULFATE ION × 1 water × 2	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	RNAS1_BOVIN
Isoform	—
PDB entities	1, 2
Chains and sequence ranges	Author chain S； PDBConstruct 1–15； UniProt 27–41 Author chain A； PDBConstruct 1–104； UniProt 47–150

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1rbd
Deposition date deposition_date	1992-06-12
Structure title title	CRYSTALLOGRAPHIC STRUCTURES OF RIBONUCLEASE S VARIANTS WITH NONPOLAR SUBSTITUTION AT POSITION 13: PACKING AND CAVITIES
Keywords keywords	HYDROLASE(PHOSPHORIC DIESTER, RNA); HYDROLASE(PHOSPHORIC DIESTER,RNA)
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

1rbd__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

1rbd__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

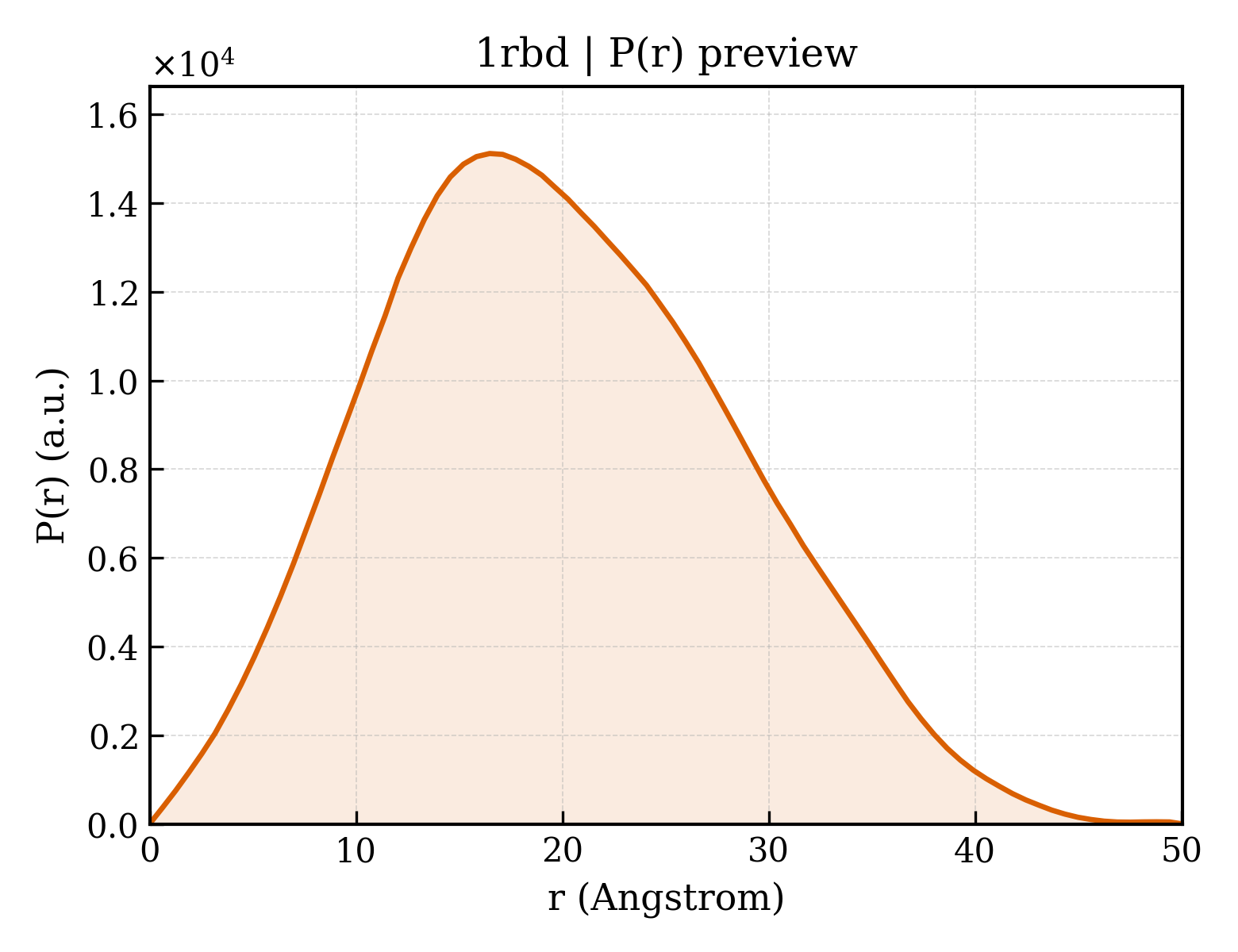

1rbd__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	15.29 Å
Rg (electron density)	14.43 Å
Total Rg	15.37 Å
Atom count	926
Residues	118
Excluded volume	16132 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`1rbd__assembly_1__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (4)

Entity 1 Entity 1 polymer

Description description	RIBONUCLEASE S (S-PEPTIDE)
Molecular weight formula_weight	1704.9 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	S
Atom count atom_count	1021

KETAAAKFERQHADSX

Source Source

Source organism organism	Bos taurus
Common name common_name	cattle
NCBI taxonomy ID ncbi_taxonomy_id	9913

Entity 2 Entity 2 polymer

Description description	RIBONUCLEASE S (S-PROTEIN)
Molecular weight formula_weight	11556.0 kDa
EC 编号 ec_number	3.1.27.5
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A

SSSNYCNQMMKSRNLTKDRCKPVNTFVHESLADVQAVCSQKNVACKNGQTNCYQSYSTMSITDCRETGSSKYPNCAYKTTQANKHIIVACEGNPYVPVHFDASV

Source Source

Source organism organism	Bos taurus
Common name common_name	cattle
NCBI taxonomy ID ncbi_taxonomy_id	9913

Entity 3 Entity 3 non-polymer

Description description	SULFATE ION
Molecular weight formula_weight	96.1 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 4 Entity 4 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	57

▼

6. Fold Classification (SCOP + CATH) 2 domains

SCOP 2.08 (1 domains)

Domain ID domain_id	d1rbd.1
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.5 — RNase A-like
Superfamily Superfamily superfamily	d.5.1 — RNase A-like
Family Family family	d.5.1.1 — Ribonuclease A-like

CATH v4.4 (1 domains)

Domain ID domain_id	1rbdA00
Class class	3 — Alpha Beta
Architecture architecture	10 — Roll
Topology topology	130 — P-30 Protein
Homologous superfamily homologous superfamily	10 — Ribonuclease A-like domain

▶

Unit-cell length a length_a	44.450 Å
Unit-cell length b length_b	44.450 Å
Unit-cell length c length_c	97.180 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	120.00 °
Molecules per unit cell Z z_pdb	6

Space group space_group	P 31 2 1
Space-group number int_tables_number	152
Crystal system crystal_system	—

Resolution resolution	1.700 Å
Low-resolution limit resolution_low	— Å
R factor r_factor	0.1770
R_work r_work	0.1770
R_free r_free	—

CRYSTALLOGRAPHIC STRUCTURES OF RIBONUCLEASE S VARIANTS WITH NONPOLAR SUBSTITUTION AT POSITION 13: PACKING AND CAVITIES
