1c26
CRYSTAL STRUCTURE OF P53 TETRAMERIZATION DOMAIN

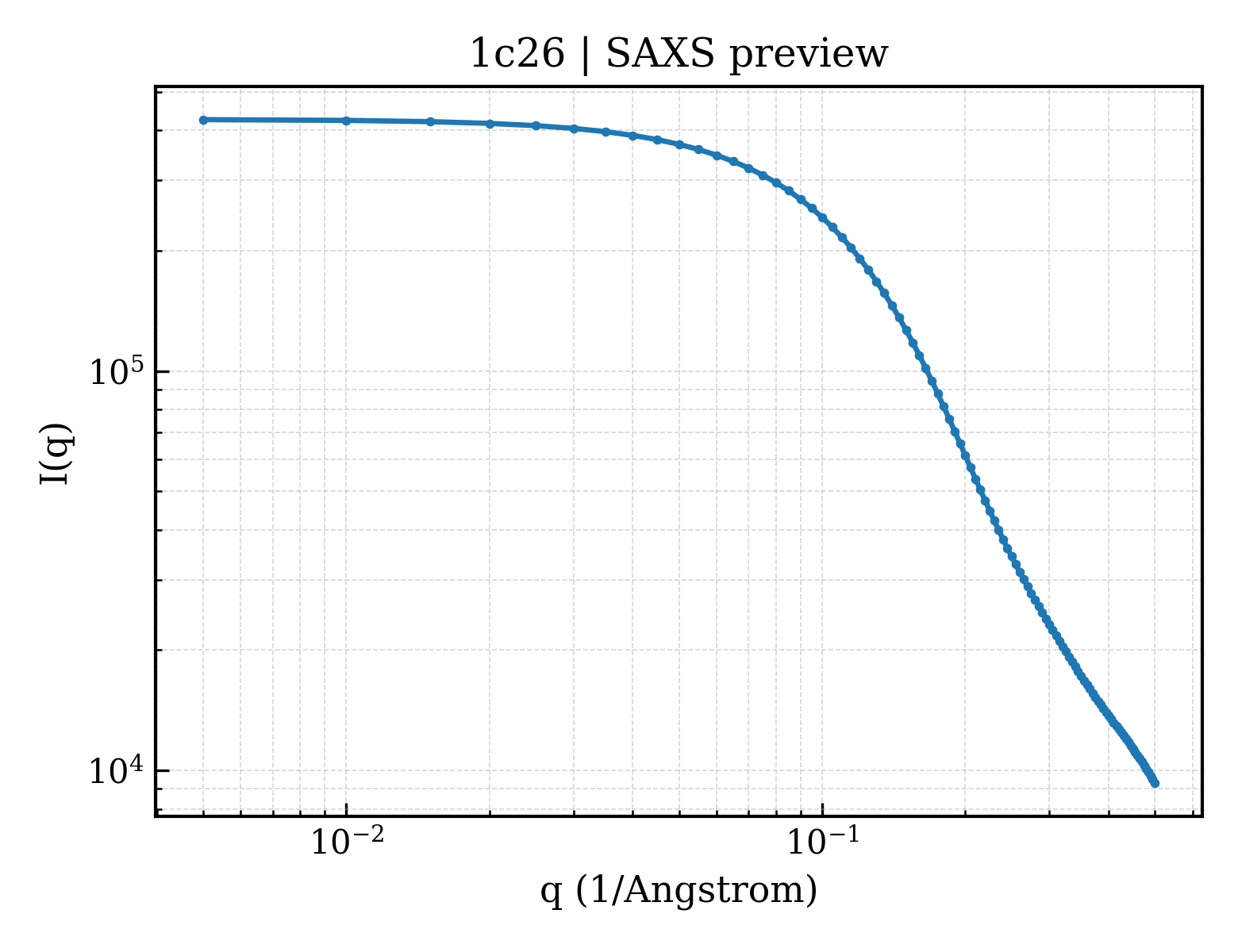

SAXS Profile

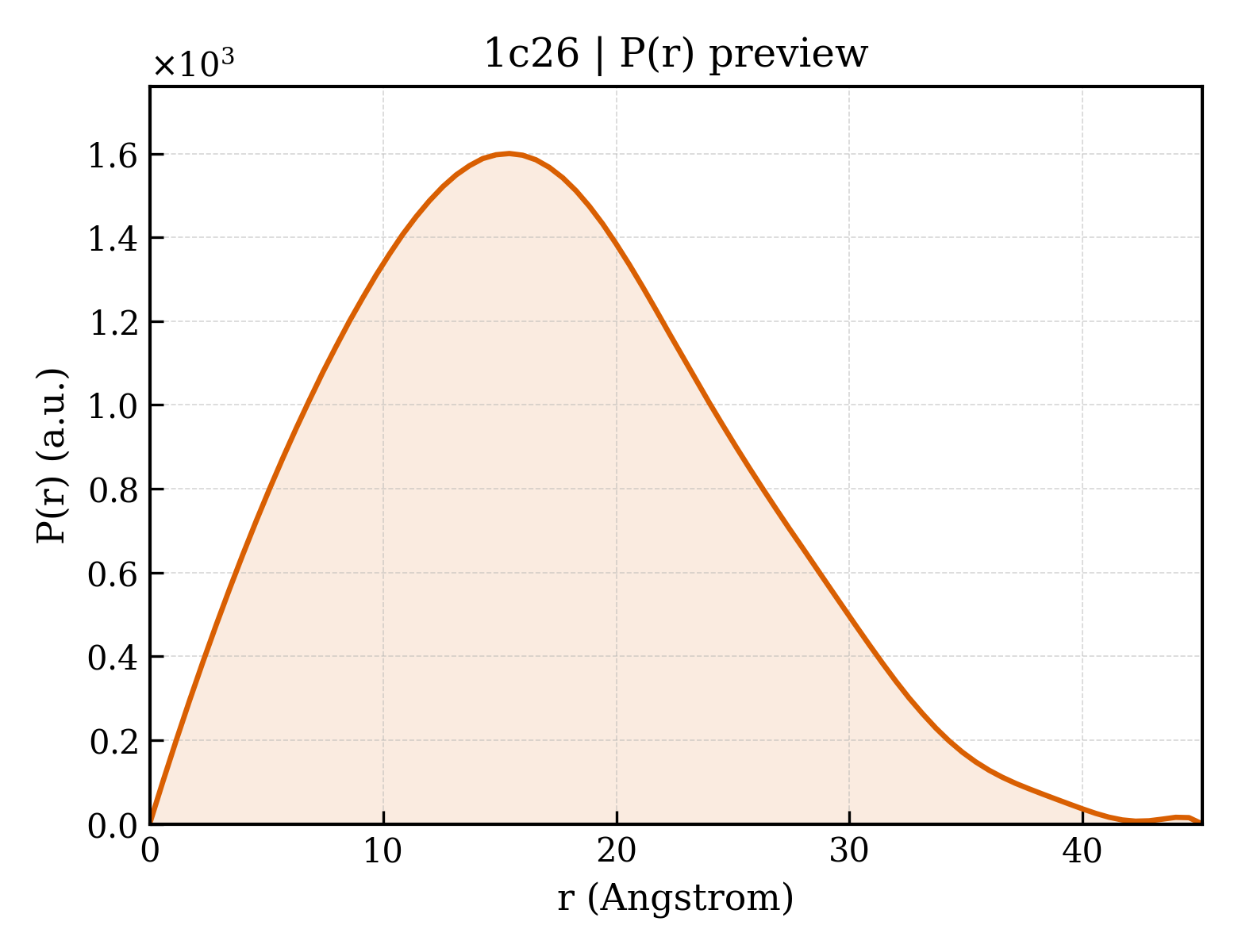

P(r) Distribution
1. Structure Basics
| entry_id | 1c26 |
| deposition_date | 1999-07-22 |
| title | CRYSTAL STRUCTURE OF P53 TETRAMERIZATION DOMAIN |
| keywords | TETRAMER, GENE REGULATION; GENE REGULATION |
| method | X-RAY DIFFRACTION |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 13.09 Å |
| rg_electron | 11.73 Å |
| i0 | 426409.00 |
| molecular_weight | 3816.0 kDa |
| excluded_volume | 4718 ų |
| envelope_volume | 6480 ų |
| shell_volume | 5489 ų |
| envelope_diameter | 42.5 Å |
| shell_rg | 15.66 Å |
| envelope_rg | 11.91 Å |
| shape_rg | 11.69 Å |
| total_rg | 13.10 Å |
| total_atoms | 269 |
| n_residues | 32 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 45.1 Å |
| rg_real | 13.16 Å |
| rg_real_error | 0.34 Å |
| i0_real | 4.2640e+05 |
| i0_real_error | 4.6880e+03 |
| rg_reciprocal | 13.15 Å |
| i0_reciprocal | 426400.0000 |
| total_estimate | 0.8818 |
| solution_quality | GOOD a GOOD solution |
| n_peaks | 2 |
| r_peak_primary | 15.4 Å |
| skewness | 0.335 |
| kurtosis | -0.362 |
| angular_range | — – 0.5000 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 33660.0000 |
| n_real_points | 80 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.905; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.791; Smooth: 0.952 |
