SAXSdb — 1c2p

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

RNA-DEPENDENT RNA POLYMERASE

Hepatitis C virus

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein homooligomer	Homooligomer	Protein 2	water × 2	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	POLG_HCVBK
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 9–576； UniProt 2422–2989 Author chain B； PDBConstruct 9–576； UniProt 2422–2989

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1c2p
Deposition date deposition_date	1999-07-26
Structure title title	HEPATITIS C VIRUS NS5B RNA-DEPENDENT RNA POLYMERASE
Keywords keywords	POLYMERASE RNA-DEPENDENT RNA POLYMERASE HEPATITIS C VIRUS NS5B APOENZYME, TRANSFERASE; TRANSFERASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

1c2p__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

1c2p__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

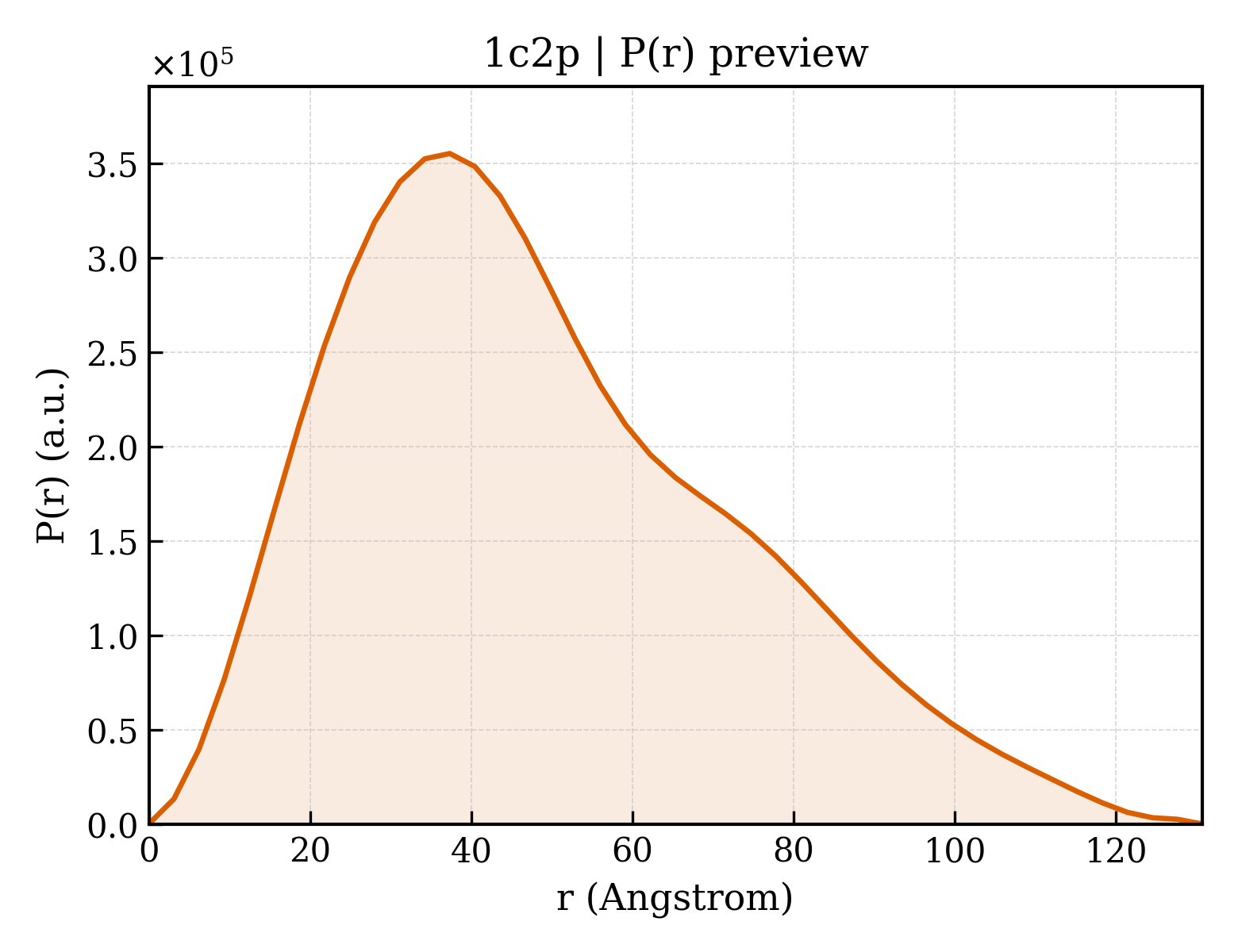

1c2p__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	37.92 Å
Rg (electron density)	38.44 Å
Total Rg	38.52 Å
Atom count	8713
Residues	1097
Excluded volume	155560 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`1c2p__assembly_1__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (2)

Entity 1 Entity 1 polymer

Description description	RNA-DEPENDENT RNA POLYMERASE
Molecular weight formula_weight	64529.2 kDa
EC 编号 ec_number	2.7.7.48
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B
Atom count atom_count	9438

ASHHHHHHSYTWTGALITPCAAEESKLPINALSNSLLRHHNMVYATTSRSAGLRQKKVTFDRLQVLDDHYRDVLKEMKAKASTVKAKLLSVEEACKLTPPHSAKSKFGYGAKDVRNLSSKAVNHIHSVWKDLLEDTVTPIDTTIMAKNEVFCVQPEKGGRKPARLIVFPDLGVRVCEKMALYDVVSTLPQVVMGSSYGFQYSPGQRVEFLVNTWKSKKNPMGFSYDTRCFDSTVTENDIRVEESIYQCCDLAPEARQAIKSLTERLYIGGPLTNSKGQNCGYRRCRASGVLTTSCGNTLTCYLKASAACRAAKLQDCTMLVNGDDLVVICESAGVQEDAASLRAFTEAMTRYSAPPGDPPQPEYDLELITSCSSNVSVAHDASGKRVYYLTRDPTTPLARAAWETARHTPVNSWLGNIIMYAPTLWARMILMTHFFSILLAQEQLEKALDCQIYGACYSIEPLDLPQIIERLHGLSAFSLHSYSPGEINRVASCLRKLGVPPLRVWRHRARSVRARLLSQGGRAATCGKYLFNWAVKTKLKLTPIPAASQLDLSGWFVAGYSGGDIYHSLSRARPR

Source Source

Source organism organism	Hepatitis C virus
NCBI taxonomy ID ncbi_taxonomy_id	11103
Host organism host_organism	Escherichia coli

Entity 2 Entity 2 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	725

▼

6. Fold Classification (SCOP + CATH) 6 domains

SCOP 2.08 (4 domains)

Domain ID domain_id	d1c2pa1
Class class	e — Multi-domain proteins (alpha and beta)
Fold Fold fold	e.8 — DNA/RNA polymerases
Superfamily Superfamily superfamily	e.8.1 — DNA/RNA polymerases
Family Family family	e.8.1.4 — RNA-dependent RNA-polymerase

Domain ID domain_id	d1c2pa2
Class class	l — Artifacts
Fold Fold fold	l.1 — Tags
Superfamily Superfamily superfamily	l.1.1 — Tags
Family Family family	l.1.1.1 — Tags

Domain ID domain_id	d1c2pb1
Class class	e — Multi-domain proteins (alpha and beta)
Fold Fold fold	e.8 — DNA/RNA polymerases
Superfamily Superfamily superfamily	e.8.1 — DNA/RNA polymerases
Family Family family	e.8.1.4 — RNA-dependent RNA-polymerase

Domain ID domain_id	d1c2pb2
Class class	l — Artifacts
Fold Fold fold	l.1 — Tags
Superfamily Superfamily superfamily	l.1.1 — Tags
Family Family family	l.1.1.1 — Tags

CATH v4.4 (2 domains)

Domain ID domain_id	1c2pA03
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	70 — Alpha-Beta Plaits
Homologous superfamily homologous superfamily	270 — Reverse transcriptase/Diguanylate cyclase domain

Domain ID domain_id	1c2pB03
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	70 — Alpha-Beta Plaits
Homologous superfamily homologous superfamily	270 — Reverse transcriptase/Diguanylate cyclase domain

▶

Unit-cell length a length_a	86.840 Å
Unit-cell length b length_b	105.200 Å
Unit-cell length c length_c	127.150 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	8

Space group space_group	P 21 21 21
Space-group number int_tables_number	19
Crystal system crystal_system	—

Resolution resolution	1.900 Å
Low-resolution limit resolution_low	20.000 Å
R factor r_factor	0.2110
R_work r_work	0.2110
R_free r_free	0.2550
