SAXSdb — 3rvb

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

RNA helicase

Hepatitis C virus

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein homooligomer	Homooligomer	Protein 2	{1-[(5-chloro-2-methyl-1-benzothiophen-3-yl)methyl]-6-(3,5-diaminophenyl)-1H-indol-3-yl}acetic acid × 2 MAGNESIUM ION × 4 CHLORIDE ION × 2 water × 2	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	POLG_HCVBK
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 16–488； UniProt 1186–1658

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	3rvb
Deposition date deposition_date	2011-05-06
Structure title title	The structure of HCV NS3 helicase (Heli-80) bound with inhibitor ITMN-3479
Keywords keywords	Helicase, ATP hydrolysis, HYDROLASE-HYDROLASE INHIBITOR complex; HYDROLASE/HYDROLASE INHIBITOR
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

3rvb__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

3rvb__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

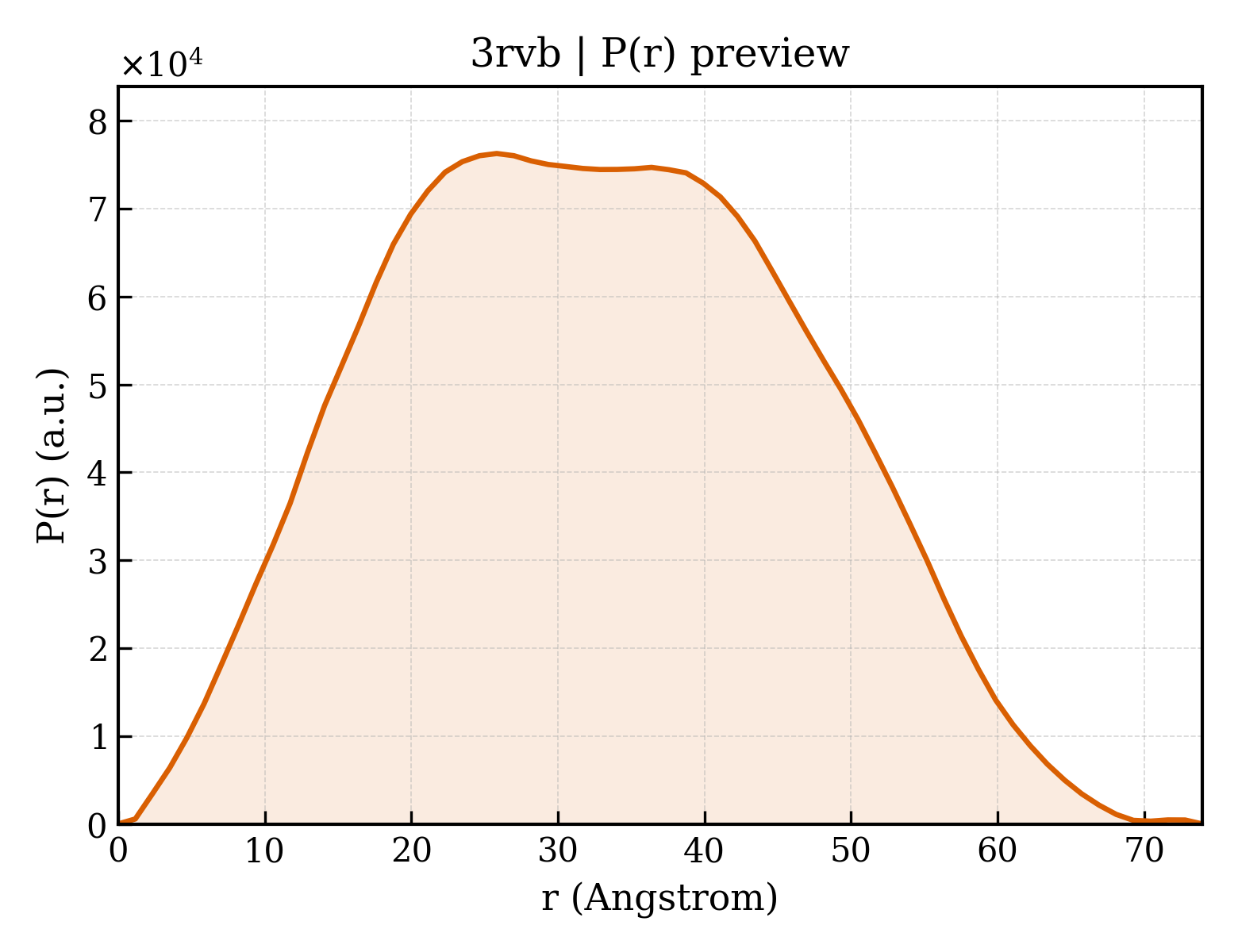

3rvb__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	34.27 Å
Rg (electron density)	34.26 Å
Total Rg	34.61 Å
Atom count	6744
Residues	886
Excluded volume	120010 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`3rvb__assembly_1__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (5)

Entity 1 Entity 1 polymer

Description description	RNA helicase
Molecular weight formula_weight	52810.7 kDa
EC 编号 ec_number	3.6.4.13
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	3511

MGRGSHHHHHHGMASTRGVAKAVDFVPVESMETTMRSPVFTDNSSPPAVPQTFQVAHLHAPTGSGKSTKVPAAYAAQGYKVLVLNPSVAATLGFGVYMSKAHGIDPNIRTGVRAITTGGPITYSTYGKFLADGGCSGGAYDIIICDECHSTDSTSILGIGTVLDQAETAGARLVVLATATPPGSVTVPHPNIEEVALSNTGEIPFYGKAIPIEVIRGGRHLIFCHSKKKCDELAAKLSALGLNAVAYYRGLDVSVIPTSGDVVVVATDALMTGYTGDFDSVIDCNTCVTQTVDFSLDPTFTIDTTTVPQDAVSRSQRRGRTGRGRRGIYRFVTPGERPSGMFDSSVLCECYDAGCAWYELTPAETSVRLRAYLNTPGLPVCQDHLEFWESVFTGLTHIDAHFLSQTKQAGDNFPYLVAYQATVCARAQAPPPSWDQMWKSLTRLKPTLHGPTPLLYRLGALQNEVTLTHPVTKFIMACMSADLEVVTAAAREA

Source Source

Source organism organism	Hepatitis C virus
Common name common_name	HCV
NCBI taxonomy ID ncbi_taxonomy_id	11103
Host organism host_organism	Escherichia coli

Entity 2 Entity 2 non-polymer

Description description	{1-[(5-chloro-2-methyl-1-benzothiophen-3-yl)methyl]-6-(3,5-diaminophenyl)-1H-indol-3-yl}acetic acid
Molecular weight formula_weight	476.0 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 3 Entity 3 non-polymer

Description description	MAGNESIUM ION
Molecular weight formula_weight	24.3 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 4 Entity 4 non-polymer

Description description	CHLORIDE ION
Molecular weight formula_weight	35.5 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 5 Entity 5 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	131

▼

6. Fold Classification (SCOP + CATH) 5 domains

SCOP 2.08 (2 domains)

Domain ID domain_id	d3rvba1
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.37 — P-loop containing nucleoside triphosphate hydrolases
Superfamily Superfamily superfamily	c.37.1 — P-loop containing nucleoside triphosphate hydrolases
Family Family family	c.37.1.14 — RNA helicase

Domain ID domain_id	d3rvba2
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.37 — P-loop containing nucleoside triphosphate hydrolases
Superfamily Superfamily superfamily	c.37.1 — P-loop containing nucleoside triphosphate hydrolases
Family Family family	c.37.1.14 — RNA helicase

CATH v4.4 (3 domains)

Domain ID domain_id	3rvbA01
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	300 — P-loop containing nucleotide triphosphate hydrolases

Domain ID domain_id	3rvbA02
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	300 — P-loop containing nucleotide triphosphate hydrolases

Domain ID domain_id	3rvbA03
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	820 — RNA Helicase; Chain A, domain 3
Homologous superfamily homologous superfamily	10 — RNA Helicase Chain A , domain 3

▶

Unit-cell length a length_a	92.354 Å
Unit-cell length b length_b	92.354 Å
Unit-cell length c length_c	104.462 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	120.00 °
Molecules per unit cell Z z_pdb	6

Space group space_group	P 31 2 1
Space-group number int_tables_number	152
Crystal system crystal_system	—

Resolution resolution	2.200 Å
Low-resolution limit resolution_low	34.820 Å
R factor r_factor	0.2271
R_work r_work	0.2239
R_free r_free	0.2867
