1c9q
AVERAGE NMR SOLUTION STRUCTURE OF THE BIR-2 DOMAIN OF XIAP
SAXS Profile

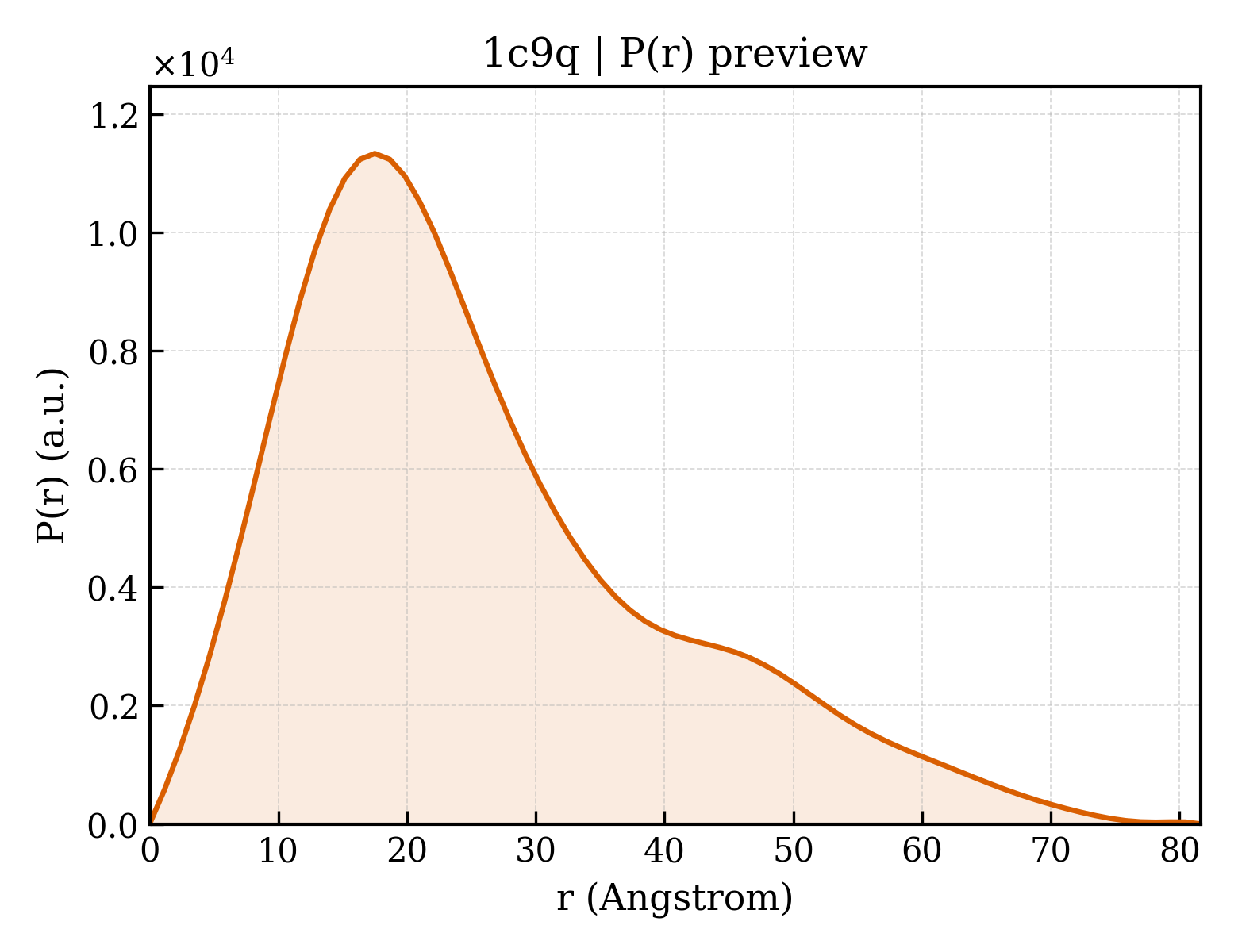

P(r) Distribution
1. Structure Basics
| entry_id | 1c9q |
| deposition_date | 1999-08-03 |
| title | AVERAGE NMR SOLUTION STRUCTURE OF THE BIR-2 DOMAIN OF XIAP |
| keywords | ZINC FINGER, APOPTOSIS, INHIBITOR; APOPTOSIS |
| method | SOLUTION NMR |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 20.21 Å |
| rg_electron | 20.18 Å |
| i0 | 3983480.00 |
| molecular_weight | 13626.0 kDa |
| excluded_volume | 16724 ų |
| envelope_volume | 22114 ų |
| shell_volume | 11208 ų |
| envelope_diameter | 81.6 Å |
| shell_rg | 22.59 Å |
| envelope_rg | 21.29 Å |
| shape_rg | 20.24 Å |
| total_rg | 20.45 Å |
| total_atoms | 1858 |
| n_residues | 117 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 81.6 Å |
| rg_real | 20.76 Å |
| rg_real_error | 0.89 Å |
| i0_real | 3.9830e+06 |
| i0_real_error | 5.9690e+04 |
| rg_reciprocal | 20.65 Å |
| i0_reciprocal | 3983000.0000 |
| total_estimate | 0.6604 |
| solution_quality | REASONABLE a REASONABLE solution |
| n_peaks | 2 |
| r_peak_primary | 17.5 Å |
| skewness | 0.897 |
| kurtosis | 0.304 |
| angular_range | — – 0.3950 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 690500.0000 |
| n_real_points | 71 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.174; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.061; Smooth: 0.997 |
