SAXSdb — 1i51

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

CASPASE-7 SUBUNIT P20

Homo sapiens

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 6	X-LINKED INHIBITOR OF APOPTOSIS PROTEIN × 2 （P98170）	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	CASP7_HUMAN
Isoform	—
PDB entities	1, 2
Chains and sequence ranges	Author chain A； PDBConstruct 1–148； UniProt 51–198 Author chain C； PDBConstruct 1–148； UniProt 51–198 Author chain B； PDBConstruct 1–105； UniProt 199–303 Author chain D； PDBConstruct 1–105； UniProt 199–303

X-LINKED INHIBITOR OF APOPTOSIS PROTEIN

Homo sapiens

UniProt P98170

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 6	CASPASE-7 SUBUNIT P20 × 2 （P55210） CASPASE-7 SUBUNIT P11 × 2 （P55210）	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	BIRC4_HUMAN
Isoform	—
PDB entities	3
Chains and sequence ranges	Author chain E； PDBConstruct 1–117； UniProt 124–240 Author chain F； PDBConstruct 1–117； UniProt 124–240

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1i51
Deposition date deposition_date	2001-02-23
Structure title title	CRYSTAL STRUCTURE OF CASPASE-7 COMPLEXED WITH XIAP
Keywords keywords	protease, caspase, IAP, apoptosis, HYDROLASE-HYDROLASE INHIBITOR COMPLEX; HYDROLASE/HYDROLASE INHIBITOR
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

1i51__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

1i51__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

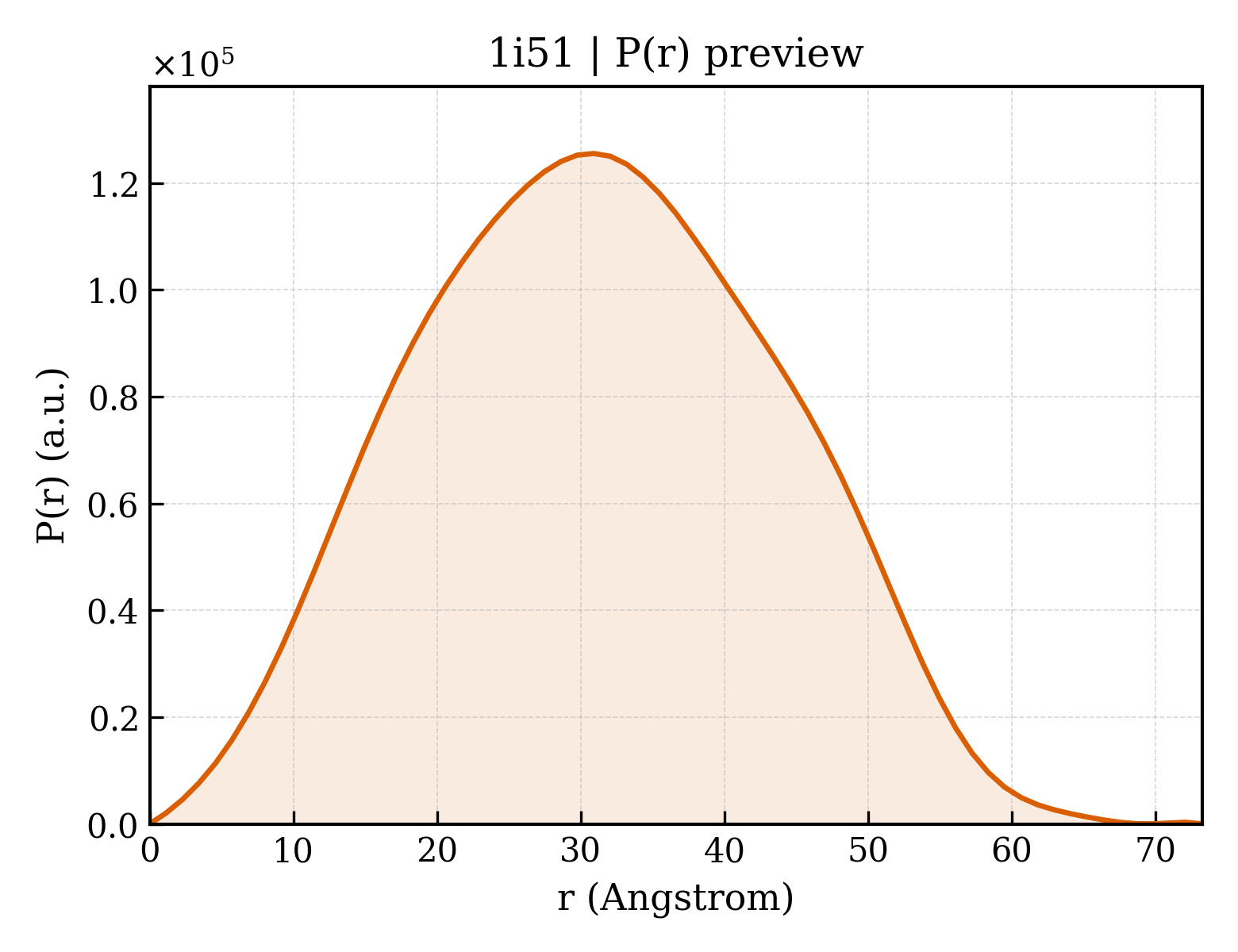

1i51__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	23.85 Å
Rg (electron density)	22.53 Å
Total Rg	23.36 Å
Atom count	3974
Residues	498
Excluded volume	70652 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`1i51__assembly_1__model_1`	hexameric （6）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (3)

Entity 1 Entity 1 polymer

Description description	CASPASE-7 SUBUNIT P20
Molecular weight formula_weight	16635.1 kDa
EC 编号 ec_number	3.4.22.-
Mutation mutation	D169A
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,C
Atom count atom_count	3974

TRDRVPTYQYNMNFEKLGKCIIINNKNFDKVTGMGVRNGTDKDAEALFKCFRSLGFDVIVYNDCSCAKMQDLLKKASEEDHTNAACFACILLSHGEENVIYGKDGVTPIKDLTAHFRGARCKTLLEKPKLFFIQACRGTELDDGIQAD

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Escherichia coli BL21(DE3)

Entity 2 Entity 2 polymer

Description description	CASPASE-7 SUBUNIT P11
Molecular weight formula_weight	12152.6 kDa
EC 编号 ec_number	3.4.22.-
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B,D

SGPINDTDANPRYKIPVEADFLFAYSTVPGYYSWRSPGRGSWFVQALCSILEEHGKDLEIMQILTRVNDRVARHFESQSDDPHFHEKKQIPCVVSMLTKELYFSQ

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Escherichia coli BL21(DE3)

Entity 3 Entity 3 polymer

Description description	X-LINKED INHIBITOR OF APOPTOSIS PROTEIN
Molecular weight formula_weight	13674.3 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	E,F

RDHFALDRPSETHADYLLRTGQVVDISDTIYPRNPAMYCEEARLKSFQNWPDYAHLTPRELASAGLYYTGIGDQVQCFCCGGKLKNWEPCDRAWSEHRRHFPNCFFVLGRNLNIRSE

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Escherichia coli BL21(DE3)

▼

6. Fold Classification (SCOP + CATH) 8 domains

SCOP 2.08 (4 domains)

Domain ID domain_id	d1i51.1
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.17 — Caspase-like
Superfamily Superfamily superfamily	c.17.1 — Caspase-like
Family Family family	c.17.1.1 — Caspase catalytic domain

Domain ID domain_id	d1i51.2
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.17 — Caspase-like
Superfamily Superfamily superfamily	c.17.1 — Caspase-like
Family Family family	c.17.1.1 — Caspase catalytic domain

Domain ID domain_id	d1i51e_
Class class	g — Small proteins
Fold Fold fold	g.52 — Inhibitor of apoptosis (IAP) repeat
Superfamily Superfamily superfamily	g.52.1 — Inhibitor of apoptosis (IAP) repeat
Family Family family	g.52.1.1 — Inhibitor of apoptosis (IAP) repeat

Domain ID domain_id	d1i51f_
Class class	g — Small proteins
Fold Fold fold	g.52 — Inhibitor of apoptosis (IAP) repeat
Superfamily Superfamily superfamily	g.52.1 — Inhibitor of apoptosis (IAP) repeat
Family Family family	g.52.1.1 — Inhibitor of apoptosis (IAP) repeat

CATH v4.4 (4 domains)

Domain ID domain_id	1i51A00
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	1460 —

Domain ID domain_id	1i51B00
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	70 — Alpha-Beta Plaits
Homologous superfamily homologous superfamily	1470 — Caspase-like

Domain ID domain_id	1i51C00
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	1460 —

Domain ID domain_id	1i51D00
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	70 — Alpha-Beta Plaits
Homologous superfamily homologous superfamily	1470 — Caspase-like

▶

Unit-cell length a length_a	89.600 Å
Unit-cell length b length_b	89.600 Å
Unit-cell length c length_c	185.500 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	120.00 °
Molecules per unit cell Z z_pdb	12

Space group space_group	P 32 2 1
Space-group number int_tables_number	154
Crystal system crystal_system	—

Resolution resolution	2.450 Å
Low-resolution limit resolution_low	20.000 Å
R factor r_factor	0.2350
R_work r_work	0.2330
R_free r_free	0.2720
