2jk7

XIAP BIR3 bound to a Smac Mimetic

Method: X-RAY DIFFRACTION
▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

BACULOVIRAL IAP REPEAT-CONTAINING PROTEIN 4

HOMO SAPIENS

UniProt P98170

State in the Current Structure

Assembly Physical composition Protein state Molecular copy count Associated components Data consistency
1 Protein monomer Monomer Protein 1 ;(3S,6S,7Z,10AS)-N-(DIPHENYLMETHYL)-6-{[(2S)-2-(METHYLIDENEAMINO)BUTANOYL]AMINO}-5-OXO-1,2,3,5,6,9,10,10A-OCTAHYDROPYRROLO[1,2-A]AZOCINE-3-CARBOXAMIDE ; × 1 ZINC ION × 1 water × 1 Consistent with protein count

Other States of the Same Protein in the Database

Monomer
1c9q 1f9x 1tfq 1tft 2ecg 2jk7 2kna 3clx 3clx 3clx 3clx 3cm2

81 assemblies; showing the first 12

Homodimer
2opy 2poi 2qra 2qra 3clx 3clx 3cm2 3cm2 3cm2 3cm2 3cm2 3cm7

35 assemblies; showing the first 12

Homotetramer

None

Other homooligomers

None

Heteromeric or nucleic-acid complex
1g3f 1g73 1g73 1i3o 1i4o 1i4o 1i4o 1i51 1kmc 1nw9 2opz 2opz

29 assemblies; showing the first 12

View Construct and Data Evidence
UniProt name BIRC4_HUMAN
Isoform —
PDB entities 1
Chains and sequence ranges Author chain A； PDBConstruct 1–116； UniProt 241–356

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id2jk7
Deposition date deposition_date2008-08-21
Structure title titleXIAP BIR3 bound to a Smac Mimetic
Keywords keywords;ZINC-FINGER, POLYMORPHISM, SMAC MIMETIC, METAL-BINDING, BIR3, ZINC, LIGASE, APOPTOSIS, CYTOPLASM, X-LINKED INHIBITOR OF APOPTOSIS, UBL CONJUGATION PATHWAY, THIOL PROTEASE INHIBITOR, PHOSPHOPROTEIN, UBL CONJUGATION, PROTEASE INHIBITOR ;; APOPTOSIS
Experimental Method methodX-RAY DIFFRACTION
▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

2jk7__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

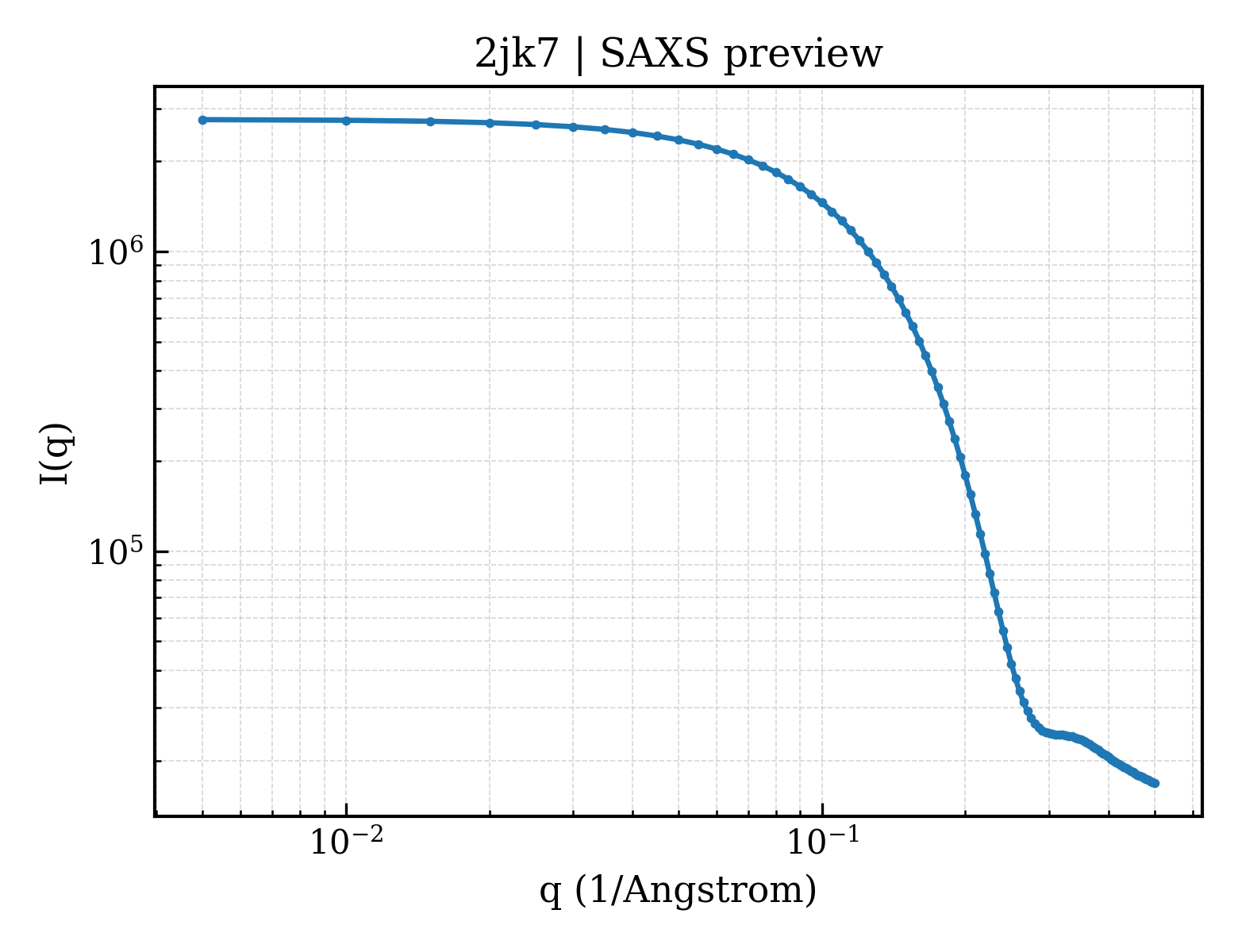

2jk7__assembly_1__model_1 | I(q)

10-2 10-1 105 106 q (1/Angstrom) I(q)
100 plotted points; both axes use logarithmic scales.

2jk7__assembly_1__model_1 | P(r) · Pending

The new assembly/model P(r) has not been calculated yet This placeholder does not display legacy data r (Angstrom) P(r)
P(r) will be calculated and displayed separately for the same assembly/model.
Rg（Guinier）13.77 Å
Rg (electron density)12.66 Å
Total Rg13.98 Å
Atom count821
Residues97
Excluded volume14519 ų
Maximum q0.500 Å⁻¹
Assembly Model Structure unit Oligomeric description Status CRYSOL Actions
1 1 2jk7__assembly_1__model_1 monomeric （1） Success 4.1.3-1-20251215 (887e7ef) View Download
▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (4)

▼

6. Fold Classification (SCOP + CATH) 2 domains

SCOP 2.08 (1 domains)

Domain ID domain_idd2jk7a_
Class classg — Small proteins
Fold Fold foldg.52 — Inhibitor of apoptosis (IAP) repeat
Superfamily Superfamily superfamilyg.52.1 — Inhibitor of apoptosis (IAP) repeat
Family Family familyg.52.1.1 — Inhibitor of apoptosis (IAP) repeat

CATH v4.4 (1 domains)

Domain ID domain_id2jk7A00
Class class1 — Mainly Alpha
Architecture architecture10 — Orthogonal Bundle
Topology topology1170 — Inhibitor Of Apoptosis Protein (2mihbC-IAP-1); Chain A
Homologous superfamily homologous superfamily10 — Inhibitor Of Apoptosis Protein (2mihbC-IAP-1); Chain A
▶

7. Citations (1)
