1cdh
STRUCTURES OF AN HIV AND MHC BINDING FRAGMENT FROM HUMAN CD4 AS REFINED IN TWO CRYSTAL LATTICES

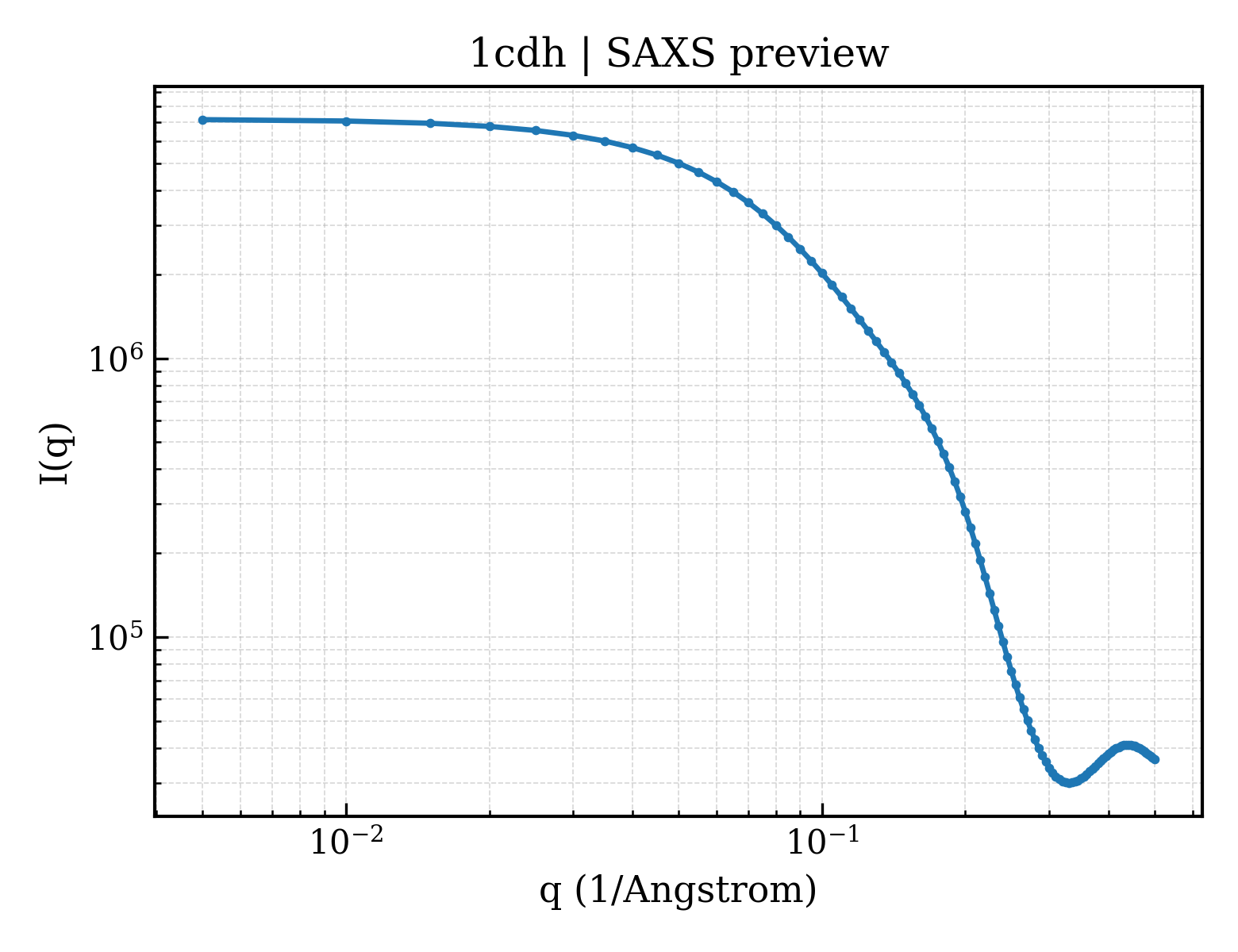

SAXS Profile

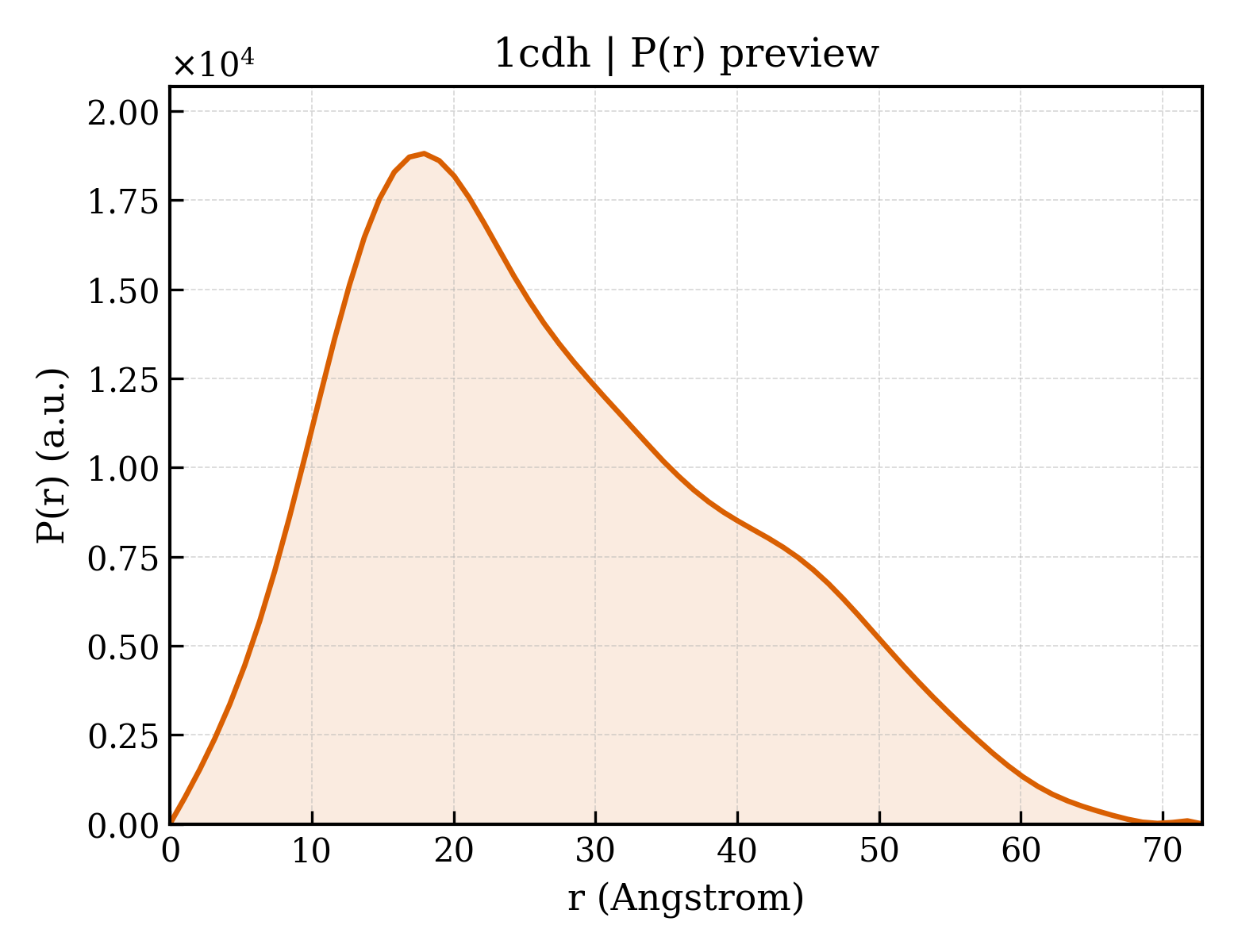

P(r) Distribution
1. Structure Basics
| entry_id | 1cdh |
| deposition_date | 1994-01-26 |
| title | STRUCTURES OF AN HIV AND MHC BINDING FRAGMENT FROM HUMAN CD4 AS REFINED IN TWO CRYSTAL LATTICES |
| keywords | T-CELL SURFACE GLYCOPROTEIN; T-CELL SURFACE GLYCOPROTEIN |
| method | X-RAY DIFFRACTION |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 20.94 Å |
| rg_electron | 20.29 Å |
| i0 | 7194960.00 |
| molecular_weight | 19688.0 kDa |
| excluded_volume | 24693 ų |
| envelope_volume | 29829 ų |
| shell_volume | 13703 ų |
| envelope_diameter | 72.2 Å |
| shell_rg | 24.84 Å |
| envelope_rg | 20.55 Å |
| shape_rg | 20.29 Å |
| total_rg | 20.99 Å |
| total_atoms | 1383 |
| n_residues | 178 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 72.8 Å |
| rg_real | 21.17 Å |
| rg_real_error | 0.68 Å |
| i0_real | 7.1950e+06 |
| i0_real_error | 9.9220e+04 |
| rg_reciprocal | 21.13 Å |
| i0_reciprocal | 7195000.0000 |
| total_estimate | 0.7884 |
| solution_quality | GOOD a GOOD solution |
| n_peaks | 2 |
| r_peak_primary | 17.9 Å |
| skewness | 0.527 |
| kurtosis | -0.449 |
| angular_range | — – 0.3800 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 2768000.0000 |
| n_real_points | 70 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.596; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.532; Smooth: 0.924 |
