1cdy
STRUCTURE OF T-CELL SURFACE GLYCOPROTEIN CD4 MUTANT WITH GLY 47 REPLACED BY SER

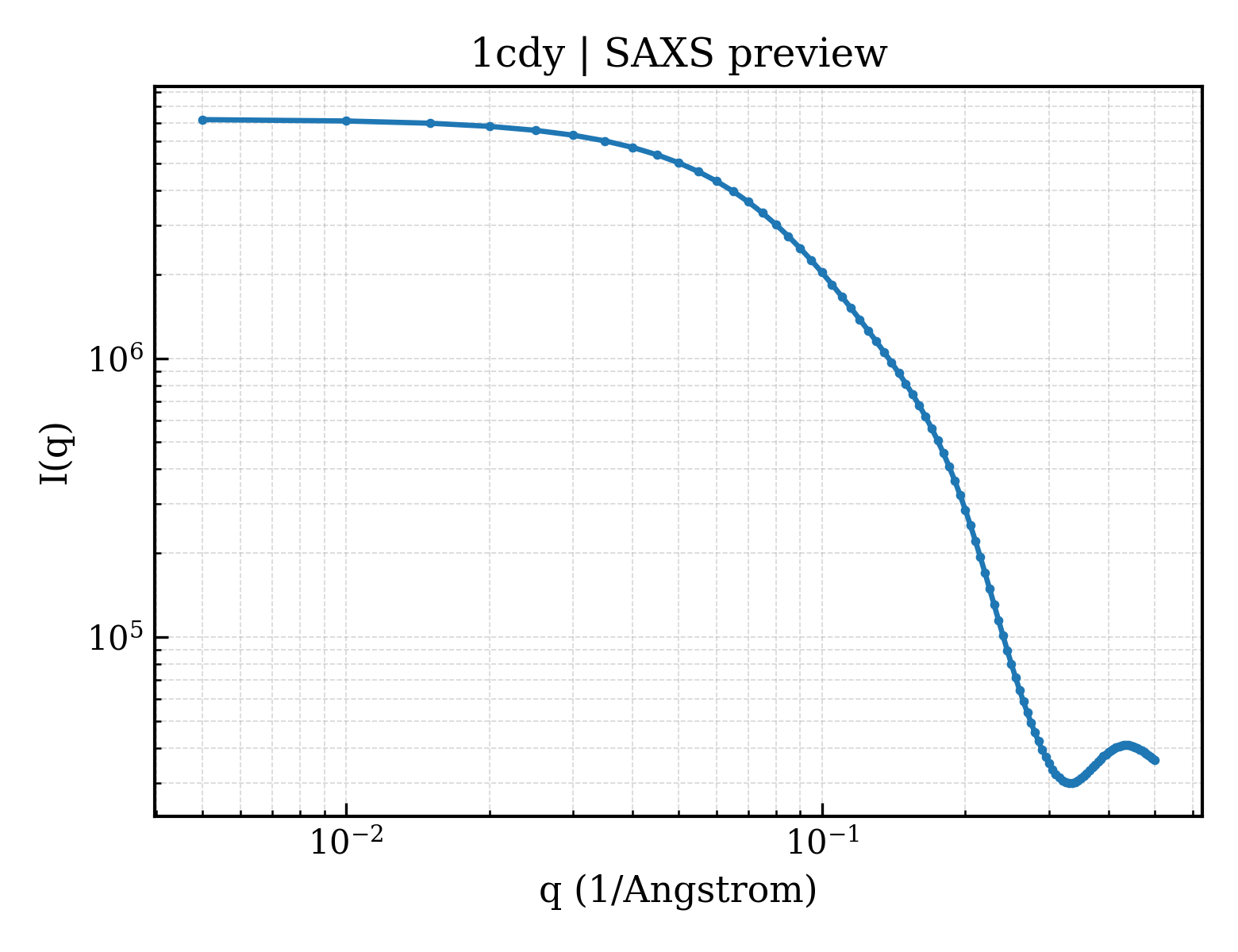

SAXS Profile

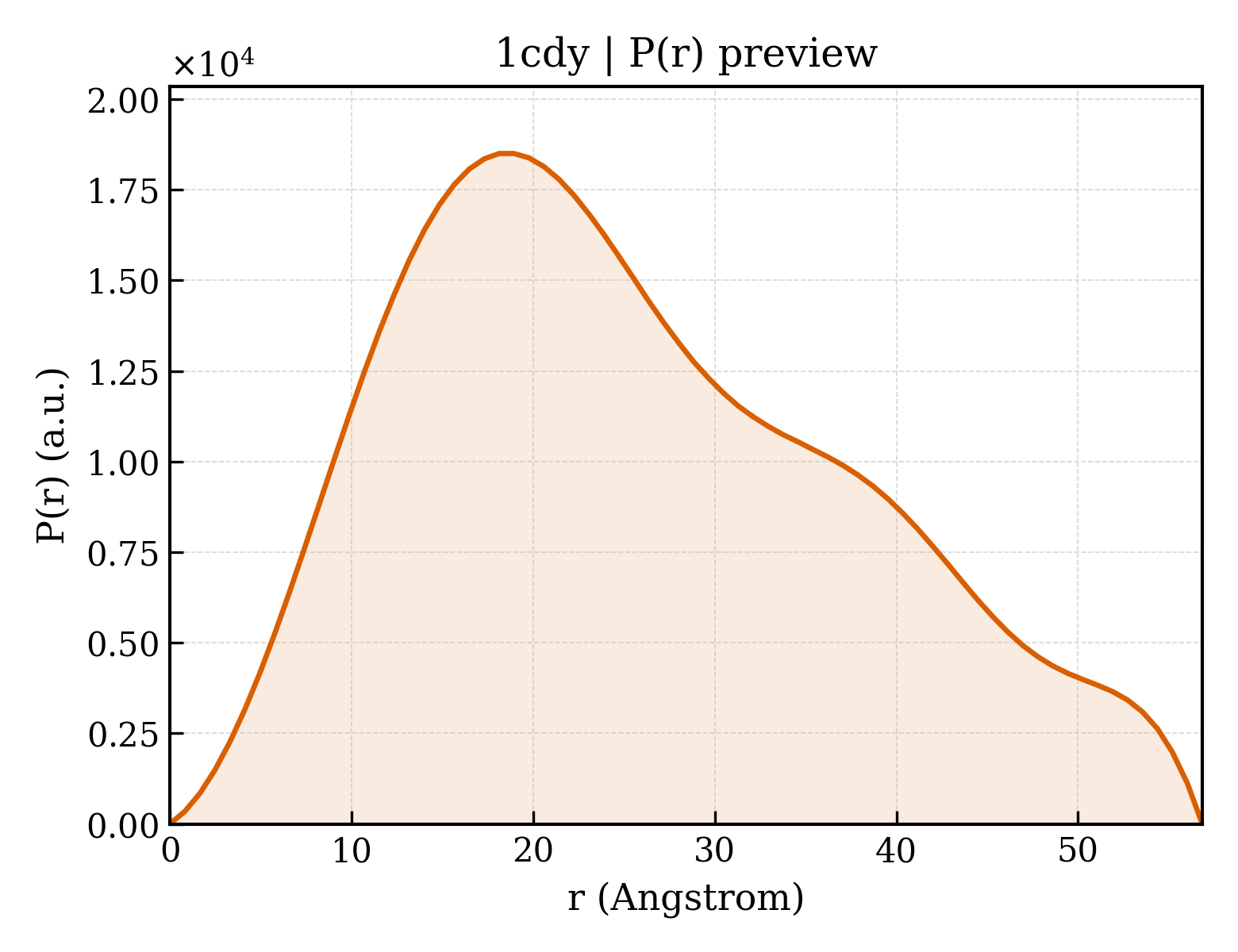

P(r) Distribution
1. Structure Basics
| entry_id | 1cdy |
| deposition_date | 1996-11-11 |
| title | STRUCTURE OF T-CELL SURFACE GLYCOPROTEIN CD4 MUTANT WITH GLY 47 REPLACED BY SER |
| keywords | IMMUNOGLOBULIN FOLD, TRANSMEMBRANE, GLYCOPROTEIN, T-CELL, MHC, LIPOPROTEIN, T-CELL SURFACE GLYCOPROTEIN; T-CELL SURFACE GLYCOPROTEIN |
| method | X-RAY DIFFRACTION |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 20.85 Å |
| rg_electron | 20.22 Å |
| i0 | 7201230.00 |
| molecular_weight | 19718.0 kDa |
| excluded_volume | 24728 ų |
| envelope_volume | 29596 ų |
| shell_volume | 13647 ų |
| envelope_diameter | 73.2 Å |
| shell_rg | 24.70 Å |
| envelope_rg | 20.51 Å |
| shape_rg | 20.23 Å |
| total_rg | 20.90 Å |
| total_atoms | 1385 |
| n_residues | 178 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 56.8 Å |
| rg_real | 19.93 Å |
| rg_real_error | 0.12 Å |
| i0_real | 6.9030e+06 |
| i0_real_error | 6.8050e+04 |
| rg_reciprocal | 21.04 Å |
| i0_reciprocal | 7201000.0000 |
| total_estimate | 0.6694 |
| solution_quality | REASONABLE a REASONABLE solution |
| n_peaks | 0 |
| r_peak_primary | — Å |
| skewness | 0.425 |
| kurtosis | -0.601 |
| angular_range | — – 0.3800 Å−1 |
| current_alpha | 3.8180 |
| highest_alpha | 2127000.0000 |
| n_real_points | 70 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.948; Stabil: 0.984; Sysdev: 0.000; Positv: 1.000; Valcen: 0.905; Smooth: 0.000 |
