1ciq

COMPLEX OF TWO FRAGMENTS OF CI2, RESIDUES 1-40 AND 41-64

Method: X-RAY DIFFRACTION Dmax: 39.5 Å Quality: GOOD

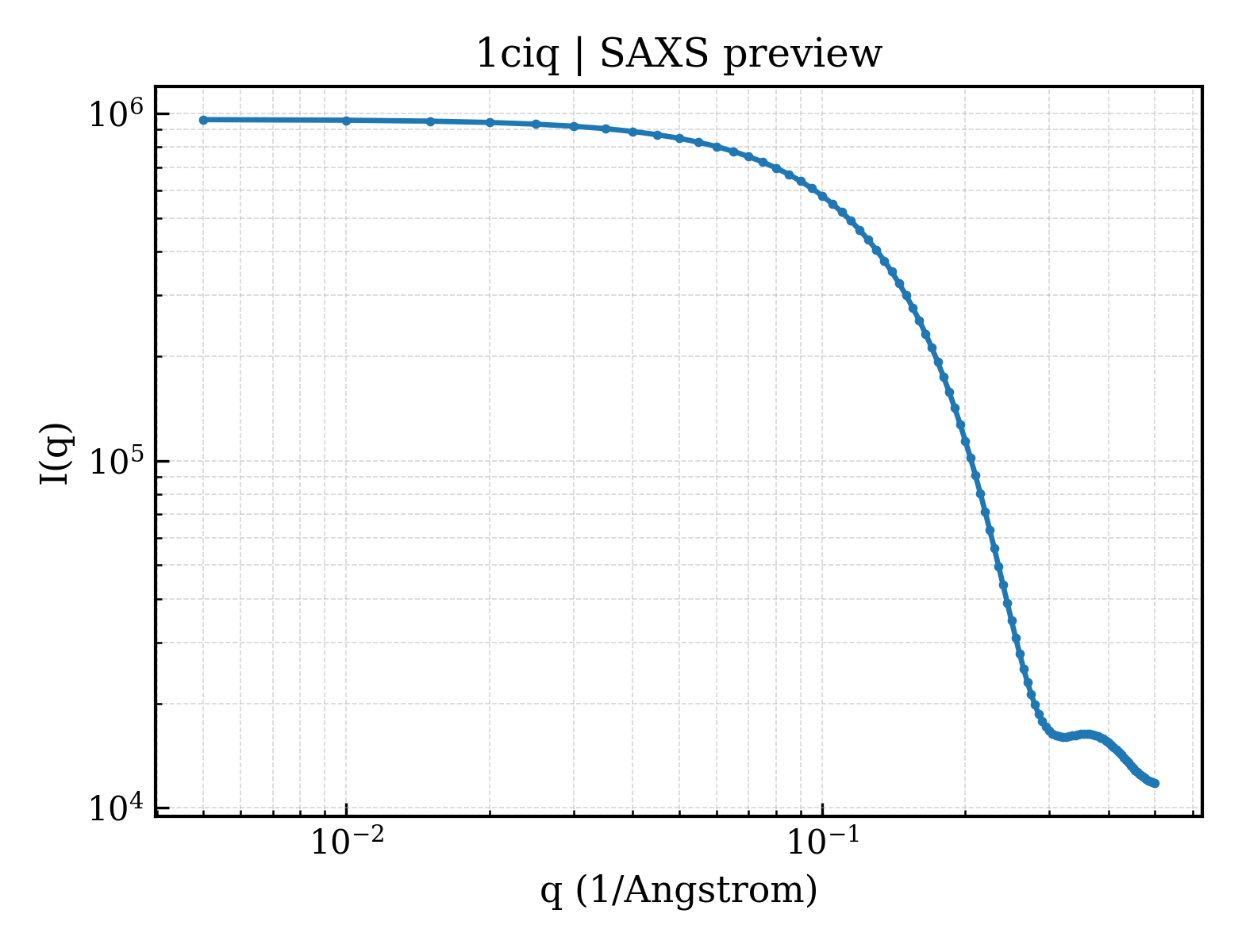

SAXS Profile

SAXS profile for 1ciq

P(r) Distribution

P(r) distribution for 1ciq

1. Structure Basics

entry_id1ciq
deposition_date1995-10-02
titleCOMPLEX OF TWO FRAGMENTS OF CI2, RESIDUES 1-40 AND 41-64
keywordsCLEAVED INHIBITOR, SERINE PROTEASE INHIBITOR; SERINE PROTEASE INHIBITOR
methodX-RAY DIFFRACTION

Download Data

2. SAXS Parameters (CRYSOL)

rg_guinier12.27
rg_electron10.93
i0959763.00
molecular_weight6883.0 kDa
excluded_volume8874 ų
envelope_volume9477 ų
shell_volume7761 ų
envelope_diameter36.8
shell_rg16.08
envelope_rg11.22
shape_rg10.89
total_rg12.51
total_atoms486
n_residues61
n_harmonics20
q_range— – 0.5000 −1
n_points101
shell_typedirectional
solvent_density0.3340 e/ų
contrast_shell0.0300 e/ų
crysol_version4.1.3

3. P(r) Analysis (GNOM)

dmax39.5
rg_real12.20
rg_real_error0.25
i0_real9.5980e+05
i0_real_error1.0860e+04
rg_reciprocal12.20
i0_reciprocal959800.0000
total_estimate0.8884
solution_quality GOOD a GOOD solution
n_peaks2
r_peak_primary15.0
skewness0.121
kurtosis-0.325
angular_range— – 0.5000 −1
current_alpha0.0000
highest_alpha137100.0000
n_real_points80
gnom_version4.1.3
quality_criteria AN1: 0.000; Oscil: 0.856; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.998; Smooth: 0.978

4. Crystallography & Experiment

5. Entities & Polymer Info (3)

6. Citations (3)

7. Files & Curves (10)
