1. Protein Identity and Related Structures Protein Identity & Related Structures

Subtilisin-chymotrypsin inhibitor-2A

Hordeum vulgare

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein homooligomer Homooligomer Protein × 12 PDB declaration: dodecameric（12） Consistent with protein copy count	Chain A； UniProt 21–84	Mutation：L49I, I57V	SO4 SULFATE ION × 24 GOL GLYCEROL × 12	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；pH 8；293 K；40 % (NH4)2SO4, 50 mM Tris-HCl, pH 8.0	Resolution 1.30 Å R-free 0.219

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 7AON	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
1CIQ COMPLEX OF TWO FRAGMENTS OF CI2, RESIDUES 1-40 AND 41-64 Deposited 1995-10-02	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 12 PDB declaration: dodecameric	Chain A 21–59（39 aa） Fragment：RESIDUES 1 - 40, 41 - 64 Chain B 60–83（24 aa） Fragment：RESIDUES 1 - 40, 41 - 64	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION mmCIF provides none of the parsed conditions	Resolution 2.20 Å
1CIQ COMPLEX OF TWO FRAGMENTS OF CI2, RESIDUES 1-40 AND 41-64 Deposited 1995-10-02	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 21–59（39 aa） Fragment：RESIDUES 1 - 40, 41 - 64 Chain B 60–83（24 aa） Fragment：RESIDUES 1 - 40, 41 - 64	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION mmCIF provides none of the parsed conditions	Resolution 2.20 Å
1CIR COMPLEX OF TWO FRAGMENTS OF CI2 [(1-40)(DOT)(41-64)] Deposited 1995-10-02	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 21–58（38 aa） Chain B 60–83（24 aa）	Non-standard monomer：Yes (specific site not provided by mmCIF)	No recorded non-water small molecule	SOLUTION NMR mmCIF provides none of the parsed conditions	Resolution not provided
1CIS CONTEXT DEPENDENCE OF PROTEIN SECONDARY STRUCTURE FORMATION. THE THREE-DIMENSIONAL STRUCTURE AND STABILITY OF A HYBRID BETWEEN CHYMOTRYPSIN INHIBITOR 2 AND HELIX E FROM SUBTILISIN CARLSBERG Deposited 1993-04-23	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 21–83（63 aa）	Not recorded	No recorded non-water small molecule	SOLUTION NMR mmCIF provides none of the parsed conditions	Resolution not provided
1COA THE EFFECT OF CAVITY CREATING MUTATIONS IN THE HYDROPHOBIC CORE OF CHYMOTRYPSIN INHIBITOR 2 Deposited 1993-05-14	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 12 PDB declaration: dodecameric	Chain I 21–83（63 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION mmCIF provides none of the parsed conditions	Resolution 2.20 Å
1CQ4 CI2 MUTANT WITH TETRAGLUTAMINE (MGQQQQGM) REPLACING MET59 Deposited 1998-11-17	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 4 PDB declaration: tetrameric	Chain A 21–59（39 aa） Chain B 60–83（24 aa）	Mutation：YES Mutation：YES	SO4 SULFATE ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions pH 7.5；DROPS WERE PREPARED BY MIXING 2 MICROLITERS OF PURIFIED DIMER AT 25MG/ML WITH AN EQUAL VOLUME OF BUFFER (30% W/V PEG-400, 1.0 M LITHIUM SULPHATE, AND 1 MM CALCIUM CHLORIDE, IN 0.1 M TRIS-HCL AT PH 7.5), WHICH WAS ALSO USED AS THE WELL BUFFER (1 ML).	Resolution 1.80 Å R-free 0.300
1CQ4 CI2 MUTANT WITH TETRAGLUTAMINE (MGQQQQGM) REPLACING MET59 Deposited 1998-11-17	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein homooligomer Homooligomer；Protein × 12 PDB declaration: dodecameric	Chain A 21–59（39 aa） Chain B 60–83（24 aa）	Mutation：YES Mutation：YES	SO4 SULFATE ION × 6	X-RAY DIFFRACTION X-ray crystallization conditions pH 7.5；DROPS WERE PREPARED BY MIXING 2 MICROLITERS OF PURIFIED DIMER AT 25MG/ML WITH AN EQUAL VOLUME OF BUFFER (30% W/V PEG-400, 1.0 M LITHIUM SULPHATE, AND 1 MM CALCIUM CHLORIDE, IN 0.1 M TRIS-HCL AT PH 7.5), WHICH WAS ALSO USED AS THE WELL BUFFER (1 ML).	Resolution 1.80 Å R-free 0.300
1CQ4 CI2 MUTANT WITH TETRAGLUTAMINE (MGQQQQGM) REPLACING MET59 Deposited 1998-11-17	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 3 Protein homooligomer Homooligomer；Protein × 24 PDB declaration: 24-meric	Chain A 21–59（39 aa） Chain B 60–83（24 aa）	Mutation：YES Mutation：YES	SO4 SULFATE ION × 12	X-RAY DIFFRACTION X-ray crystallization conditions pH 7.5；DROPS WERE PREPARED BY MIXING 2 MICROLITERS OF PURIFIED DIMER AT 25MG/ML WITH AN EQUAL VOLUME OF BUFFER (30% W/V PEG-400, 1.0 M LITHIUM SULPHATE, AND 1 MM CALCIUM CHLORIDE, IN 0.1 M TRIS-HCL AT PH 7.5), WHICH WAS ALSO USED AS THE WELL BUFFER (1 ML).	Resolution 1.80 Å R-free 0.300
1LW6 Crystal Structure of the Complex of Subtilisin BPN' with Chymotrypsin Inhibitor 2 at 1.5 Angstrom Resolution Deposited 2002-05-30	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain I 21–83（63 aa）	Mutation：E45A	CA CALCIUM ION × 1 SO4 SULFATE ION × 4	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；277 K；PEG 8000, ammonium sulfate, sodium cacodylate, pH 6.5, VAPOR DIFFUSION, HANGING DROP, temperature 277K	Resolution 1.50 Å R-free 0.188
1YPA DIRECT OBSERVATION OF BETTER HYDRATION AT THE N-TERMINUS OF AN ALPHA-HELIX WITH GLYCINE RATHER THAN ALANINE AS N-CAP Deposited 1993-01-10	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain I 21–83（63 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION mmCIF provides none of the parsed conditions	Resolution 2.00 Å
1YPB DIRECT OBSERVATION OF BETTER HYDRATION AT THE N-TERMINUS OF AN ALPHA-HELIX WITH GLYCINE RATHER THAN ALANINE AS N-CAP Deposited 1993-01-10	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain I 21–83（63 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION mmCIF provides none of the parsed conditions	Resolution 2.00 Å
1YPC DIRECT OBSERVATION OF BETTER HYDRATION AT THE N-TERMINUS OF AN ALPHA-HELIX WITH GLYCINE RATHER THAN ALANINE AS N-CAP Deposited 1993-01-10	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain I 21–83（63 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION mmCIF provides none of the parsed conditions	Resolution 1.70 Å
2CI2 CRYSTAL AND MOLECULAR STRUCTURE OF THE SERINE PROTEINASE INHIBITOR CI-2 FROM BARLEY SEEDS Deposited 1988-09-05	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 6 PDB declaration: hexameric	Chain I 5–83（79 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION mmCIF provides none of the parsed conditions	Resolution 2.00 Å
2SNI STRUCTURAL COMPARISON OF TWO SERINE PROTEINASE-PROTEIN INHIBITOR COMPLEXES. EGLIN-C-SUBTILISIN CARLSBERG AND CI-2-SUBTILISIN NOVO Deposited 1988-09-05	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain I 1–83（83 aa）	Not recorded	CA CALCIUM ION × 2	X-RAY DIFFRACTION mmCIF provides none of the parsed conditions	Resolution 2.10 Å
3CI2 REFINEMENT OF THE THREE-DIMENSIONAL SOLUTION STRUCTURE OF BARLEY SERINE PROTEINASE INHIBITOR 2 AND COMPARISON WITH THE STRUCTURES IN CRYSTALS Deposited 1991-09-10	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 18–83（66 aa）	Not recorded	No recorded non-water small molecule	SOLUTION NMR mmCIF provides none of the parsed conditions	Resolution not provided
5FBZ Structure of subtilase SubHal from Bacillus halmapalus - complex with chymotrypsin inhibitor CI2A Deposited 2015-12-14	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 13–84（72 aa） Fragment：UNP residues 13-84	Not recorded	CA CALCIUM ION × 3	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；291 K；Plate-like crystals were grown by hanging drop vapour diffusion with the drop consisting of 2 microliters of 15-20 mg/mL concentration protein, 10 mM sodium cacodylate in HCl buffer, pH 6.5 and 1 microliter of reservoir solution: 20% w/v PEG 4000, 0.1 M HEPES buffer, pH 7.5, 10% v/v isopropanol.	Resolution 1.90 Å R-free 0.181
5FBZ Structure of subtilase SubHal from Bacillus halmapalus - complex with chymotrypsin inhibitor CI2A Deposited 2015-12-14	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain D 13–84（72 aa） Fragment：UNP residues 13-84	Not recorded	CA CALCIUM ION × 3	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；291 K；Plate-like crystals were grown by hanging drop vapour diffusion with the drop consisting of 2 microliters of 15-20 mg/mL concentration protein, 10 mM sodium cacodylate in HCl buffer, pH 6.5 and 1 microliter of reservoir solution: 20% w/v PEG 4000, 0.1 M HEPES buffer, pH 7.5, 10% v/v isopropanol.	Resolution 1.90 Å R-free 0.181
5FFN Complex of subtilase SubTY from Bacillus sp. TY145 with chymotrypsin inhibitor CI2A Deposited 2015-12-18	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain I 13–84（72 aa）	Not recorded	CA CALCIUM ION × 2 NA SODIUM ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；291 K；Complex was concentrated to 45 mg/ml in 10 mM Tris, pH 7.0. 1 microliter of protein solution with 1 microliter of a reservoir solution containing 5.5 M sodium formate, 0.2 M imidazole-malate pH 6.5, and 200 mM NDSB 201.	Resolution 1.80 Å R-free 0.188
6QIY CI-2, conformation 1 Deposited 2019-01-21	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 12 PDB declaration: dodecameric	Chain A 20–84（65 aa） Fragment：UNP RESIDUES 20-84	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8.5；293 K；1.4 M AMMONIUM SULPHATE AND 100 MM TRIS-HCL PH 8.5, VAPOR DIFFUSION, SITTING DROP, TEMPERATURE 293K	Resolution 1.50 Å R-free 0.257
6QIZ CI-2, conformation 2 Deposited 2019-01-21	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 12 PDB declaration: dodecameric	Chain A 21–84（64 aa） Fragment：UNP RESIDUES 21-84	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8.5；293 K；25% PEG 3350, 100 MM TRIS-HCL PH 8.5 AND 200 MM LITHIUM SULPHATE, VAPOR DIFFUSION, SITTING DROP, TEMPERATURE 293K	Resolution 1.65 Å R-free 0.220
7A1H Crystal structure of wild-type CI2 Deposited 2020-08-13	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 12 PDB declaration: dodecameric	Chain A 22–84（63 aa）	Not recorded	SO4 SULFATE ION × 24	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8；293 K；40 % (NH4)2SO4, 50 mM Tris-Hcl, pH 8.0. Protein concentration app 75 mg/mL.	Resolution 1.90 Å R-free 0.254
7A3M Synergistic stabilization of a double mutant in CI2 from an in-cell library screen Deposited 2020-08-18	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 22–84（63 aa）	Mutation：I57V	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；40 % (NH4)2SO4, 50 mM Tris-HCl, pH 8.0	Resolution 1.01 Å R-free 0.181
7AOK Crystal structure of CI2 mutant L49I Deposited 2020-10-14	Different mutation/modification Different oligomeric state Different ligand/ion Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 21–84（64 aa）	Mutation：L49I	SO4 SULFATE ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8；293 K；40 % (NH4)2SO4, 50 mM Tris-HCl, pH 8.0	Resolution 1.87 Å R-free 0.246

19 other PDB entries and 23 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	ICI2_HORVU
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–64； UniProt 21–84

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	7aon
Deposition date deposition_date	2020-10-14
Structure title title	Crystal structure of CI2 double mutant L49I,I57V
Keywords keywords	Protease inhibitor, PROTEIN BINDING; PROTEIN BINDING
Experimental Method method	X-RAY DIFFRACTION

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	12.85 Å
Radius of gyration Rg (electron density) rg_electron	11.36 Å
Forward intensity I(0) i0	1266320.00
Molecular weight molecular_weight	7574.0 kDa
Excluded volume excluded_volume	9577 Å³
Envelope volume envelope_volume	10587 Å³
Hydration-shell volume shell_volume	8254 Å³
Envelope diameter envelope_diameter	41.7 Å
Shell Rg shell_rg	16.61 Å
Envelope Rg envelope_rg	11.79 Å
Shape Rg shape_rg	11.29 Å
Total Rg total_rg	12.95 Å
Total atoms total_atoms	528
Residues n_residues	64
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	43.7 Å
Rg (real space) rg_real	12.79 Å
Rg uncertainty (real space) rg_real_error	0.43 Å
I(0) (real space) i0_real	1.2660e+06
I(0) uncertainty (real space) i0_real_error	1.4940e+04
Rg (reciprocal space) rg_reciprocal	12.79 Å
I(0) (reciprocal space) i0_reciprocal	1266000.0000
Solution quality estimate total_estimate	0.8458
Solution quality rating solution_quality	GOOD a GOOD solution
P(r) peaks n_peaks	3
Primary peak position r_peak_primary	14.4 Å
Skewness Skewness skewness	0.180
Kurtosis Kurtosis kurtosis	-0.271
Angular range angular_range	— – 0.5000 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	233200.0000
Real-space data points n_real_points	80
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.705; Stabil: 0.981; Sysdev: 1.000; Positv: 1.000; Valcen: 0.998; Smooth: 0.933

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (4)

Entity 1 Entity 1 polymer

Description description	Subtilisin-chymotrypsin inhibitor-2A
Molecular weight formula_weight	7299.6 kDa
Mutation mutation	L49I, I57V
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	598

MKTEWPELVGKSVEEAKKVILQDKPEAQIIVLPVGTIVTMEYRIDRVRIFVDKLDNVAQVPRVG

来源 Source

来源生物 organism	Hordeum vulgare
通用名 common_name	Barley
NCBI Class编号 ncbi_taxonomy_id	4513
宿主生物 host_organism	Escherichia coli BL21(DE3)

Entity 2 Entity 2 non-polymer

Description description	SULFATE ION
Molecular weight formula_weight	96.1 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 3 Entity 3 non-polymer

Description description	GLYCEROL
Molecular weight formula_weight	92.1 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 4 Entity 4 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	59

▼

7. Fold Classification (SCOP + CATH) 1 domains

SCOP 2.08 (1 domains)

Domain ID domain_id	d7aona_
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.40 — CI-2 family of serine protease inhibitors
Superfamily Superfamily superfamily	d.40.1 — CI-2 family of serine protease inhibitors
Family Family family	d.40.1.1 — CI-2 family of serine protease inhibitors

▶

8. Citations (2)

▶

Unit-cell length a length_a	68.392 Å
Unit-cell length b length_b	68.392 Å
Unit-cell length c length_c	52.661 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	120.00 °
Molecules per unit cell Z z_pdb	12

Space group space_group	P 6 2 2
Space-group number int_tables_number	177
Crystal system crystal_system	—

Resolution resolution	1.300 Å
Low-resolution limit resolution_low	52.700 Å
R factor r_factor	0.1651
R_work r_work	0.1624
R_free r_free	0.2191

fit	/app/data/saxs_computation/ao/7aon/7aon.fit
pddf	/app/data/pr_computation/ao/7aon/7aon.pr.out
profile	/app/data/saxs_computation/ao/7aon/7aon.dat

Crystal structure of CI2 double mutant L49I,I57V

1. Protein Identity and Related Structures Protein Identity & Related Structures

Subtilisin-chymotrypsin inhibitor-2A

State in the Current Structure

Other States of the Same Protein in the Database

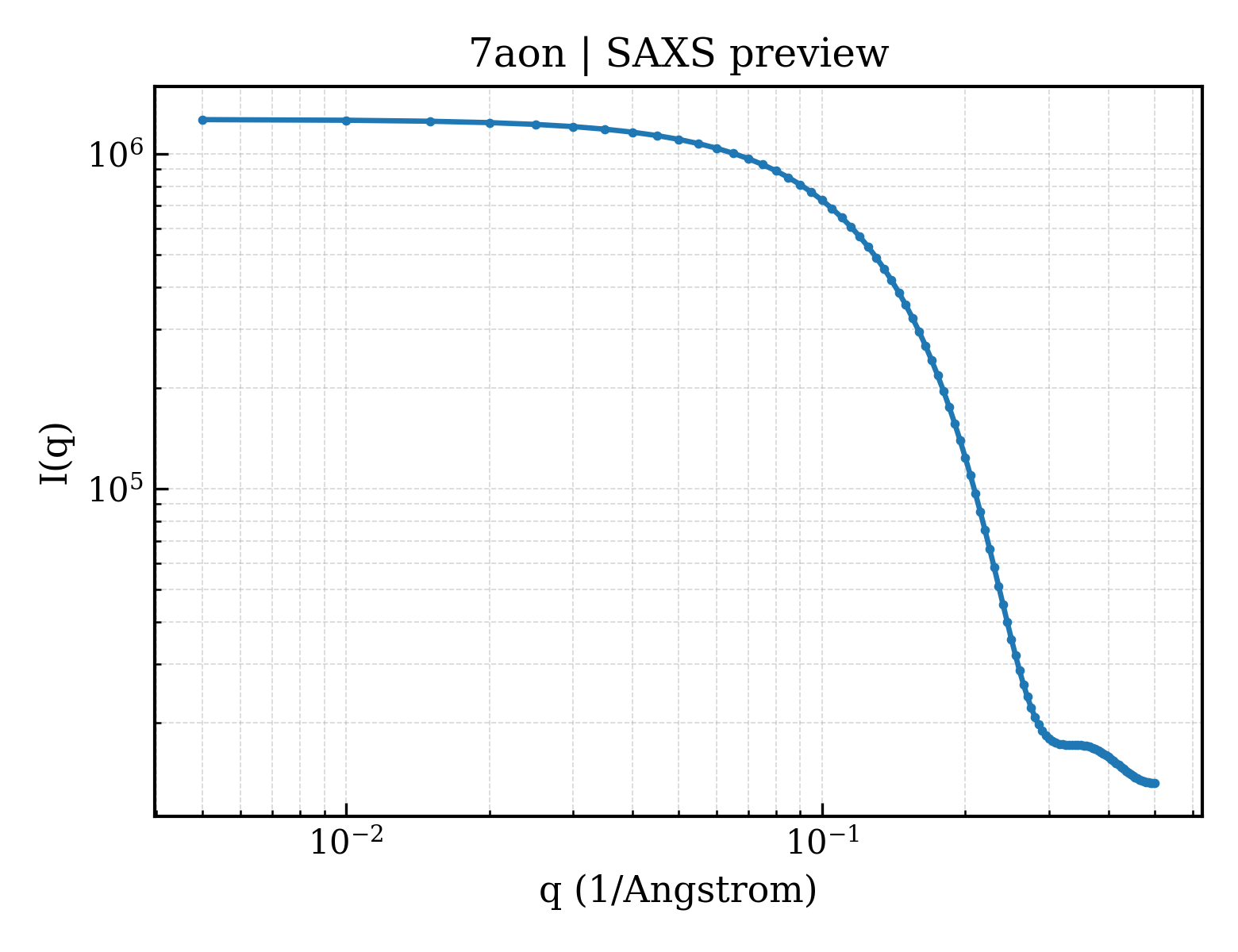

SAXS scattering curve SAXS Profile

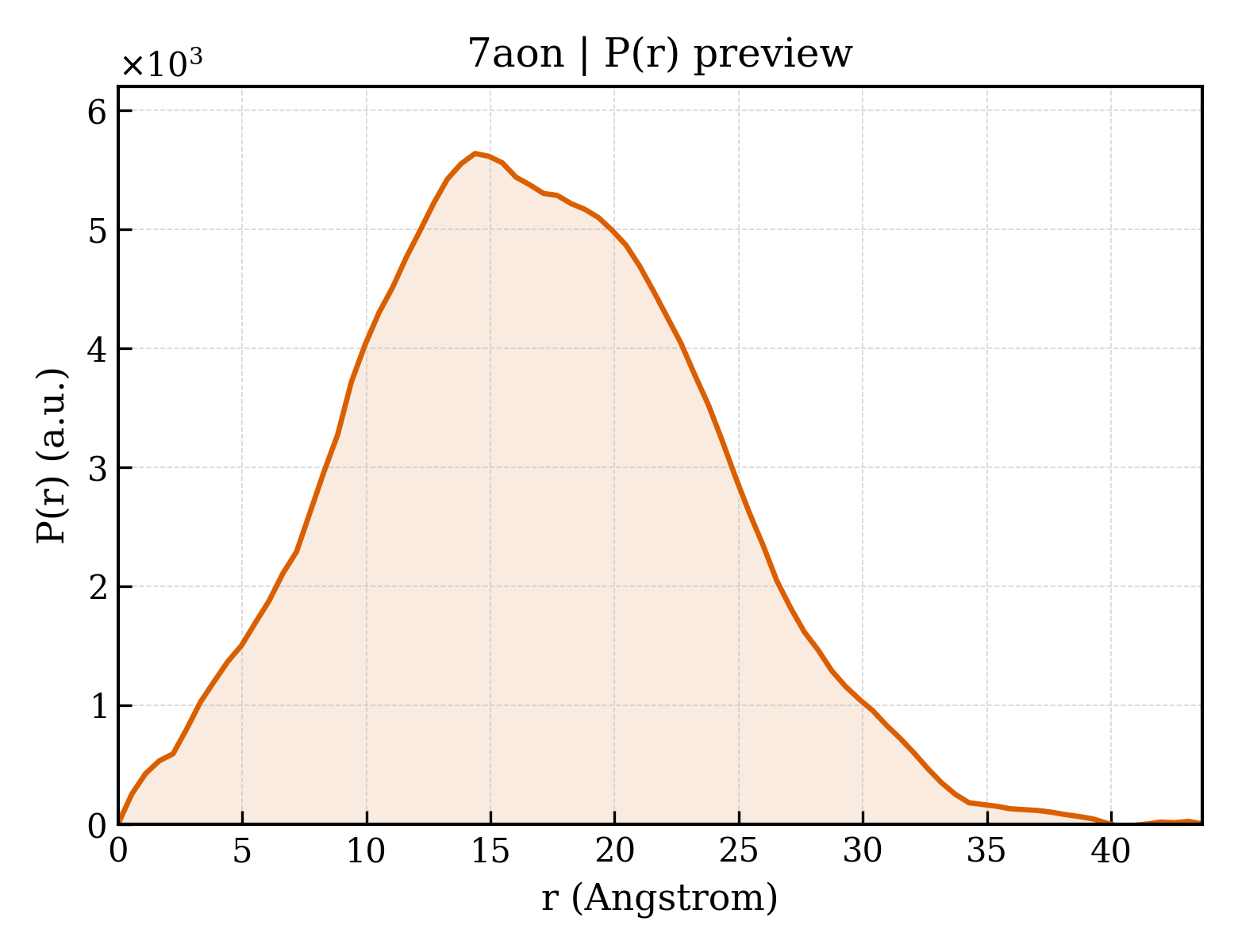

P(r) Distance Distribution P(r) Distribution
