1cok
STRUCTURE OF THE C-TERMINAL DOMAIN OF P73

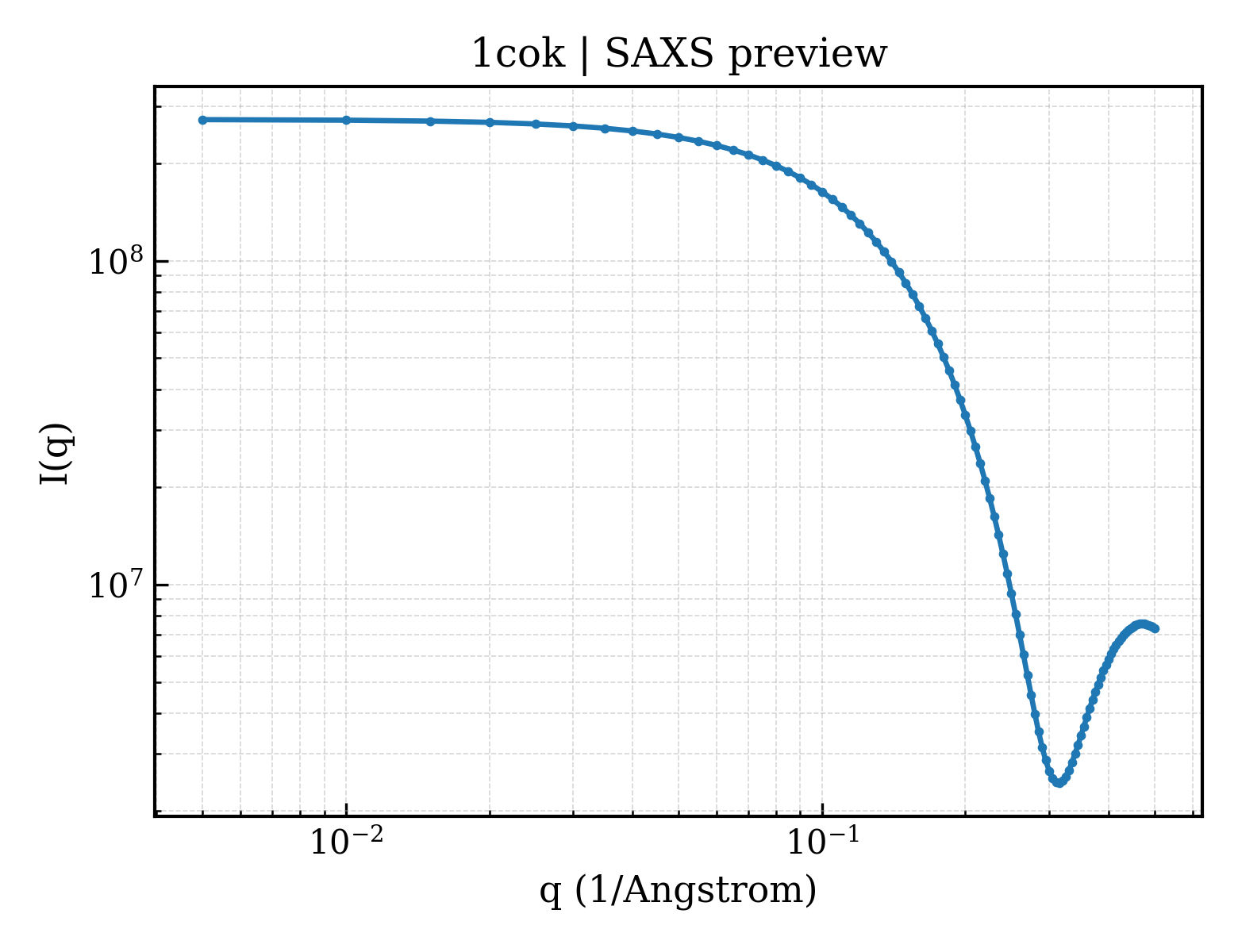

SAXS Profile

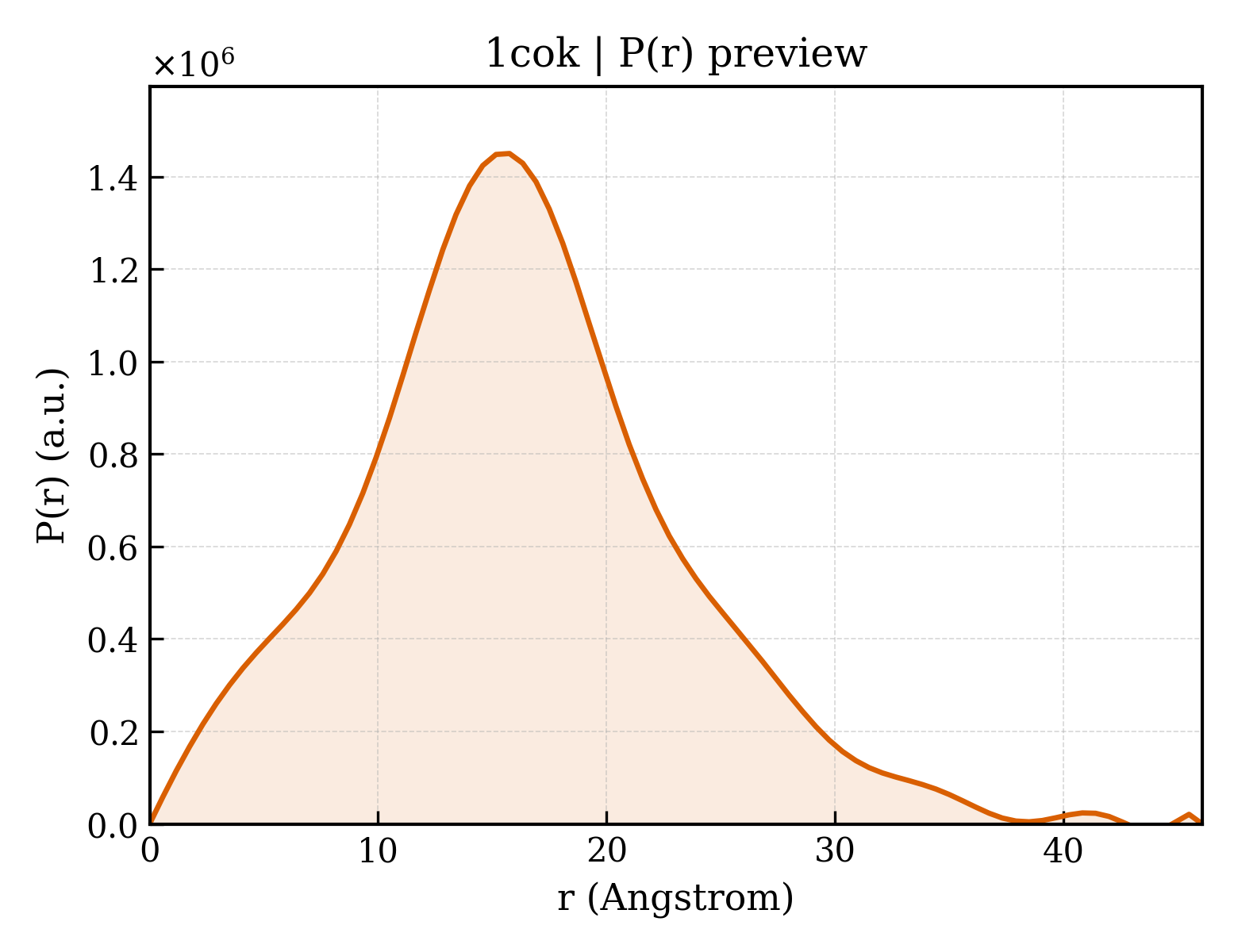

P(r) Distribution
1. Structure Basics
| entry_id | 1cok |
| deposition_date | 1999-05-28 |
| title | STRUCTURE OF THE C-TERMINAL DOMAIN OF P73 |
| keywords | P73 SAM-LIKE DOMAIN, GENE REGULATION; GENE REGULATION |
| method | SOLUTION NMR |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 12.40 Å |
| rg_electron | 11.95 Å |
| i0 | 273162000.00 |
| molecular_weight | 140380.0 kDa |
| excluded_volume | 175870 ų |
| envelope_volume | 25363 ų |
| shell_volume | 13614 ų |
| envelope_diameter | 54.4 Å |
| shell_rg | 21.94 Å |
| envelope_rg | 16.92 Å |
| shape_rg | 11.99 Å |
| total_rg | 12.14 Å |
| total_atoms | 19530 |
| n_residues | 1224 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 46.1 Å |
| rg_real | 12.39 Å |
| rg_real_error | 0.46 Å |
| i0_real | 2.7320e+08 |
| i0_real_error | 3.2510e+06 |
| rg_reciprocal | 12.39 Å |
| i0_reciprocal | 273200000.0000 |
| total_estimate | 0.6768 |
| solution_quality | REASONABLE a REASONABLE solution |
| n_peaks | 3 |
| r_peak_primary | 15.8 Å |
| skewness | 0.361 |
| kurtosis | 0.266 |
| angular_range | — – 0.5000 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 200500.0000 |
| n_real_points | 80 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.272; Stabil: 0.997; Sysdev: 1.000; Positv: 1.000; Valcen: 0.987; Smooth: 0.000 |
