1dxs
Crystal structure of the C-terminal sterile alpha motif (SAM) domain of human p73 alpha splice variant

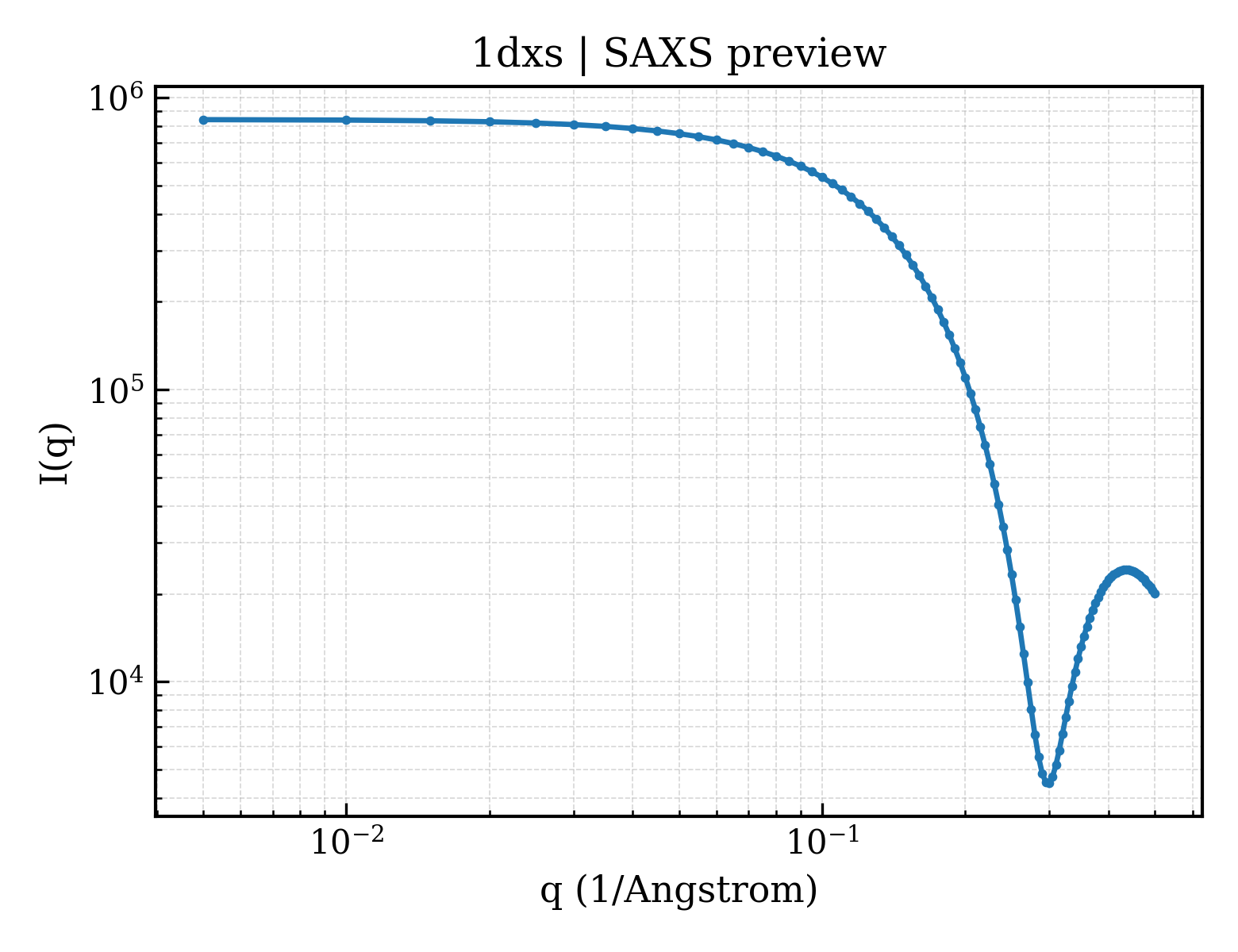

SAXS Profile

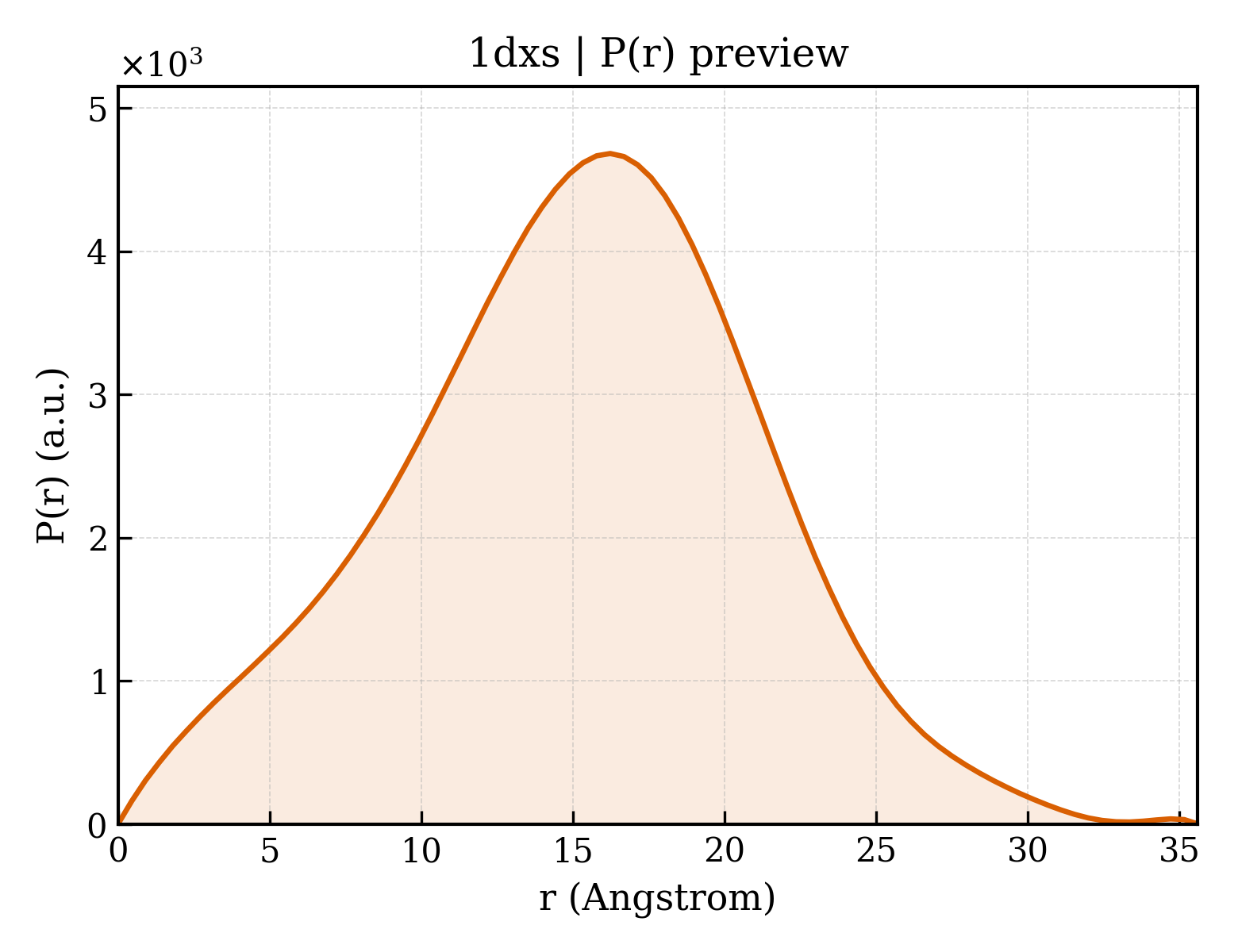

P(r) Distribution
1. Structure Basics
| entry_id | 1dxs |
| deposition_date | 2000-01-15 |
| title | Crystal structure of the C-terminal sterile alpha motif (SAM) domain of human p73 alpha splice variant |
| keywords | P73 SAM-LIKE DOMAIN, GENE REGULATION, P53 P63 HOMOLOGUE, STERILE ALPHA MOTIF, TUMOUR SUPRESSOR; GENE REGULATION |
| method | X-RAY DIFFRACTION |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 11.64 Å |
| rg_electron | 10.00 Å |
| i0 | 841387.00 |
| molecular_weight | 6268.0 kDa |
| excluded_volume | 7962 ų |
| envelope_volume | 8337 ų |
| shell_volume | 7352 ų |
| envelope_diameter | 33.3 Å |
| shell_rg | 15.24 Å |
| envelope_rg | 10.24 Å |
| shape_rg | 10.00 Å |
| total_rg | 11.52 Å |
| total_atoms | 441 |
| n_residues | 57 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 35.6 Å |
| rg_real | 11.53 Å |
| rg_real_error | 0.26 Å |
| i0_real | 8.4140e+05 |
| i0_real_error | 8.5960e+03 |
| rg_reciprocal | 11.53 Å |
| i0_reciprocal | 841400.0000 |
| total_estimate | 0.8619 |
| solution_quality | GOOD a GOOD solution |
| n_peaks | 2 |
| r_peak_primary | 16.2 Å |
| skewness | -0.062 |
| kurtosis | -0.212 |
| angular_range | — – 0.5000 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 271800.0000 |
| n_real_points | 80 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.751; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.969; Smooth: 0.981 |
