1d9p
SOLUTION STRUCTURE OF CECROPIN A(1-8)-MAGAININ 2(1-12) HYBRID PEPTIDE ANALOGUE(P4)
SAXS Profile
P(r) Distribution
1. Structure Basics
| entry_id | 1d9p |
| deposition_date | 1999-10-29 |
| title | SOLUTION STRUCTURE OF CECROPIN A(1-8)-MAGAININ 2(1-12) HYBRID PEPTIDE ANALOGUE(P4) |
| keywords | HELIX-HINGE-HELIX, MEMBRANE PROTEIN; MEMBRANE PROTEIN |
| method | SOLUTION NMR |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 10.22 Å |
| rg_electron | 11.14 Å |
| i0 | 19432200.00 |
| molecular_weight | 46761.0 kDa |
| excluded_volume | 63604 ų |
| envelope_volume | 16621 ų |
| shell_volume | 10209 ų |
| envelope_diameter | 45.1 Å |
| shell_rg | 19.44 Å |
| envelope_rg | 14.94 Å |
| shape_rg | 11.05 Å |
| total_rg | 12.30 Å |
| total_atoms | 7320 |
| n_residues | 400 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |

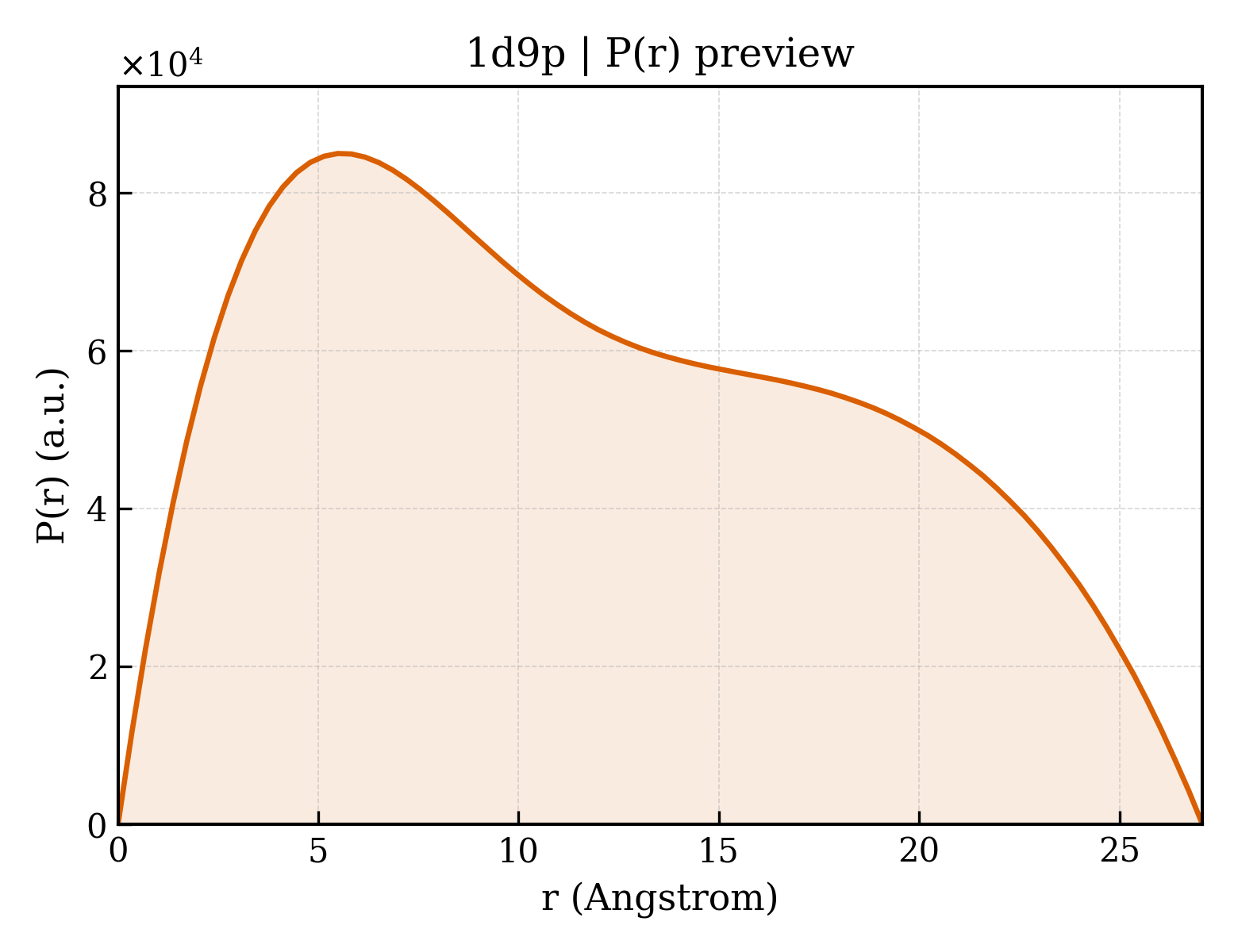

3. P(r) Analysis (GNOM)
| dmax | 27.1 Å |
| rg_real | 9.54 Å |
| rg_real_error | 0.05 Å |
| i0_real | 1.8570e+07 |
| i0_real_error | 1.4060e+05 |
| rg_reciprocal | 10.49 Å |
| i0_reciprocal | 19430000.0000 |
| total_estimate | 0.5668 |
| solution_quality | REASONABLE a REASONABLE solution |
| n_peaks | 1 |
| r_peak_primary | 5.5 Å |
| skewness | 0.293 |
| kurtosis | -1.003 |
| angular_range | — – 0.5000 Å−1 |
| current_alpha | 4.8550 |
| highest_alpha | 1393.0000 |
| n_real_points | 80 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.001; Oscil: 0.794; Stabil: 0.945; Sysdev: 0.000; Positv: 1.000; Valcen: 0.152; Smooth: 0.000 |
