1f0e
Cecropin A(1-8)-magainin 2(1-12) modified gig to P in dodecylphosphocholine micelles
SAXS Profile
P(r) Distribution
1. Structure Basics
| entry_id | 1f0e |
| deposition_date | 2000-05-16 |
| title | Cecropin A(1-8)-magainin 2(1-12) modified gig to P in dodecylphosphocholine micelles |
| keywords | Helix-Turn-Helix, ANTIMICROBIAL PROTEIN; ANTIMICROBIAL PROTEIN |
| method | SOLUTION NMR |
Download Data

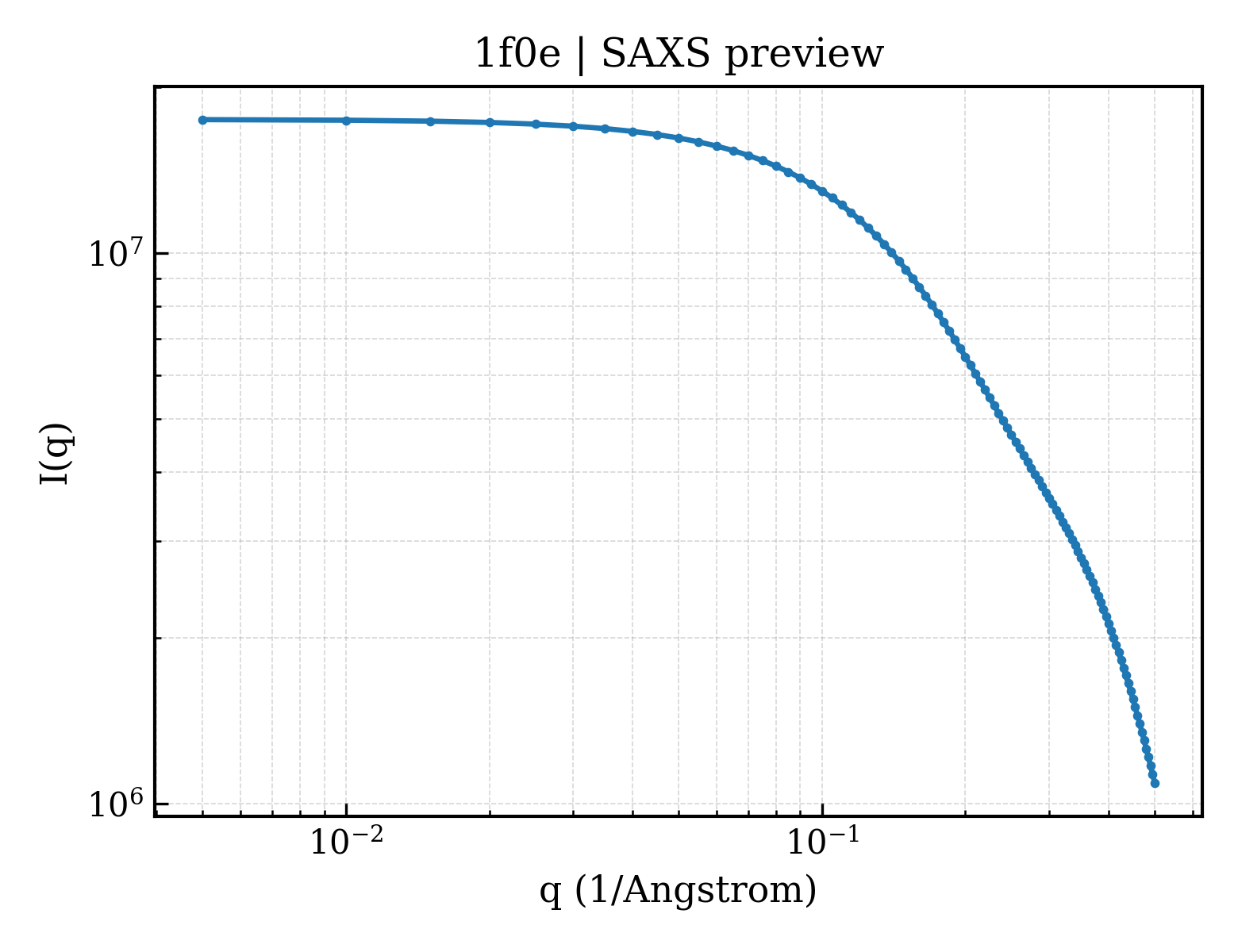

2. SAXS Parameters (CRYSOL)
| rg_guinier | 9.45 Å |
| rg_electron | 10.13 Å |
| i0 | 17496100.00 |
| molecular_weight | 45619.0 kDa |
| excluded_volume | 62051 ų |
| envelope_volume | 11078 ų |
| shell_volume | 8268 ų |
| envelope_diameter | 44.6 Å |
| shell_rg | 17.17 Å |
| envelope_rg | 12.60 Å |
| shape_rg | 10.10 Å |
| total_rg | 10.82 Å |
| total_atoms | 7040 |
| n_residues | 360 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |

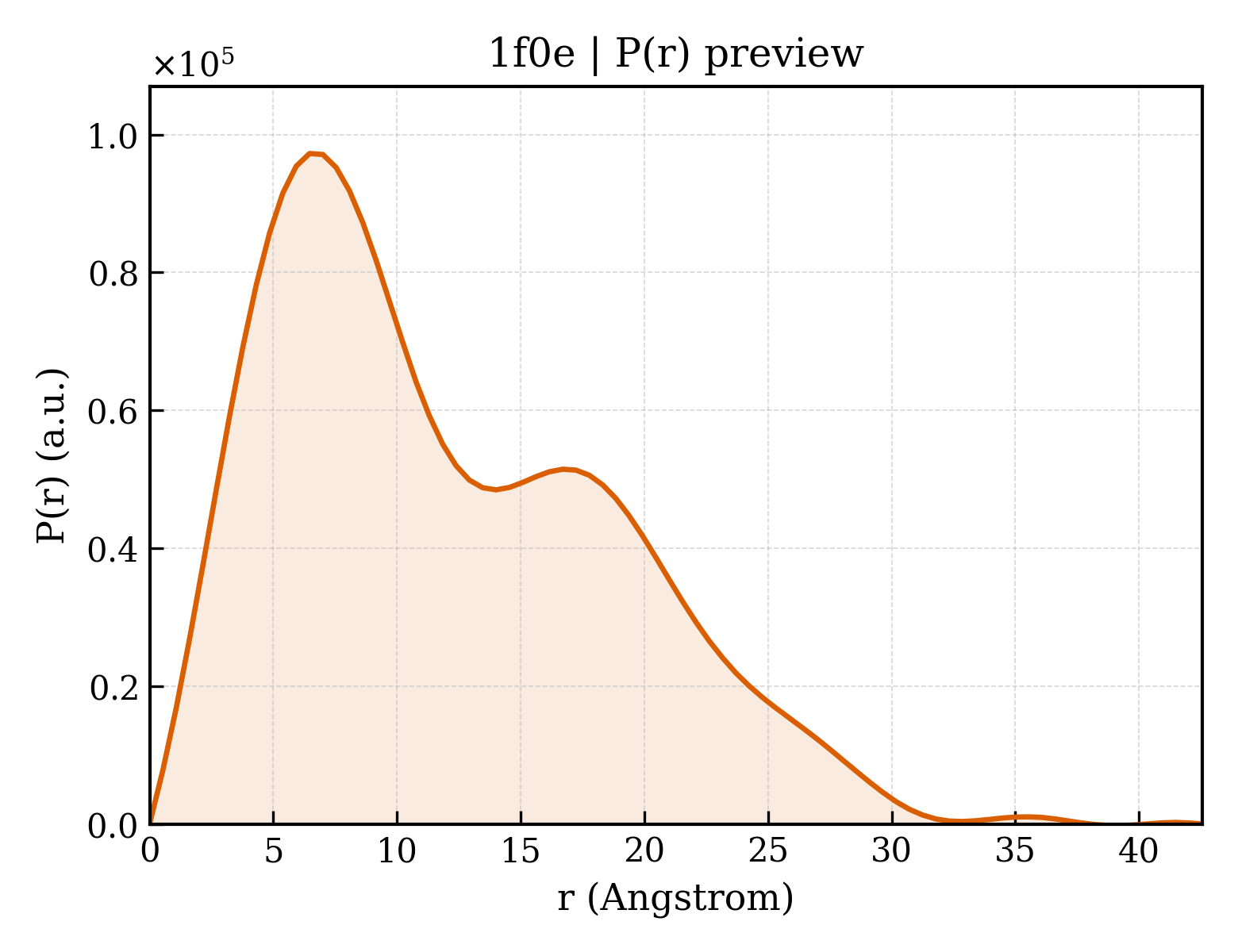

3. P(r) Analysis (GNOM)
| dmax | 42.6 Å |
| rg_real | 9.70 Å |
| rg_real_error | 0.81 Å |
| i0_real | 1.7500e+07 |
| i0_real_error | 2.4350e+05 |
| rg_reciprocal | 9.69 Å |
| i0_reciprocal | 17500000.0000 |
| total_estimate | 0.6232 |
| solution_quality | REASONABLE a REASONABLE solution |
| n_peaks | 4 |
| r_peak_primary | 6.5 Å |
| skewness | 0.616 |
| kurtosis | -0.359 |
| angular_range | — – 0.5000 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 2903.0000 |
| n_real_points | 80 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.036; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.000; Smooth: 0.989 |
