SAXSdb — 1f0h

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

CECROPIN A-MAGAININ 2 HYBRID PEPTIDE

OrganismNot specified

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Insufficient information Monomer Protein × 1 PDB declaration: monomeric（1） Consistent with protein copy count	Chain A； UniProt 27–34	Mutation：A28L Non-standard monomer：Yes (specific site not provided by mmCIF)	No other associated polymer	SOLUTION NMR NMR measurement conditions：pH 4.05；298 K NMR sample composition：DODECYLPHOSPHOCHOLINE-d38 MICELLES \| 90% H2O/10% D2O	Resolution not provided

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 1F0H	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
1D9J SOLUTION STRUCTURE OF CECROPIN A(1-8)-MAGAININ 2(1-12) HYBRID PEPTIDE Deposited 1999-10-28	Different mutation/modification Different experimental conditions	Assembly 1 Insufficient information Monomer；Protein × 1 PDB declaration: monomeric	Chain A 27–34（8 aa）	Non-standard monomer：Yes (specific site not provided by mmCIF)	No recorded non-water small molecule	SOLUTION NMR NMR measurement conditions pH 4.06；298 K；Pressure 1 NMR sample composition 2MM PEPTIDE; 90MM DPC MICELLES; 90% H2O, 10% D2O NMR sample composition 2MM PEPTIDE; 90MM DPC MICELLES; D2O	Resolution not provided
1D9L SOLUTION STRUCTURE OF CECROPIN A(1-8)-MAGAININ 2 HYBRID PEPTIDE ANALOGUE(P1) Deposited 1999-10-28	Different mutation/modification Different experimental conditions	Assembly 1 Insufficient information Monomer；Protein × 1 PDB declaration: monomeric	Chain A 27–34（8 aa）	Non-standard monomer：Yes (specific site not provided by mmCIF)	No recorded non-water small molecule	SOLUTION NMR NMR measurement conditions pH 4.29；303 K；Pressure 1 NMR measurement conditions pH 4.29；298 K；Pressure 1 NMR sample composition 2MM PEPTIDE; 90MM DPC MICELLES; 90% H2O, 10% D2O NMR sample composition 2MM PEPTIDE; 90MM DPC MICELLES; D2O	Resolution not provided
1D9M SOLUTION STRUCTURE OF CECROPIN A(1-8)-MAGAININ 2 HYBRID PEPTIDE ANALOGUE(P2) Deposited 1999-10-28	Different mutation/modification Different experimental conditions	Assembly 1 Insufficient information Monomer；Protein × 1 PDB declaration: monomeric	Chain A 27–34（8 aa）	Non-standard monomer：Yes (specific site not provided by mmCIF)	No recorded non-water small molecule	SOLUTION NMR NMR measurement conditions pH 4.78；303 K；Pressure 1 NMR measurement conditions pH 4.78；298 K；Pressure 1 NMR measurement conditions pH 4.78；318 K；Pressure 1 NMR sample composition 2MM PEPTIDE; 90MM DPC MICELLES; 90% H2O, 10% D2O NMR sample composition 2MM PEPTIDE; 90MM DPC MICELLES; D2O	Resolution not provided
1D9O SOLUTION STRUCTURE OF CECROPIN A(1-8)-MAGAININ 2(1-12) HYBRID PEPTIDE ANALOGUE(P3) Deposited 1999-10-29	Different mutation/modification Different experimental conditions	Assembly 1 Insufficient information Monomer；Protein × 1 PDB declaration: monomeric	Chain A 27–34（8 aa）	Non-standard monomer：Yes (specific site not provided by mmCIF)	No recorded non-water small molecule	SOLUTION NMR NMR measurement conditions pH 4.05；303 K；Pressure 1 NMR measurement conditions pH 4.05；298 K；Pressure 1 NMR measurement conditions pH 4.05；318 K；Pressure 1 NMR sample composition 2MM PEPTIDE; 90MM DPC MICELLES; 90% H2O, 10% D2O NMR sample composition 2MM PEPTIDE; 90MM DPC MICELLES; D2O	Resolution not provided
1D9P SOLUTION STRUCTURE OF CECROPIN A(1-8)-MAGAININ 2(1-12) HYBRID PEPTIDE ANALOGUE(P4) Deposited 1999-10-29	Different mutation/modification Different experimental conditions	Assembly 1 Insufficient information Monomer；Protein × 1 PDB declaration: monomeric	Chain A 27–34（8 aa）	Non-standard monomer：Yes (specific site not provided by mmCIF)	No recorded non-water small molecule	SOLUTION NMR NMR measurement conditions pH 3.64；298 K；Pressure 1 NMR measurement conditions pH 3.64；313 K；Pressure 1 NMR sample composition 2MM PEPTIDE; 90MM DPC MICELLES; 90% H2O, 10% D2O NMR sample composition 2MM PEPTIDE; 90MM DPC MICELLES; D2O	Resolution not provided
1F0D Cecropin A(1-8)-magainin 2(1-12) in dodecylphosphocholine micelles Deposited 2000-05-16	Different mutation/modification Different experimental conditions	Assembly 1 Insufficient information Monomer；Protein × 1 PDB declaration: monomeric	Chain A 27–34（8 aa）	Non-standard monomer：Yes (specific site not provided by mmCIF)	No recorded non-water small molecule	SOLUTION NMR NMR measurement conditions pH 4.06；298 K NMR sample composition DODECYLPHOSPHOCHOLINE-d38 MICELLES \| 90% H2O/10% D2O	Resolution not provided
1F0E Cecropin A(1-8)-magainin 2(1-12) modified gig to P in dodecylphosphocholine micelles Deposited 2000-05-16	Different mutation/modification Different experimental conditions	Assembly 1 Insufficient information Monomer；Protein × 1 PDB declaration: monomeric	Chain A 27–34（8 aa）	Mutation：GIG TO P IN MAGAININ SEGMENT Non-standard monomer：Yes (specific site not provided by mmCIF)	No recorded non-water small molecule	SOLUTION NMR NMR measurement conditions pH 4.78；298 K NMR sample composition DODECYLPHOSPHOCHOLINE-d38 MICELLES \| 90% H2O/10% D2O	Resolution not provided
1F0F Cecropin A(1-8)-magainin 2(1-12) gig deletion modification in dodecylphosphocholine micelles Deposited 2000-05-16	Different mutation/modification Different experimental conditions	Assembly 1 Insufficient information Monomer；Protein × 1 PDB declaration: monomeric	Chain A 27–34（8 aa）	Mutation：GIG DELETION IN MAGAININ SEGMENT Non-standard monomer：Yes (specific site not provided by mmCIF)	No recorded non-water small molecule	SOLUTION NMR NMR measurement conditions pH 4.29；298 K NMR sample composition DODECYLPHOSPHOCHOLINE-d38 MICELLES \| 90% H2O/10% D2O	Resolution not provided
1F0G Cecropin A(1-8)-magainin 2(1-12) L2 in dodecylphosphocholine micelles Deposited 2000-05-16	Different mutation/modification Different experimental conditions	Assembly 1 Insufficient information Monomer；Protein × 1 PDB declaration: monomeric	Chain A 27–34（8 aa）	Mutation：W28L Non-standard monomer：Yes (specific site not provided by mmCIF)	No recorded non-water small molecule	SOLUTION NMR NMR measurement conditions pH 3.64；298 K NMR sample composition DODECYLPHOSPHOCHOLINE-d38 MICELLES \| 90% H2O/10% D2O	Resolution not provided

9 other PDB entries and 9 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	CECA_HYACE
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–8； UniProt 27–34

CECROPIN A-MAGAININ 2 HYBRID PEPTIDE

OrganismNot specified

UniProt P11006

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Insufficient information Monomer Protein × 1 PDB declaration: monomeric（1） Consistent with protein copy count	Chain A； UniProt 83–94	Mutation：A28L Non-standard monomer：Yes (specific site not provided by mmCIF)	No other associated polymer	SOLUTION NMR NMR measurement conditions：pH 4.05；298 K NMR sample composition：DODECYLPHOSPHOCHOLINE-d38 MICELLES \| 90% H2O/10% D2O	Resolution not provided

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 1F0H	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
1D9J SOLUTION STRUCTURE OF CECROPIN A(1-8)-MAGAININ 2(1-12) HYBRID PEPTIDE Deposited 1999-10-28	Different construct Different mutation/modification Different experimental conditions	Assembly 1 Insufficient information Monomer；Protein × 1 PDB declaration: monomeric	Chain A 129–140（12 aa）	Non-standard monomer：Yes (specific site not provided by mmCIF)	No recorded non-water small molecule	SOLUTION NMR NMR measurement conditions pH 4.06；298 K；Pressure 1 NMR sample composition 2MM PEPTIDE; 90MM DPC MICELLES; 90% H2O, 10% D2O NMR sample composition 2MM PEPTIDE; 90MM DPC MICELLES; D2O	Resolution not provided
1D9L SOLUTION STRUCTURE OF CECROPIN A(1-8)-MAGAININ 2 HYBRID PEPTIDE ANALOGUE(P1) Deposited 1999-10-28	Different construct Different mutation/modification Different experimental conditions	Assembly 1 Insufficient information Monomer；Protein × 1 PDB declaration: monomeric	Chain A 224–232（9 aa）	Non-standard monomer：Yes (specific site not provided by mmCIF)	No recorded non-water small molecule	SOLUTION NMR NMR measurement conditions pH 4.29；303 K；Pressure 1 NMR measurement conditions pH 4.29；298 K；Pressure 1 NMR sample composition 2MM PEPTIDE; 90MM DPC MICELLES; 90% H2O, 10% D2O NMR sample composition 2MM PEPTIDE; 90MM DPC MICELLES; D2O	Resolution not provided
1D9M SOLUTION STRUCTURE OF CECROPIN A(1-8)-MAGAININ 2 HYBRID PEPTIDE ANALOGUE(P2) Deposited 1999-10-28	Different construct Different mutation/modification Different experimental conditions	Assembly 1 Insufficient information Monomer；Protein × 1 PDB declaration: monomeric	Chain A 223–232（10 aa）	Non-standard monomer：Yes (specific site not provided by mmCIF)	No recorded non-water small molecule	SOLUTION NMR NMR measurement conditions pH 4.78；303 K；Pressure 1 NMR measurement conditions pH 4.78；298 K；Pressure 1 NMR measurement conditions pH 4.78；318 K；Pressure 1 NMR sample composition 2MM PEPTIDE; 90MM DPC MICELLES; 90% H2O, 10% D2O NMR sample composition 2MM PEPTIDE; 90MM DPC MICELLES; D2O	Resolution not provided
1D9O SOLUTION STRUCTURE OF CECROPIN A(1-8)-MAGAININ 2(1-12) HYBRID PEPTIDE ANALOGUE(P3) Deposited 1999-10-29	Different construct Different mutation/modification Different experimental conditions	Assembly 1 Insufficient information Monomer；Protein × 1 PDB declaration: monomeric	Chain A 129–140（12 aa）	Non-standard monomer：Yes (specific site not provided by mmCIF)	No recorded non-water small molecule	SOLUTION NMR NMR measurement conditions pH 4.05；303 K；Pressure 1 NMR measurement conditions pH 4.05；298 K；Pressure 1 NMR measurement conditions pH 4.05；318 K；Pressure 1 NMR sample composition 2MM PEPTIDE; 90MM DPC MICELLES; 90% H2O, 10% D2O NMR sample composition 2MM PEPTIDE; 90MM DPC MICELLES; D2O	Resolution not provided
1D9P SOLUTION STRUCTURE OF CECROPIN A(1-8)-MAGAININ 2(1-12) HYBRID PEPTIDE ANALOGUE(P4) Deposited 1999-10-29	Different construct Different mutation/modification Different experimental conditions	Assembly 1 Insufficient information Monomer；Protein × 1 PDB declaration: monomeric	Chain A 129–140（12 aa）	Non-standard monomer：Yes (specific site not provided by mmCIF)	No recorded non-water small molecule	SOLUTION NMR NMR measurement conditions pH 3.64；298 K；Pressure 1 NMR measurement conditions pH 3.64；313 K；Pressure 1 NMR sample composition 2MM PEPTIDE; 90MM DPC MICELLES; 90% H2O, 10% D2O NMR sample composition 2MM PEPTIDE; 90MM DPC MICELLES; D2O	Resolution not provided
1DUM NMR STRUCTURE OF [F5Y, F16W] MAGAININ 2 BOUND TO PHOSPHOLIPID VESICLES Deposited 2000-01-18	Different construct Different mutation/modification Different oligomeric state Different experimental conditions	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 129–151（23 aa） Chain B 129–151（23 aa）	Mutation：F5Y, F16W Mutation：F5Y, F16W	No recorded non-water small molecule	SOLUTION NMR NMR measurement conditions pH 5.2；318 K；Ionic strength (raw mmCIF value) 50mM；Pressure ambient NMR sample composition 5mM [F5Y, F16W] magainin 2, 0.5mM DLPC-d64 \| 90% H2O/10% D2O	Resolution not provided
1F0D Cecropin A(1-8)-magainin 2(1-12) in dodecylphosphocholine micelles Deposited 2000-05-16	Different mutation/modification Different experimental conditions	Assembly 1 Insufficient information Monomer；Protein × 1 PDB declaration: monomeric	Chain A 83–94（12 aa）	Non-standard monomer：Yes (specific site not provided by mmCIF)	No recorded non-water small molecule	SOLUTION NMR NMR measurement conditions pH 4.06；298 K NMR sample composition DODECYLPHOSPHOCHOLINE-d38 MICELLES \| 90% H2O/10% D2O	Resolution not provided
1F0E Cecropin A(1-8)-magainin 2(1-12) modified gig to P in dodecylphosphocholine micelles Deposited 2000-05-16	Different construct Different mutation/modification Different experimental conditions	Assembly 1 Insufficient information Monomer；Protein × 1 PDB declaration: monomeric	Chain A 86–94（9 aa）	Mutation：GIG TO P IN MAGAININ SEGMENT Non-standard monomer：Yes (specific site not provided by mmCIF)	No recorded non-water small molecule	SOLUTION NMR NMR measurement conditions pH 4.78；298 K NMR sample composition DODECYLPHOSPHOCHOLINE-d38 MICELLES \| 90% H2O/10% D2O	Resolution not provided
1F0F Cecropin A(1-8)-magainin 2(1-12) gig deletion modification in dodecylphosphocholine micelles Deposited 2000-05-16	Different construct Different mutation/modification Different experimental conditions	Assembly 1 Insufficient information Monomer；Protein × 1 PDB declaration: monomeric	Chain A 86–94（9 aa）	Mutation：GIG DELETION IN MAGAININ SEGMENT Non-standard monomer：Yes (specific site not provided by mmCIF)	No recorded non-water small molecule	SOLUTION NMR NMR measurement conditions pH 4.29；298 K NMR sample composition DODECYLPHOSPHOCHOLINE-d38 MICELLES \| 90% H2O/10% D2O	Resolution not provided
1F0G Cecropin A(1-8)-magainin 2(1-12) L2 in dodecylphosphocholine micelles Deposited 2000-05-16	Different mutation/modification Different experimental conditions	Assembly 1 Insufficient information Monomer；Protein × 1 PDB declaration: monomeric	Chain A 83–94（12 aa）	Mutation：W28L Non-standard monomer：Yes (specific site not provided by mmCIF)	No recorded non-water small molecule	SOLUTION NMR NMR measurement conditions pH 3.64；298 K NMR sample composition DODECYLPHOSPHOCHOLINE-d38 MICELLES \| 90% H2O/10% D2O	Resolution not provided
2LSA Magainin Deposited 2012-04-24	Different construct Different mutation/modification Different oligomeric state Different experimental conditions	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 83–105（23 aa）	Not recorded	No recorded non-water small molecule	SOLUTION NMR NMR measurement conditions pH 7.2；298 K；Ionic strength (raw mmCIF value) 105；Pressure ambient NMR sample composition 1 mM magainin, 5 mM TRIS, 0.05 % TSP, 100 mM [U-2H] SDS, 90% H2O/10% D2O \| 90% H2O/10% D2O	Resolution not provided
2MAG NMR STRUCTURE OF MAGAININ 2 IN DPC MICELLES, 10 STRUCTURES Deposited 1997-12-19	Different construct Different mutation/modification Different oligomeric state Different experimental conditions	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 267–289（23 aa）	Non-standard monomer：Yes (specific site not provided by mmCIF)	No recorded non-water small molecule	SOLUTION NMR NMR measurement conditions pH 4.1；303 K	Resolution not provided
4MGP Structure of racemic Ala-(8,13,18) Magainin 2 Deposited 2013-08-28	Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 83–105（23 aa） Fragment：UNP residues 83-105	Mutation：S8A, G13A, G18A	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.6；298 K；Precipitant solution contained 0.1 M sodium citrate tribasic, pH 5.6, and 35% v/v tert-butanol. No additional cryoprotectant was necessary for vitrification of crystals in LN2, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 1.75 Å R-free 0.233
9HVN Atomic resolution crystal structure of the hexameric antimicrobial peptide Magainin-2 Deposited 2024-12-31	Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 6 PDB declaration: hexameric	Chain A 83–105（23 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；293 K；35% MPD, 20 mM HEPES, pH 7	Resolution 1.05 Å R-free 0.177
9HVN Atomic resolution crystal structure of the hexameric antimicrobial peptide Magainin-2 Deposited 2024-12-31	Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 2 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 83–105（23 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；293 K；35% MPD, 20 mM HEPES, pH 7	Resolution 1.05 Å R-free 0.177

14 other PDB entries and 15 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	MAGA_XENLA
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 9–20； UniProt 83–94

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1f0h
Deposition date deposition_date	2000-05-16
Structure title title	Cecropin A(1-8)-magainin 2(1-12) A2 in dodecylphosphocholine micelles
Keywords keywords	Helix, ANTIMICROBIAL PROTEIN; ANTIMICROBIAL PROTEIN
Experimental Method method	SOLUTION NMR

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	11.25 Å
Radius of gyration Rg (electron density) rg_electron	11.84 Å
Forward intensity I(0) i0	19476500.00
Molecular weight molecular_weight	45919.0 kDa
Excluded volume excluded_volume	61999 Å³
Envelope volume envelope_volume	12935 Å³
Hydration-shell volume shell_volume	8577 Å³
Envelope diameter envelope_diameter	54.8 Å
Shell Rg shell_rg	18.63 Å
Envelope Rg envelope_rg	14.88 Å
Shape Rg shape_rg	11.77 Å
Total Rg total_rg	12.68 Å
Total atoms total_atoms	7140
Residues n_residues	400
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	29.8 Å
Rg (real space) rg_real	10.52 Å
Rg uncertainty (real space) rg_real_error	0.06 Å
I(0) (real space) i0_real	1.8690e+07
I(0) uncertainty (real space) i0_real_error	1.4380e+05
Rg (reciprocal space) rg_reciprocal	11.56 Å
I(0) (reciprocal space) i0_reciprocal	19480000.0000
Solution quality estimate total_estimate	0.5725
Solution quality rating solution_quality	REASONABLE a REASONABLE solution
P(r) peaks n_peaks	1
Primary peak position r_peak_primary	6.8 Å
Skewness Skewness skewness	0.333
Kurtosis Kurtosis kurtosis	-1.004
Angular range angular_range	— – 0.5000 Å⁻¹
Current regularization parameter α current_alpha	2.8030
Highest regularization parameter α highest_alpha	2472.0000
Real-space data points n_real_points	80
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.002; Oscil: 0.801; Stabil: 0.963; Sysdev: 0.000; Positv: 1.000; Valcen: 0.153; Smooth: 0.000

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (1)

▼

7. Fold Classification (SCOP + CATH) 1 domains

SCOP 2.08 (1 domains)

Domain ID domain_id	d1f0ha_
Class class	j — Peptides
Fold Fold fold	j.4 — Antimicrobial helix
Superfamily Superfamily superfamily	j.4.1 — Antimicrobial helix
Family Family family	j.4.1.1 — Magainin

▶

8. Citations (1)

▶

Unit-cell length a length_a	1.000 Å
Unit-cell length b length_b	1.000 Å
Unit-cell length c length_c	1.000 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	1

Space group space_group	P 1
Space-group number int_tables_number	1
Crystal system crystal_system	—

Description description	CECROPIN A-MAGAININ 2 HYBRID PEPTIDE
Molecular weight formula_weight	2295.9 kDa
Mutation mutation	A28L
Source method src_method	syn
Copy count entity_count	1

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	7140

fit	/app/data/saxs_computation/f0/1f0h/1f0h.fit
pddf	/app/data/pr_computation/f0/1f0h/1f0h.pr.out
profile	/app/data/saxs_computation/f0/1f0h/1f0h.dat

Cecropin A(1-8)-magainin 2(1-12) A2 in dodecylphosphocholine micelles

1. Protein Identity and Related Structures Protein Identity & Related Structures

CECROPIN A-MAGAININ 2 HYBRID PEPTIDE

State in the Current Structure

Other States of the Same Protein in the Database

CECROPIN A-MAGAININ 2 HYBRID PEPTIDE

State in the Current Structure

Other States of the Same Protein in the Database

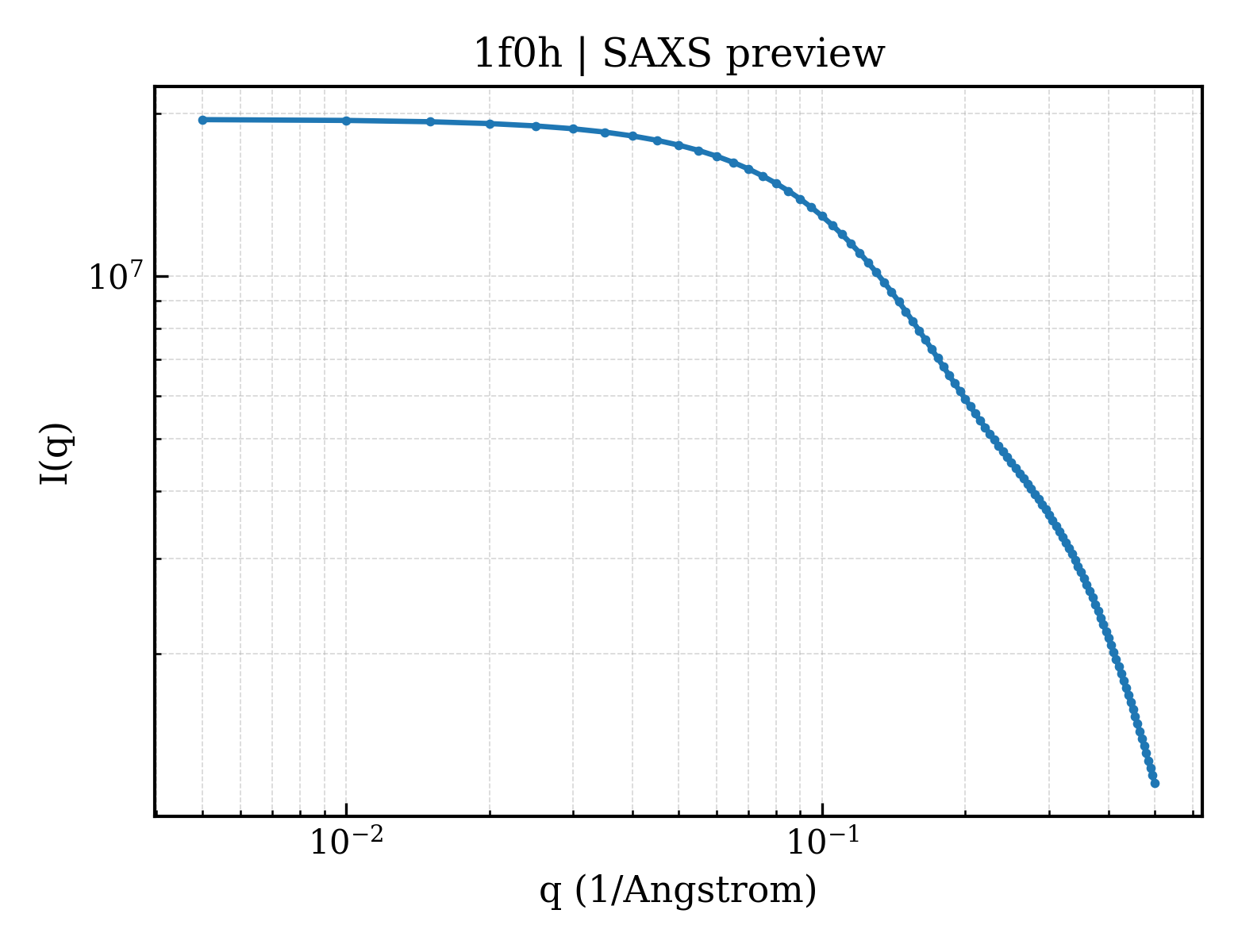

SAXS scattering curve SAXS Profile

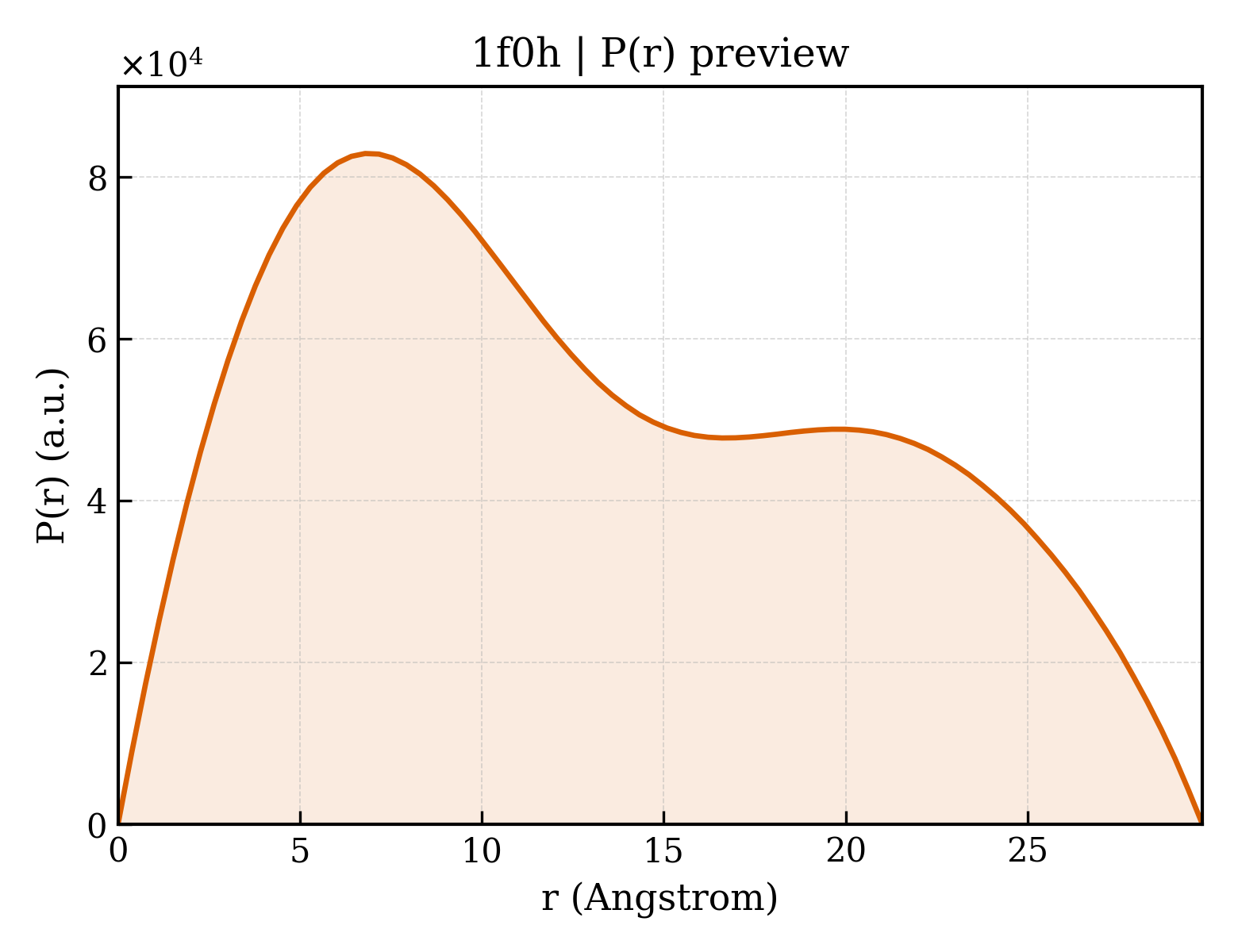

P(r) Distance Distribution P(r) Distribution
