1dvz
CRYSTAL STRUCTURE OF HUMAN TRANSTHYRETIN IN COMPLEX WITH O-TRIFLUOROMETHYLPHENYL ANTHRANILIC ACID
SAXS Profile

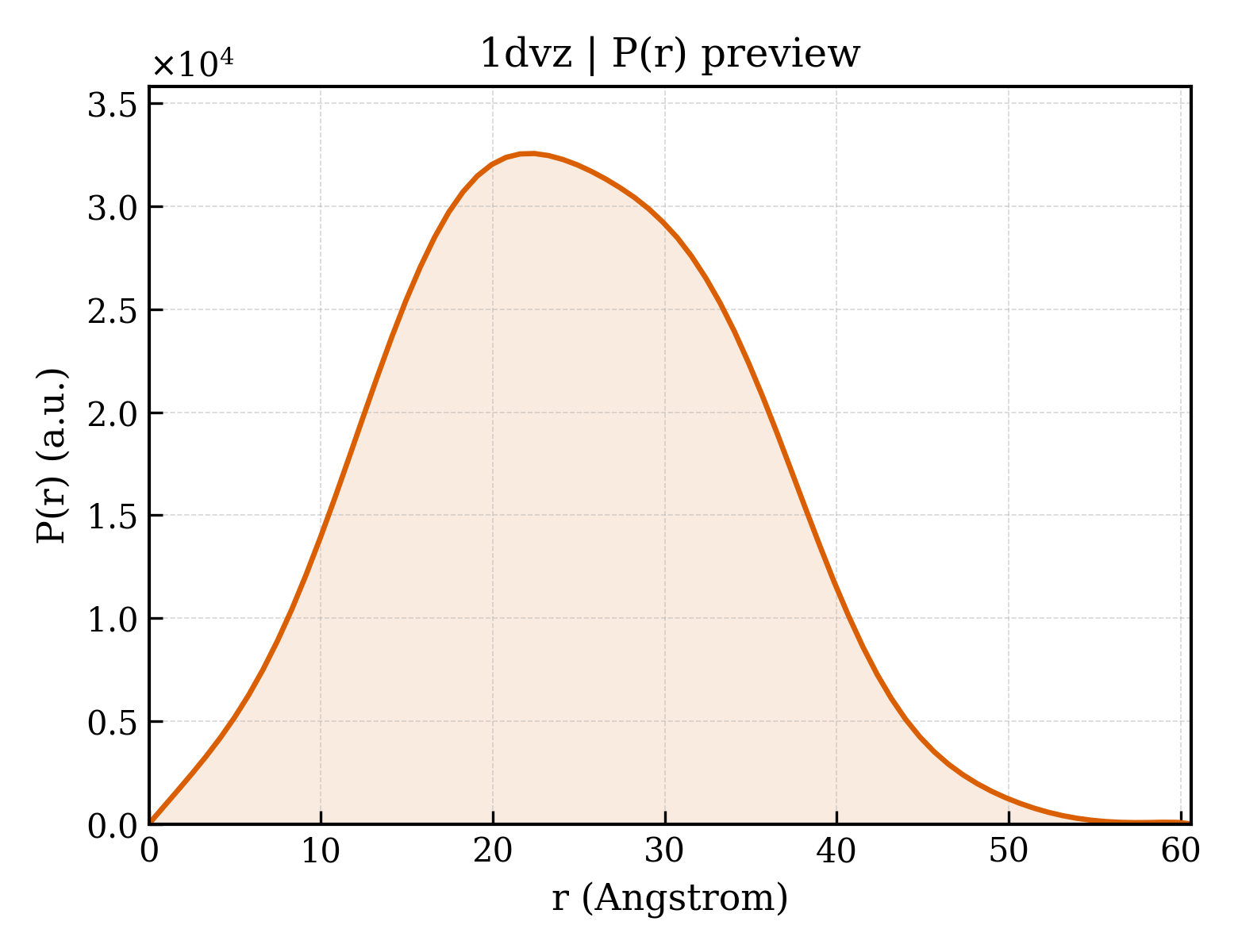

P(r) Distribution
1. Structure Basics
| entry_id | 1dvz |
| deposition_date | 2000-01-23 |
| title | CRYSTAL STRUCTURE OF HUMAN TRANSTHYRETIN IN COMPLEX WITH O-TRIFLUOROMETHYLPHENYL ANTHRANILIC ACID |
| keywords | THYROXINE TRANSPORT, SIGNALING PROTEIN, HORMONE-GROWTH FACTOR COMPLEX; HORMONE/GROWTH FACTOR |
| method | X-RAY DIFFRACTION |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 18.79 Å |
| rg_electron | 17.44 Å |
| i0 | 11147300.00 |
| molecular_weight | 25324.0 kDa |
| excluded_volume | 31818 ų |
| envelope_volume | 36225 ų |
| shell_volume | 17429 ų |
| envelope_diameter | 61.5 Å |
| shell_rg | 23.54 Å |
| envelope_rg | 17.58 Å |
| shape_rg | 17.40 Å |
| total_rg | 18.50 Å |
| total_atoms | 1791 |
| n_residues | 229 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 60.6 Å |
| rg_real | 18.67 Å |
| rg_real_error | 0.32 Å |
| i0_real | 1.1150e+07 |
| i0_real_error | 1.3630e+05 |
| rg_reciprocal | 18.69 Å |
| i0_reciprocal | 11150000.0000 |
| total_estimate | 0.8892 |
| solution_quality | GOOD a GOOD solution |
| n_peaks | 2 |
| r_peak_primary | 22.4 Å |
| skewness | 0.128 |
| kurtosis | -0.442 |
| angular_range | — – 0.4250 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 2564000.0000 |
| n_real_points | 74 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.853; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.995; Smooth: 1.000 |
