1etb
;THE X-RAY CRYSTAL STRUCTURE REFINEMENTS OF NORMAL HUMAN TRANSTHYRETIN AND THE AMYLOIDOGENIC VAL 30-->MET VARIANT TO 1.7 ANGSTROMS RESOLUTION ;

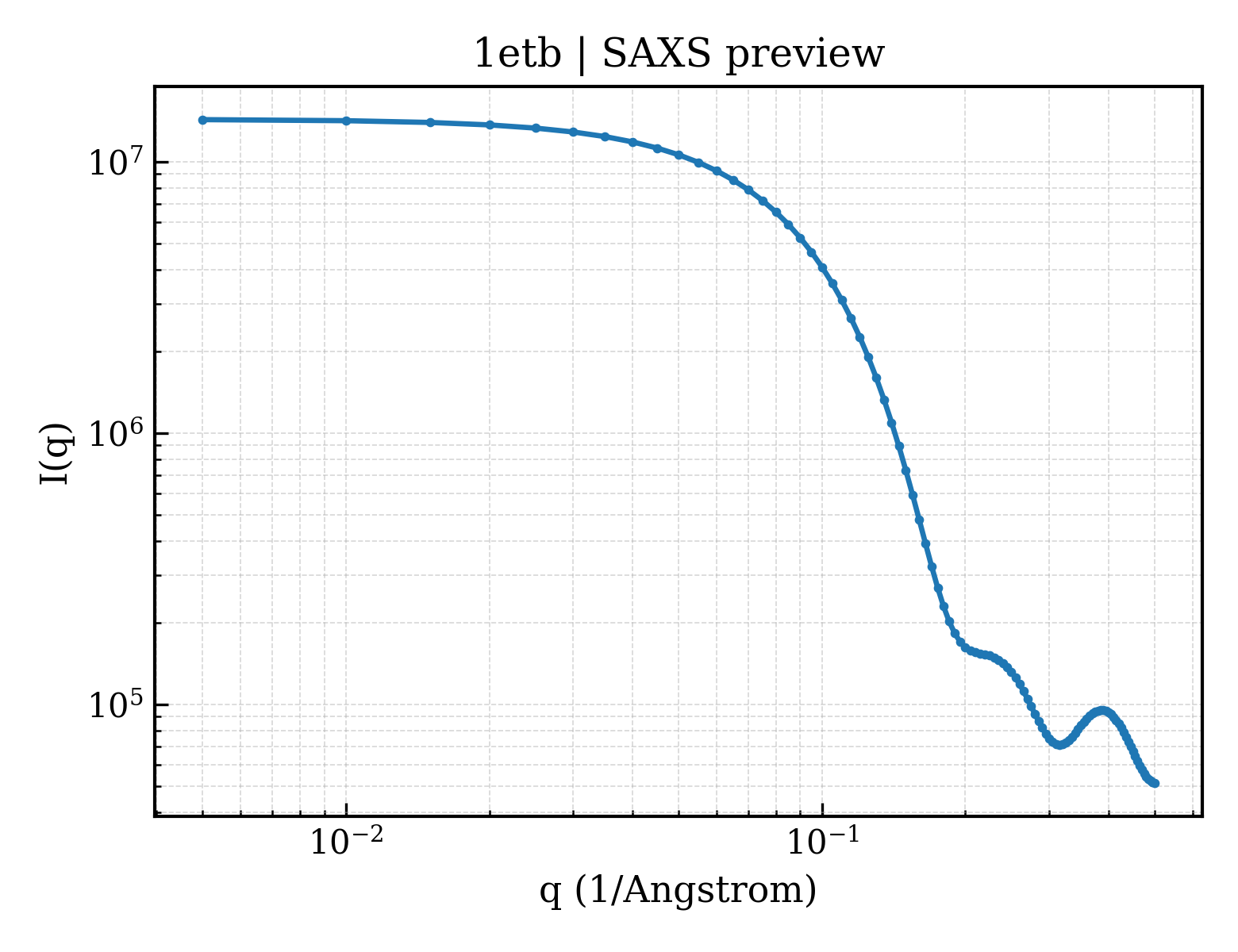

SAXS Profile
P(r) Distribution
1. Structure Basics
| entry_id | 1etb |
| deposition_date | 1993-05-12 |
| title | ;THE X-RAY CRYSTAL STRUCTURE REFINEMENTS OF NORMAL HUMAN TRANSTHYRETIN AND THE AMYLOIDOGENIC VAL 30-->MET VARIANT TO 1.7 ANGSTROMS RESOLUTION ; |
| keywords | TRANSPORT(THYROXINE); TRANSPORT(THYROXINE) |
| method | X-RAY DIFFRACTION |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 19.02 Å |
| rg_electron | 17.81 Å |
| i0 | 14329500.00 |
| molecular_weight | 27159.0 kDa |
| excluded_volume | 33095 ų |
| envelope_volume | 38597 ų |
| shell_volume | 18105 ų |
| envelope_diameter | 61.5 Å |
| shell_rg | 23.93 Å |
| envelope_rg | 18.03 Å |
| shape_rg | 17.79 Å |
| total_rg | 18.72 Å |
| total_atoms | 1859 |
| n_residues | 235 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 61.8 Å |
| rg_real | 18.90 Å |
| rg_real_error | 0.30 Å |
| i0_real | 1.4330e+07 |
| i0_real_error | 1.6560e+05 |
| rg_reciprocal | 18.92 Å |
| i0_reciprocal | 14330000.0000 |
| total_estimate | 0.8848 |
| solution_quality | GOOD a GOOD solution |
| n_peaks | 2 |
| r_peak_primary | 22.3 Å |
| skewness | 0.150 |
| kurtosis | -0.387 |
| angular_range | — – 0.4200 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 1998000.0000 |
| n_real_points | 73 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.841; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.997; Smooth: 0.977 |
