1dzc
High resolution structure of acidic fibroblast growth factor. Mutant FGF-4-ALA-(24-154), 24 NMR structures

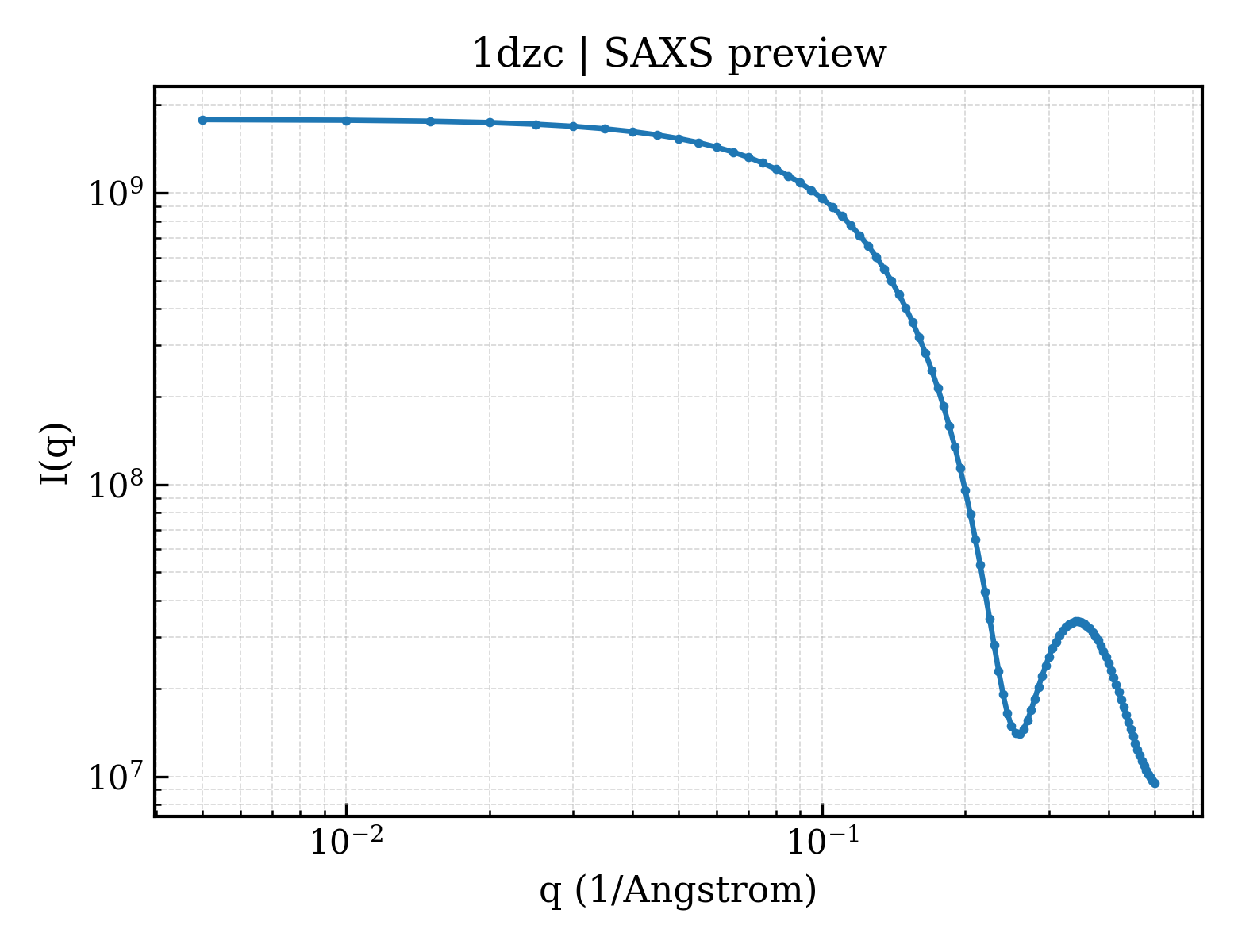

SAXS Profile

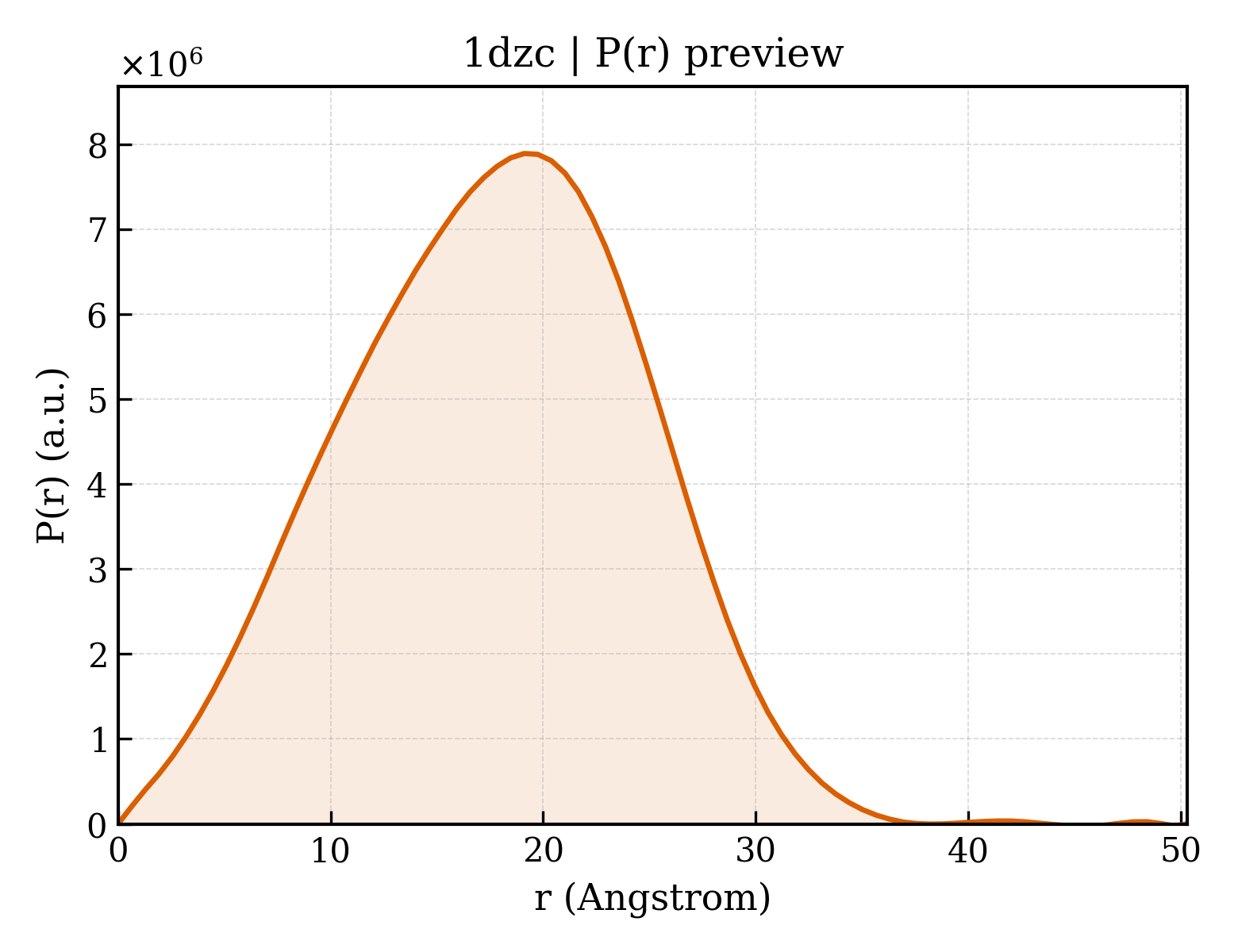

P(r) Distribution
1. Structure Basics
| entry_id | 1dzc |
| deposition_date | 2000-02-24 |
| title | High resolution structure of acidic fibroblast growth factor. Mutant FGF-4-ALA-(24-154), 24 NMR structures |
| keywords | GROWTH FACTOR, CELL CYCLE, ANTITUMORAL; CELL CYCLE |
| method | SOLUTION NMR |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 13.52 Å |
| rg_electron | 13.20 Å |
| i0 | 1783220000.00 |
| molecular_weight | 351900.0 kDa |
| excluded_volume | 436980 ų |
| envelope_volume | 28362 ų |
| shell_volume | 15467 ų |
| envelope_diameter | 47.8 Å |
| shell_rg | 21.54 Å |
| envelope_rg | 15.31 Å |
| shape_rg | 13.20 Å |
| total_rg | 13.33 Å |
| total_atoms | 24792 |
| n_residues | 3144 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 50.3 Å |
| rg_real | 13.39 Å |
| rg_real_error | 0.47 Å |
| i0_real | 1.7830e+09 |
| i0_real_error | 2.1370e+07 |
| rg_reciprocal | 13.40 Å |
| i0_reciprocal | 1783000000.0000 |
| total_estimate | 0.7238 |
| solution_quality | REASONABLE a REASONABLE solution |
| n_peaks | 3 |
| r_peak_primary | 19.1 Å |
| skewness | -0.060 |
| kurtosis | -0.476 |
| angular_range | — – 0.5000 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 521600.0000 |
| n_real_points | 80 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.475; Stabil: 0.999; Sysdev: 1.000; Positv: 1.000; Valcen: 0.982; Smooth: 0.000 |
